- 20″ x 4″ Kenda cast alloy fat tires with better torsional stiffness compared to spoked rims. More rigid in construction, better handling abilities, and highly resistant to chemicals and corrosion.
- The sleek craftsmanship and the hidden cables, which gives the frame a very clean, sleek appearance.
- The built-in battery design helps maintain capacity and can reduce mechanical failures in even the most extreme weather conditions.
- Suitable for use in more scenarios and can be easily placed in the trunk of a car, bringing more fun to travel.
- HYDRAULIC Disc Brakes for maximum stopping power!
- Recommended for riders 5'2" - 6'4"
- Custom produced for us by Himiway
SPECIFICATIONS
SPECIFICATIONS
|
FRAME |
6061 Aircraft Aluminum Alloy |
| MOTOR |
750W (Unrestricted) w/1100W Peak |
| BATTERY |
Samsung/LG 48V 14Ah (672WH) |
| iPAS RANGE |
Up to 80km with single battery* |
| CHARGER |
54V 3 Amp Smart FastCharger |
| CHARGE TIME | 4-5 Hours |
| CONTROLLER | 48V 22A |
| DISPLAY |
Large LCD Smart Display |
| BRAKES |
180mm HYRDRAULIC Disc |
| BRAKE LEVER |
Aluminum Alloy Comfort Grip |
| FRONT FORK |
Suspension Fork |
| REAR SUSPENSION |
Rigid |
| FREEWHEEL |

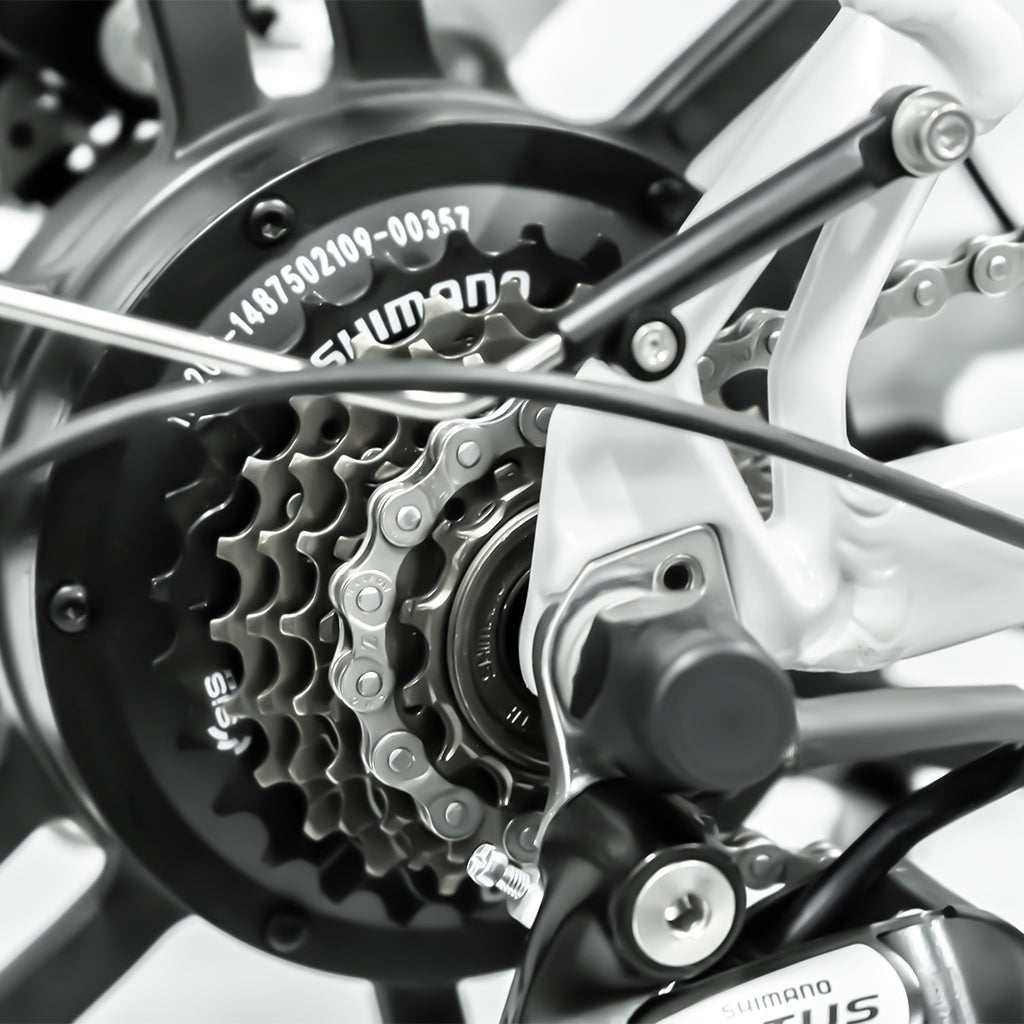

Shimano Altus 7-Speed |
| RIDE MODES |
Responsive On Demand THUMB Throttle |
| THROTTLE |
On Demand Thumb Throttle |
| PEDAL ASSIST |
0-5 Level Intelligent Pedal Assist |
| CRANK |
170mm Forged Alloy |
| SEAT POST |
Diameter 30.4mm length 300mm |
| GEARING |
Shimano 14-28T |
| STEM |
Foldable |
| LED HEADLIGHT |
Integrated LED Headlight |
| LED TAIL LIGHT |
Integrated Tail Light |
| FENDERS |
Durable ABS Full Coverage |
| NET WEIGHT |
33KG (73lbs) (Including Battery) |
| WEIGHT CAPACITY |
150KG (330lbs) |
| RIDER HEIGHT | Recommended for riders 5'2" - 6'4" |
| FOLDED MEASUREMENTS | 47.2" (L) x 21.6" (W) x 31.5(H) |
*Range estimate is based on estimated use at Level 1 PAS. Range is not guaranteed and will vary depending on terrain, weight of rider & cargo, weather conditions, etc.
**Rebel Fold ships as a Class 2 ebike, with pedal assist and throttle going up to 32km/h. If you are riding on private property or in an area without ebike speed restrictions, the speed limit can be modified in the settings, and the motor can be unlocked to go even faster. Rebel Fold can also operate with the throttle easily unplugged and removed, should you want to ride in an area where throttles are not allowed (Class 1).
Pics may vary slightly from the actual production model.
MEASUREMENTS
WHAT'S INCLUDED?
Your Rebel FOLD comes 95% pre-assembled.
☑️ 3A FastCharger
☑️ Bell
☑️ Tool Kit
☑️ Heavy Duty Kickstand
☑️ Set of keys for battery
PLUS FREE ACCESSORIES:
☑️ LED Headlight + Tail Light + Brake Light
☑️ Full Coverage ABS Fenders
☑️ Rear Luggage Rack
WARRANTY
LIFETIME FRAME WARRANTY!
We offer an industry leading warranty on all Alter Ego Electric Bikes. For complete warranty details, click here.
PACKING
This is how your Rebel Fold will come packed:
COMPARE WITH OTHER BRANDS
USER MANUALS
| User Manual |  |
| LCD Display Manual | |
