✪ OPTIONAL DUAL BATTERY FOR UP TO 220KM RANGE ✪
✪ FULL SUSPENSION ✪
✪ HYDRAULIC DISC BRAKES ✪

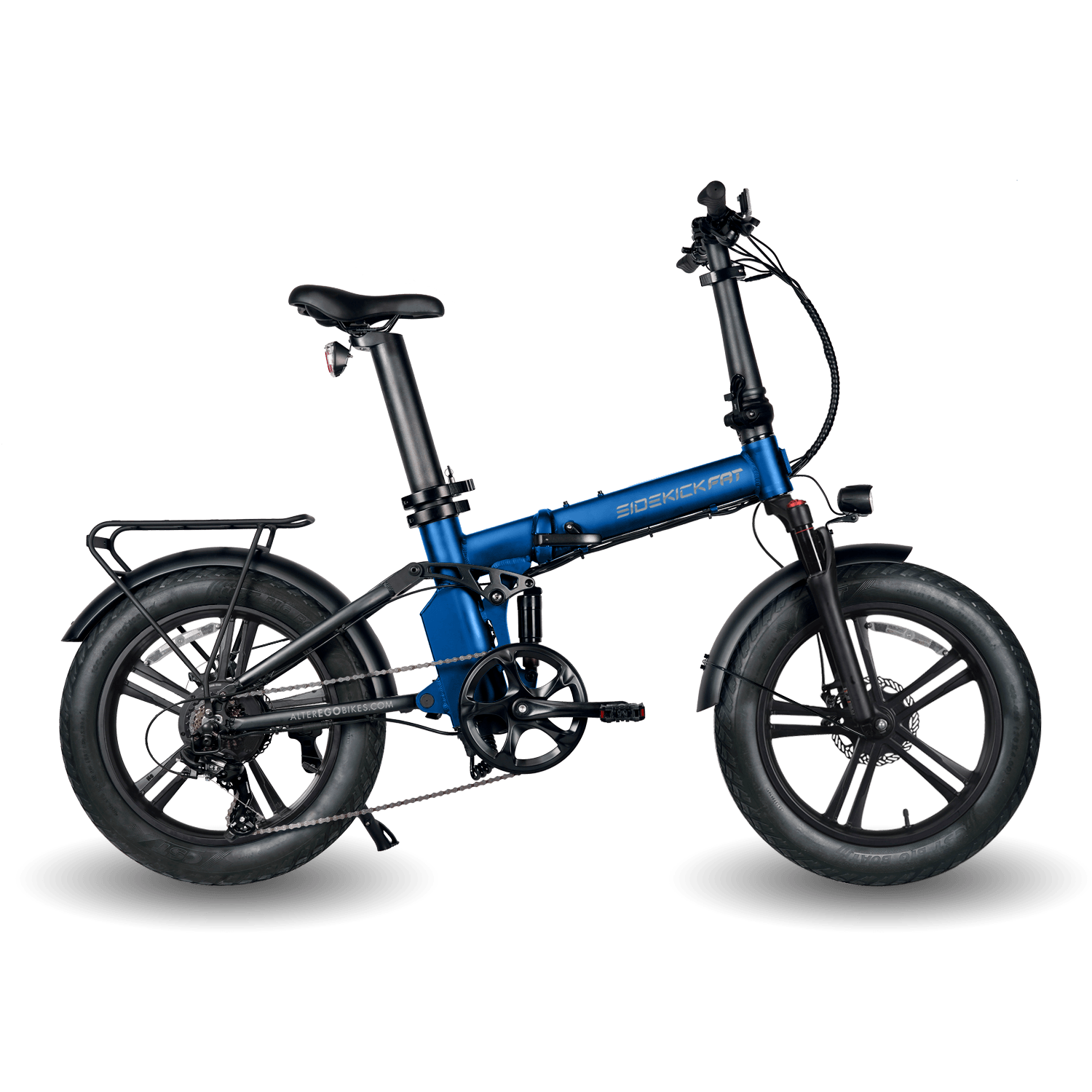

The perfect bike for the weekend warrior who likes to be out and about all the time whether it be camping, riding in the mountains, or beach side in the sun the Sidekick Fat PRO can handle any terrain.
The Sidekick Fat PRO has a patented hidden battery in the seat post and doesn't look like an electric bike at first glance.
Sidekick Fat PRO will accommodate Cyclists ranging in height from 5′6" to 6’5″ weighing up to 300 lbs. It has 4 riding modes: Normal bike mode, (PAS) Pedal assist mode, Cruise control mode and throttle mode.
SPECIFICATIONS
SPECIFICATIONS
| Battery |
LG 48V 15AH / 720WH Lithium Ion |
|---|---|
| Battery Charger |
D-POWER 3A Fast Smart Charger
Over/Under Voltage Protection |
| Optional Dual Battery Configuration |
LG 48V 20Ah Range Extender |
| Charging Time |
4-5 hours |
| Motor |
900W Peak Output
MXUS 500W Nominal Output |
| Ride Modes |
Responsive On Demand Thumb Throttle |

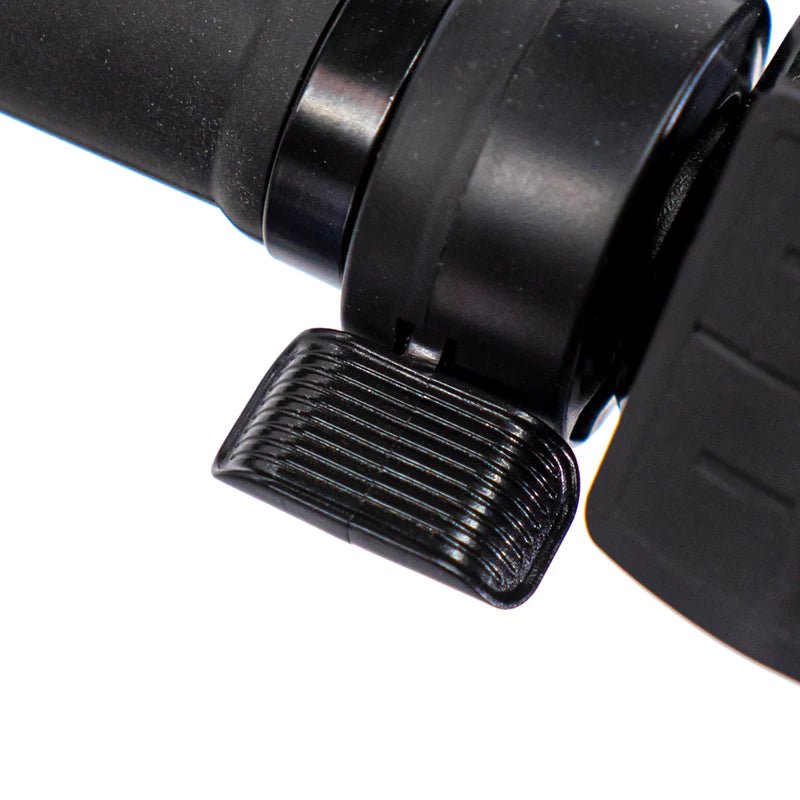

| Throttle |
Responsive Thumb Throttle
Left Handlebar |
| Controller |
KT Sine Wave 48V20A |

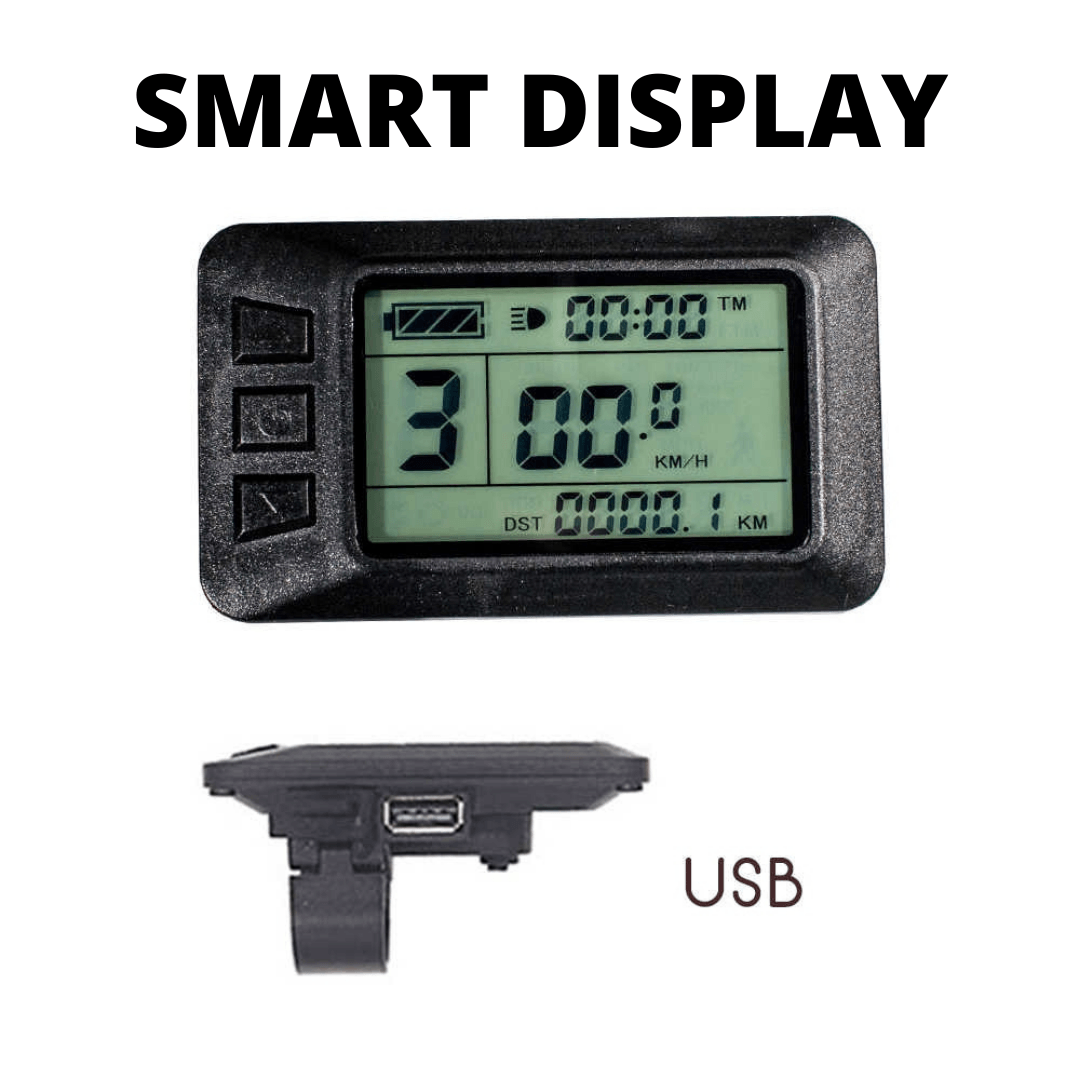

| LCD |
KT LCD-7U, with USB charge port |
| Sensor |
KT-V12 Double Hall Speed Sensor |
| Top Speed |
32km/h** |
| iPAS Range |
Up to 100Km with single battery |
| Frame |
6061 Aircraft Aluminum Alloy

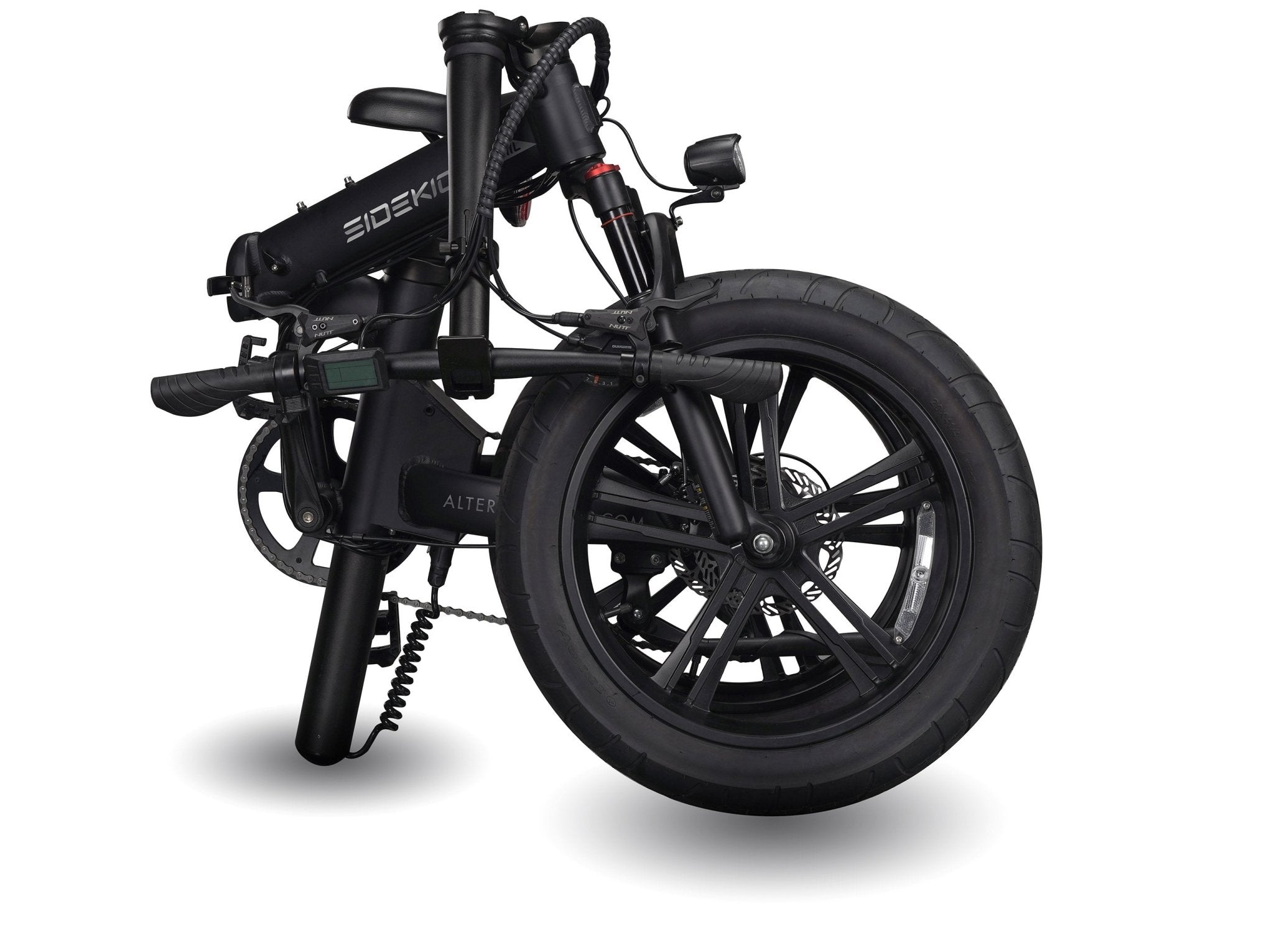

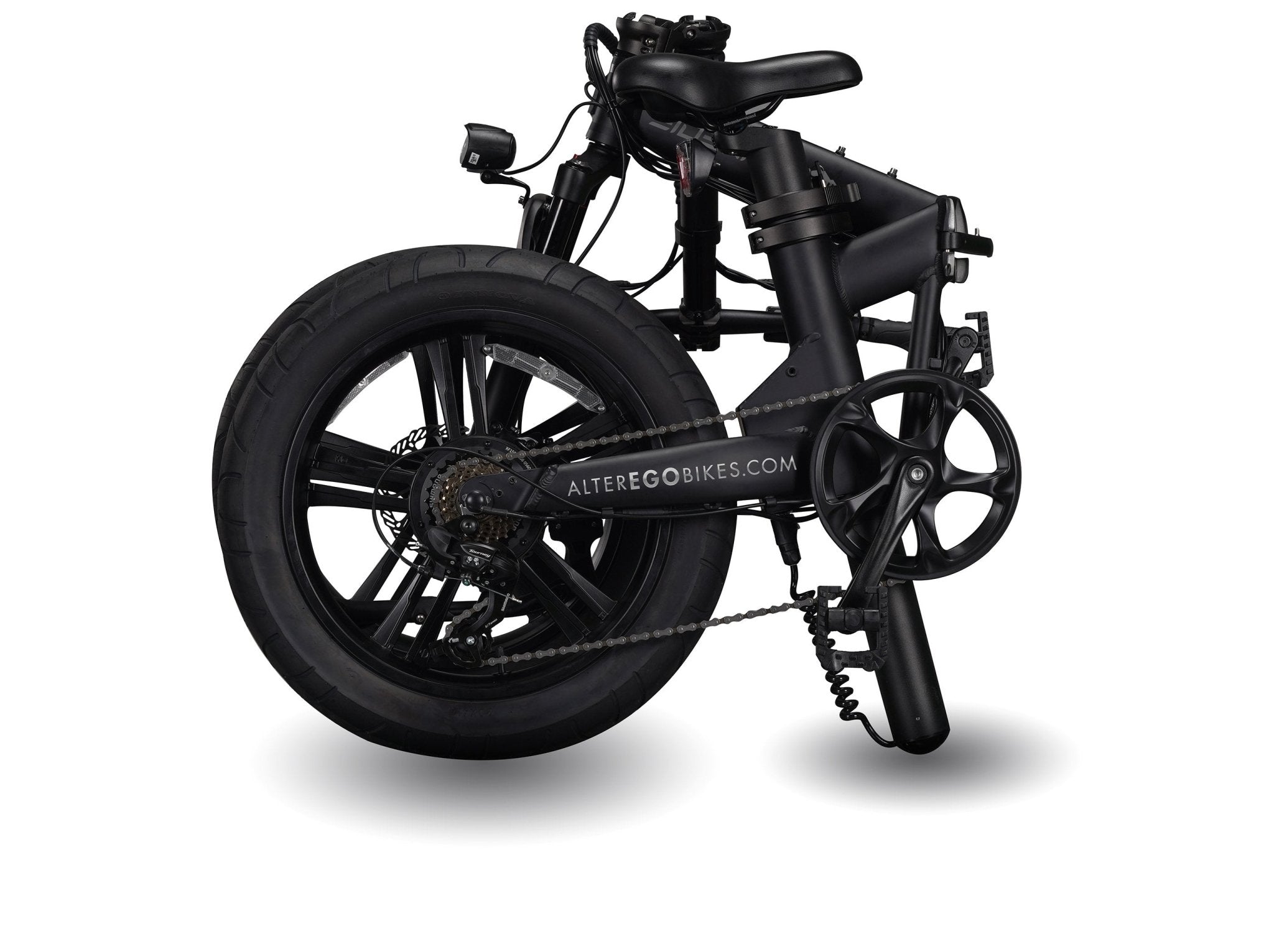

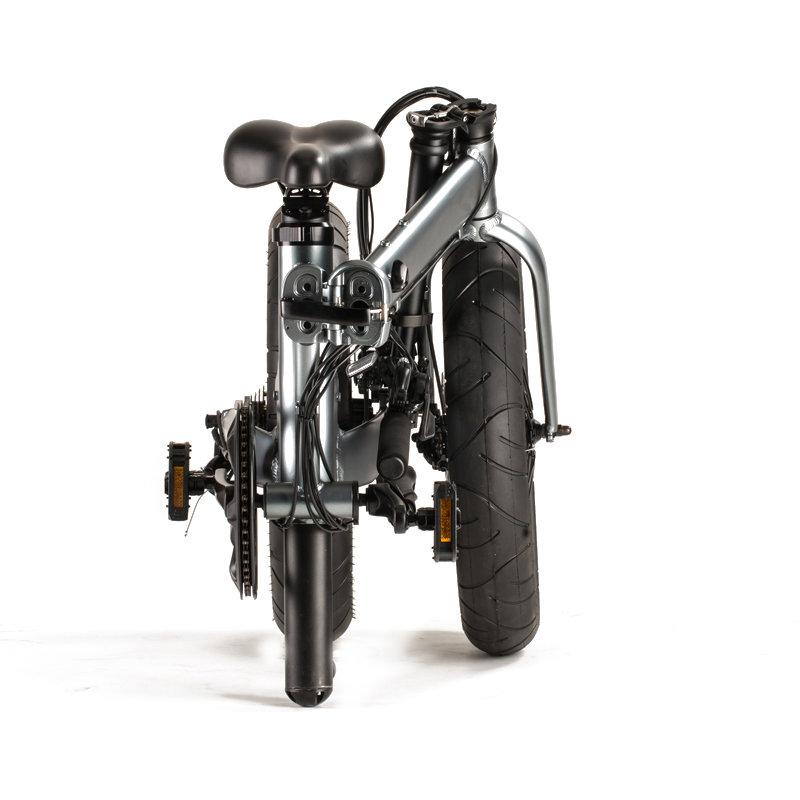

iFold 3 Folding System |
| Suspension |
WB800 Air Suspension Fork
Adjustable w/lockout |
| Handle Bar |
22.2*31.8*640mmL, 3.0mm,6° |
| Hand Grip |
Velo VLG-1505D2 130/130mm |
| Stem |
Patented Thick Stem
Aluminum-Alloy 6061, 8°, Fold to right side |
| Headset |
Aluminum with Bearing, 28.6*56-56*30/39.8 H:14mm |
| Wheel |
Aluminum Alloy integrated wheel for fat tire |
| Tires |
CST Custom |

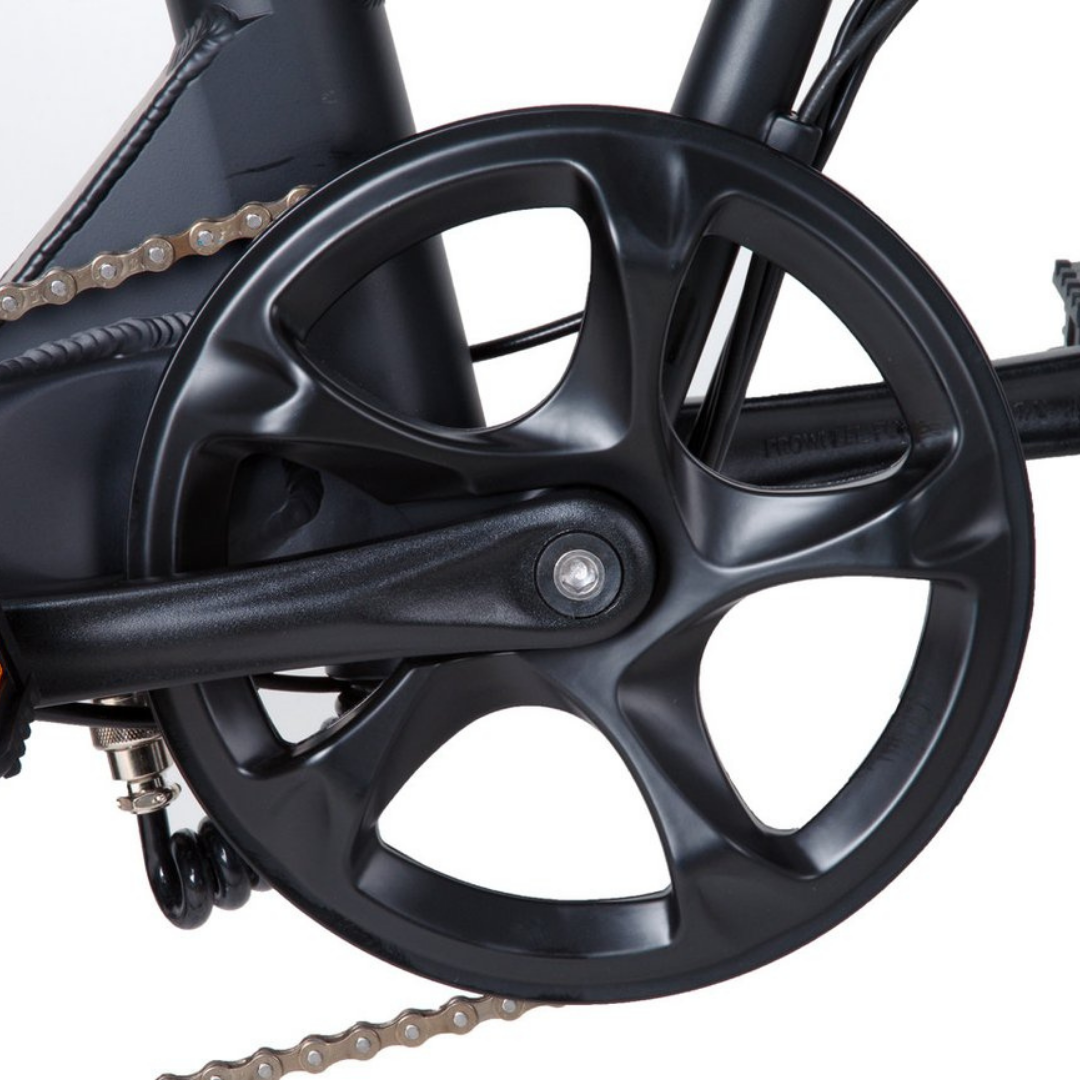

| Crankset |
Prowheel PRO-552PP-1,
Steel Ring with double Plastic Cover, 52T |
| Bottom Bracket |
BB96 164 29.5+100+34.5 |
| Chain |
KMC Z7 1/2"*3/32"*132 Links |
| Rear Derailleur |
Shimano RD-TY300
7-Speed |
| Cassette |
Shimano AMFTZ5007428/MF-TZ500 7 Speed |
| Shifter |
Shimano SL-M315-RD
7-Speed |
| Brake System |
NUTT Hydraulic Disk Brake
Front & Rear 160mm |

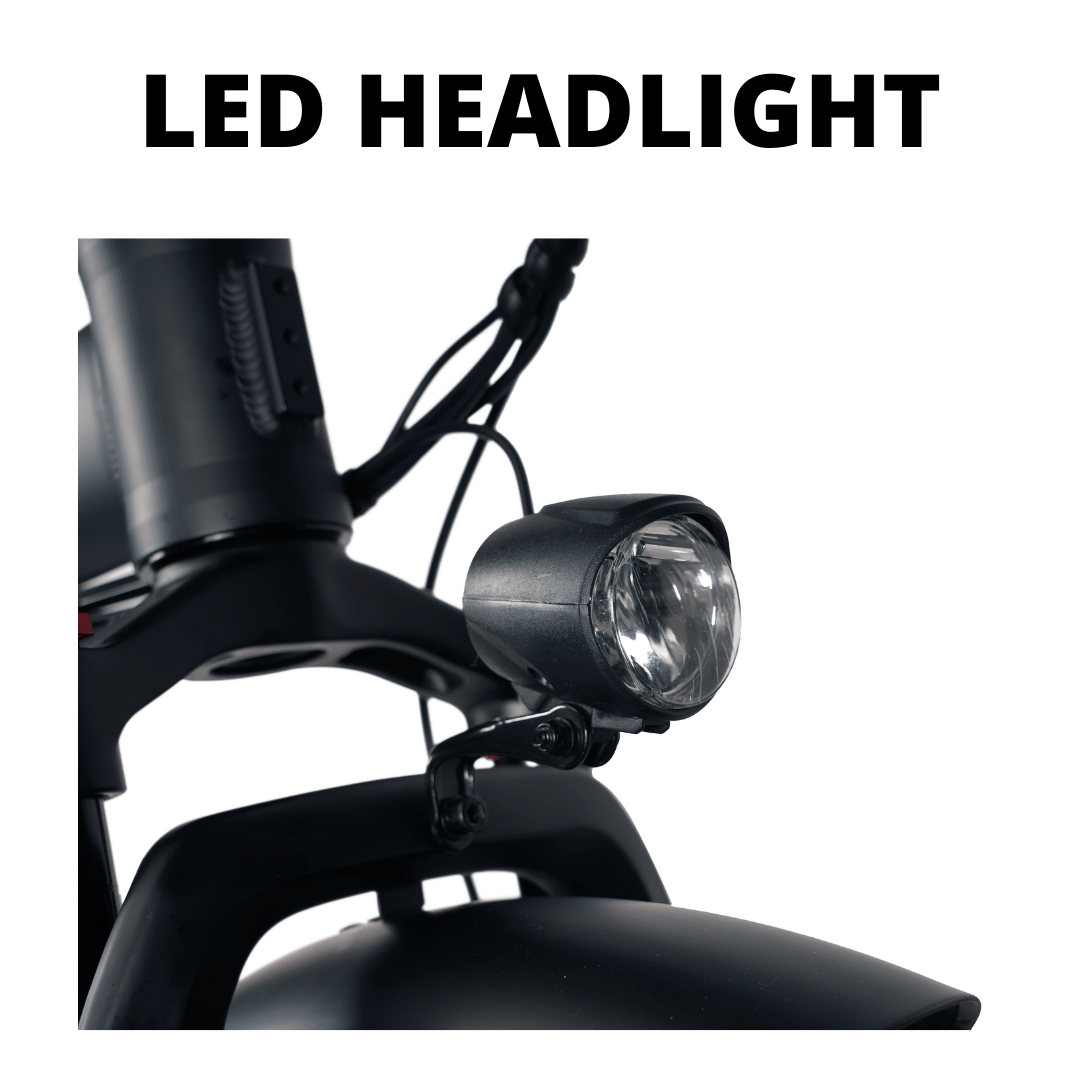

| Front Light |
STAR UNION QD-139/48V |
| Rear Light |
AA Battery Red Light
Optional Brake Light |
| Seat Clamp |
Double Clamp
Seat Post Lock w/2 Keys |
| Fenders |
Aluminum Alloy, Black |
| Assembly |
Arrives 95% Pre-Assembled in the box
Comes fully assembled if picking up at our Abbotsford Warehouse |
Actual product may vary slightly from the pictures on our website.
*Range estimate is based on estimated use at Level 1 PAS. Range is not guaranteed and will vary depending on terrain, weight of rider & cargo, weather conditions, etc.
**This Sidekick ships as a Class 1 & 2, with pedal assist and throttle with a maximum speed of 32km/h. If you are riding on private property or in an area without ebike speed restrictions, the speed limit can be modified in the settings, and the motor can be unlocked to go faster. Sidekick can also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are not allowed (Class 1).
Specs subject to vary slightly depending on production run.
WEIGHT & MEASUREMENTS
FREE SHIPPING WITHIN CANADA!
| Shipping Box |
|
|---|---|
| Folded Size | TBD |
| Unfolded Size |
|
| Stand Over Height | TBD |
| Net Weight (Approx) |
31KG (Including battery) (68lbs) |
| Weight Capacity |
Up to 300lbs |
| Package Weight (Approx) |
39KG (86lbs) |
| Rider Height | 5'6" + |
Our Sidekick Series comes PRE-ASSEMBLED in the box!
WHAT'S INCLUDED?
Your Sidekick comes 95% fully assembled inside the box, ready to ride! It also includes the following:
☑️ 2.8A FastCharger
☑️ Bell
☑️ Tool Kit
☑️ Heavy Duty Kickstand
PLUS FREE ACCESSORIES FOR A LIMITED TIME:
☑️ LED Headlight
☑️ LED Tail Light
☑️ Fenders + Rear Rack
WARRANTY
LIFETIME FRAME WARRANTY!
We offer an industry leading 2 Year warranty on Sidekick. For complete warranty details, click here.
USER MANUALS
| User Manual |  |
| LCD Display |
|
| How to fold your Sidekick |
 |
