HIGHLIGHTS
-
Hidden removable 48V, 16Ah LG/Samsung lithium-ion battery, with a range of up to 80km on a single charge.
-
Optional Dual Batteries - 26Ah (1248Wh)
-

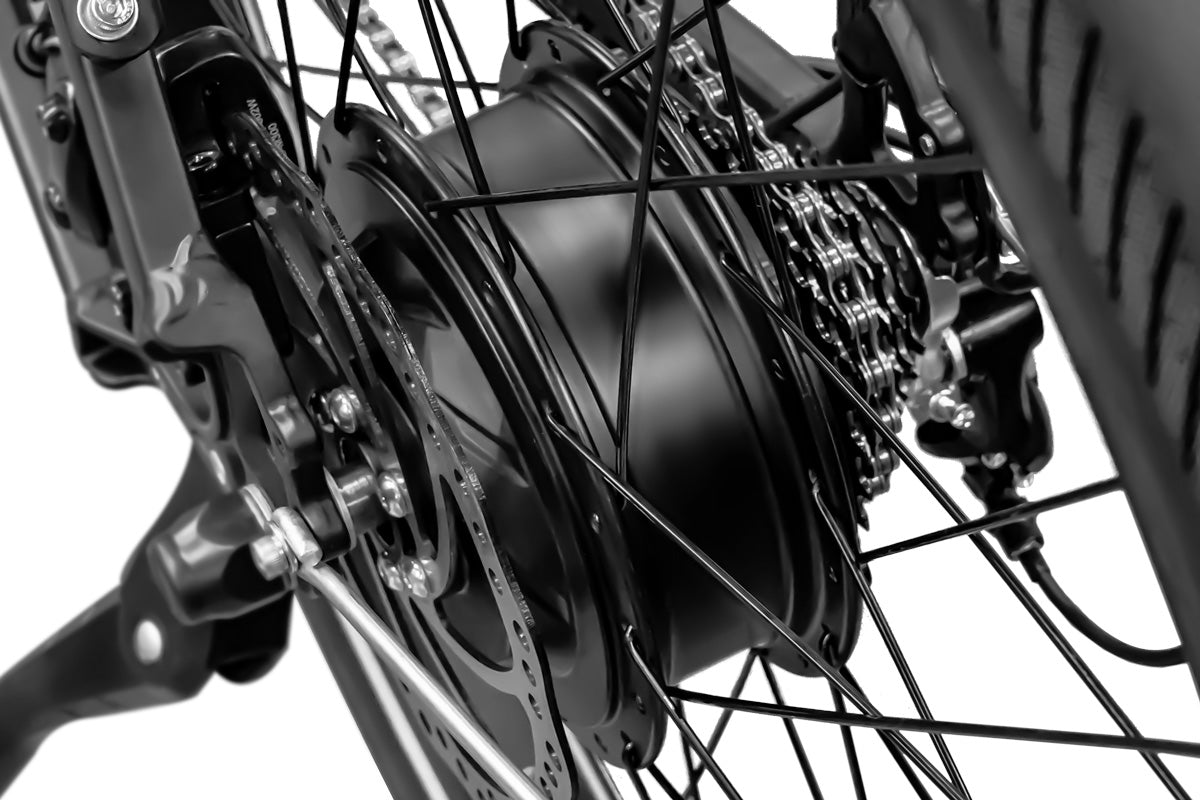

Continuous 500W brushless gear hub motor with a peak value of 750W, freely traversing urban street and effortlessly climbing hills.
-

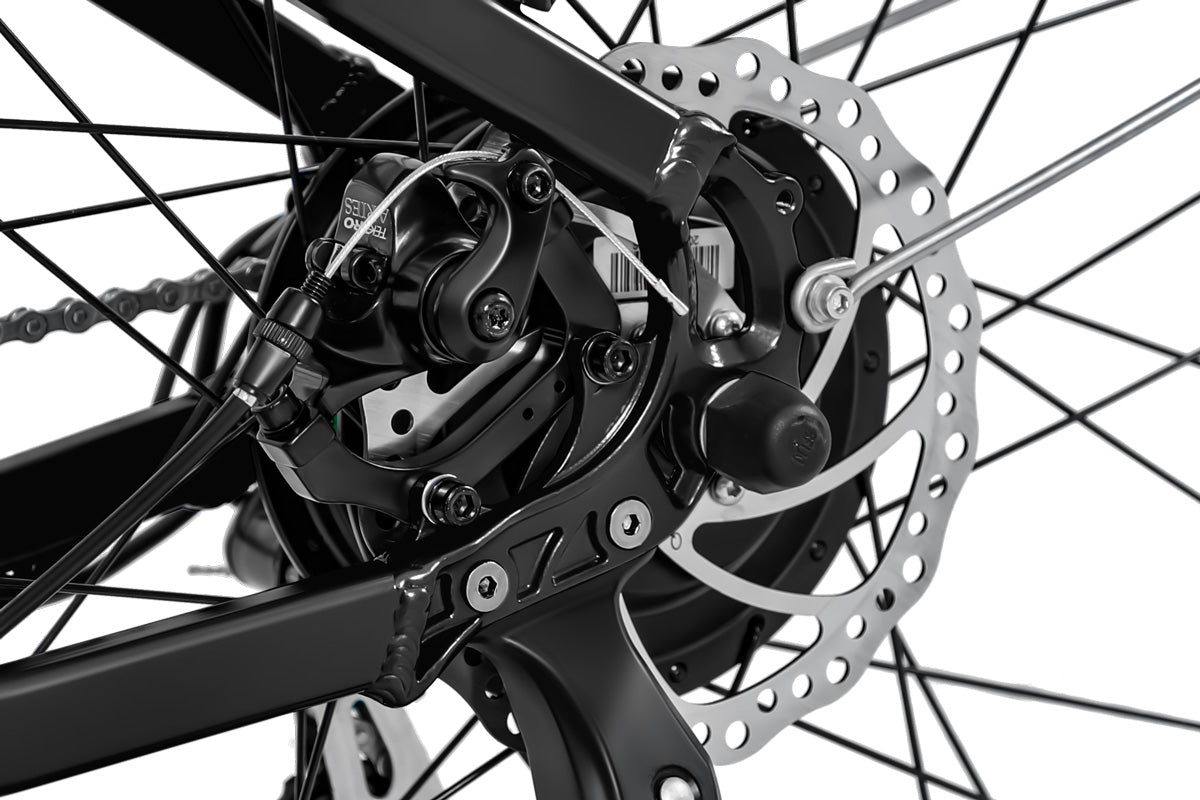

HYDRAULIC Disc Brakes for maximum stopping power!
-

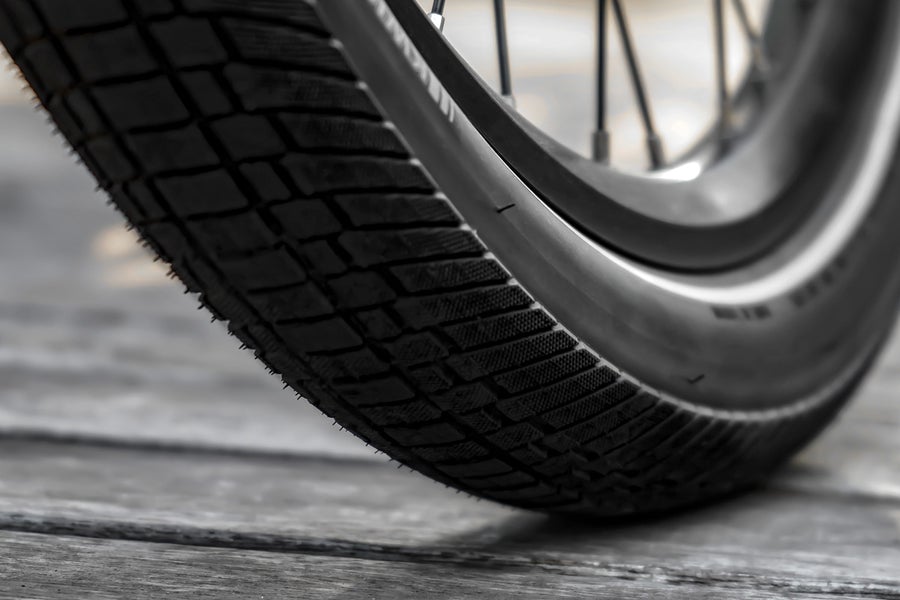

With 27.5″ x 2.4″ puncture-resistant tires, can resist punctures by sharp materials. Wider than standard tires, making the commute smoother.
-
48V 3 amp FastCharger only takes 5-6 hours to fully charge the battery.
SPECIFICATIONS
| FRAME |
6061 Aircraft Aluminum Alloy |
| MOTOR |
48V 500W |
| BATTERY |
Samsung/LG 48V 16Ah (768WH) |
|
OPT. RACK BATTERY (RANGE EXTENDER) |
Samsung/LG 48V 10Ah (480WH) |
| CHARGER |
54V 3 Amp Smart Charger |
| CHARGE TIME | Approx. 6-7 Hours |
| CONTROLLER | 48V 22A |
| DISPLAY |

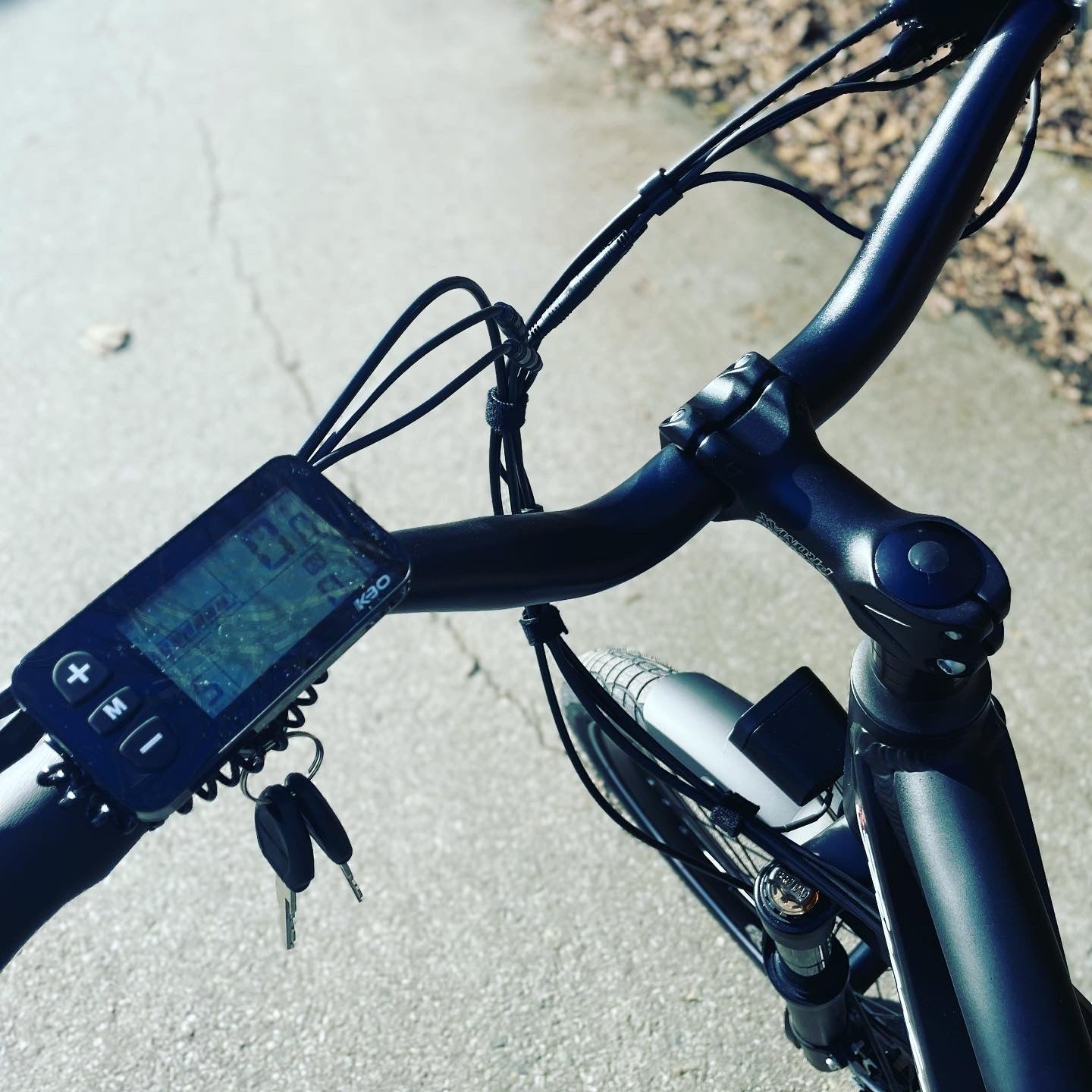

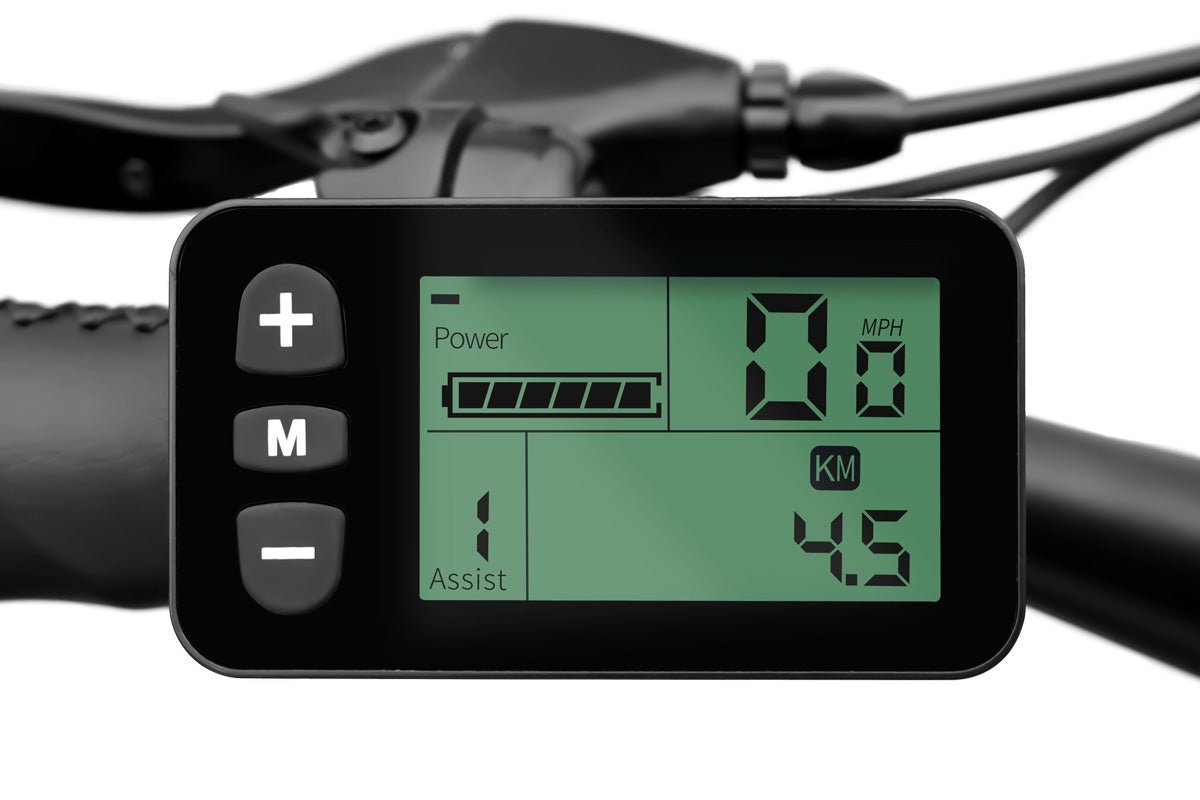

LCD Smart Display |
| WATERPROOF RATING |
IP55 |
| BRAKES |
180mm Logan HYDRAULIC Disc |
| BRAKE LEVER |
Aluminum Alloy Comfort Grip |

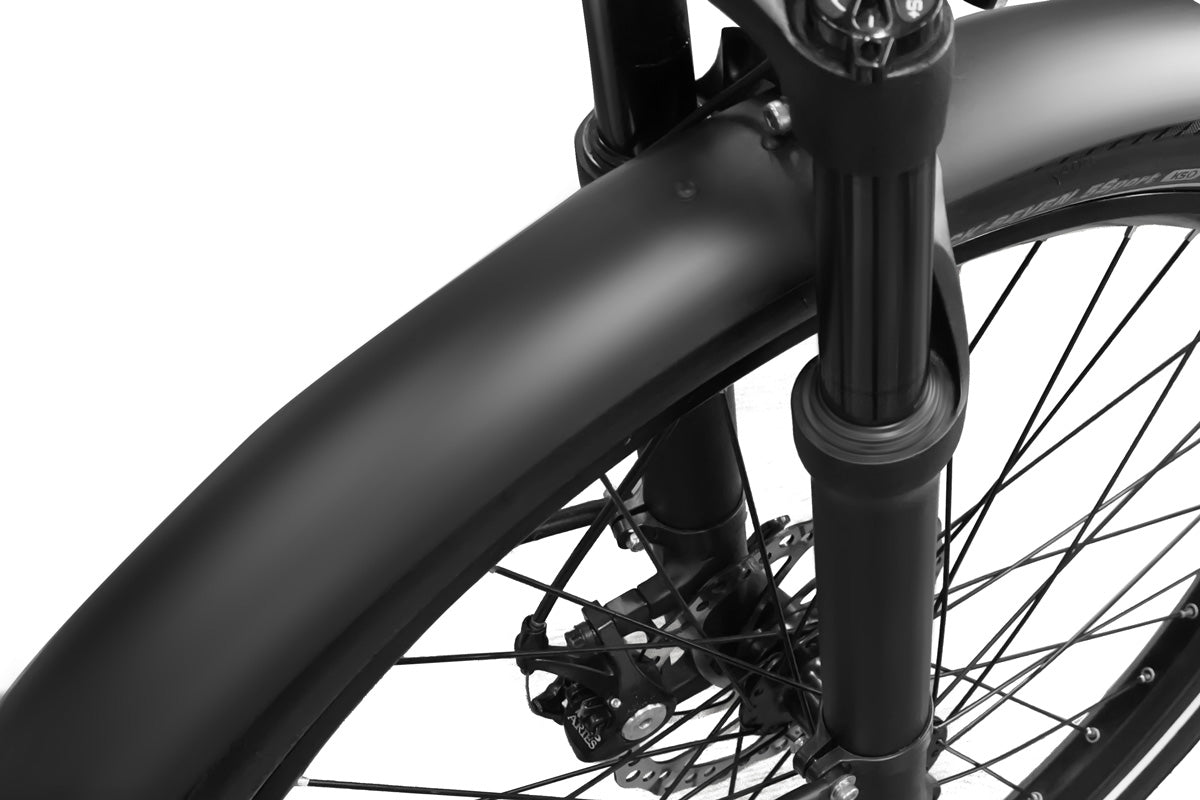

| FRONT FORK |
Suspension Fork |

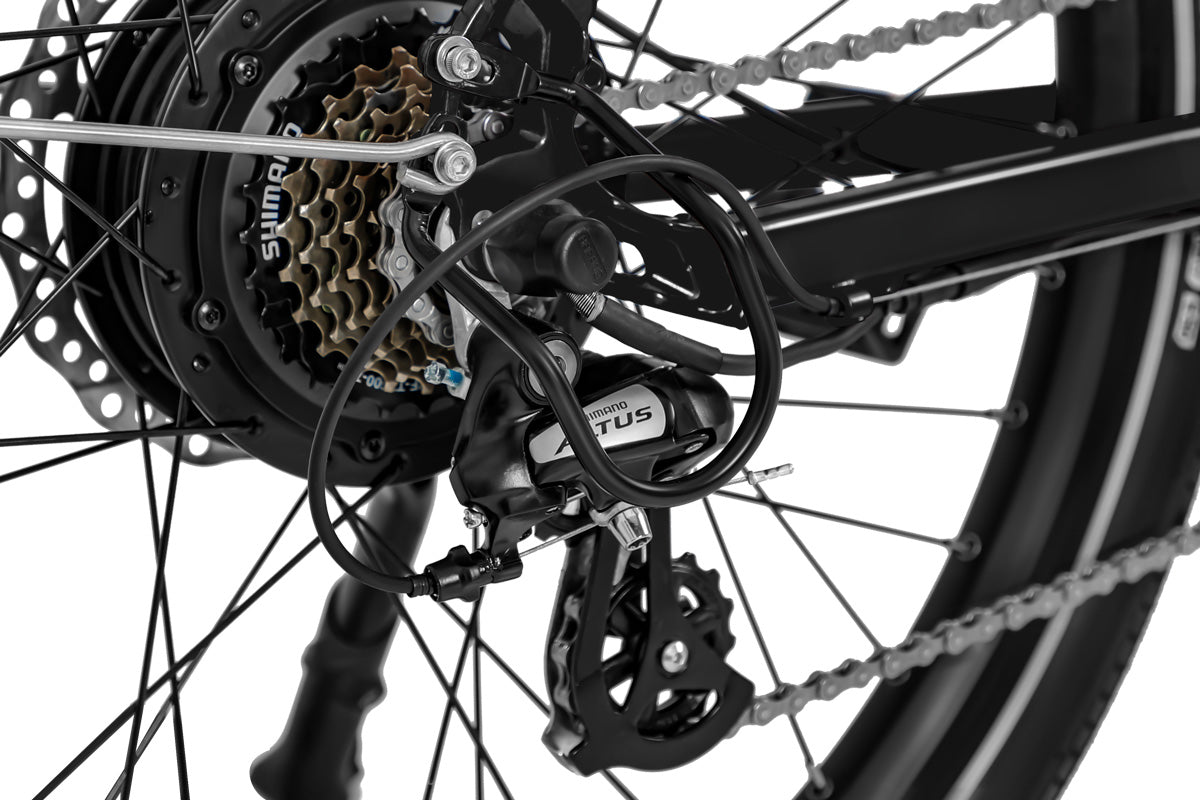

| FREEWHEEL |
Shimano Altus 7-Speed |
| THROTTLE |

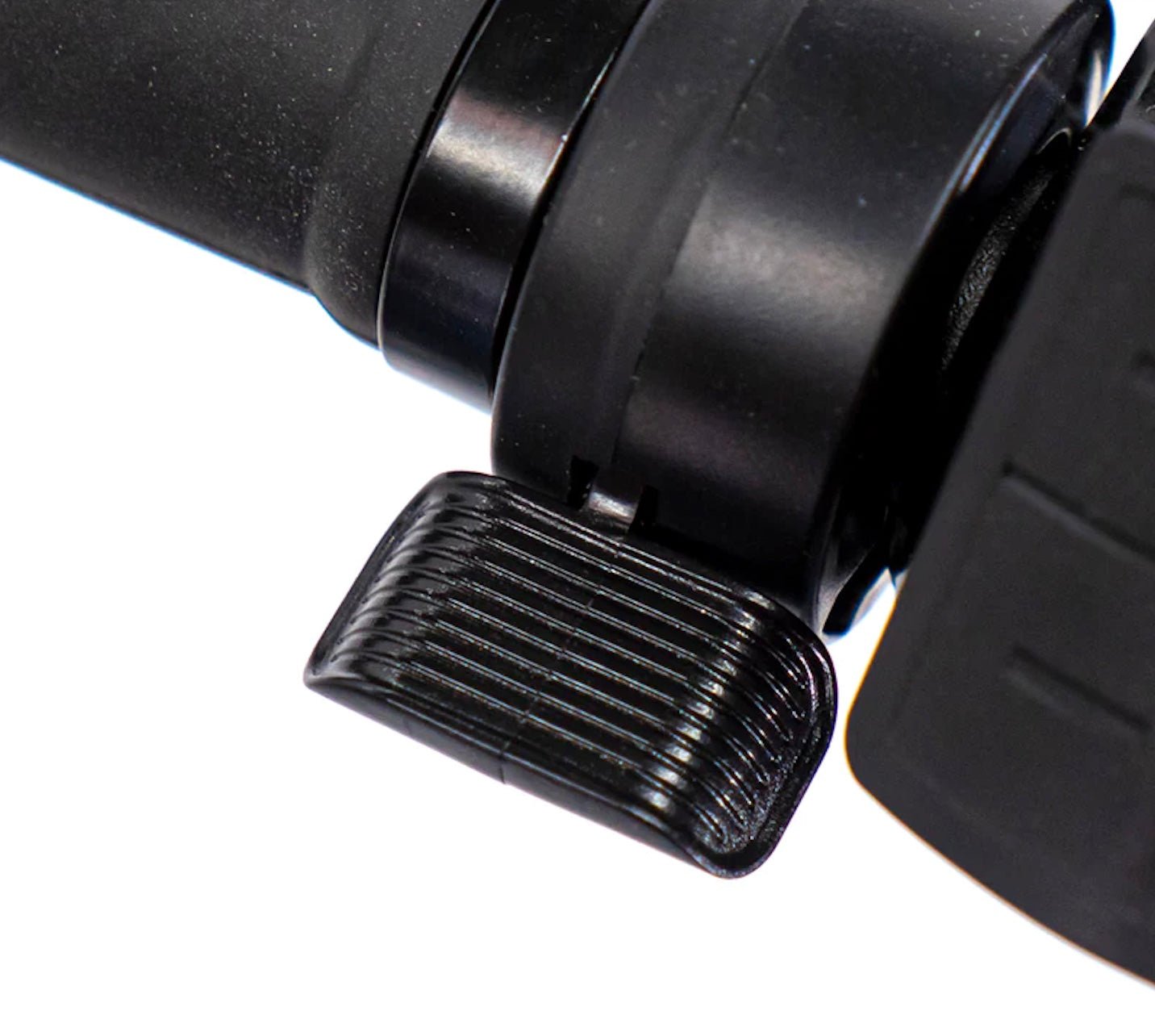

On Demand Thumb Throttle |
| PEDAL ASSIST |
0-5 Level Intelligent Pedal Assist
Internal Cadence Sensor |
| CRANK |
170mm Forged Alloy |
| GEARING |
Shimano 14-28T |
| HANDLEBAR |
Aluminum |
| STEM |
Promax MA-400 SSABK |
| SADDLE | Velo Soft Saddle |
| SEAT POST |
Diameter: 30.4mm |
| TIRES |
Panaracer |
| SPOKES |
Stainless
13 Gauge on the front / 12 Gauge on the back |
|

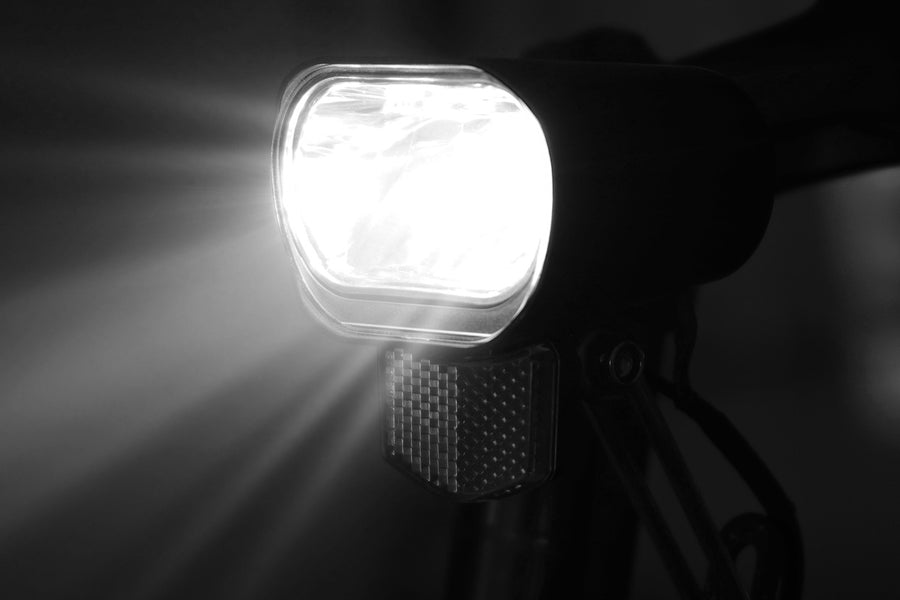

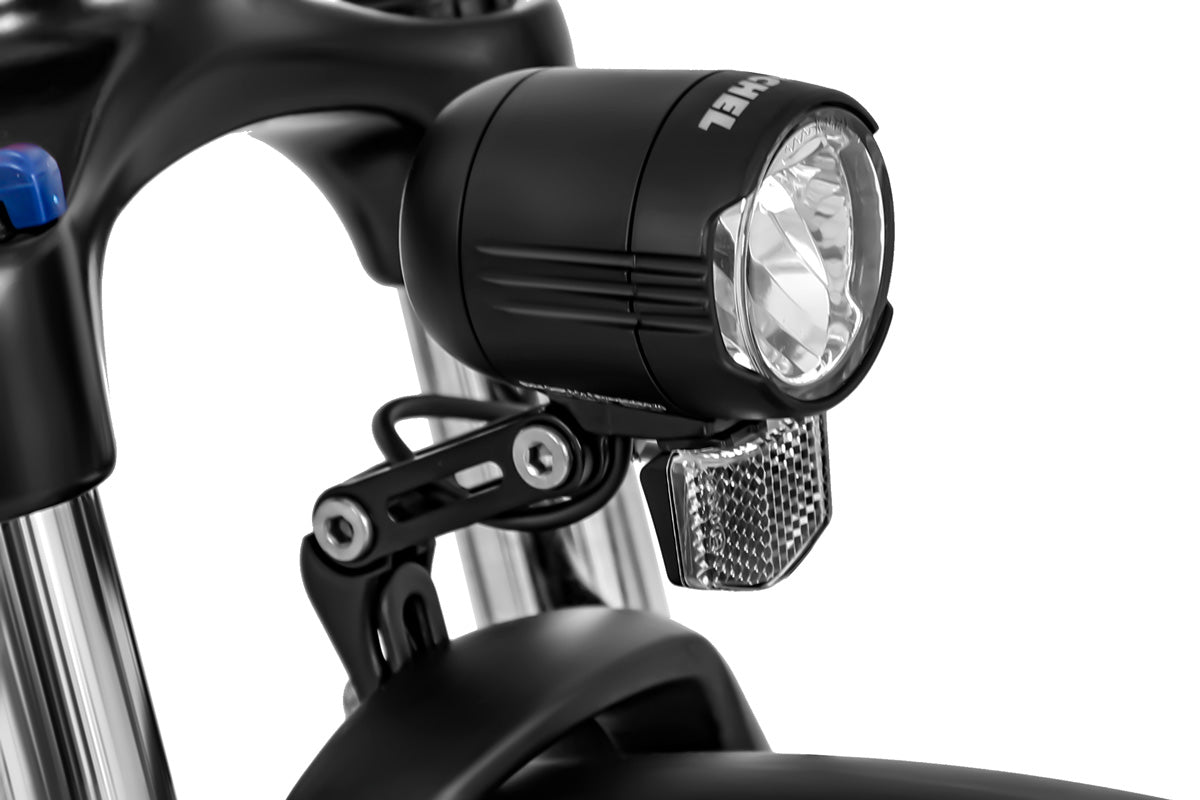

LED HEADLIGHT |
Included |

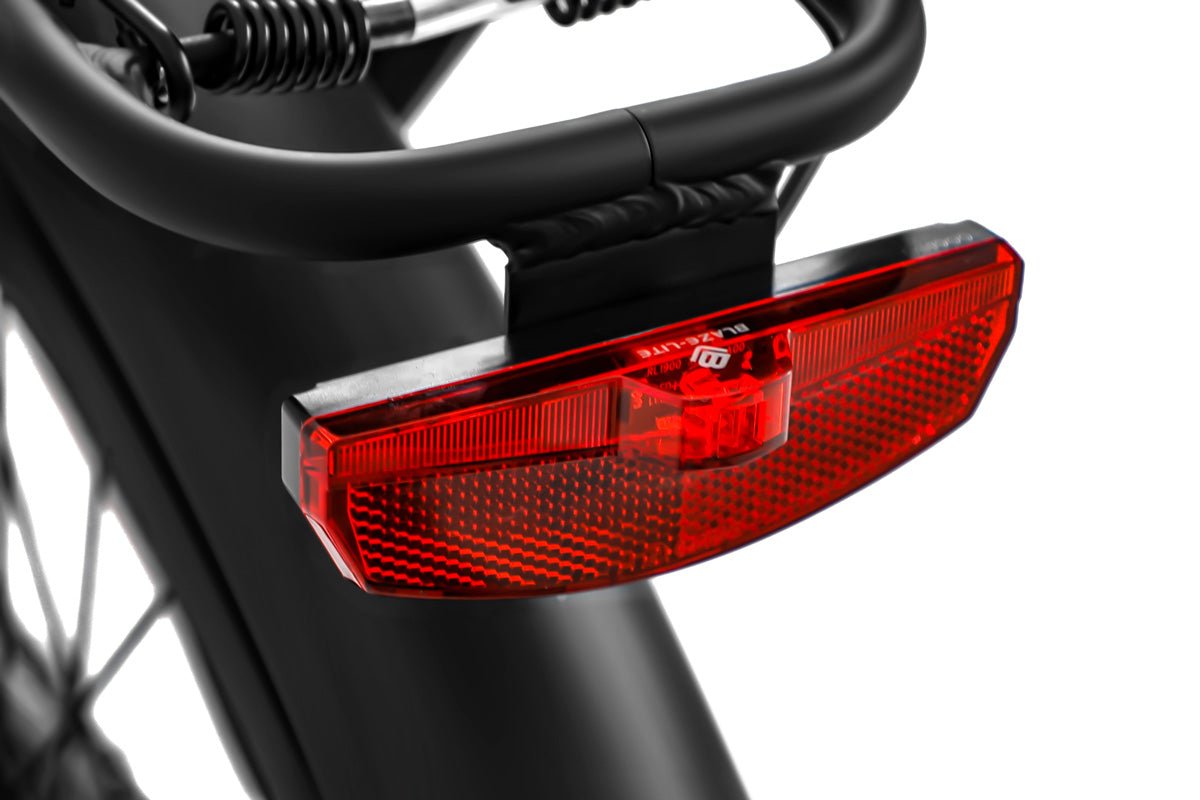

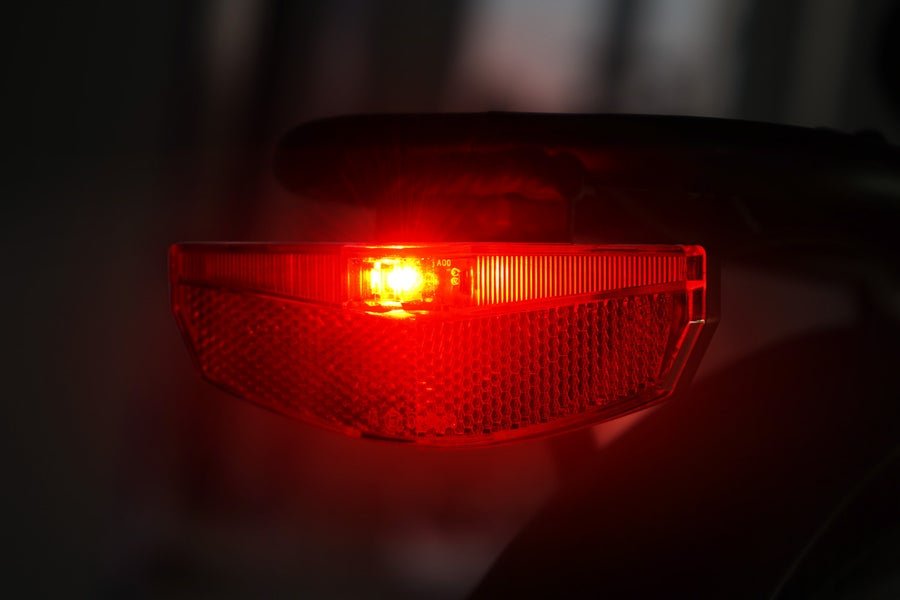

| LED TAIL LIGHT |
Integrated LED Tail Light
Uses main battery Brake Light |
| FENDERS |
Included |
| NET WEIGHT |
28KG (62lbs) |
| WEIGHT CAPACITY |
137KG (300lbs) |
| RIDER HEIGHT | 5'4" - 6'4" |
*Range estimate is based on estimated use at Level 1 PAS. Range is not guaranteed and will vary depending on terrain, weight of rider & cargo, weather conditions, etc.
MEASUREMENTS
WHAT'S INCLUDED?
Your Freedom comes 95% pre-assembled.
☑️ 3A FastCharger
☑️ Bell
☑️ Tool Kit

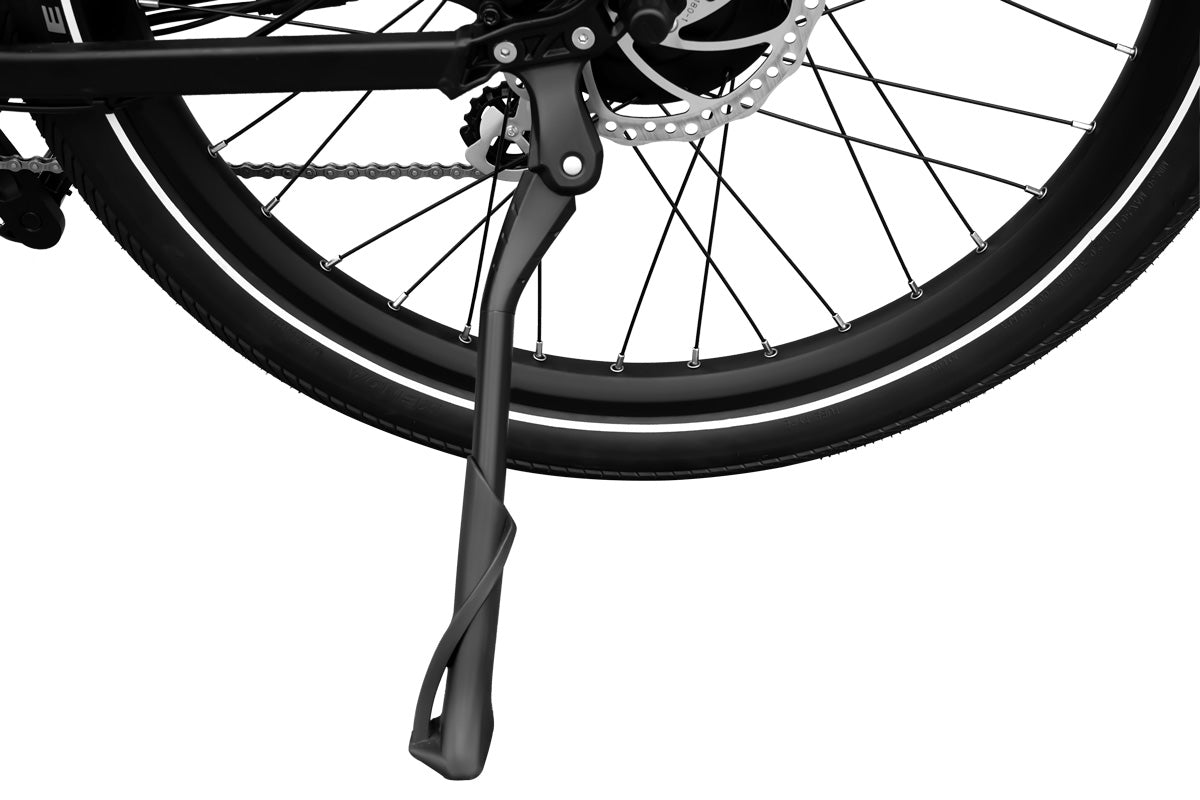

☑️ Heavy Duty Kickstand
☑️ Set of keys for battery
PLUS FREE ACCESSORIES FOR A LIMITED TIME:
☑️ LED Headlight + Tail Light
☑️ Fender Package
☑️ Rear Luggage Rack
WARRANTY
We offer an industry leading warranty on all Alter Ego Electric Bikes. For complete warranty details, click here.
USER MANUALS
| User Manual |
 |
FREEDOM VS OTHER BRANDS
