✪ LONG RANGE LG 48V 720Wh LI-ION BATTERY ✪
✪ OPTIONAL DUAL BATTERIES FOR UP TO 220KM RANGE ✪
✪ AIR SUSPENSION ✪
✪ HYDRAULIC DISC BRAKES ✪
Easy to get on without having to lift your leg over the frame. This is your sidekick for every day city travel, whether that be your commute to work, your jaunt to the grocery store or a weekend ride in the country.
Sidekick Fat ST PRO will accommodate riders ranging in height from 5′2" to 6’5″ weighing up to 300 lbs. It has 4 riding modes: Normal bike mode, (PAS) Pedal assist mode, Cruise control mode, and full throttle mode.
TECHNICAL SPECS
| Battery |
48V 15AH | 720WH Lithium Ion
SAMSUNG 21700 CELLS |
|---|---|
| Battery Charger |
D-POWER 48V 3A Fast Smart Charger
Over/Under Voltage Protection |
| Charging Time |
4-5 hours |
| Optional Dual Battery Configuration |
LG 48V 20Ah Range Extender |

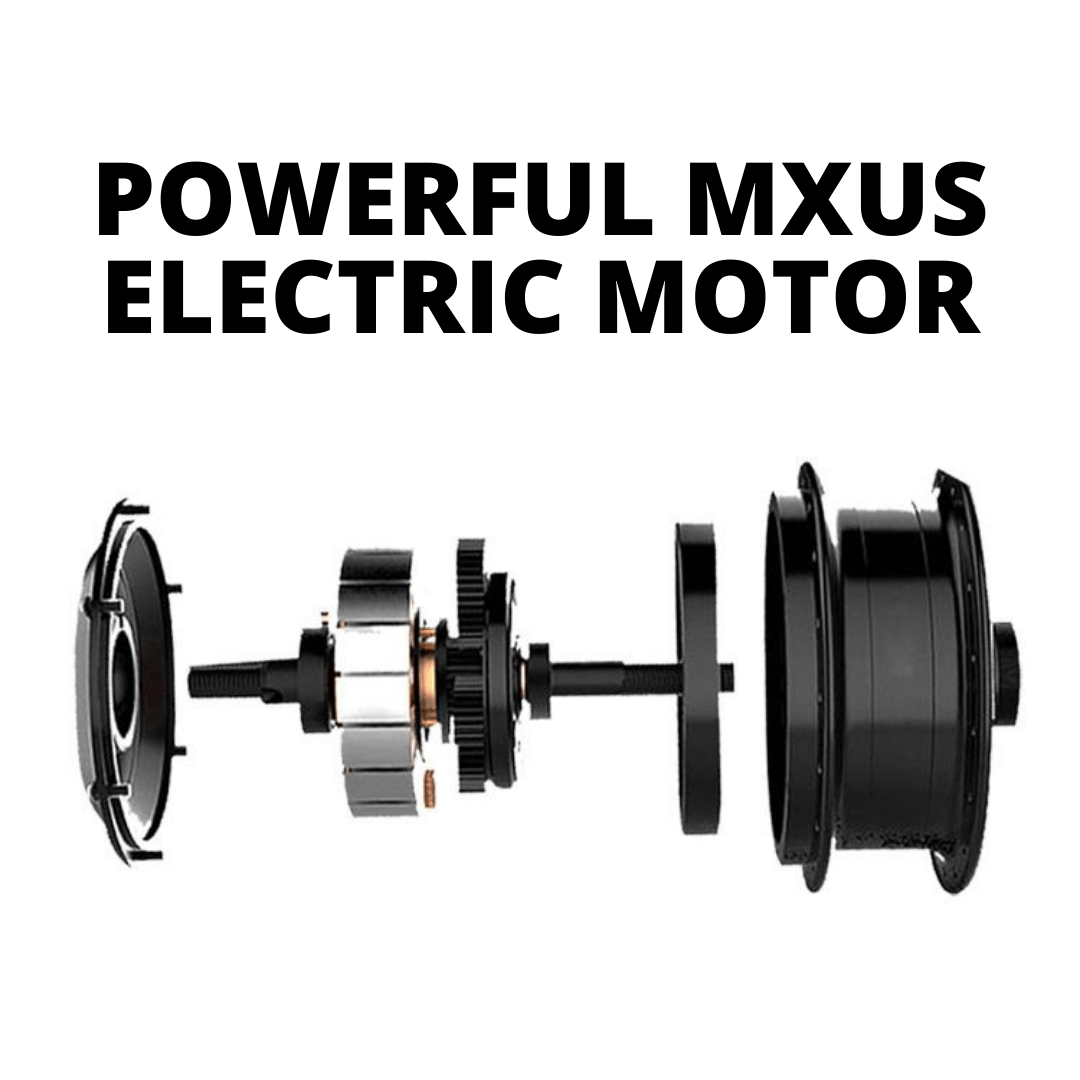

| Motor |
900W Peak Output
MXUS 500W Nominal Output |
| Controller |
KT Sine Wave 48V20A |

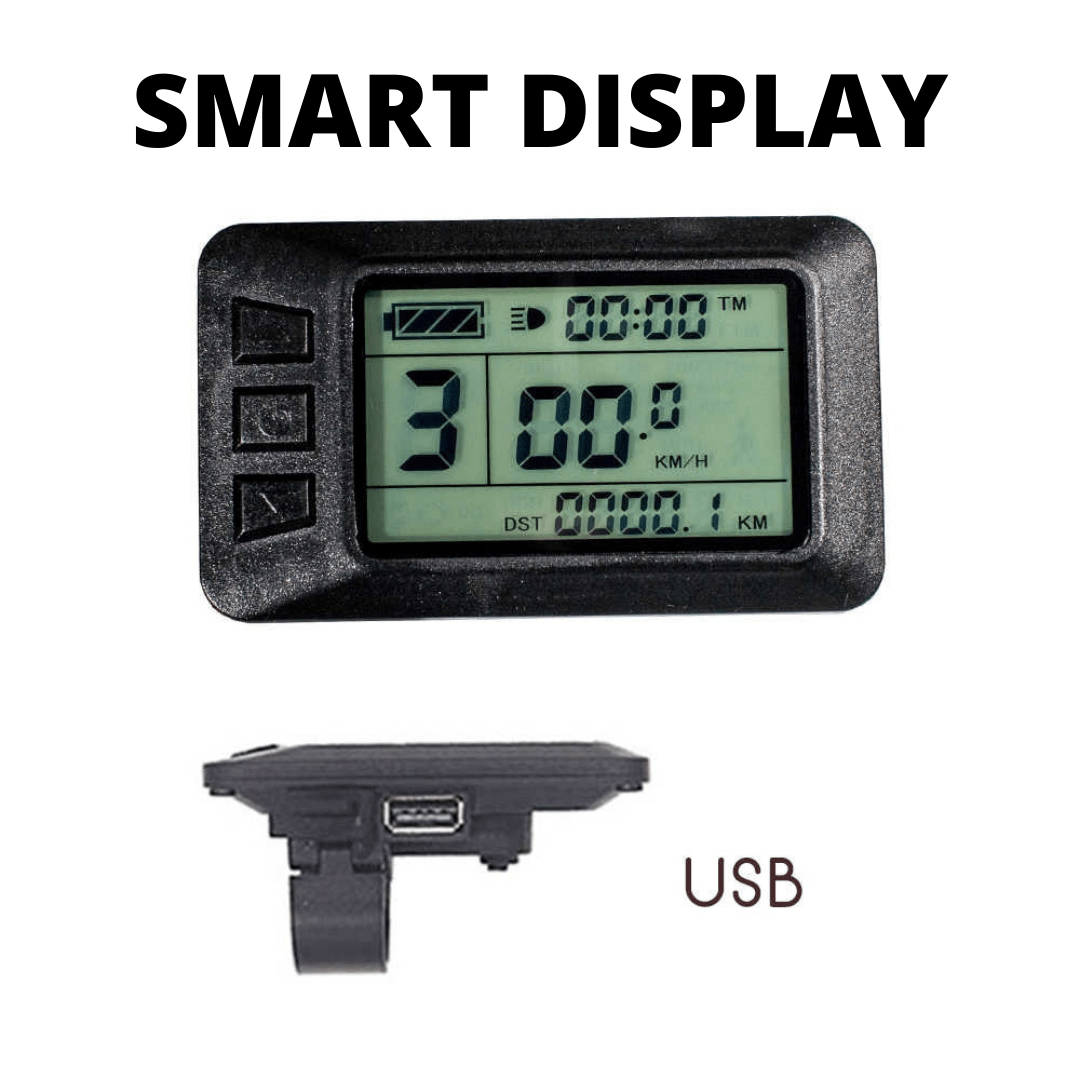

| LCD |
Kunteng LCD Display |
| Sensor |
KT-V12 Double Hall Speed Sensor |
| Top Speed |
32km/h** |
| iPAS Range |
Up to 100Km with single battery* |
| Ride Modes |
Responsive On Demand Thumb Throttle |
| Throttle |
Responsive Thumb Throttle |
| Frame |
Aircraft Aluminum-Alloy 6061

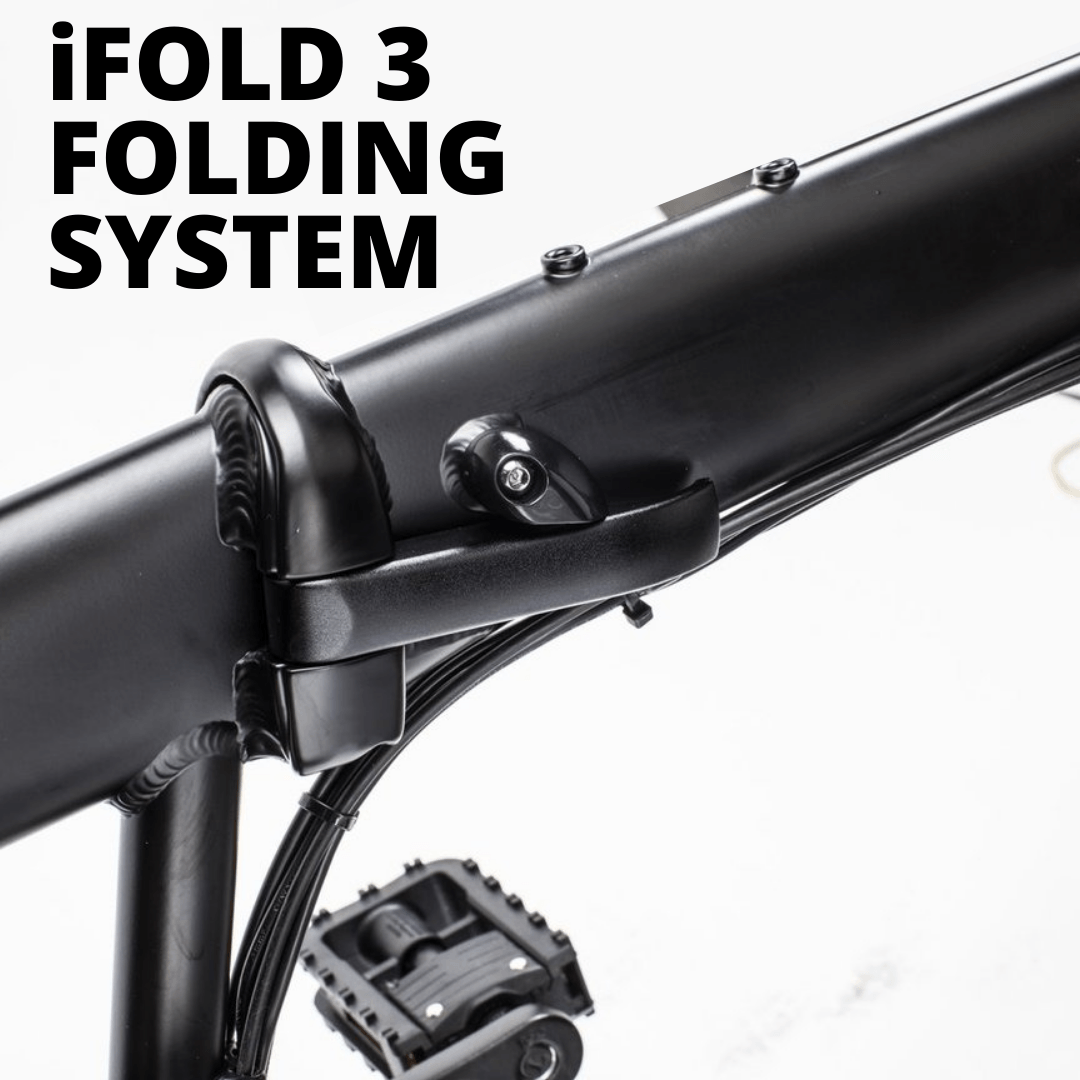

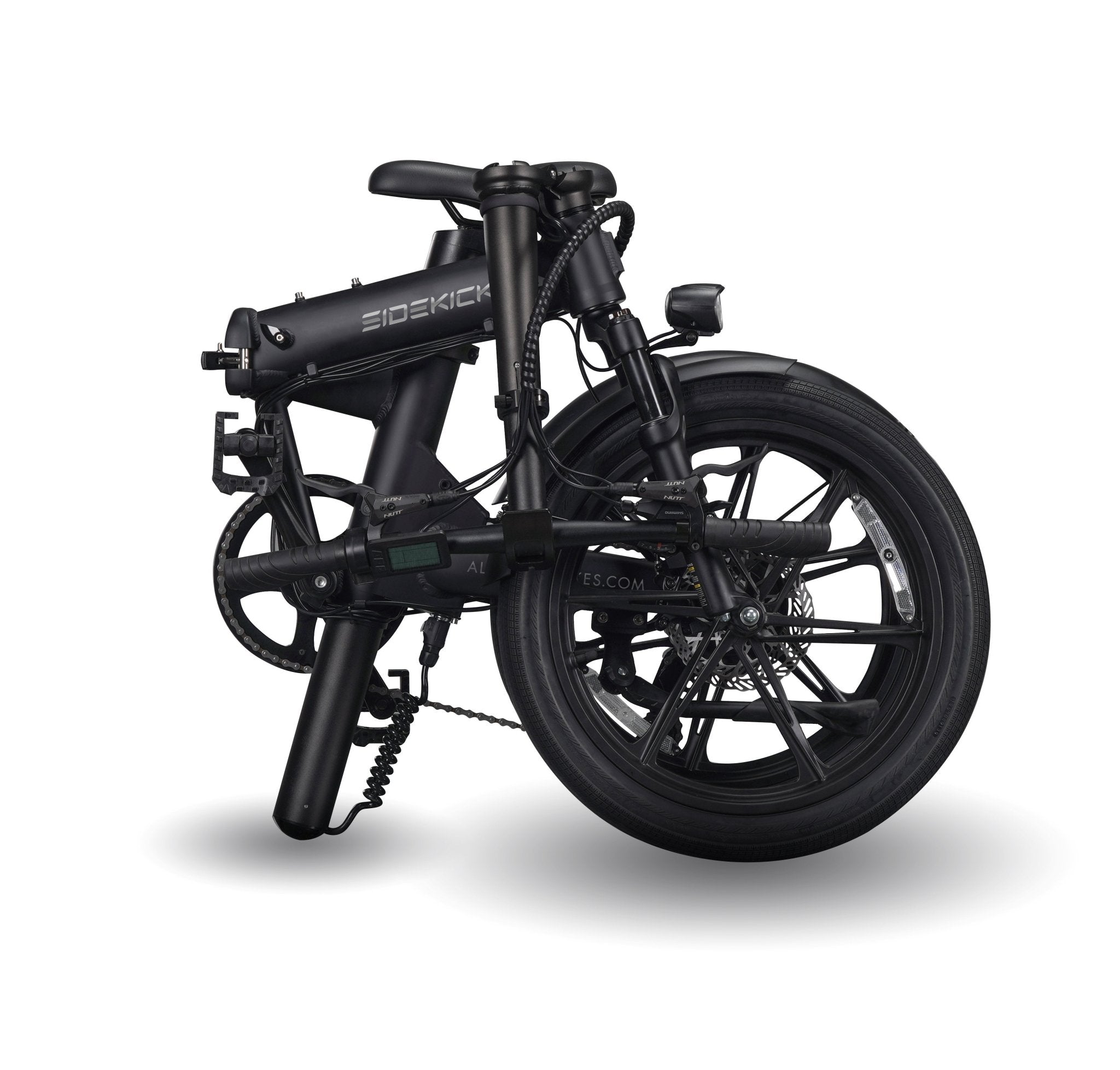

iFold 3 Folding System |
| Suspension |

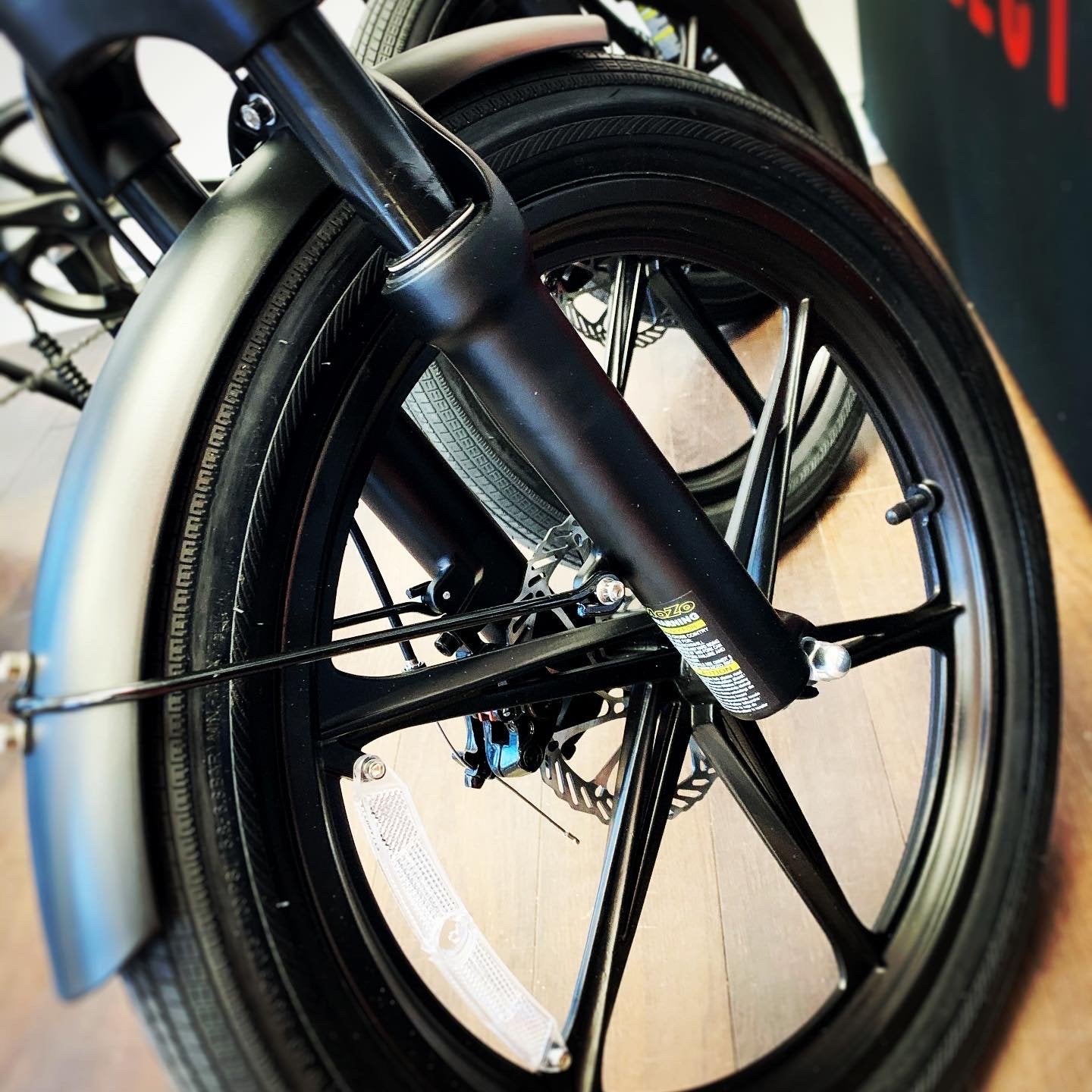

WB800/20″ Front Air Suspension
Adjustable |
| Handle Bar |
22.2"*31.8*640mmL, 3.0mm, 6" |

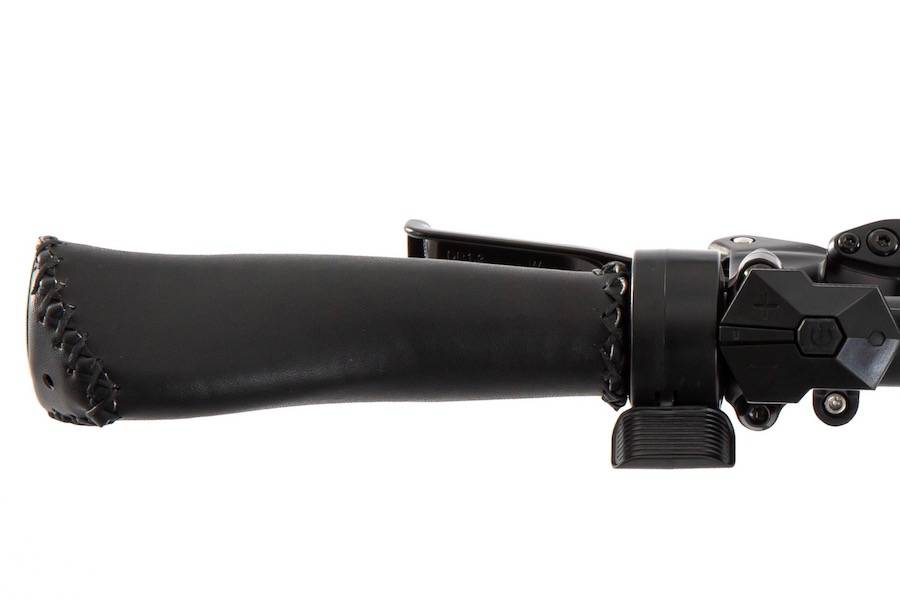

| Handle Grip |
Velo VLG 1505D2 130/130mm |
| Stem |
Patented Thick Stem
Aluminum-Alloy 6061, 8°, Fold to right side |
| Headset |
Aluminum with Bearing, 28.6"56-56*30/39.8 H:14mm |
| Wheel |
Aluminum Alloy integrated wheel |
| Tires |
Custom CST |

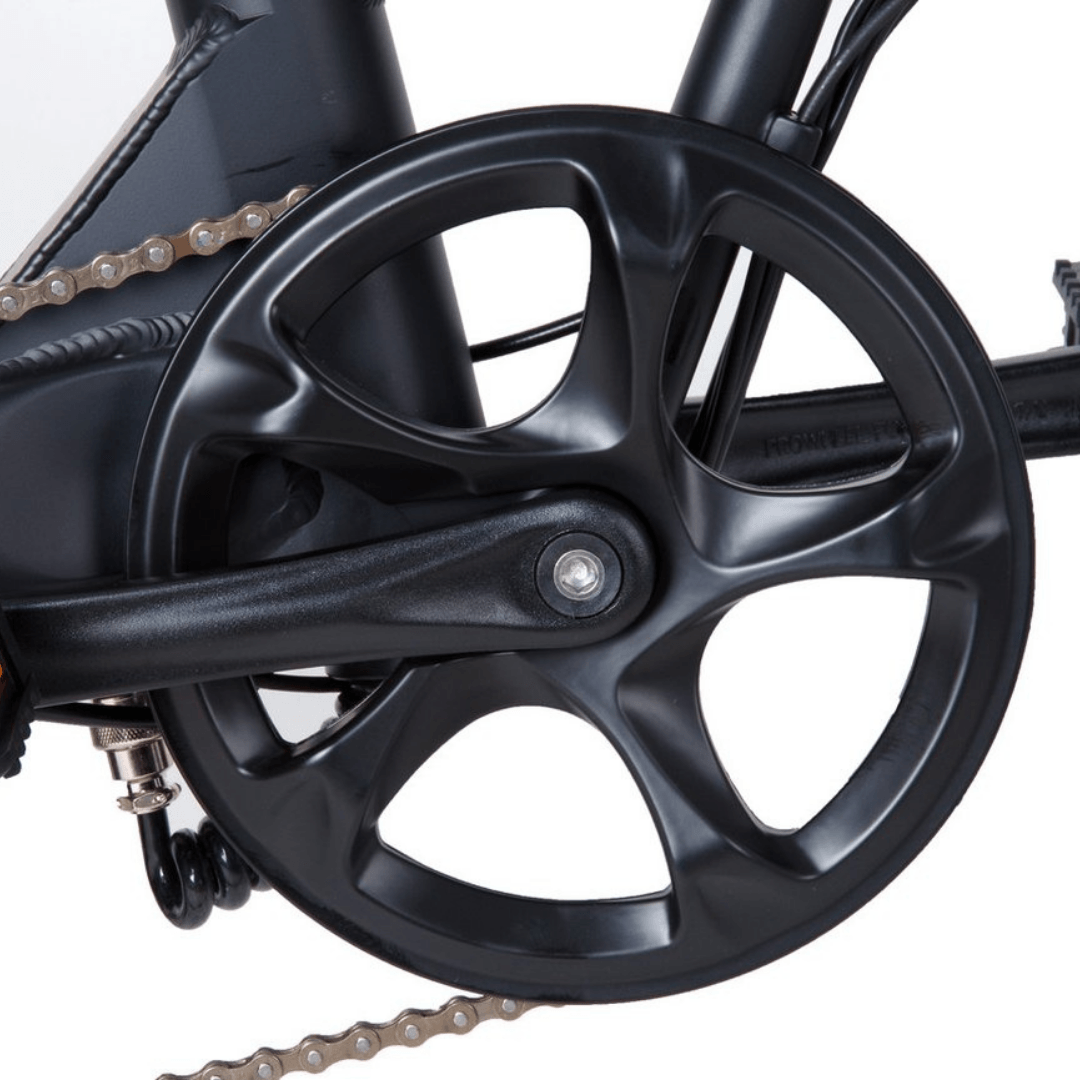

| Crankset |
Prowheel PRO-552PP-1,
Steel Ring with double Plastic Cover, 52T |
| Bottom Bracket |
BB68 . 122.5mm = 26.5+68+68 |
| Chain |
KMC Z7 1/2"*3/32"* |
| Rear Derailleur |
Shimano RD-TY300
7-Speed |

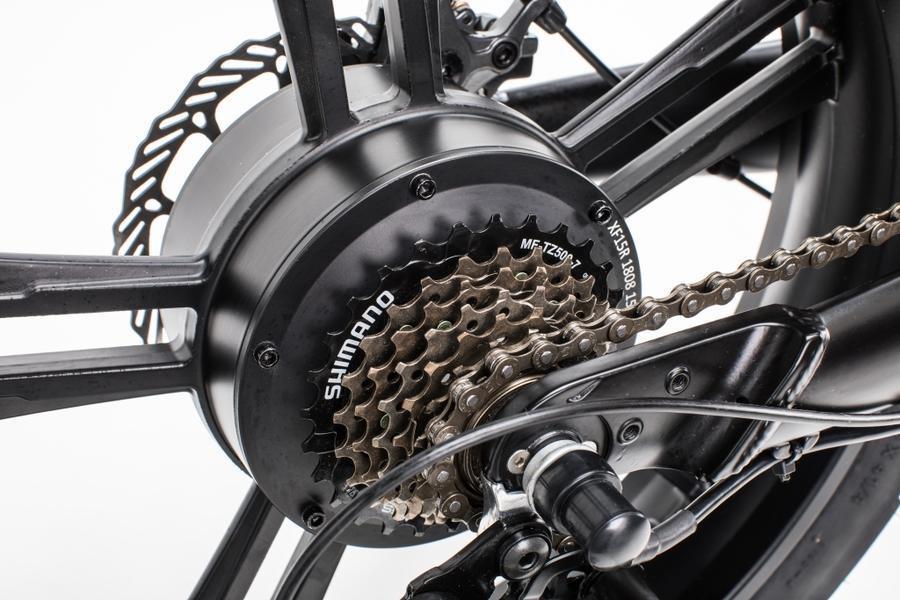

| Casette |
Shimano AMFTZ500742 / MF-TZ500 Speed |

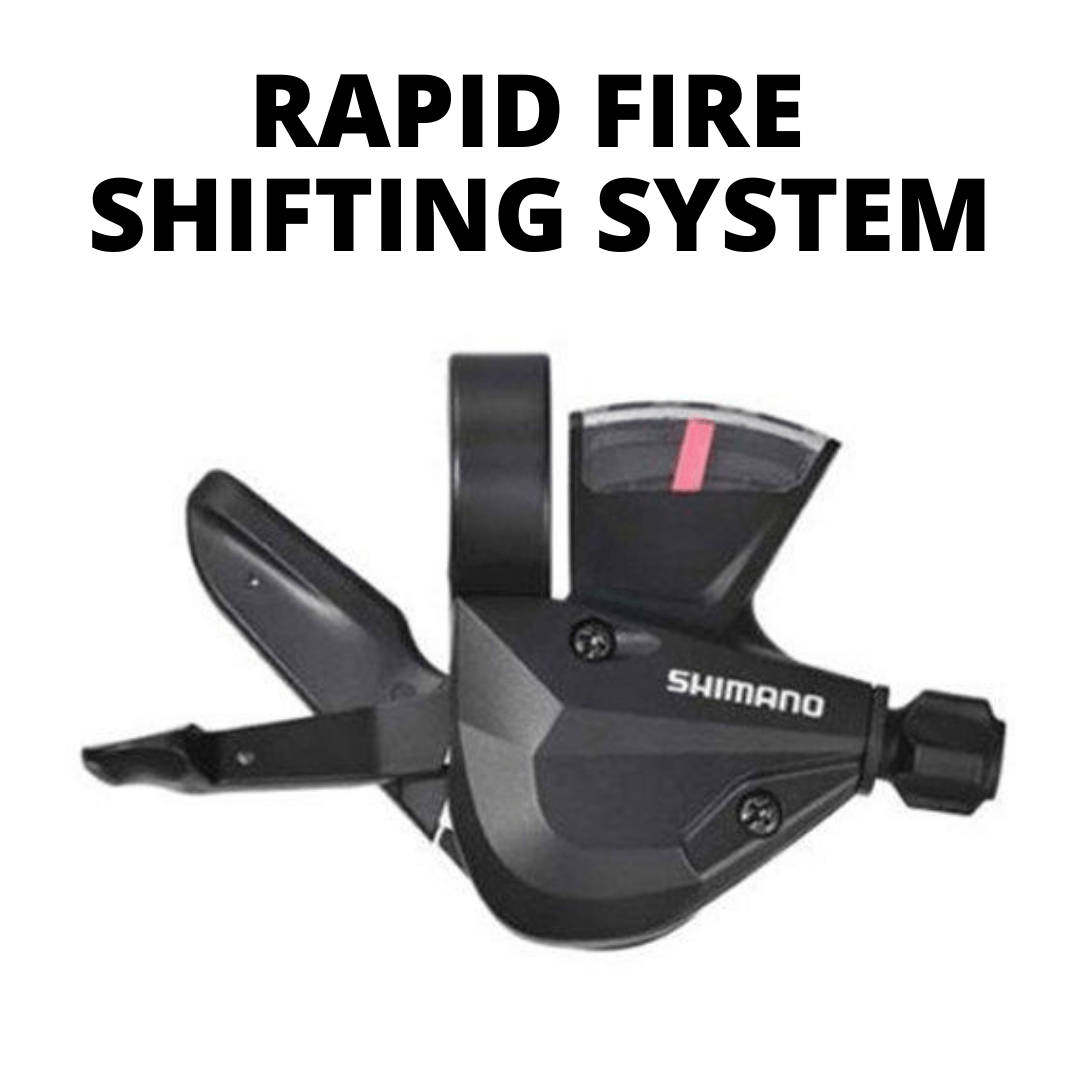

| Shifter |
Shimano SL-M315-RD |
| Brake System |
NUTT Hydraulic Disk Brake
Front & Rear 160mm |

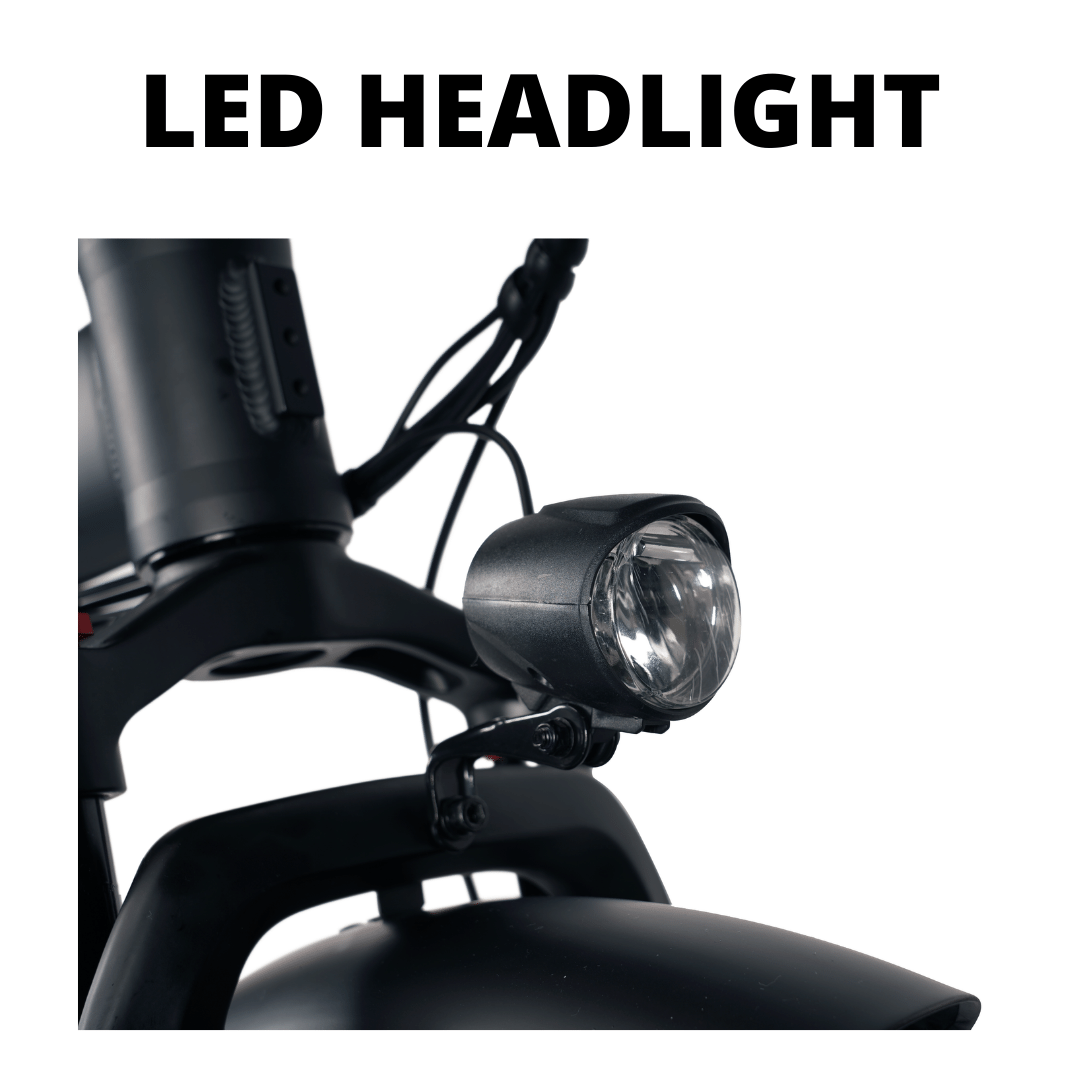

| Front Light |
Integrated LED Headlight |

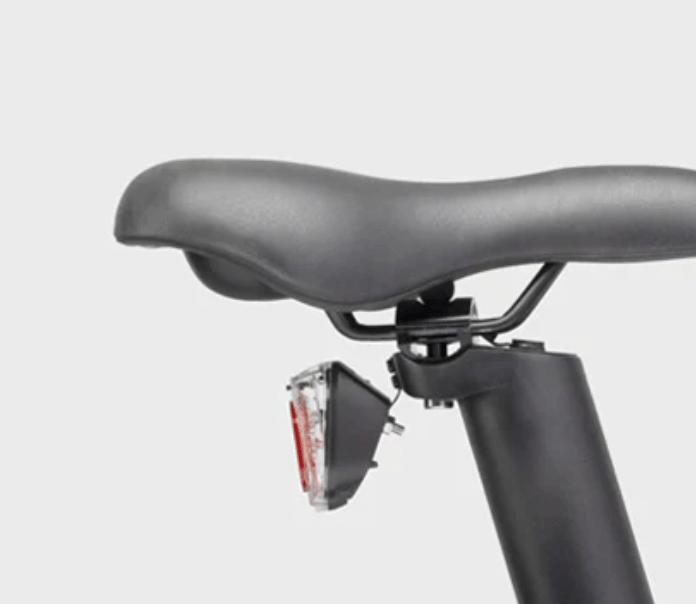

| Rear Light |
LED Tail Light |

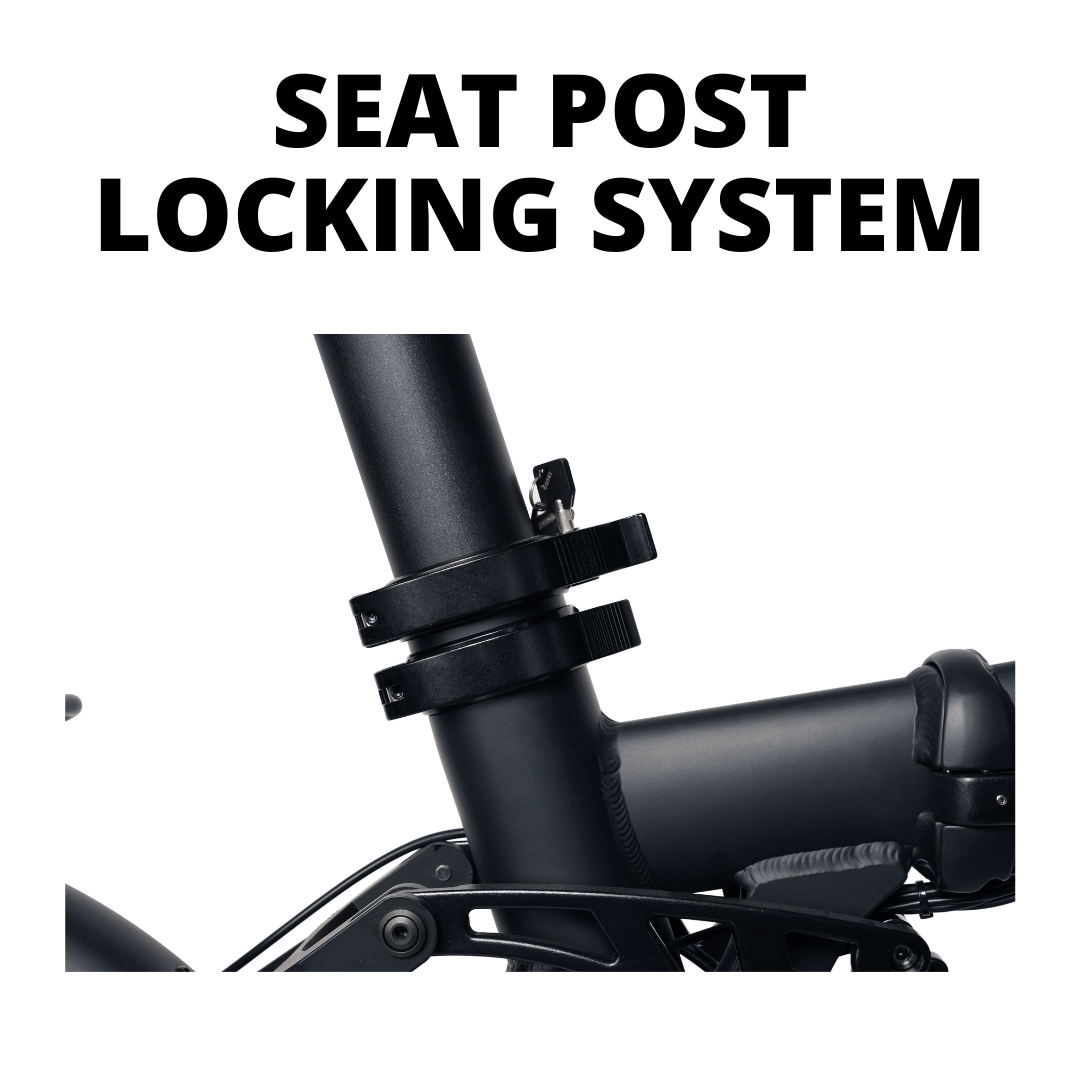

| Seat Clamp |
Double CLAMP
Locking Seat Post w/keys |
| Fenders |
Black Painted Steel
|
| Assembly |
Arrives 95% Pre-Assembled in the box |
*Range estimate is based on estimated use at Level 1 PAS. Range is not guaranteed and will vary depending on terrain, weight of rider & cargo, weather conditions, etc.
**This Sidekick ships as a Class 1 & 2, with pedal assist and throttle with a maximum speed of 32km/h. If you are riding on private property or in an area without ebike speed restrictions, the speed limit can be modified in the settings, and the motor can be unlocked to go faster. Sidekick can also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are not allowed (Class 1).
Actual product may vary slightly from the pictures on our website.
BATTERY

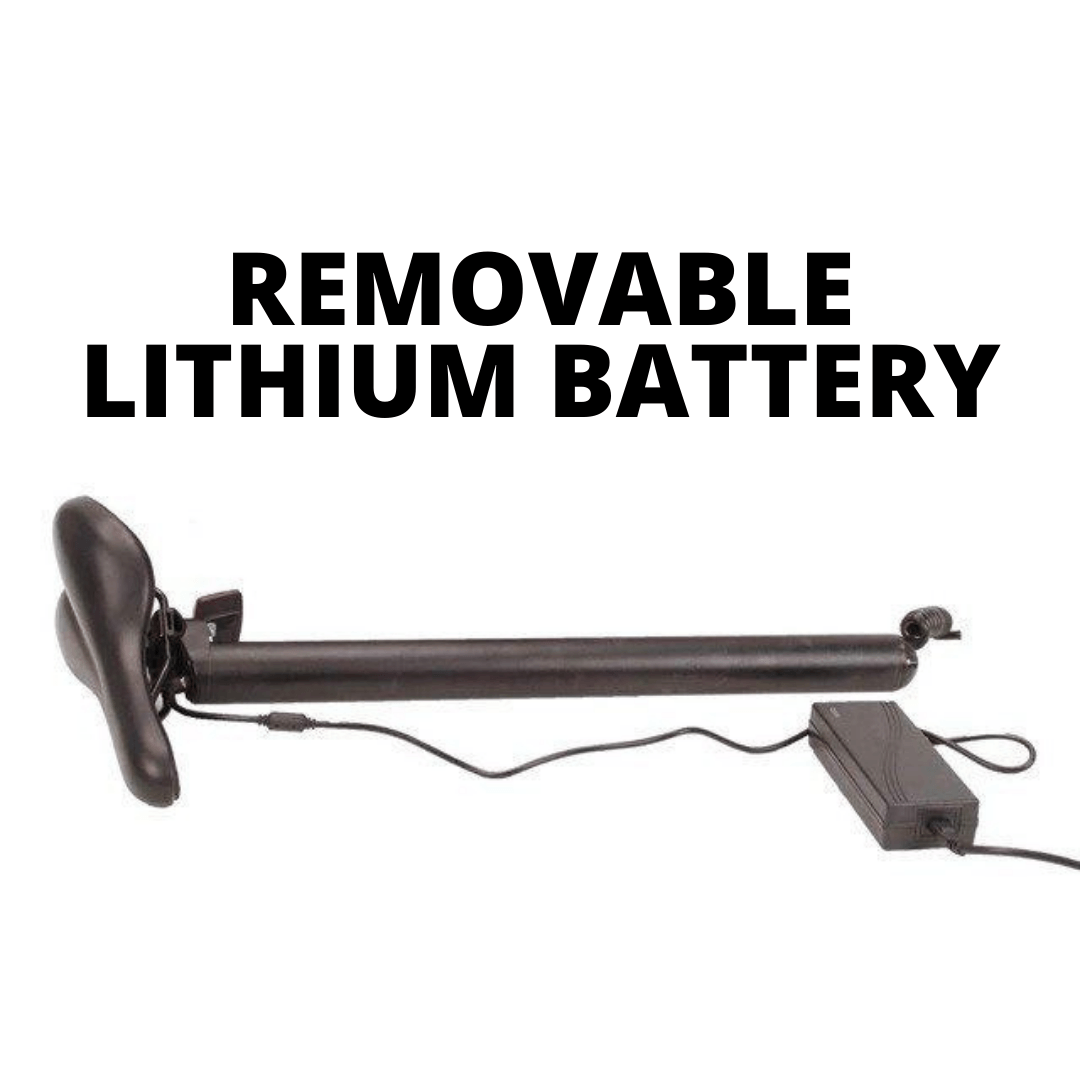

To make the Sidekick neat and unique, we created a patented seat-post lithium battery by Samsung and LG as our power system. Most people won’t recognize it’s an ebike at their first sight. The iBMS system is also important as it keeps your battery safe from over-charging, and over heating. iBMS manages all the cells to work more efficiently to offer you a longer range. The seat-post battery is removable so you can either charge it while attached to the bike or separately in your home, office, or anywhere there is an electrical outlet.
*Range quoted is based on estimated use at Level 1 PAS. Range will vary depending on terrain, weight of rider & cargo, weather conditions, etc.
WEIGHT & MEASUREMENTS
FREE SHIPPING WITHIN CANADA!
| Shipping Box | TBA |
|---|---|
| Folded Size |
|
| Unfolded Size |
|
| Stand Over Height | Step-Thru Low Rise |
| Net Weight (approx) |
27KG (With battery) (60lbs) |
| Weight Capacity |
Up to 300lbs |
| Package Weight (approx) |
32KG (70lbs) |
| Rider Height | 5'2" + |
Our Sidekick Series comes PRE-ASSEMBLED right out of the box!
WARRANTY
For complete warranty details, click here.
USER MANUALS
| User Manual |  |
| LCD Display |
|
| How to fold your Sidekick |
 |
