✪ 100KM RANGE ✪
✪ HYDRAULIC DISC BRAKES ✪
Your sidekick for your every day city travel, whether that be your commute to work, your jaunt to the grocery store or a weekend ride in the country.

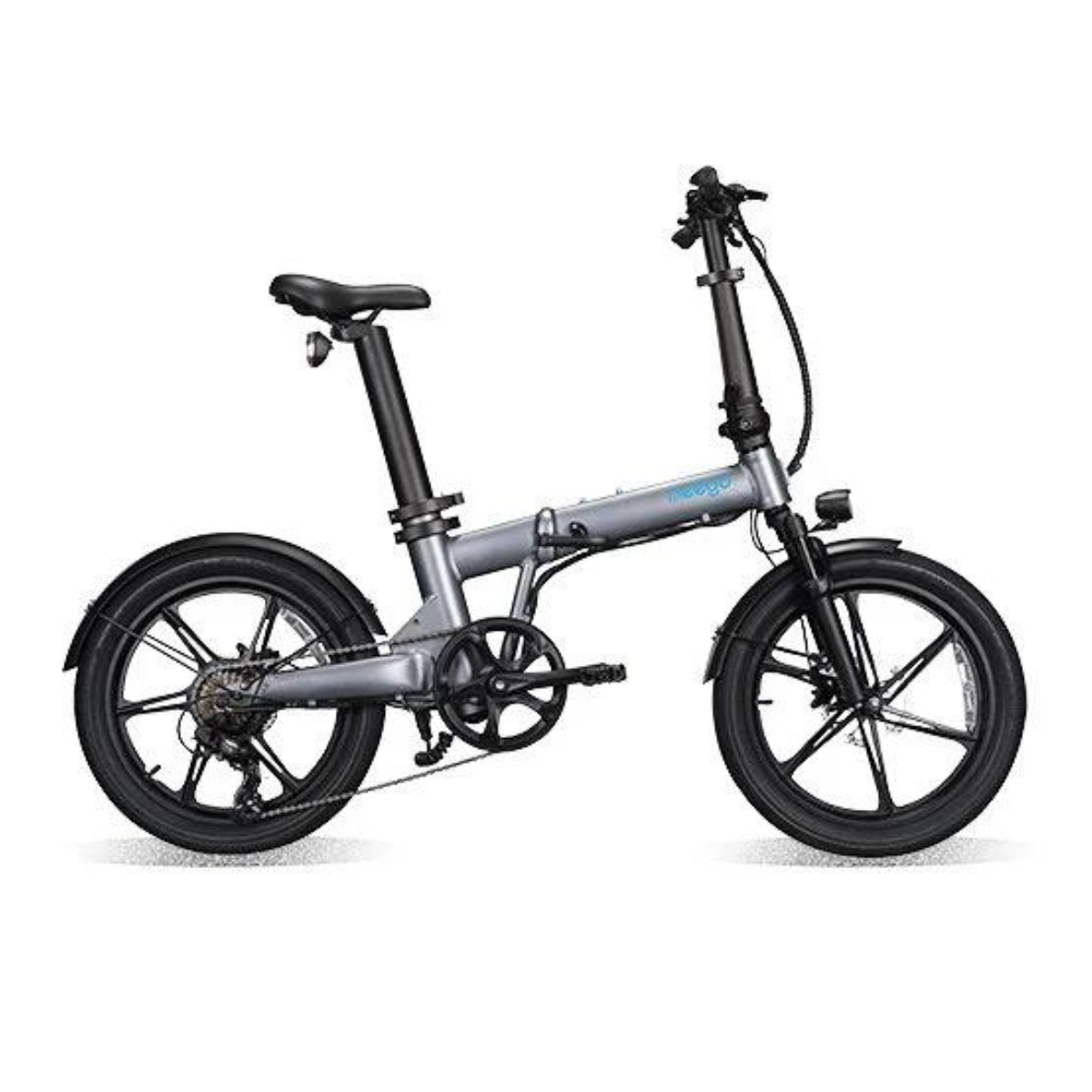

Our Sidekick Lemeego is a 'slim-fat' 20" x 2.4" tire model for those that don't quite need or want a full 4" Fat tire, while having the same power without compromise!
Sidekick Lemeego will accommodate Cyclists ranging in height from 5′5 to 6’5″ weighing up to 275 lbs. It has 4 riding modes: Normal bike mode, (PAS) Pedal assist mode, Cruise control mode and throttle mode.
TECHNICAL SPECS
SPECIFICATIONS
| Battery Pack |
48V 15AH (720WH) |
|---|---|
| Battery Charger |
D-POWER 48V 5A UltraFast Smart Charger |
| Charging Time |
3-4 hours |

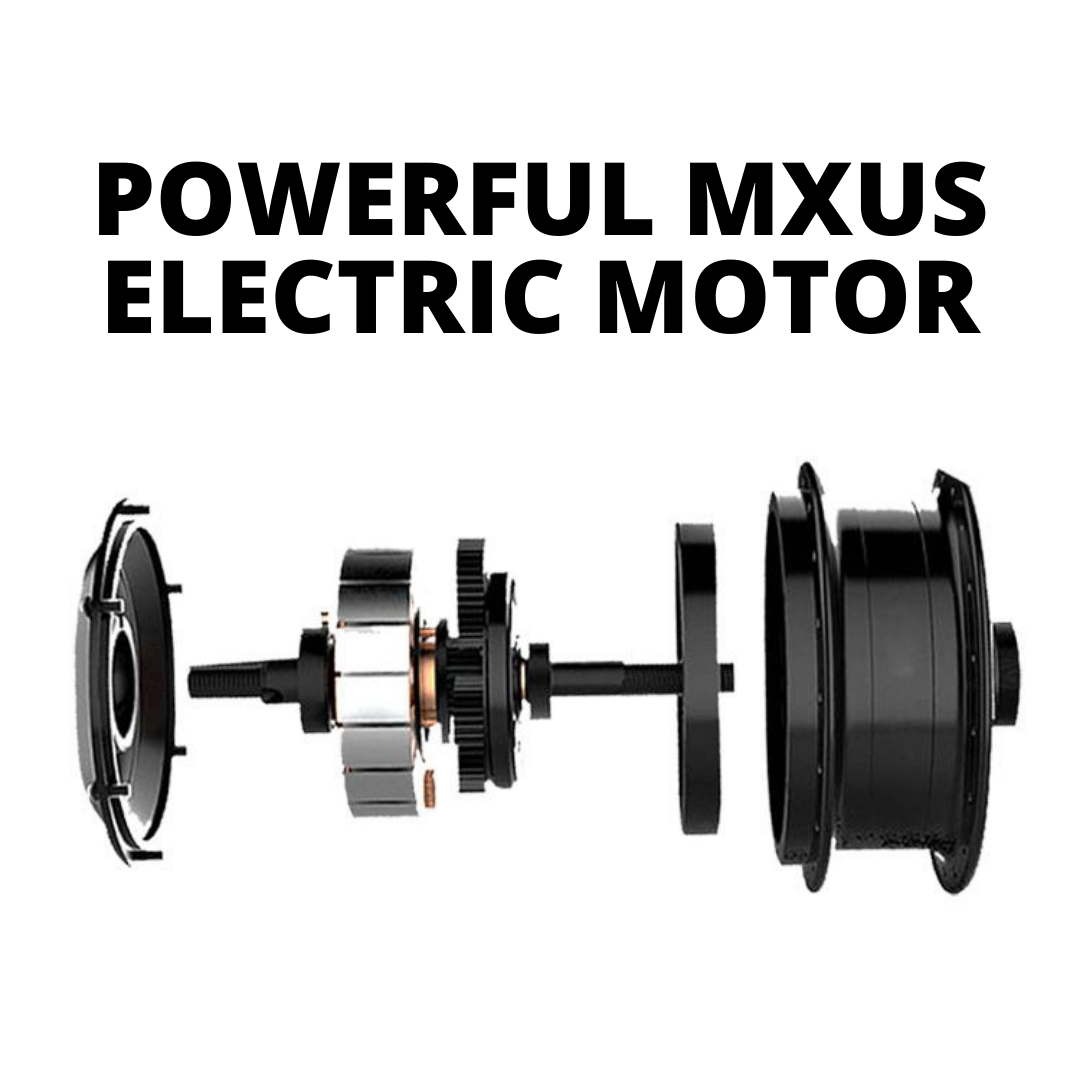

| Motor |
900W Peak Output |
| Controller |
KT Sine Wave 48V20A |

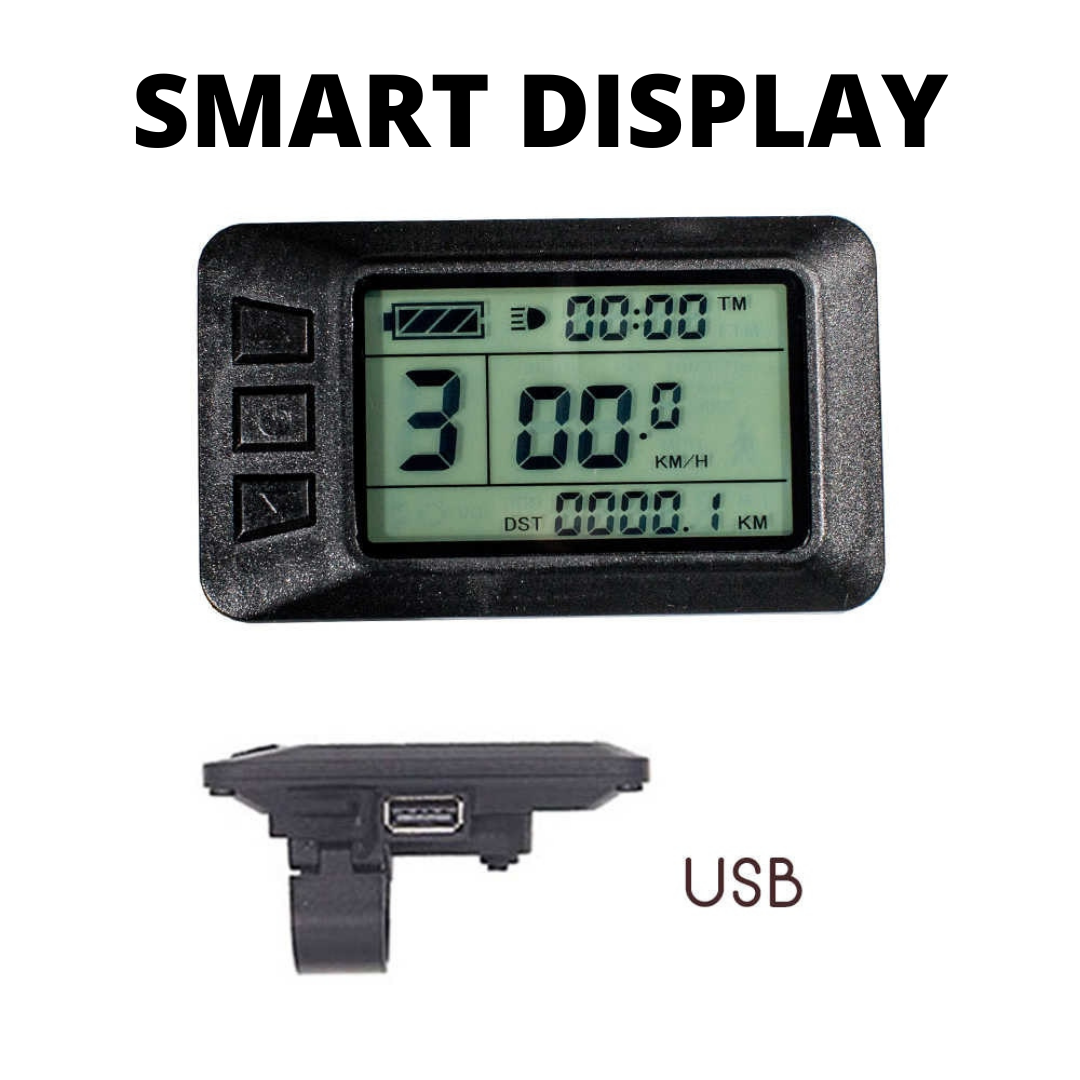

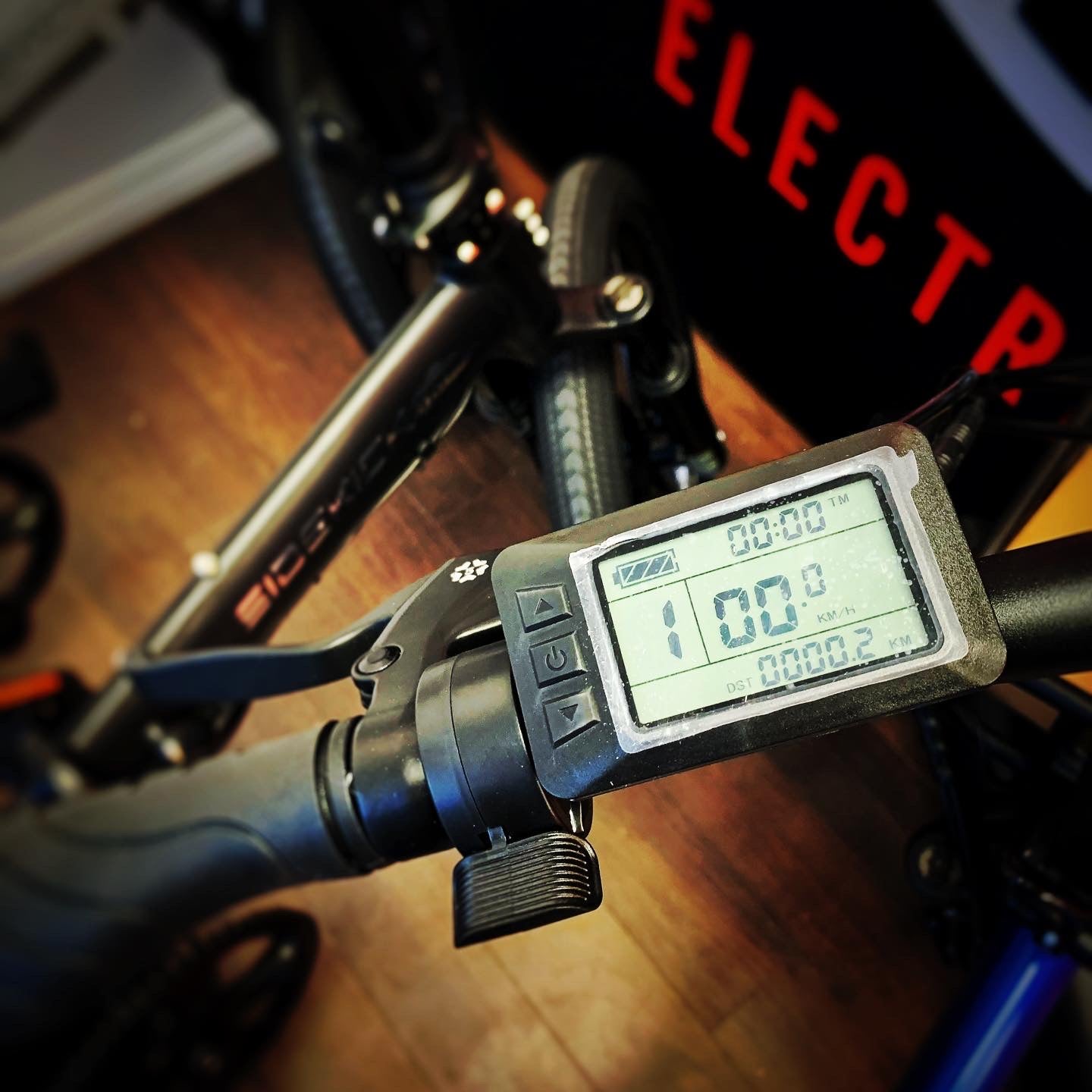

| LCD |
Kunteng LCD-7U |
| Sensor |
KT-V12 Double Hall Speed Sensor |
| Top Speed |
32km/h |
| Range |
Up to 100KM |
| Ride Modes |
Responsive On Demand Thumb Throttle |
| Throttle |
Thumb |
| Frame |
Aircraft Aluminum-Alloy 6061 |
| Fork |
Suspension Fork |
| Handle Bar |
22.2"*31.8*640mmL, 3.0mm, 6" |
| Handle Grip |
Velo VLG 1505D2 130/130mm |
| Stem |
Patented Thick Stem |
| Headset |
Aluminum with Bearing, 28.6"56-56*30/39.8 H:14mm |

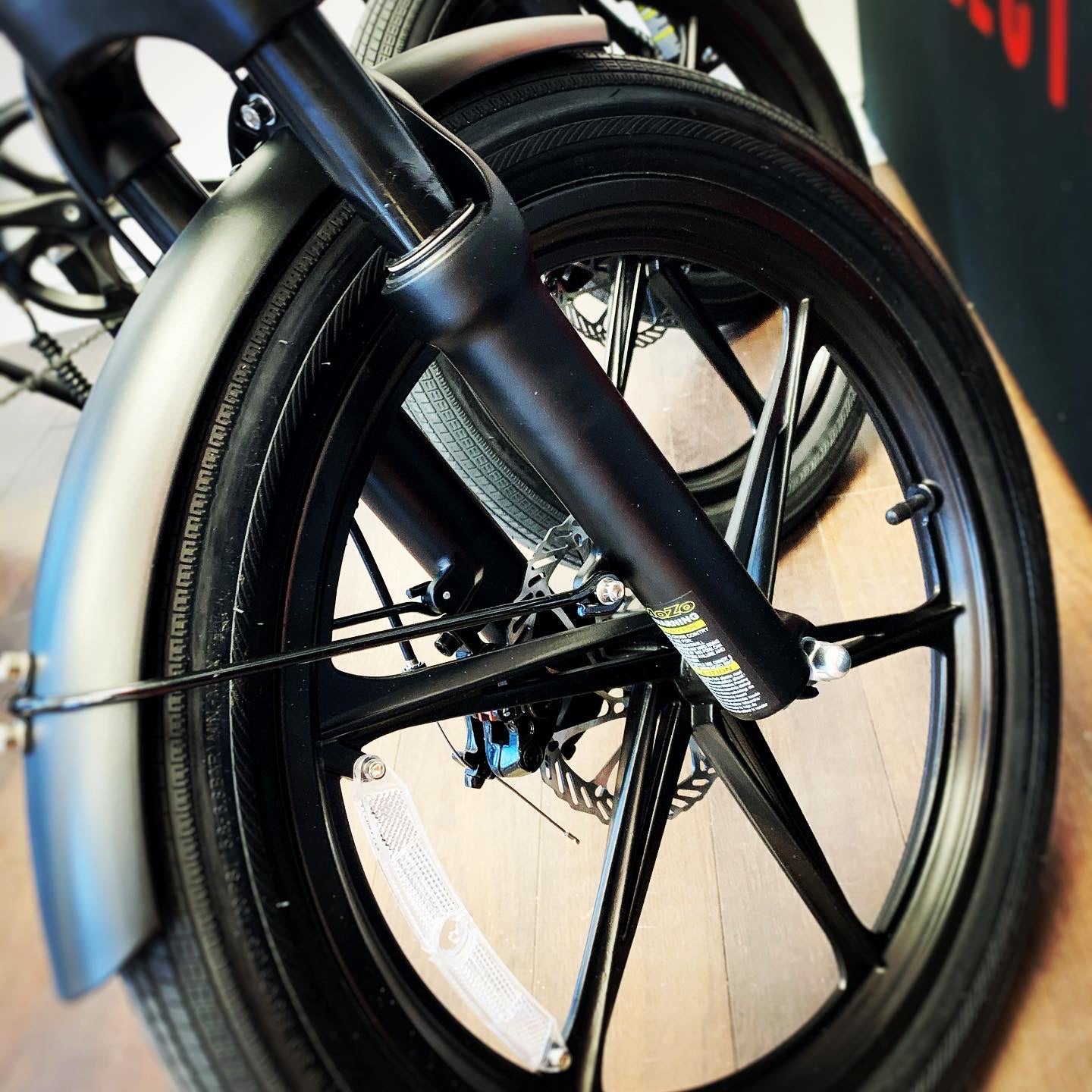

| Wheel |
Aluminum Alloy integrated wheel |
| Tires |
Custom CST CC-21 20×2.4/60TPI |

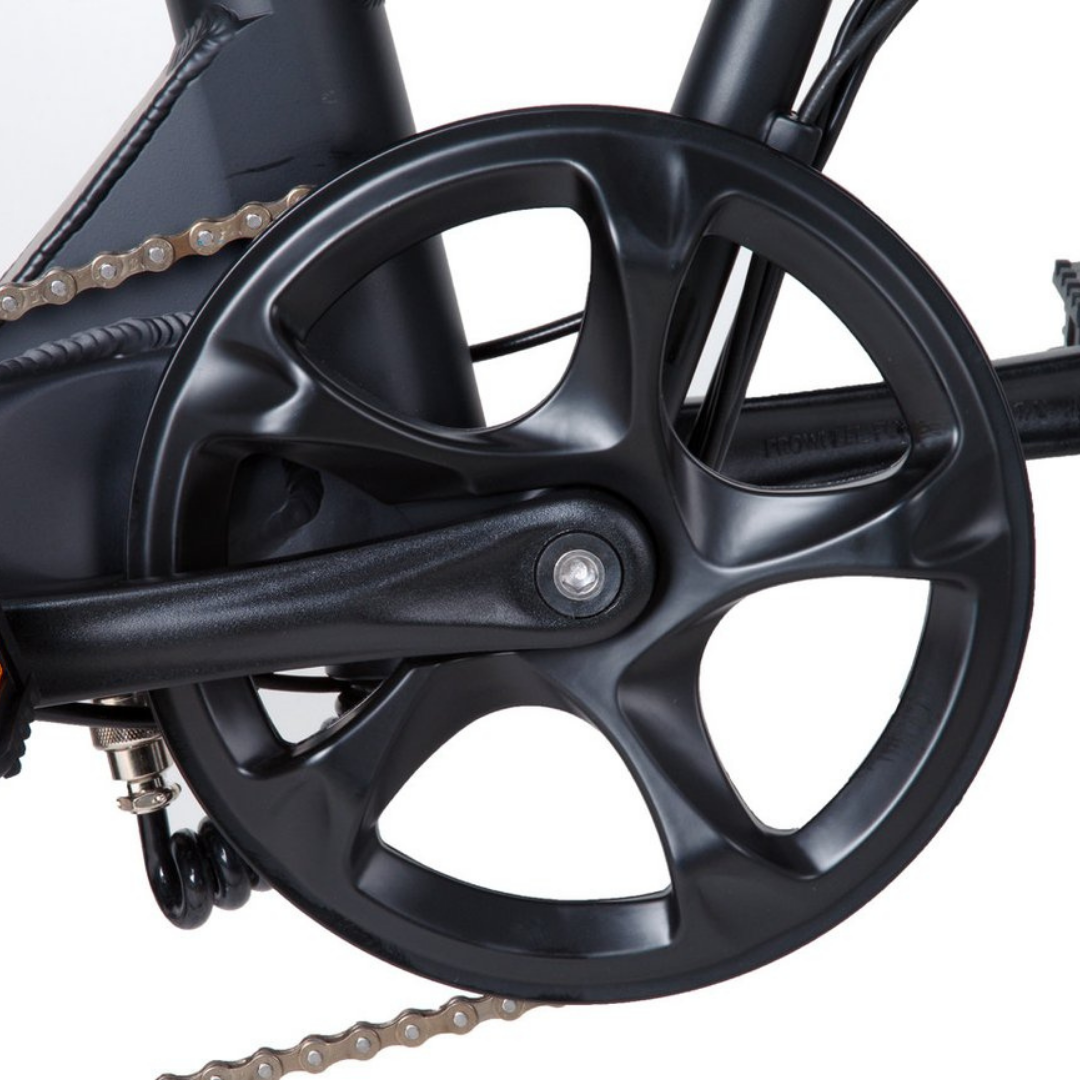

| Crankset |
Prowheel PRO-552PP-1, |
| Bottom Bracket |
BB68 . 122.5mm = 26.5+68+68 |
| Chain |
KMC Z7 1/2"*3/32"* |
| Rear Derailleur |
Shimano RD-TY300 |

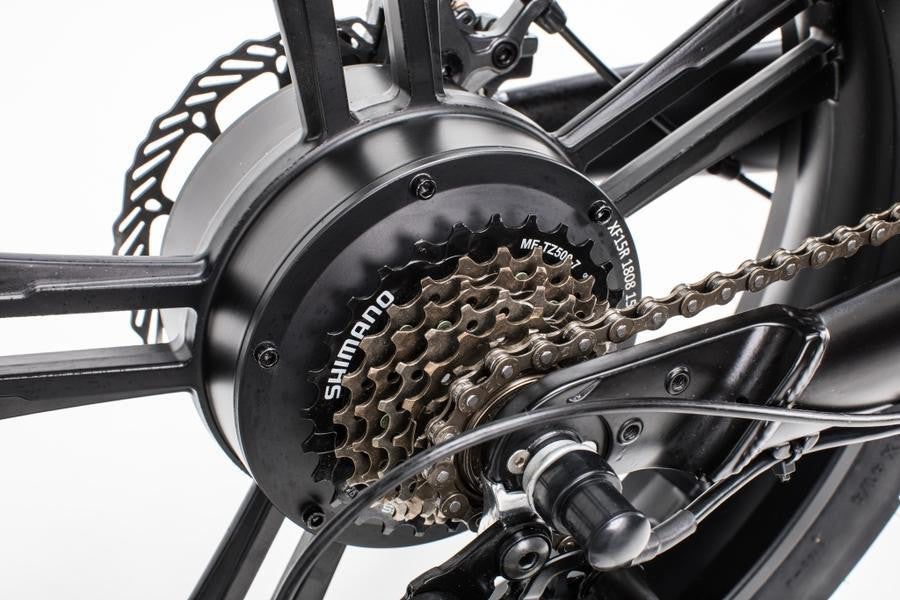

| Casette |
Shimano AMFTZ500742 / MF-TZ500 Speed |

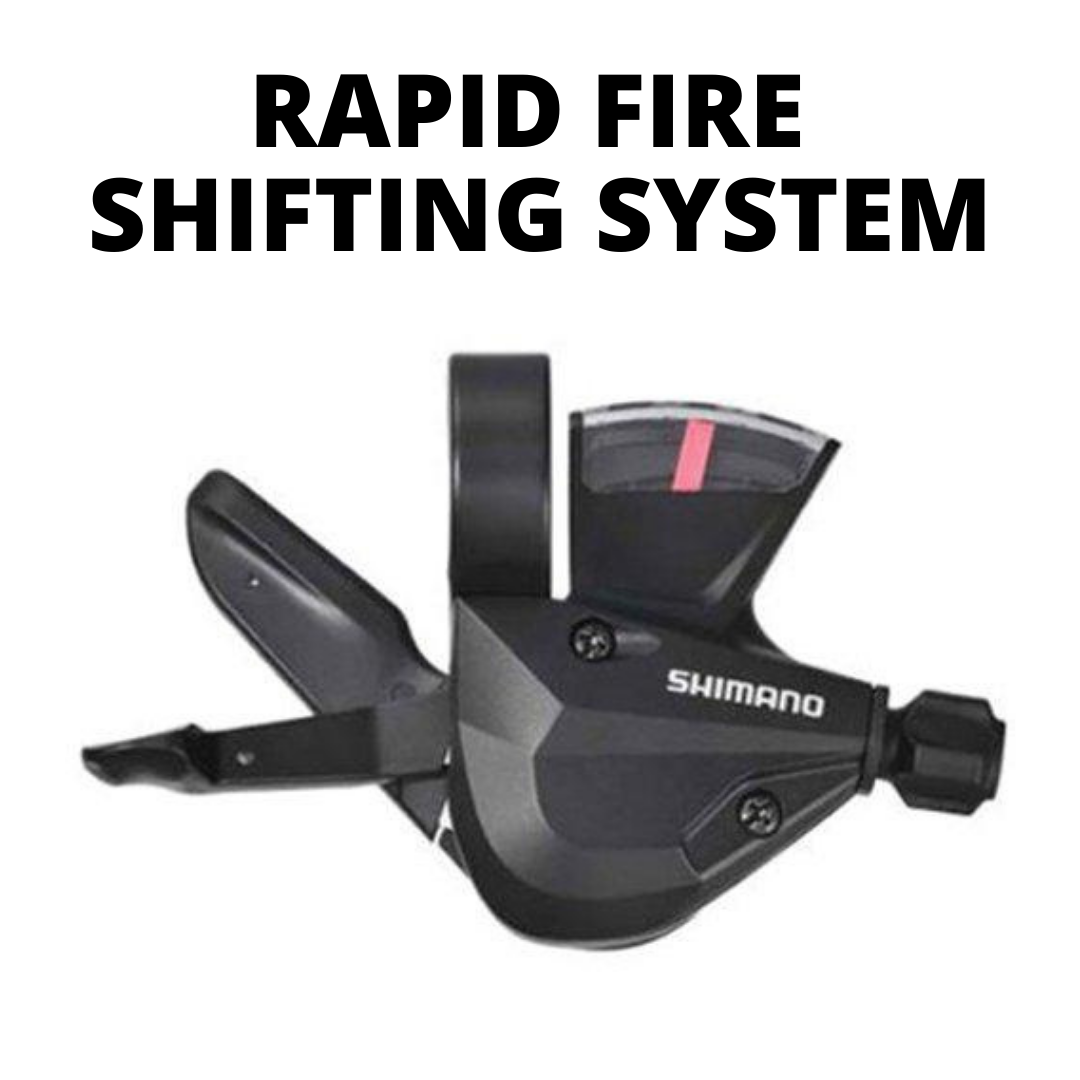

| Shifter |
Shimano SL-M315-RD |
| Brake System |
NUTT Hydraulic Disk Brake |

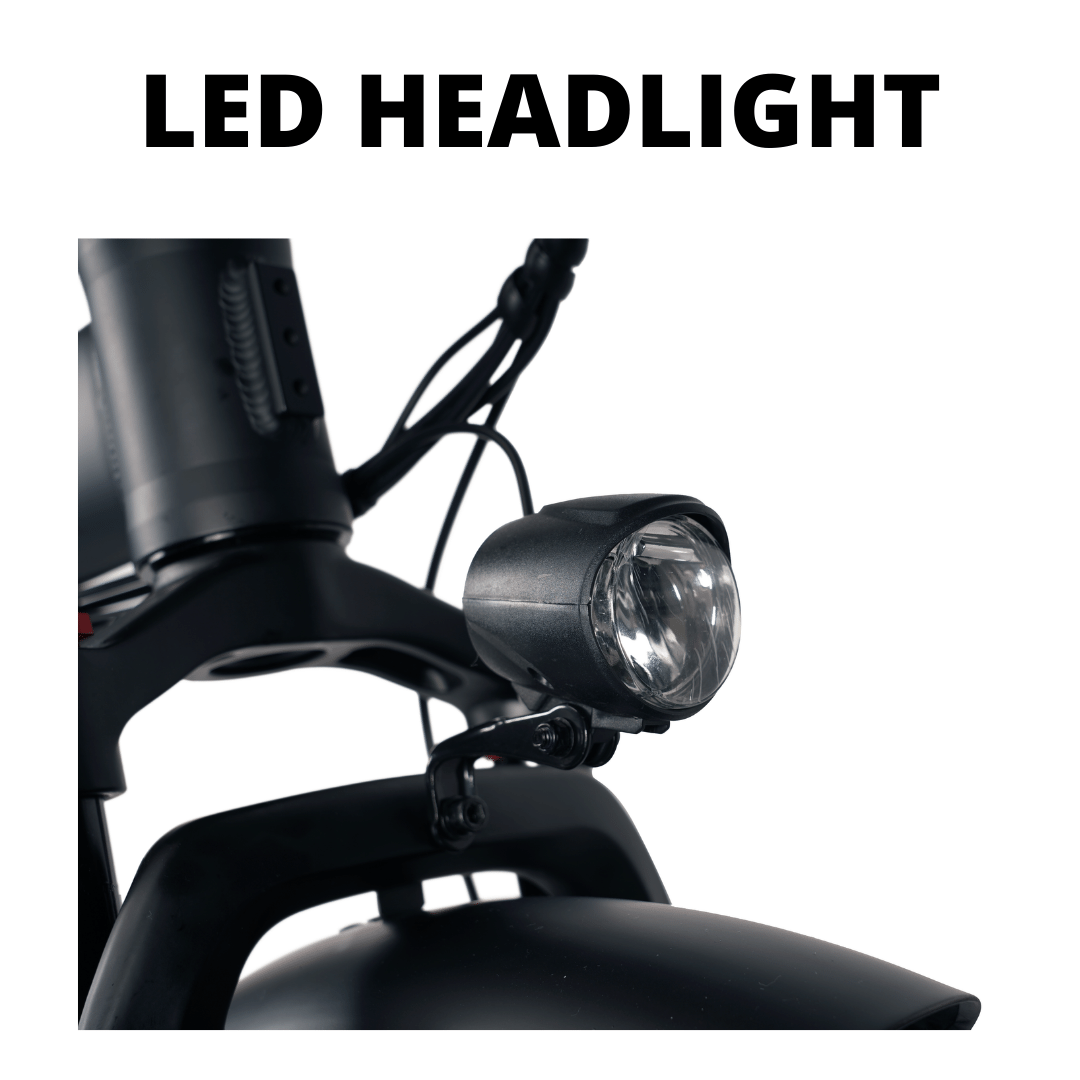

| Front Light |
Star Union QD-139/48V |
| Rear Light |
Included |
| Seat Clamp |
Double CLAMP |
| Optional Fenders |
Black Painted Steel |
| Assembly |
Arrives Pre-Assembled in the box |
*Range quoted is based on estimated use at Level 1 PAS. Range will vary depending on terrain, weight of rider & cargo, weather conditions, etc.
Actual product may vary slightly from the pictures on our website.

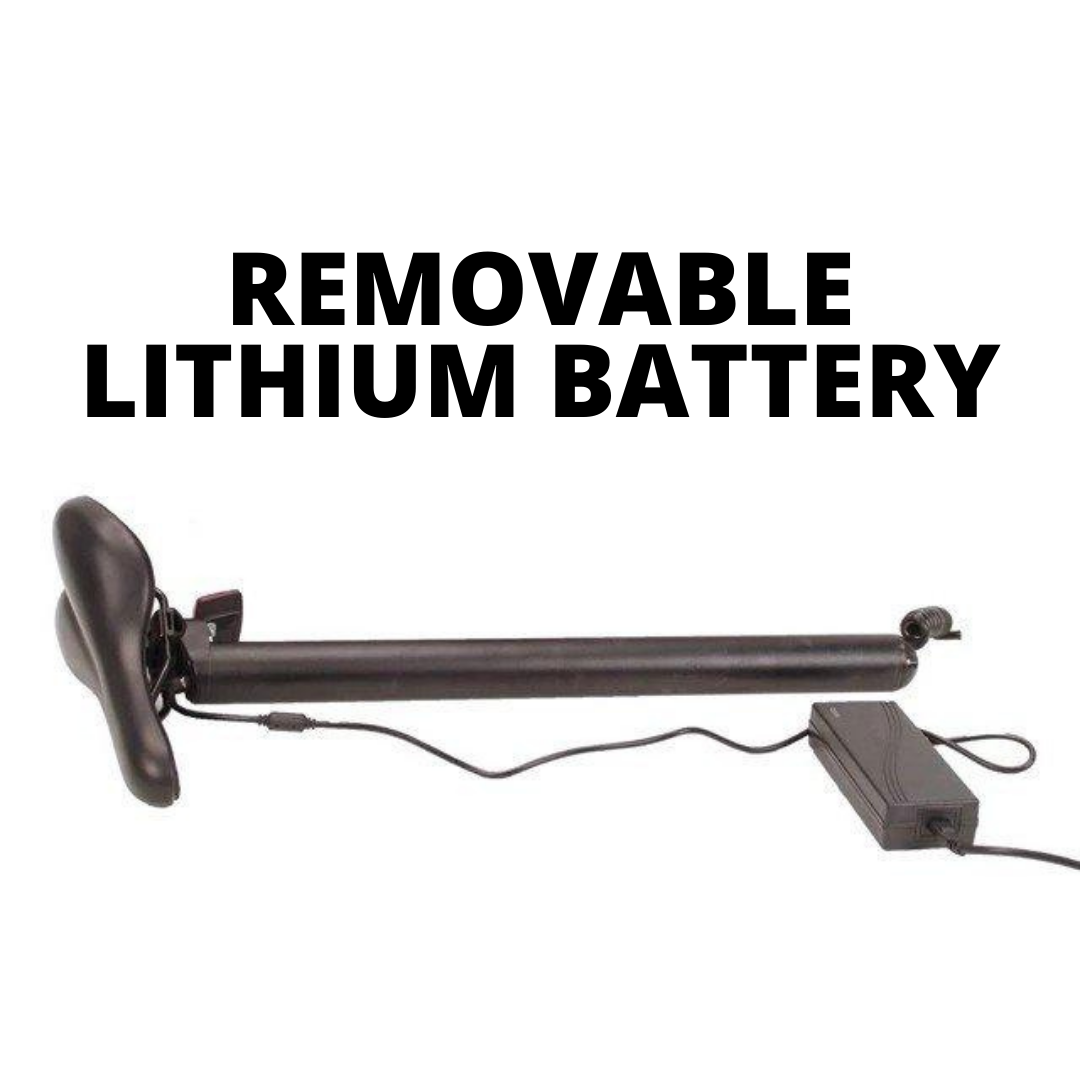

BATTERY
To make the Sidekick neat and unique, we created a patented seat-post lithium battery by Samsung and LG as our power system. Most people won’t recognize it’s an ebike at their first sight. The iBMS system is also important as it keeps your battery safe from over-charging, and over heating. iBMS manages all the cells to work more efficiently to offer you a longer range. The seat-post battery is removable so you can either charge it while attached to the bike or separately in your home, office, or anywhere there is an electrical outlet.
*Range quoted is based on estimated use at Level 1 PAS. Range will vary depending on terrain, weight of rider & cargo, weather conditions, etc.
WEIGHT & MEASUREMENTS
FREE SHIPPING WITHIN CANADA!
| Shipping Box |
64L x 11W x 27T inches |
|---|---|
| Shipping Weight |
32KG |

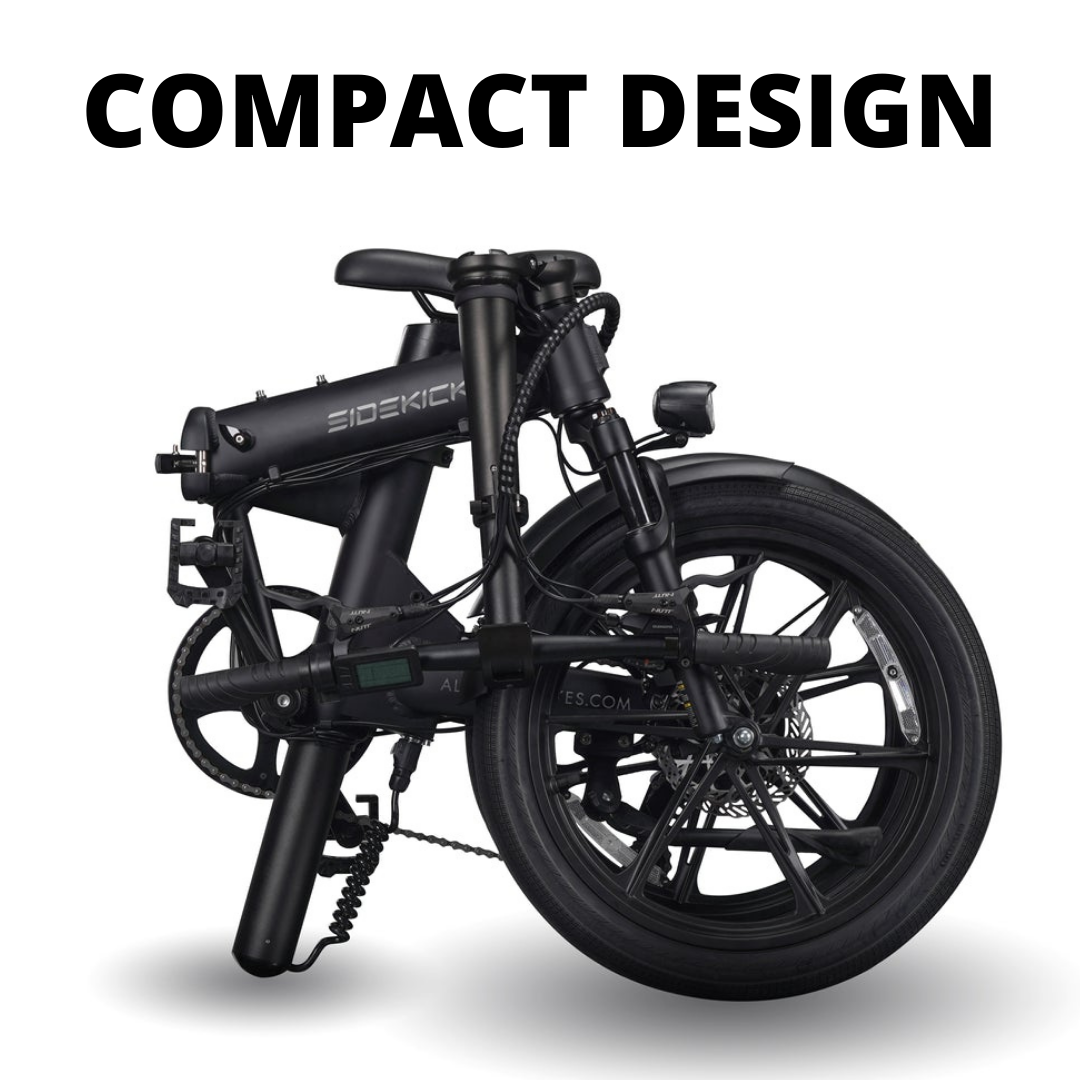

| Folded Size |
32.6 x 20.1 x 27.5 |
| Unfolded Size |
63 x 23.6 x 44 inches |
| Stand Over Height |
24" |
| Net Weight (Approx) |
27KG (With battery) (60lbs) |
| Weight Capacity |
125KG (275lbs) |
| Suitable Rider Height |
5'5" - 6'5" |
Our Sidekick Series comes PRE-ASSEMBLED right out of the box!
WARRANTY
For complete warranty details, click here.
USER MANUALS
| User Manual |  |
| LCD Display |
|

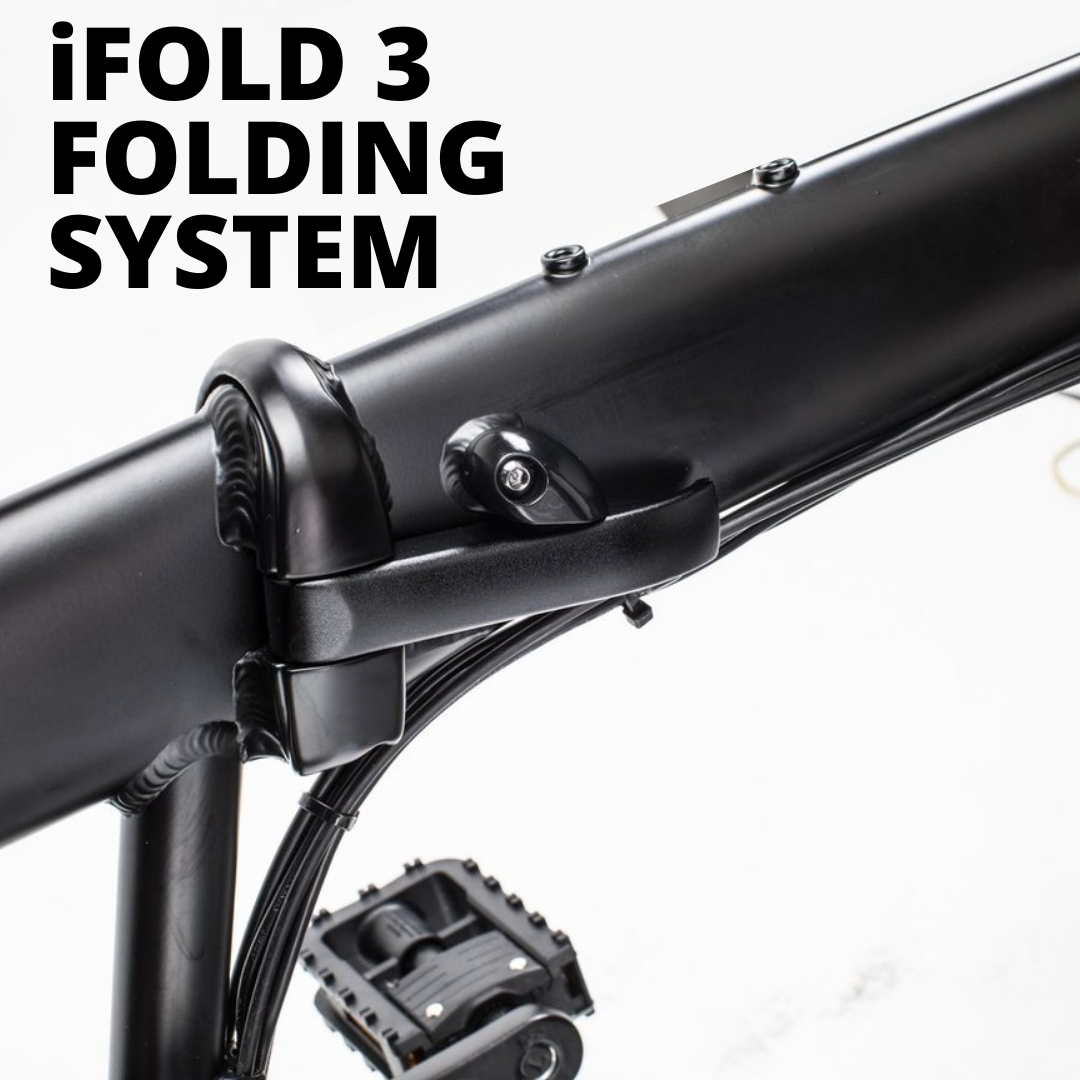

| How to fold your Sidekick |
 |
