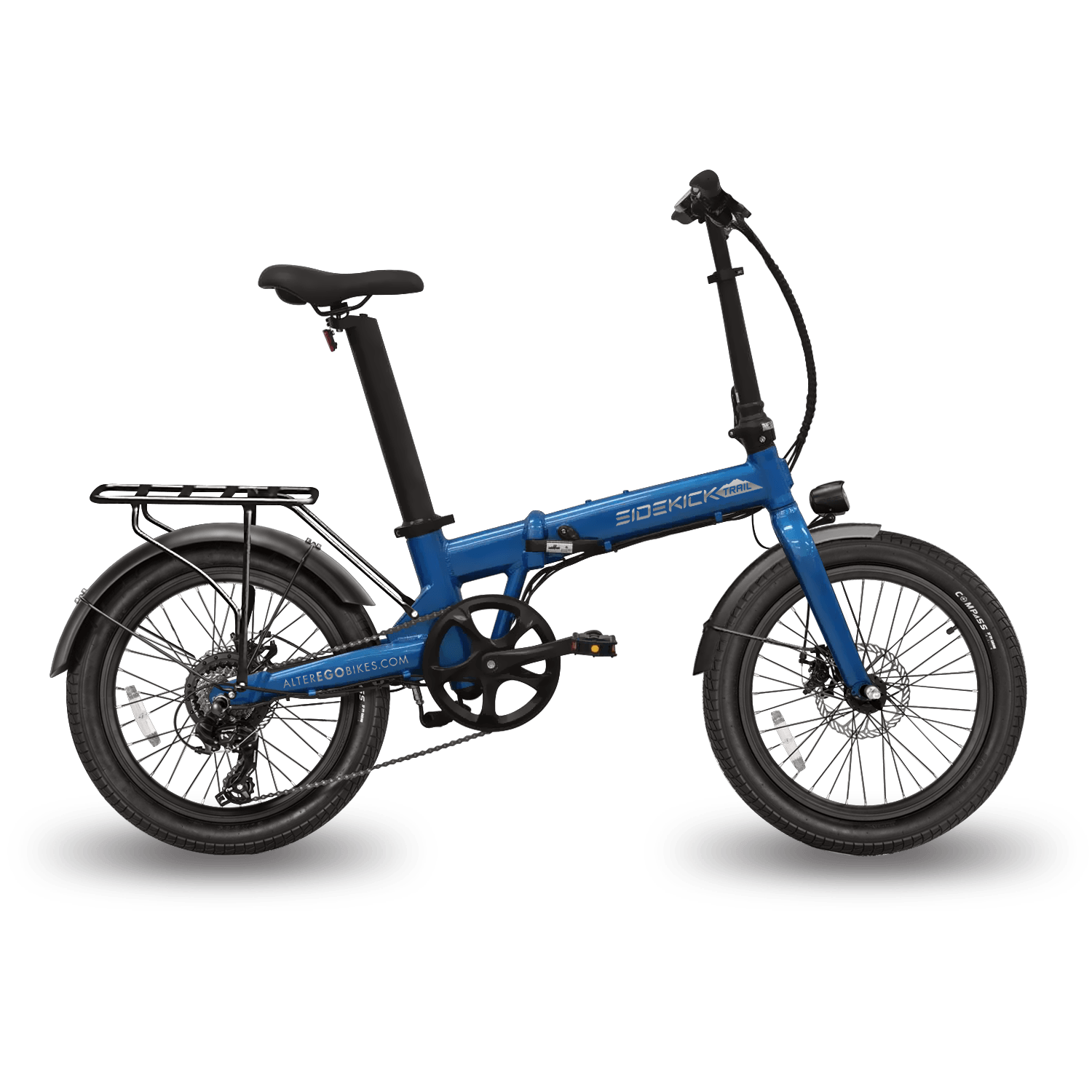

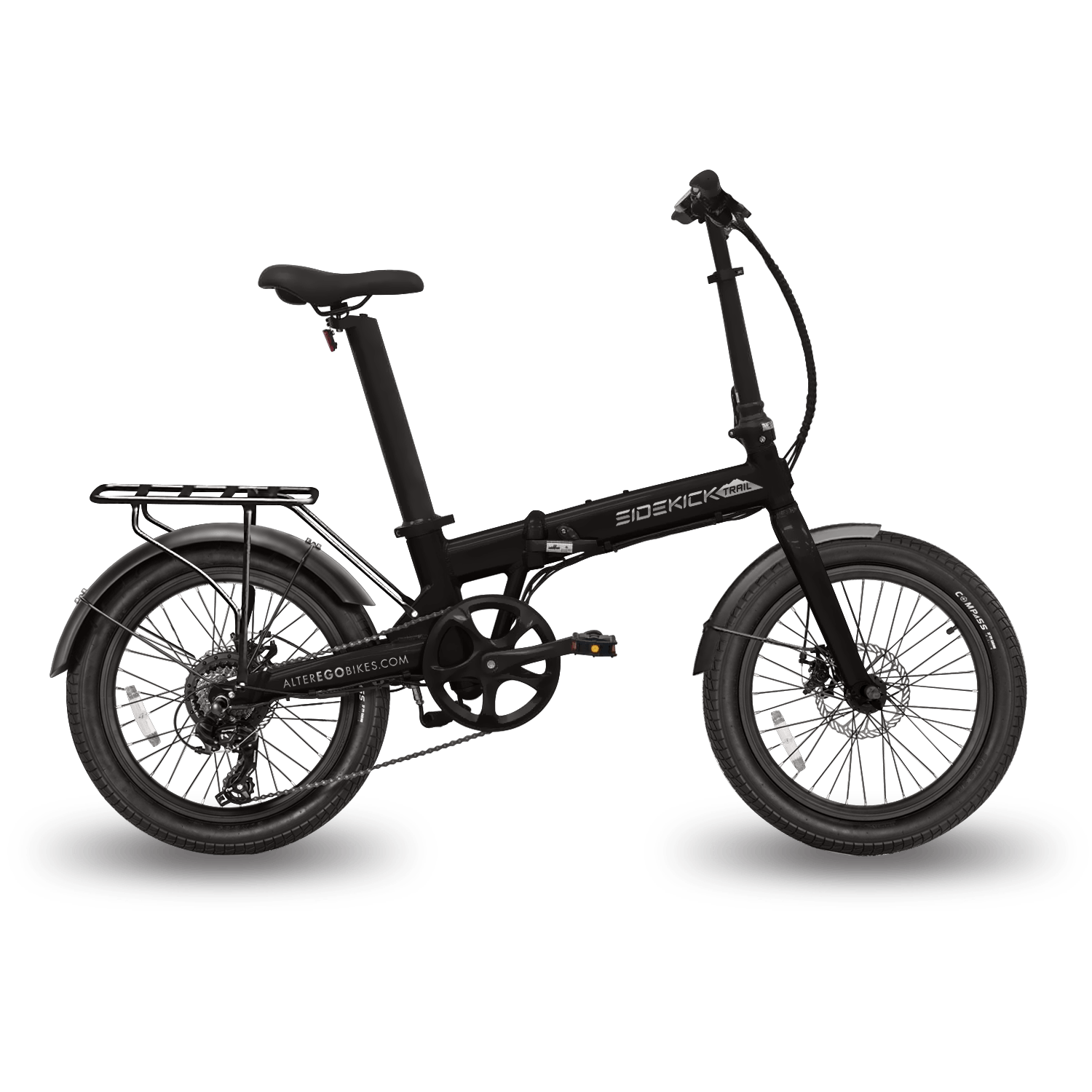

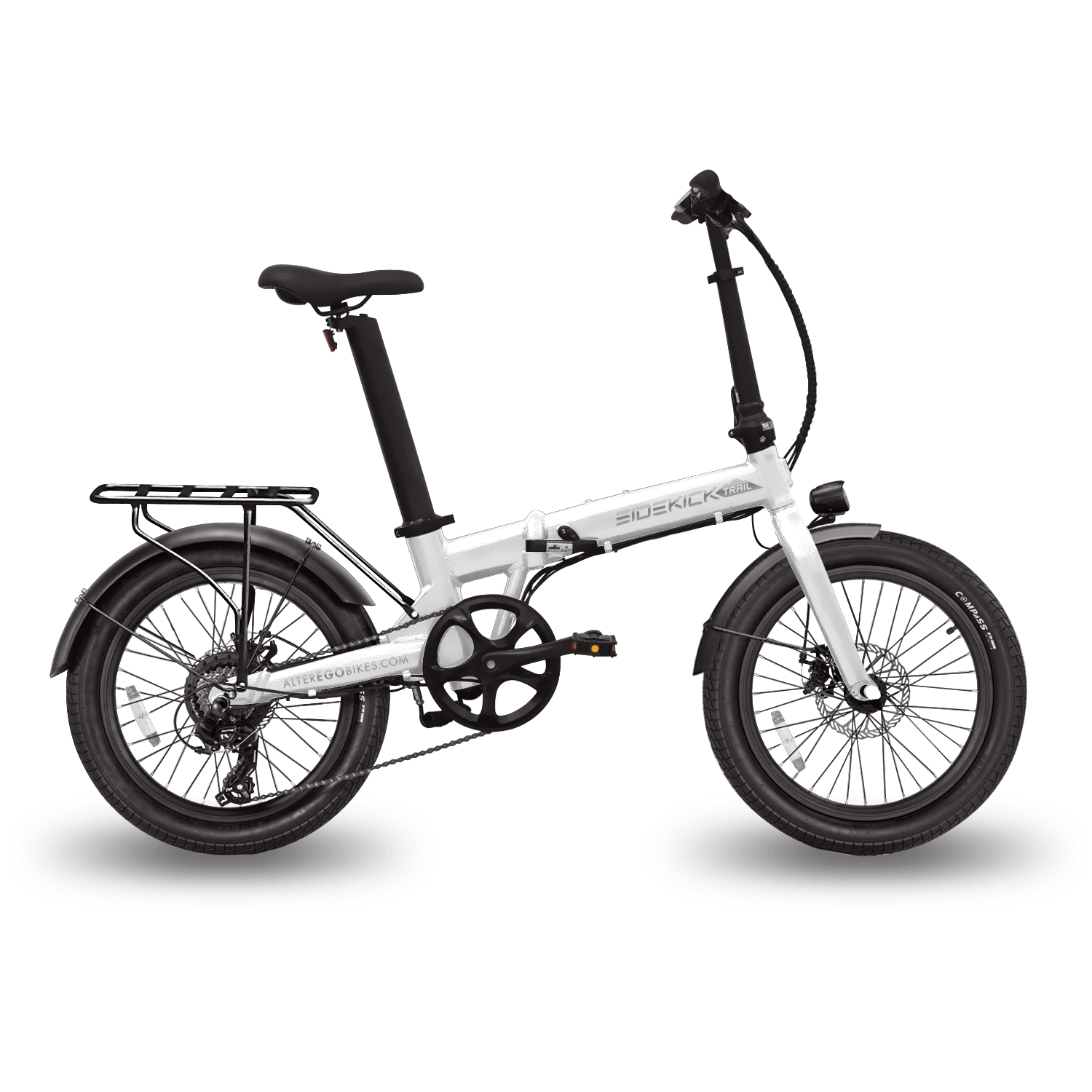

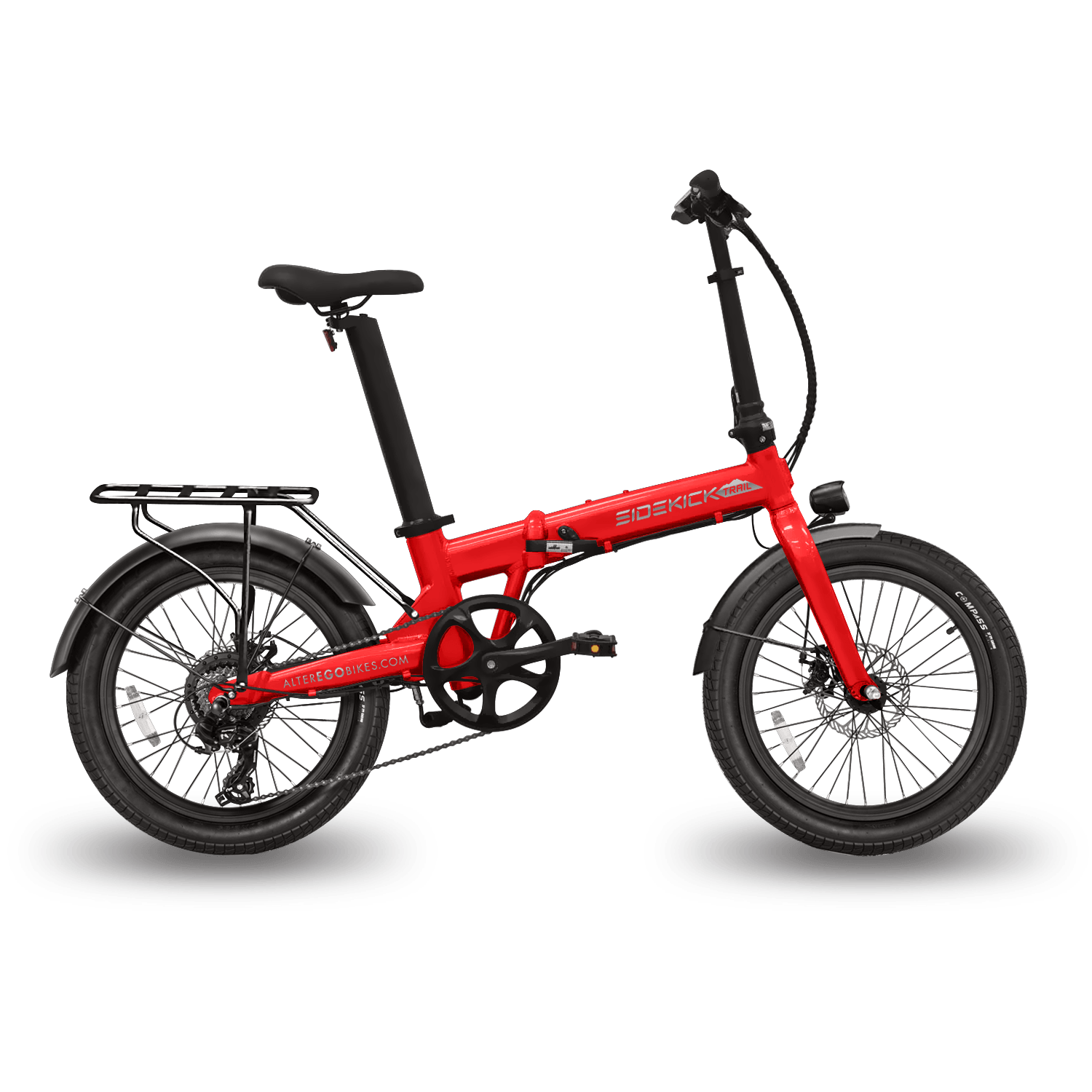

The all new budget friendly, lightweight Sidekick Trail is here!

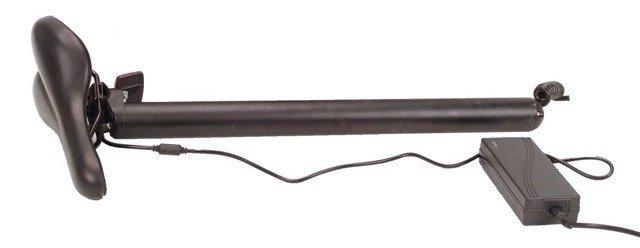

- Hidden & removable LG lithium battery capable of up to 80km range!

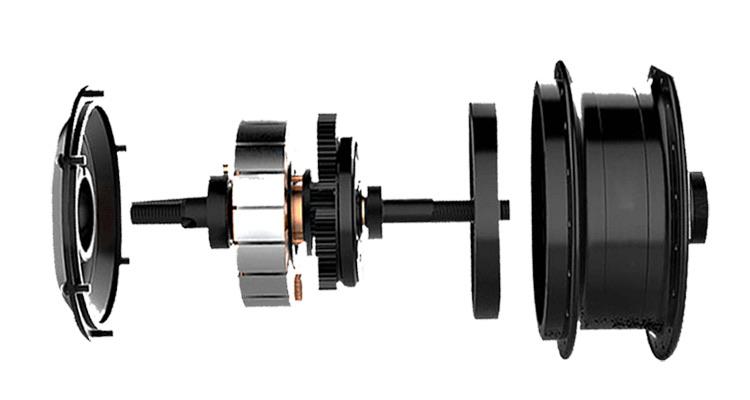

- Powerful 36V 500W geared hub motor - compliant with Canadian laws!
- HYDRAULIC brakes will keep you safe from any emergency with brake distance within 3 meters.
- Extra wide 2.4" tires for a smooth ride no matter the terrain

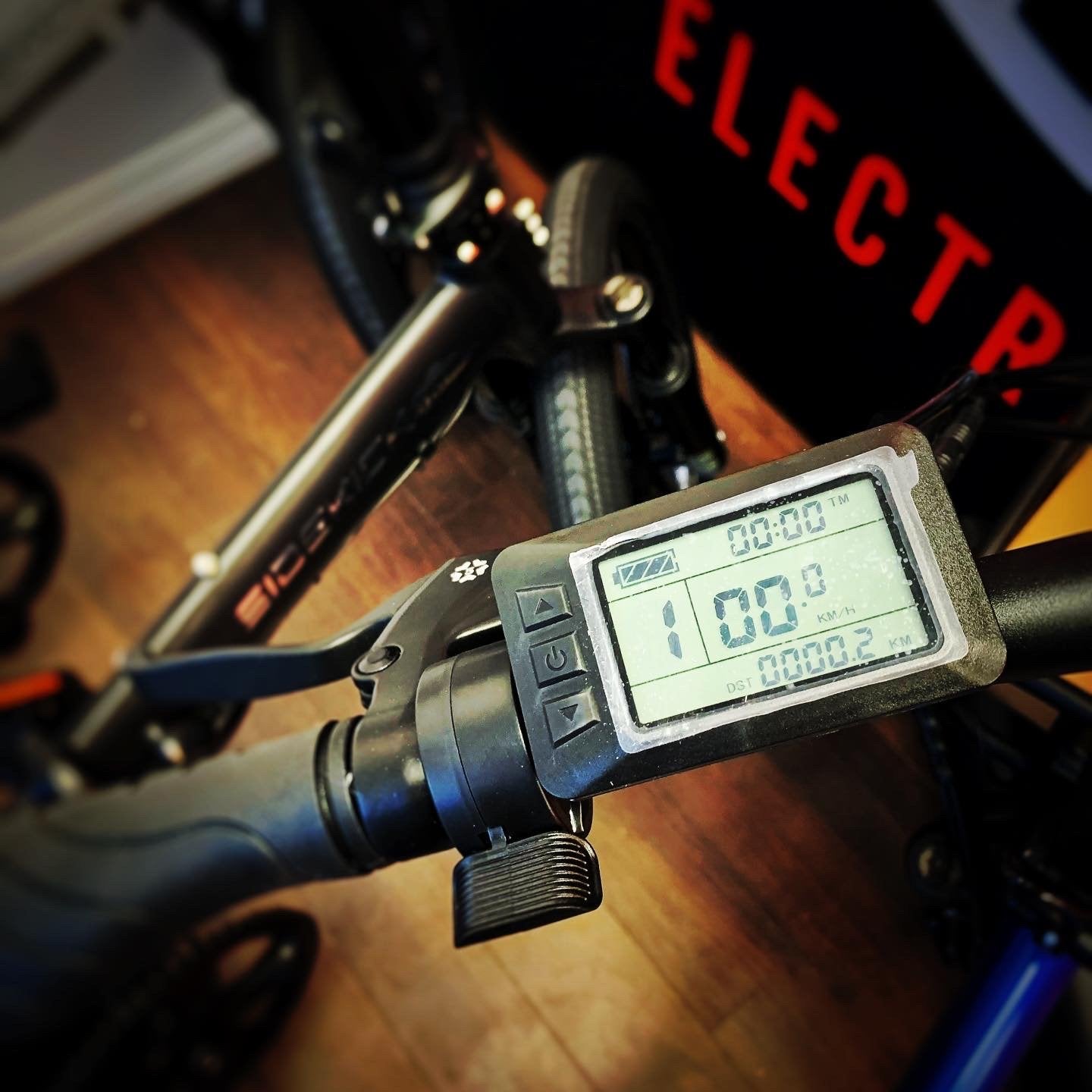

- Our multifunction fully integrated large LCD display features a 12 point sensor and “FOC” technology (Field Oriented Control). With FOC we can control and drive motors with higher efficiency and less noise and operates in sync with our PAS “Pedal Assist System”.
SPECIFICATIONS
SPECIFICATIONS

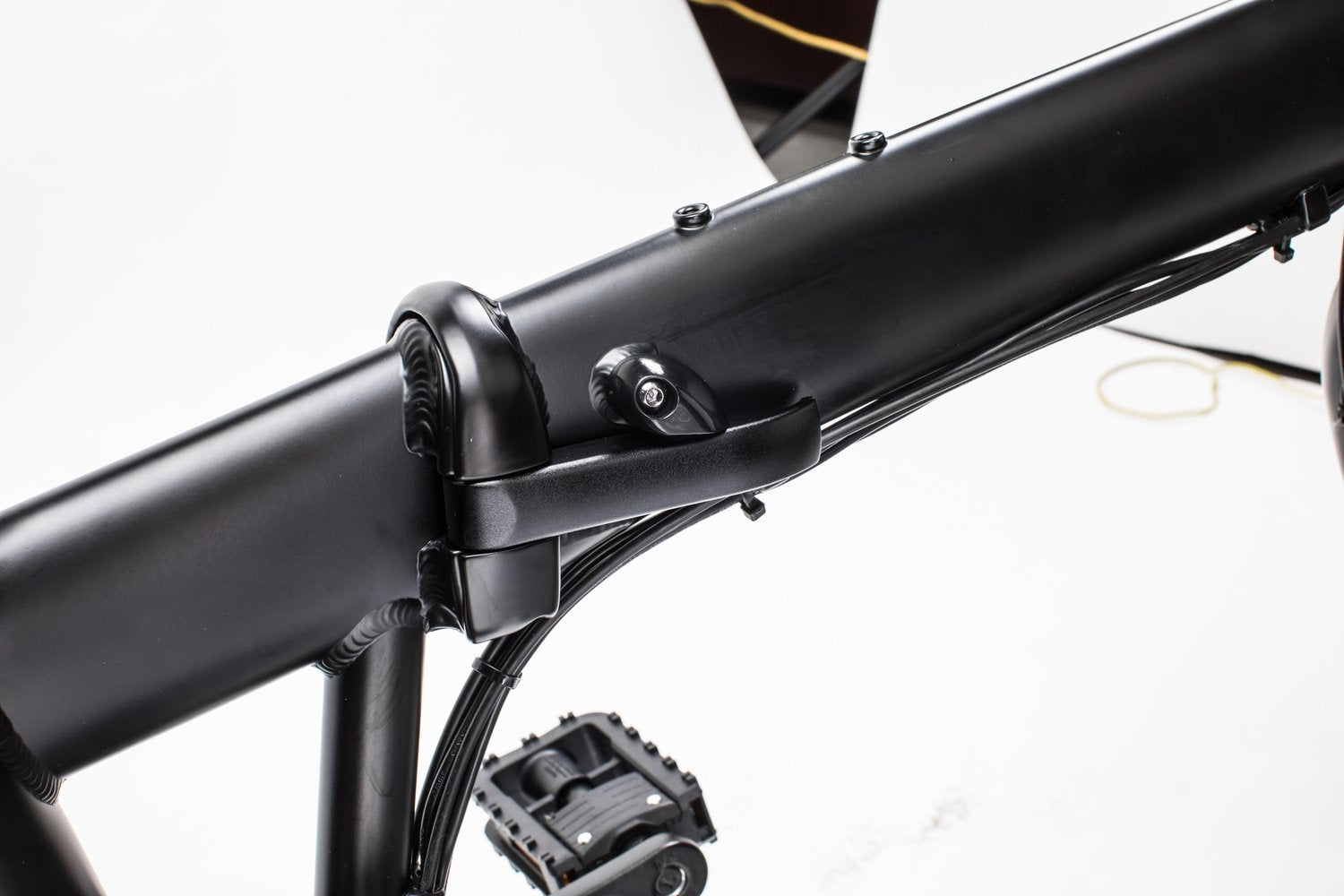

Frame |
6061 Aircraft Aluminum Alloy |
Motor |
MXUS 36V 500W |
Battery |
Lithium Ion |
Ride Modes |
Responsive On Demand Thumb Throttle |

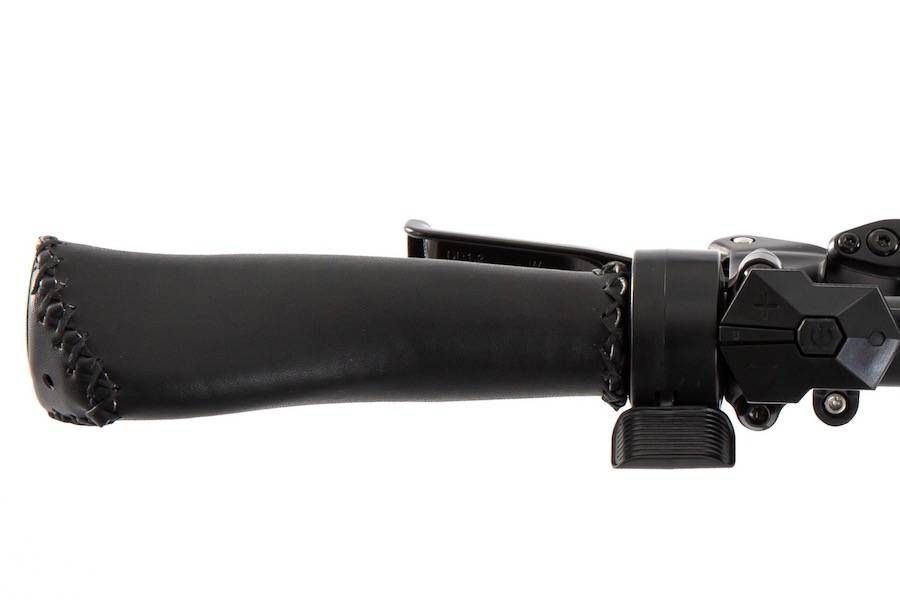

Throttle |
Responsive Thumb Throttle |
Sensor |
KT-V12 Double Hall Speed Sensor |
Range (PAS) |
Up to 80km* |
Max Speed |
26km/h |
Battery Charger |
D-Power 42V 3 Amp |
Charging Time |
4-5 hours |
Controller |
KT Sine Wave FOC 36V 15A |

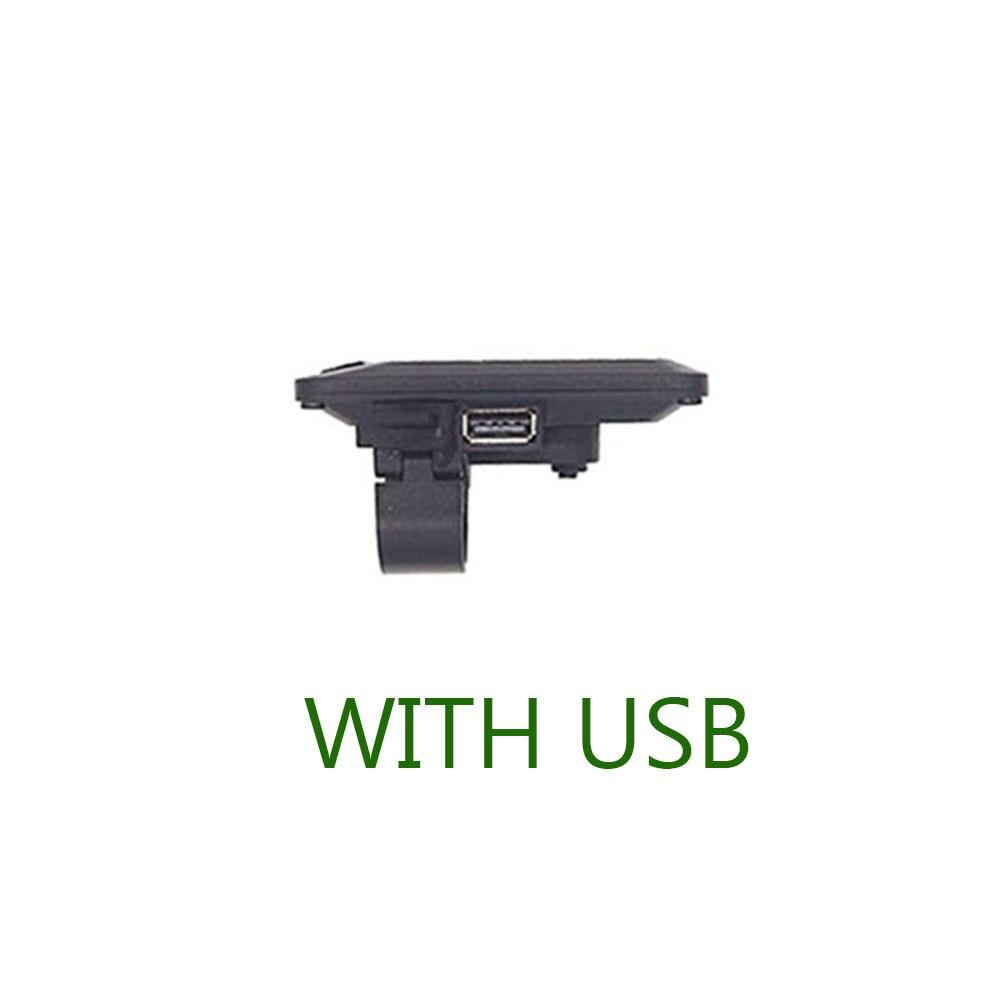

LCD Display |
Kunteng LCD7U |
Front Fork |
Aluminum Alloy |

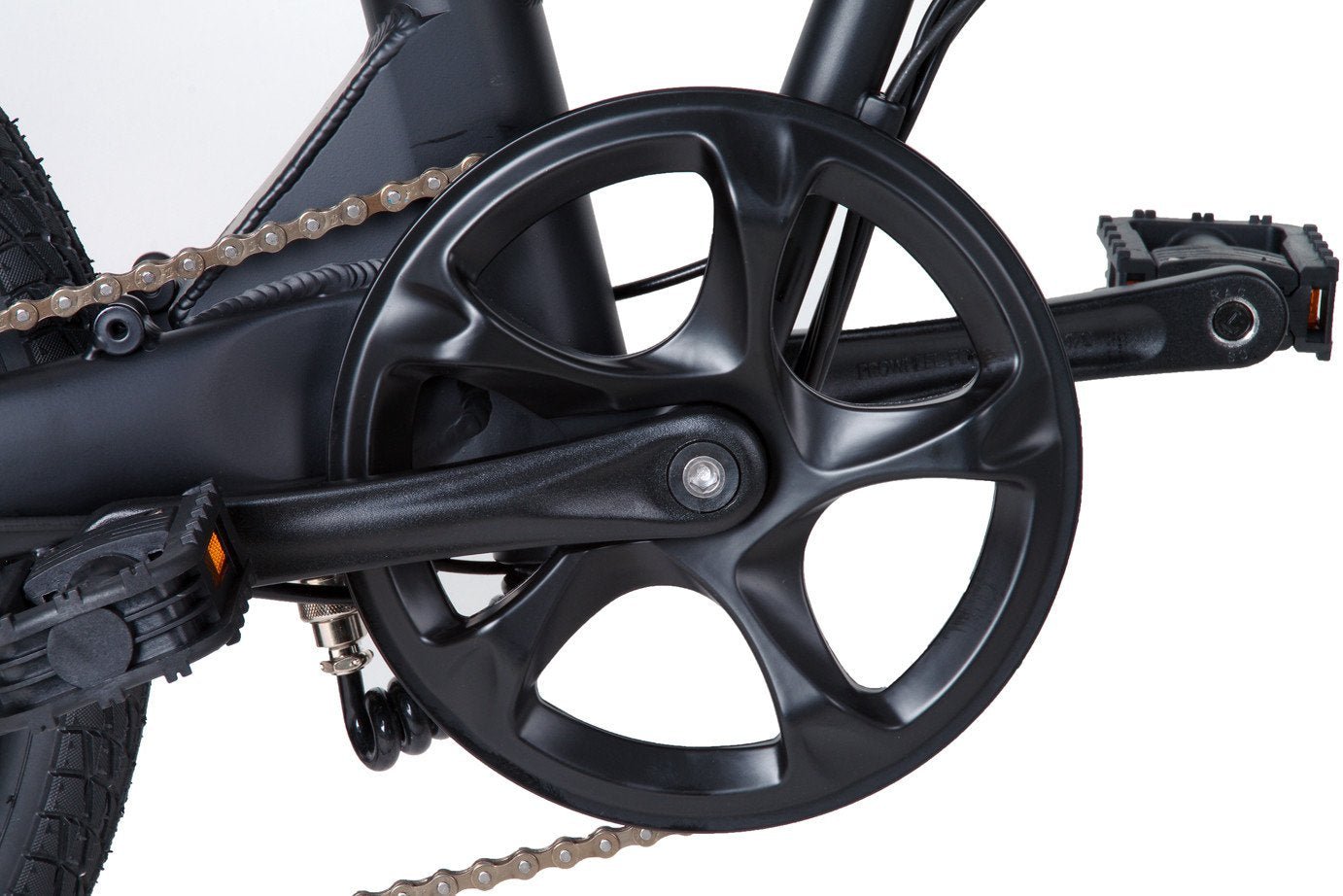

Crankset |
Prowheel 52T |

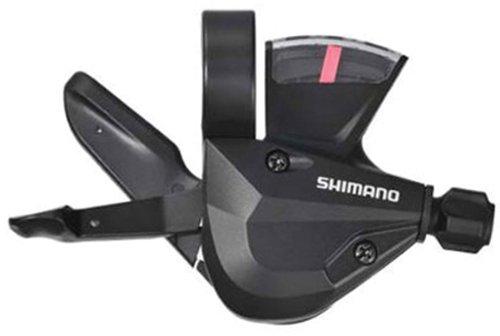

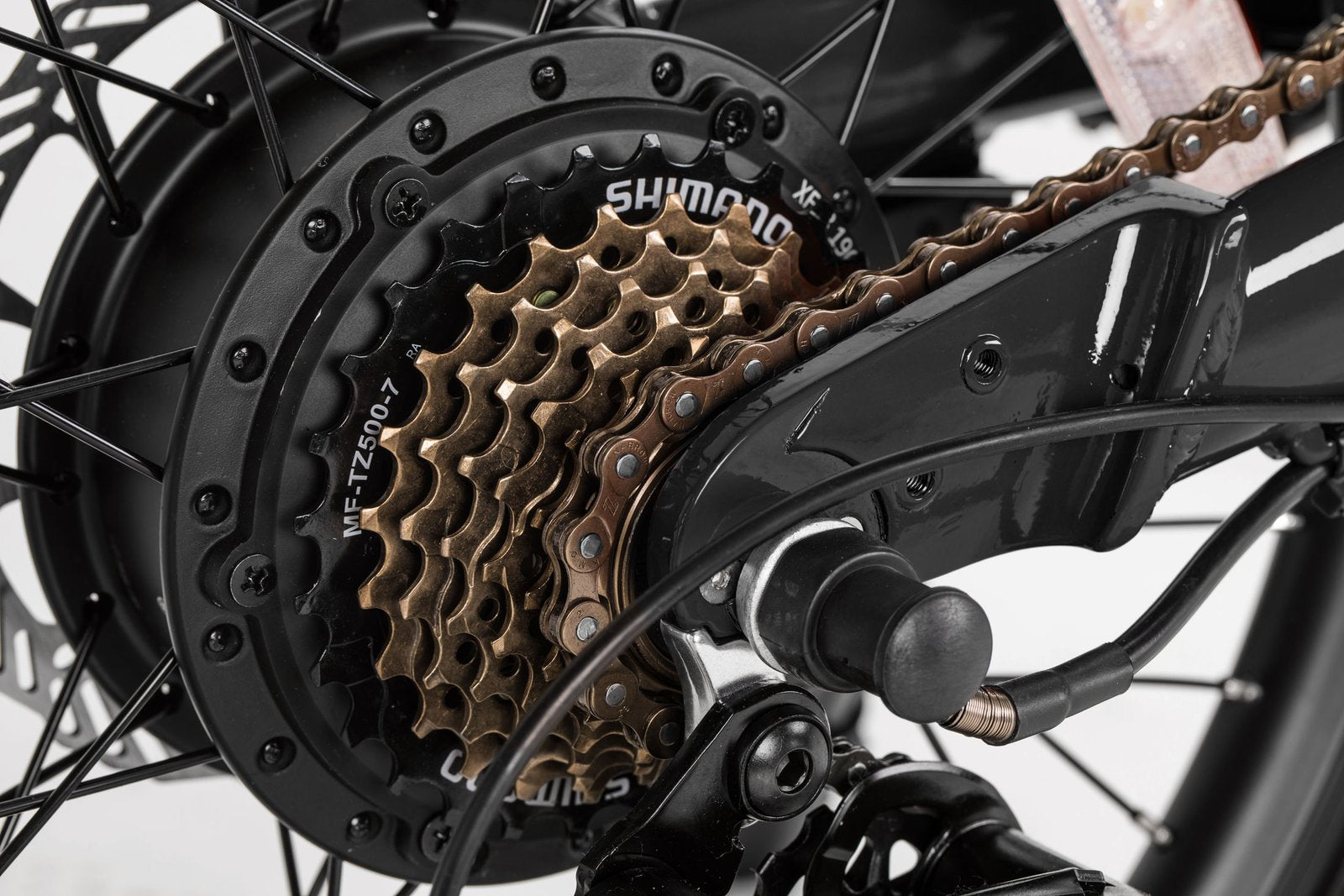

Derailieur |
Shimano Tourney |

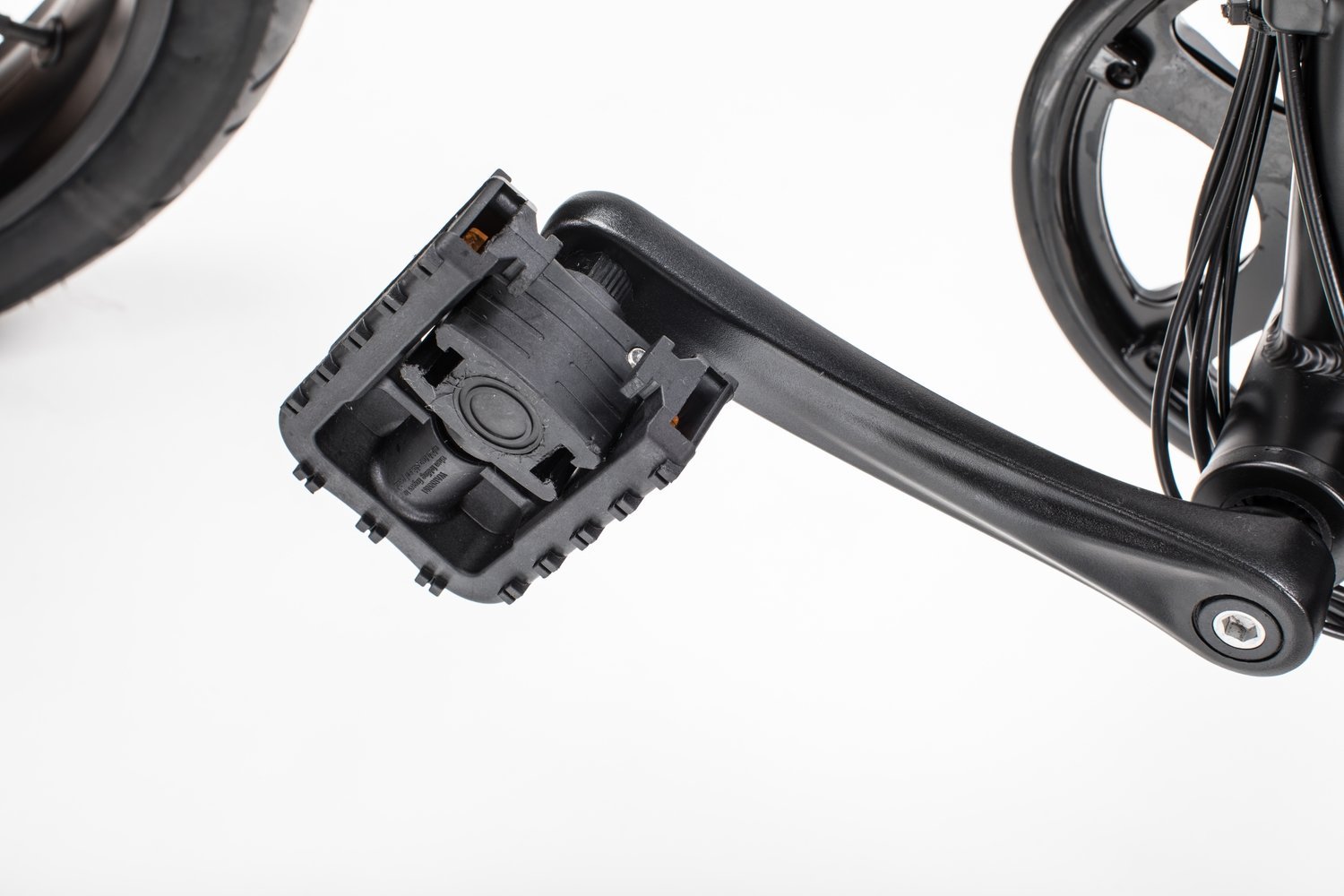

Pedals |
Wellgo Foldable |
Wheel |
Aluminum Alloy |
Brakes |
NUTT 160mm HYDRAULIC Disc |
Brake Levers |
Aluminum Alloy e-bike lever |
Tires |
20" x 2.4" |
Headlight |
Star Union LED |

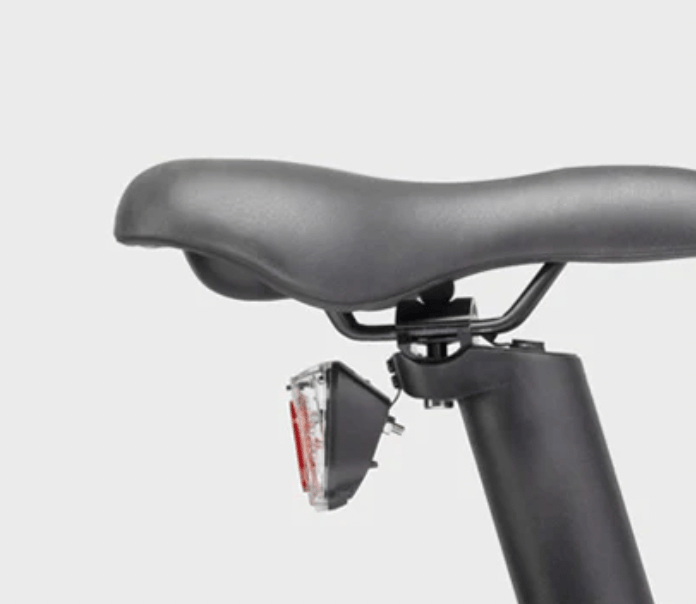

Rear Light |
AA Battery Red Light |

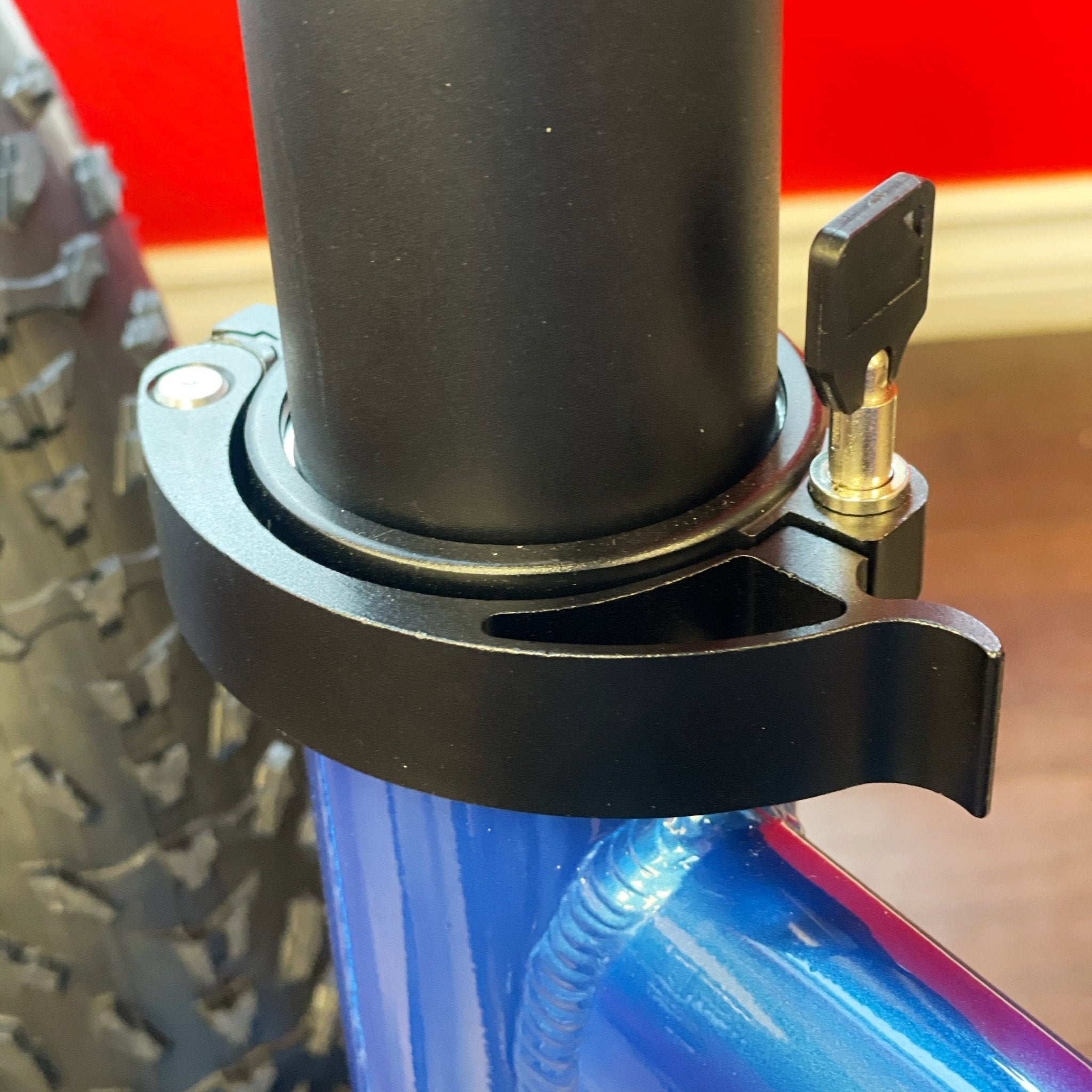

Seat Clamp |
Single Clamp |
Weight | Approx. 20KG (including battery - Standard 10Ah) |
Assembly |
Arrives Pre-Assembled or fully assembled if picking up at our Abbotsford Warehouse |
*Range estimate is based on estimated use at Level 1 PAS. Range is not guaranteed and will vary depending on terrain, weight of rider & cargo, weather conditions, etc.
Actual product may vary slightly from the pictures on our website.
WEIGHT & MEASUREMENTS
FREE SHIPPING WITHIN CANADA!
Shipping Box |
|
---|---|
Folded Size |
|
Unfolded Size |
|
Net Weight (Approx) |
20KG (including battery) (44lbs) |
Weight Capacity |
Up to 300lbs |
Suitable Rider Height | 5'2" - 6'5" |
Our Sidekick Series comes 98% fully assembled right out of the box!
WHAT'S INCLUDED?
Your Sidekick comes 95% fully assembled inside the box, ready to ride! It also includes the following:
☑️ 2.8A FastCharger
☑️ Bell
☑️ Tool Kit
☑️ Heavy Duty Kickstand
PLUS FREE ACCESSORIES FOR A LIMITED TIME:
☑️ LED Headlight ($49 Value)
☑️ LED Tail Light ($29 Value)
☑️ Fenders + Rear Rack
WARRANTY
We offer an industry exclusive 2-Year Warranty on ALL new Ebikes purchased. For complete warranty details, click here.
USER MANUALS
User Manual | |
LCD Display Manual |
