CDUAL motor e-bike with one throttle & LONG RANGE!

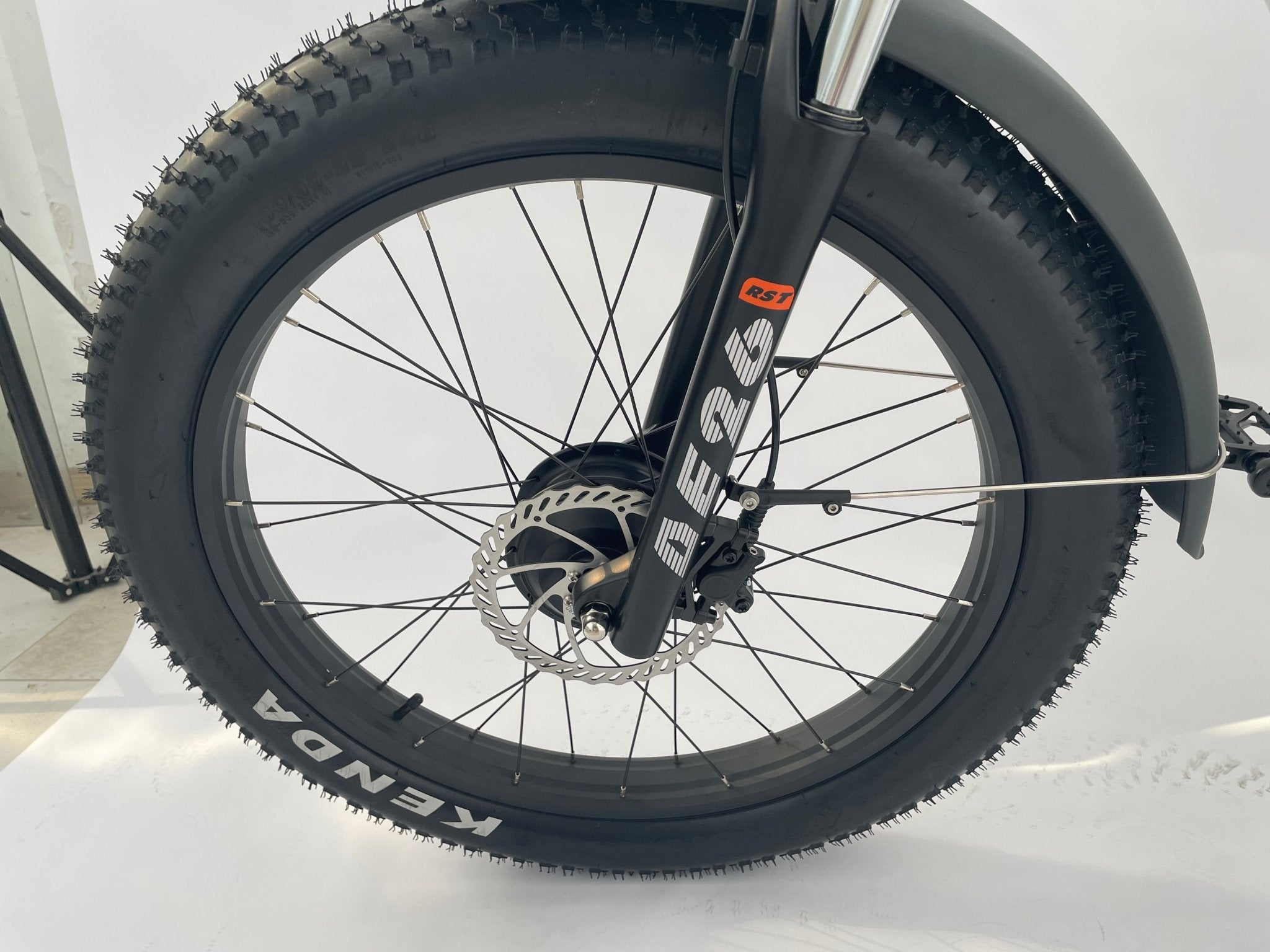

FRONT RST SUSPENSION FORK

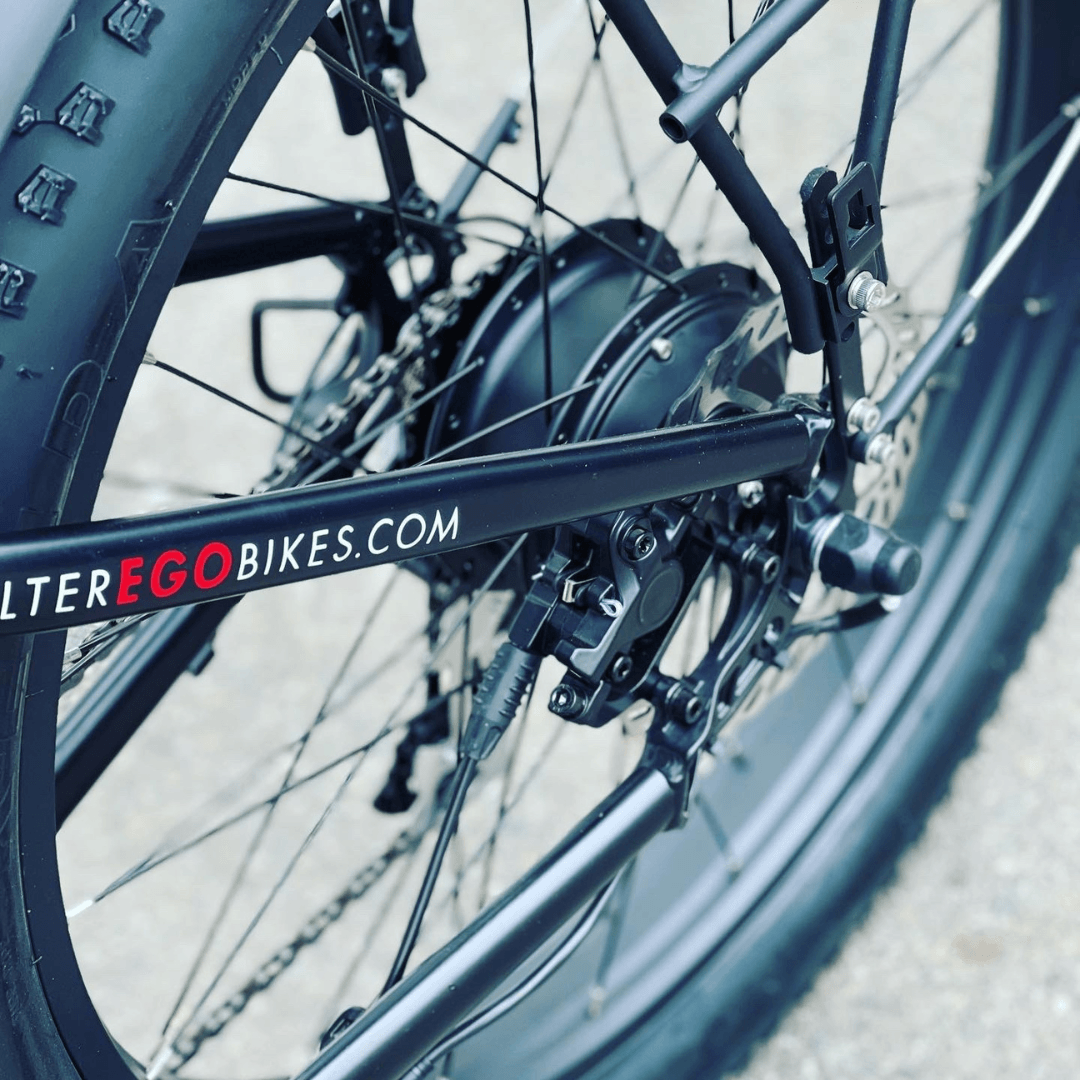

DUAL MOTORS
HYDRAULIC BRAKES

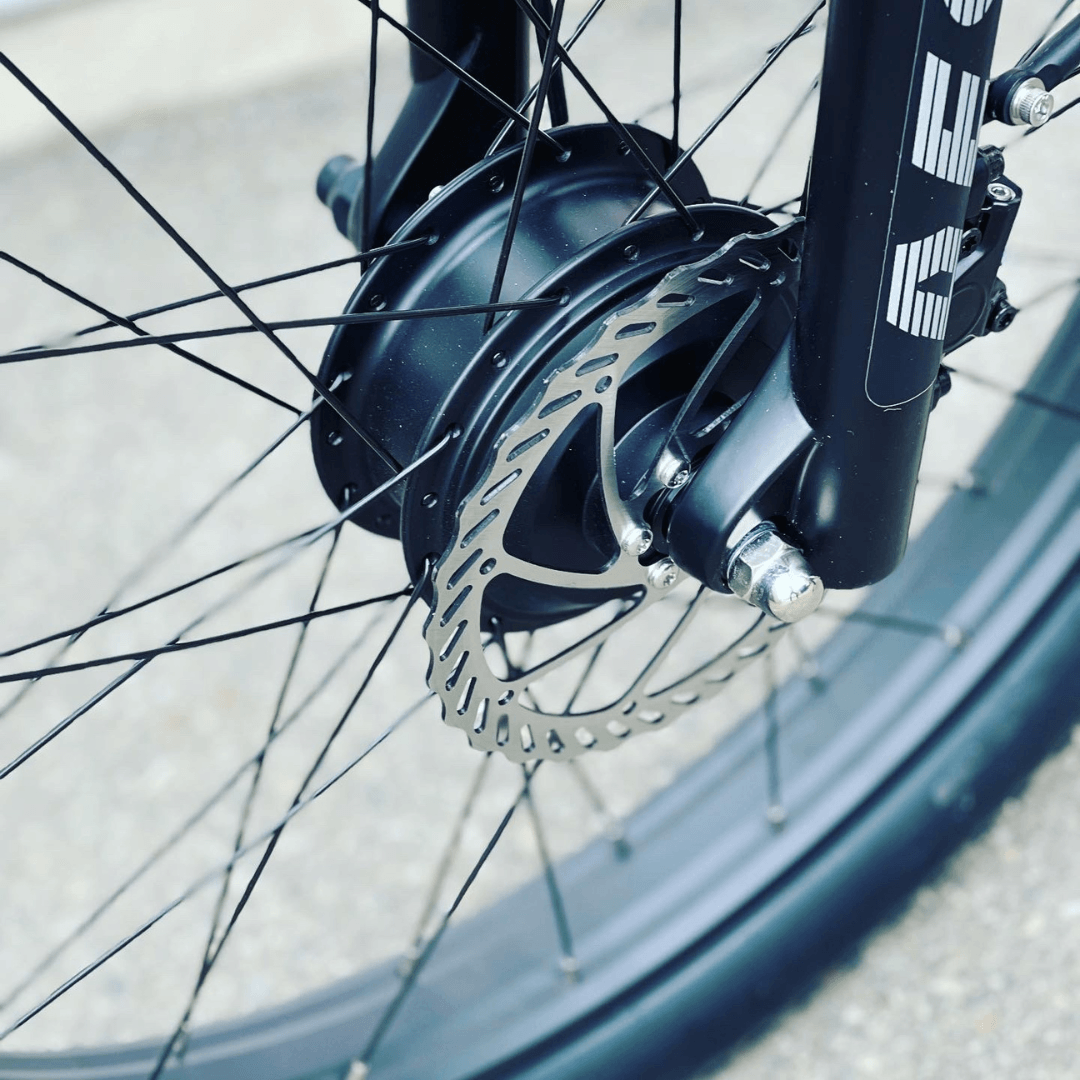

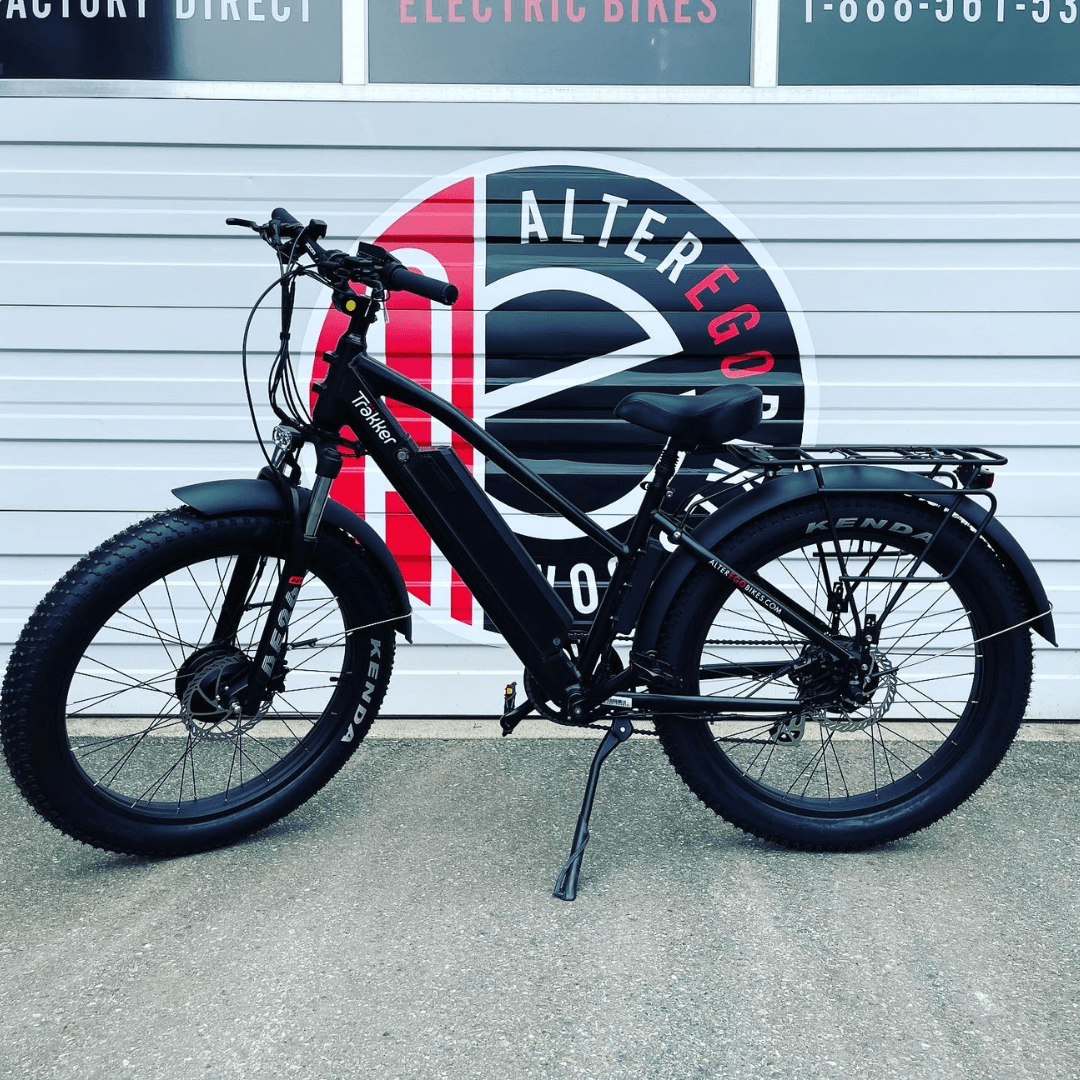

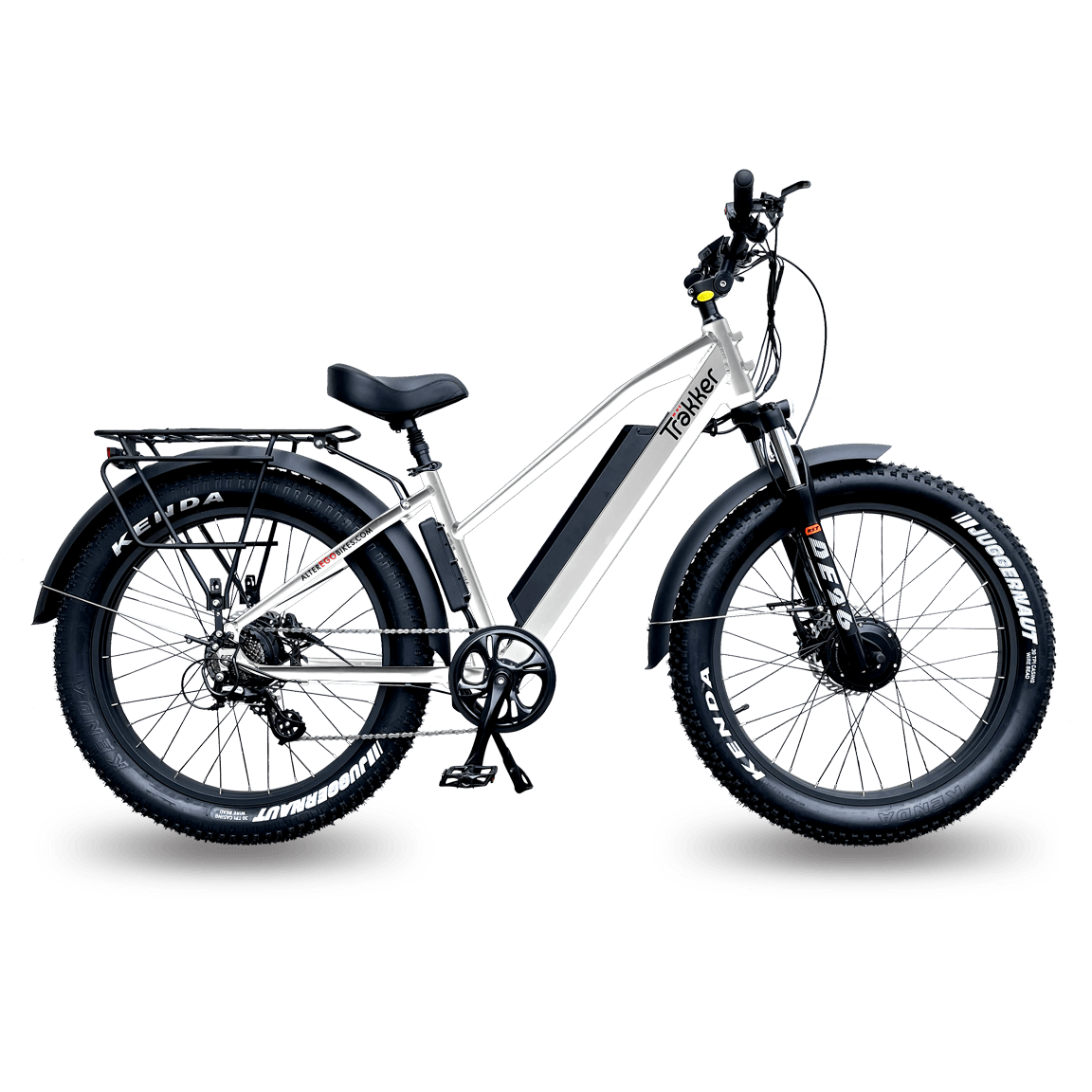

Equipped with TWO powerful geared hub motors, the Trakker Fat AWD will go the distance and climb any hill!

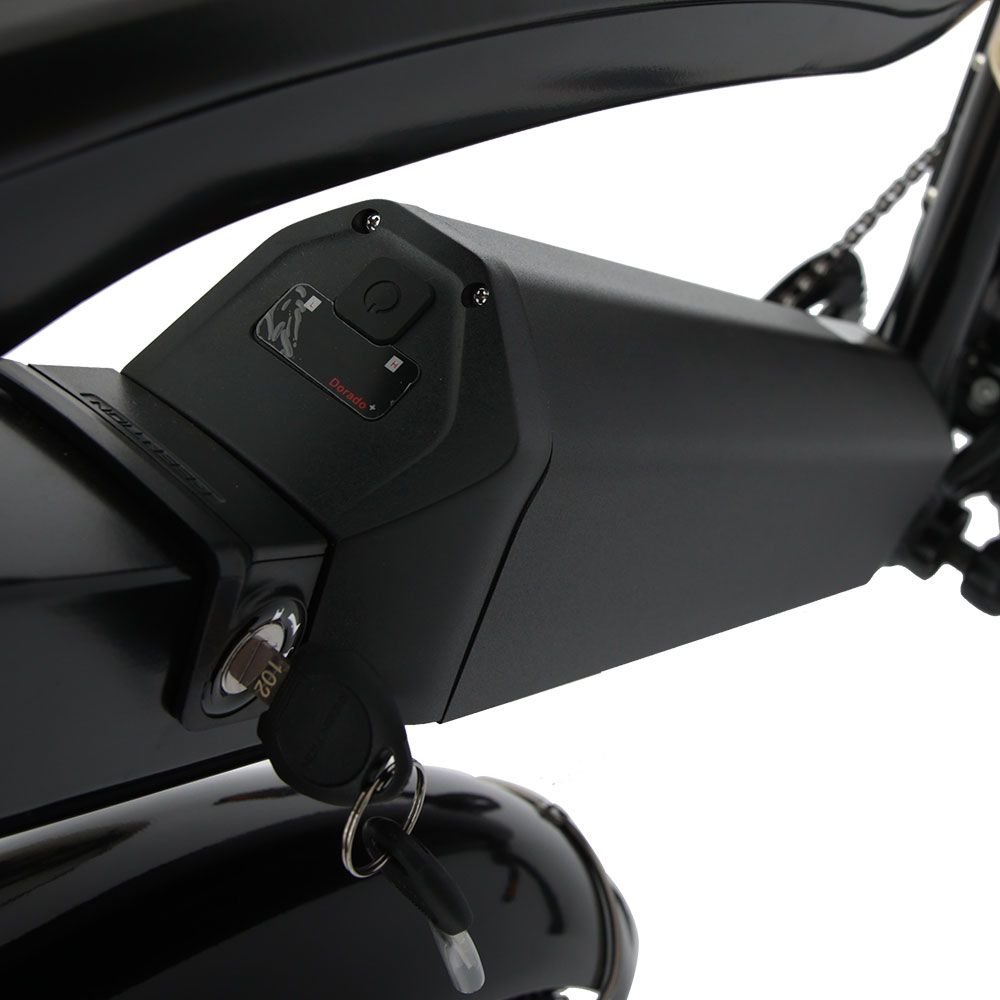

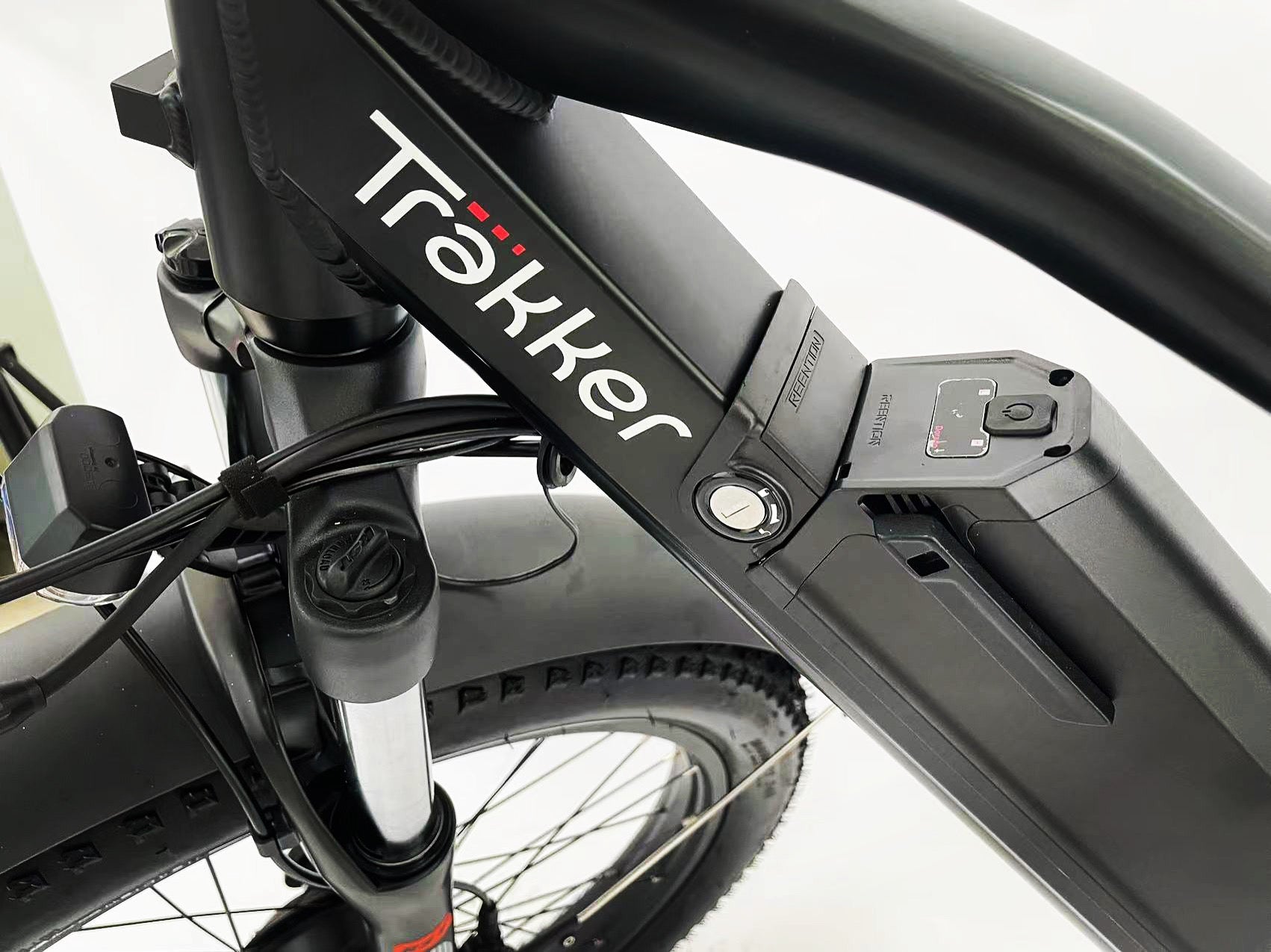

The system is operated by a long range battery that locks into position, a single controller, and a single set of controls that are at the front. To operate the system is simple: on the right side of the handlebars is a red rocker switch where you get to choose which motors to operate. The throttle and pedal assist function like any other - driving the wheels depending on the position of the rocker switch. With the switch positioned in the middle - both motors will be functioning. When turned to the left, only the front motor will be switched on, and when turned right—the rear motor.
SPECIFICATIONS
| E-BIKE CLASS |
✅ Class 1 - Max 500W + No Throttle |
| MOTOR |
Front: 48V 250W |
| MOTOR SWITCH |
Mode 1: Front Motor Only |
| BATTERY OPTIONS |
Samsung / LG 48V 16Ah (768Wh) |
| RANGE |
16Ah: 80km |
| MAX SPEED |
32km/h |
| CHARGER |
3A Fast Smart Charger |
| CONTROLLER |
48V / 15A x 2 |
| DISPLAY |
500C Color LCD |
| BRAKES |
Hydraulic Disc Brakes |
| THROTTLE |
Responsive Thumb Throttle |
| PEDAL ASSIST |
0-5 Levels |

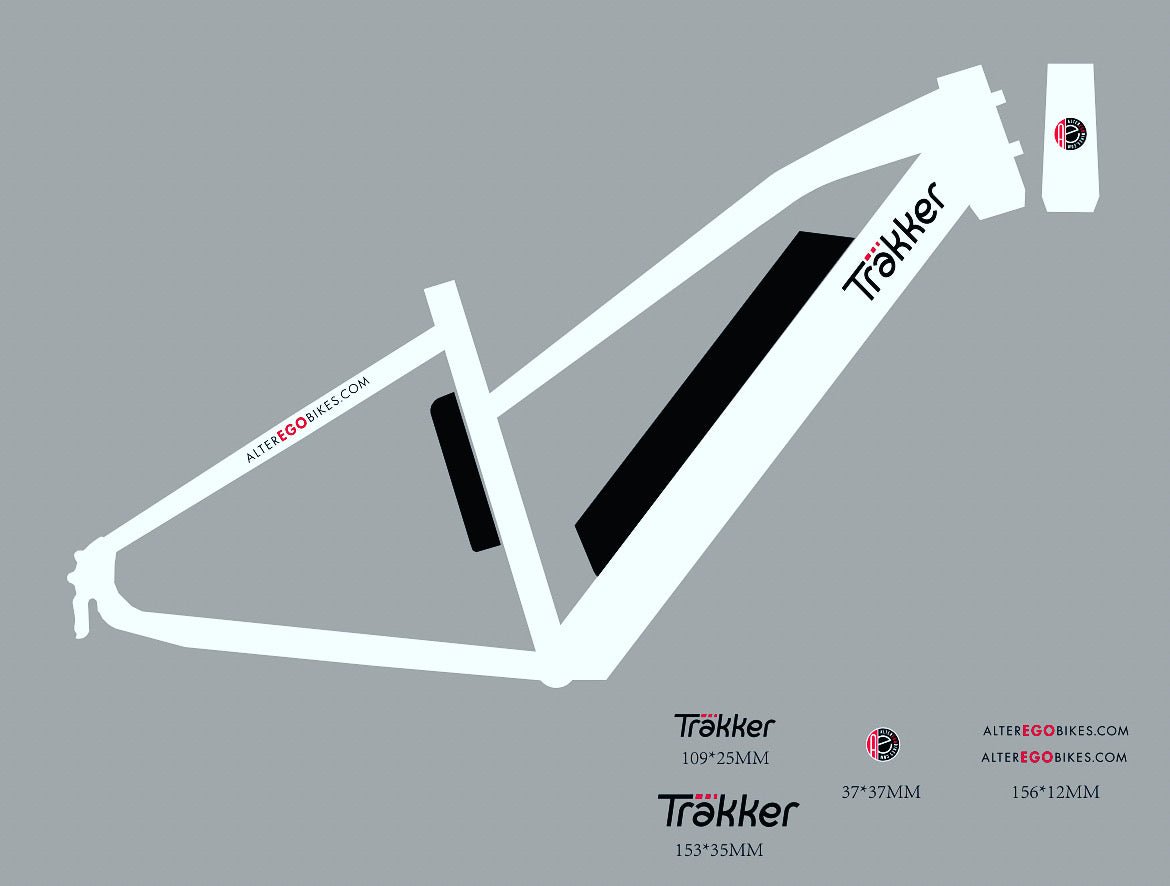

| FRAME |
6061 Aircraft Aluminum Alloy |
| SUSPENSION |
RST Front Suspension Fork |
| CRANK |
170mm Forged Alloy |
| FREEWHEEL |
Shimano 14-28T |
| SHIFTER |
Shimano 7-Speed |
| HANDLEBAR |
Mid-Rise, Aluminum Alloy, 650mm Length |
| STEM |
Promax Aluminum Alloy |
| CHAINRING |
46T Chain-Wheel Crank |

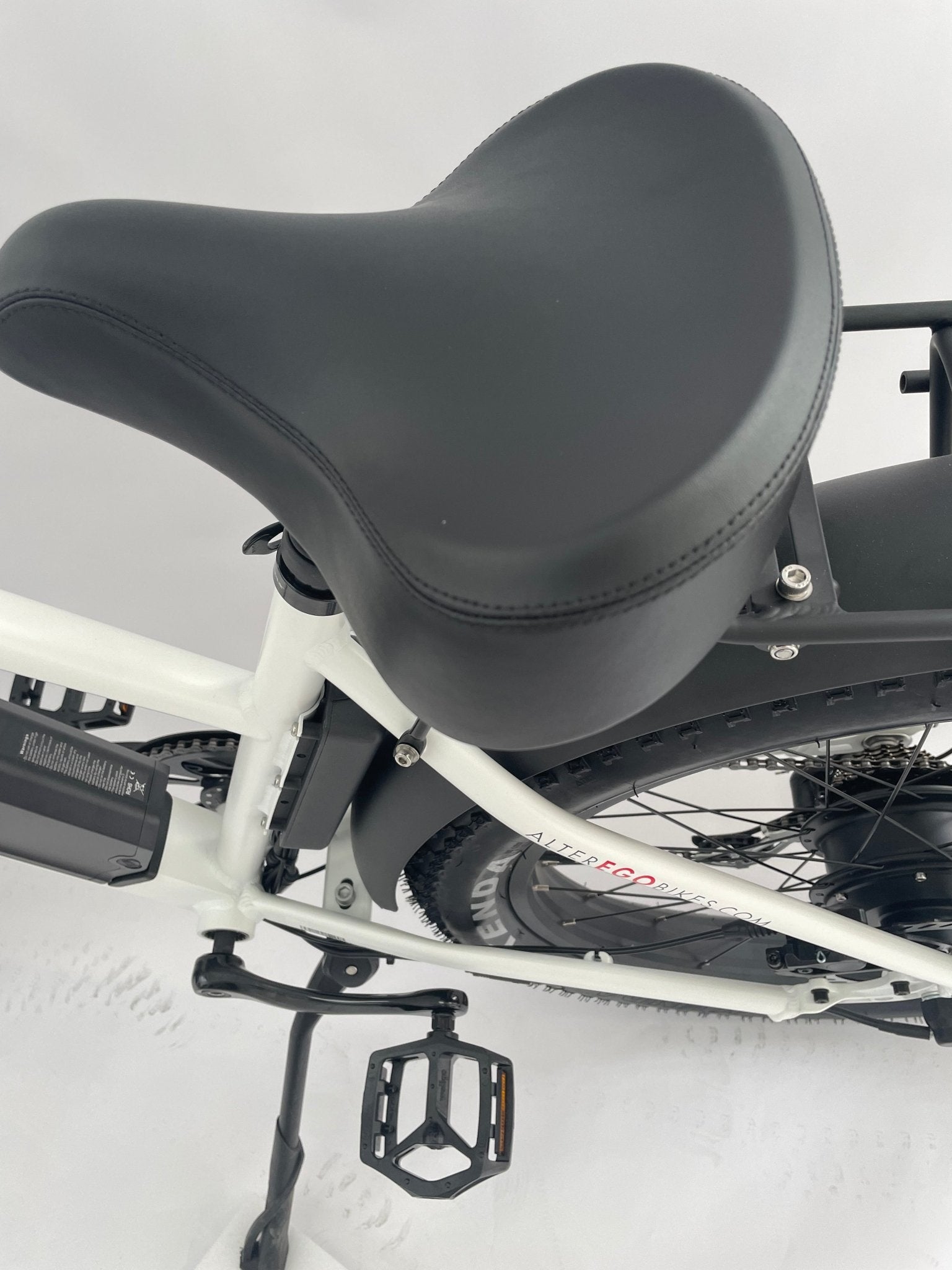

| SADDLE |
Velo Plush |
| PEDALS |
Wellgo Aluminum Alloy Platform |
| RIMS |
26" Black Alloy |
| TIRES |
Kenda Krusade Sport |

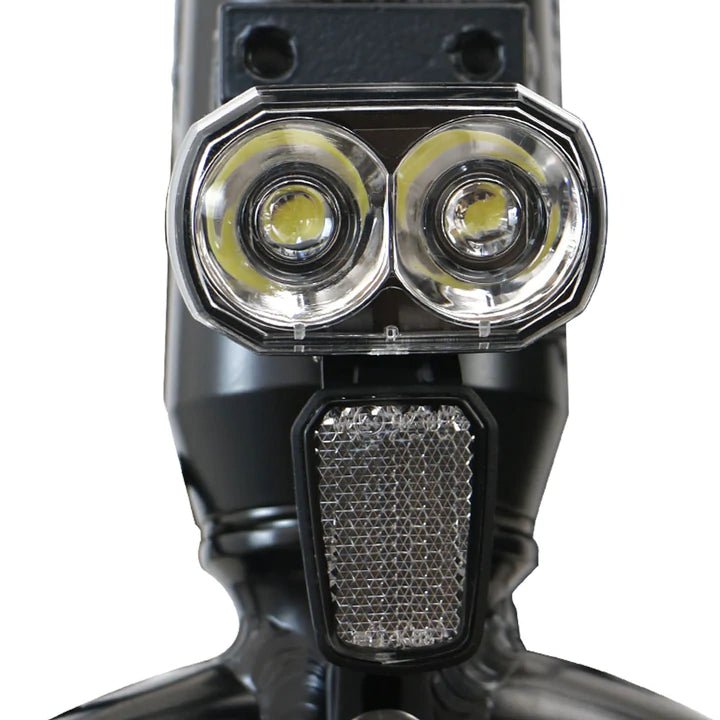

| LED HEADLIGHT |
Included |

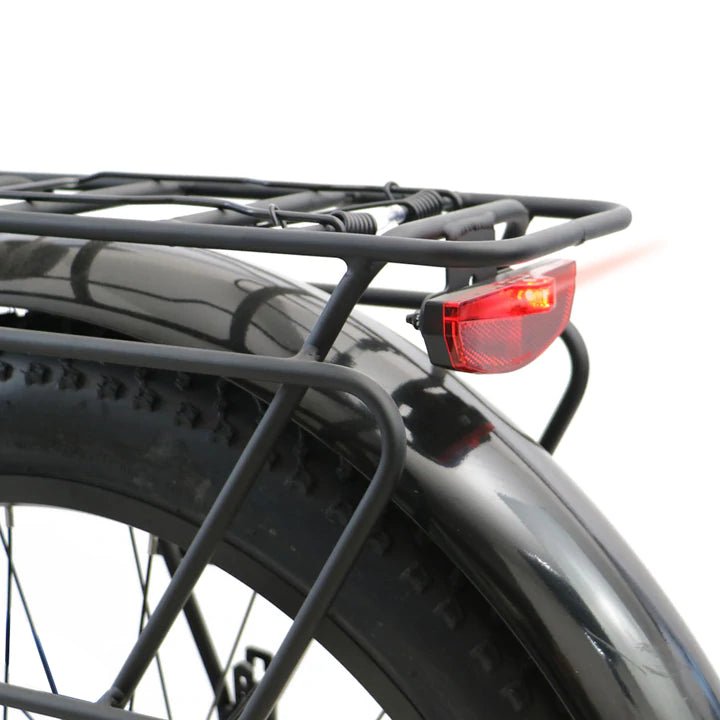

| LED TAIL LIGHT |
Included |
| FENDERS |
Full Coverage |

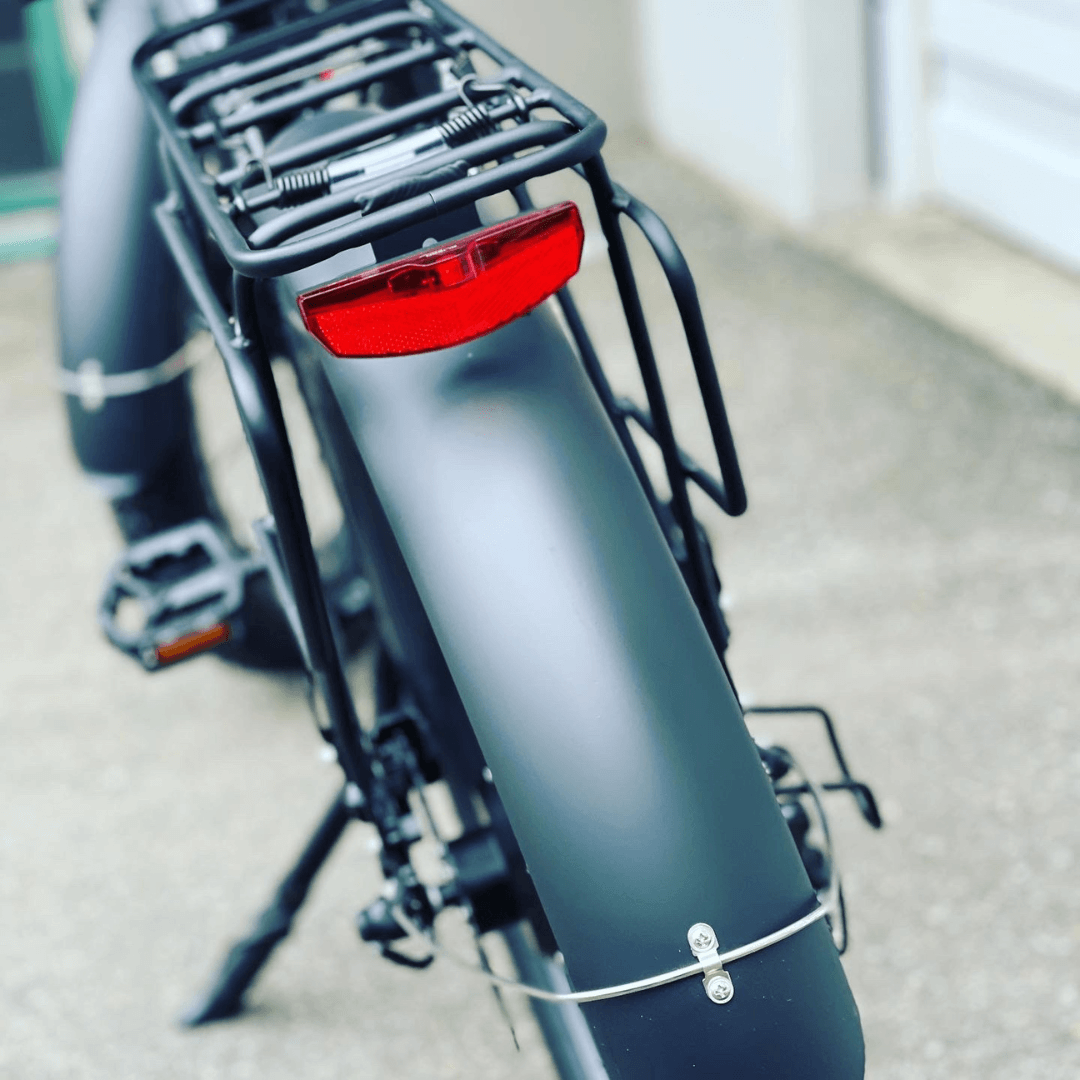

| REAR RACK |
Included |
MEASUREMENTS & WEIGHT
| NET WEIGHT | 35KG (78lbs) |
| PAYLOAD CAPACITY | 175KG (385lbs) |
| SHIPPING WEIGHT | 42KG (92lbs) |
| BOX DIMENSIONS | 173 L x 30 W x 82 H (CM) |
| RIDER HEIGHT | 5'3" - 6'2" |
WHAT'S INCLUDED?
Your Trakker comes 95% pre-assembled.
☑️ Smart Battery Charger
☑️ Bell
☑️ Tool Kit
☑️ Heavy Duty Kickstand
☑️ Set of keys for battery
PLUS FREE ACCESSORIES FOR A LIMITED TIME:
☑️ LED Headlight + Tail Light
☑️ Full Coverage Fenders
☑️ Rear Luggage Rack
WARRANTY
We have the best warranty in the industry! For our full warranty details, click here.
| NEW ALTER EGO E-BIKES | WE PAY | YOU PAY |
|
12 MONTHS / 3,000KM from Date of Delivery |
100% Parts 100% Parts Shipping 100% Labor if done at our shop |
100% Labor (Only if done at another shop) |
|
13-18 MONTHS / 3,000KM from Date of Delivery |
50% Parts 50% Parts Shipping |
50% Parts 50% Parts Shipping 100% Labor |
|
19-24 MONTHS / 3,000KM |
25% Parts |
75% Parts |
| CHARGER | 1 YEAR | |
| FRAME | LIFETIME |
USER MANUALS
| USER MANUAL |
COMING SOON
|
