Sinch 2.5 (by Aventon)

$2,799.00
Select color: Sage
Size:

Sinch 2.5 is the perfect companion for your next adventure! Easily foldable to maximize storage space, the Sinch 2.5 is the perfect choice for a transportable, adjustable e-bike to amplify every ride. Now with upgraded hydraulic disc brakes, suspension seatpost, and a sleek new side display, the Sinch 2.5 is more comfortable and capable than ever before.



SPECIFICATIONS

GENERAL INFO
Model Sinch 2.5 Ebike
Weight 68 lbs
Total Weight Limit 300 lbs
Rider Height 4'11" - 6'2"
Box Size 43 x 24 x 33
Class Class 2 Ebike
Water Resistance IPX4
Bike Safety Certifications TUV Rheinland Certified in accordance with UL 2849
Battery Safety Certifications Certified to UL 2271
Range Up to 88 KM
Ideal Use All-Terrain
FRAMESET
Frame 6061 Single-Butted Folding Aluminum Alloy with Internal Battery
Fork Aventon coil fork with lock out and black stanchions.
Rear Spacing 177mm
Fork Spacing 135mm
WHEELSET
Front Wheel 20x4", 36-spoke, double-wall aluminum fat tire rim, black finish, with a nutted axle, 13g stainless steel spokes (173mm NDS/175mm DS), 135mm spacing, Schrader valve.
Rear Wheel 20x4", 36-spoke, double-wall aluminum fat tire rim, black finish, hub drive motor with a nutted axle, 12g stainless steel spokes (128mm NDS/127mm DS), 177mm spacing, Schrader valve.
Tires Innova IA-2579 20x4.0
EBIKE SYSTEM
Speed Class 2
Motor 48v, 500w brushless hub motor
Motor Torque 60Nm

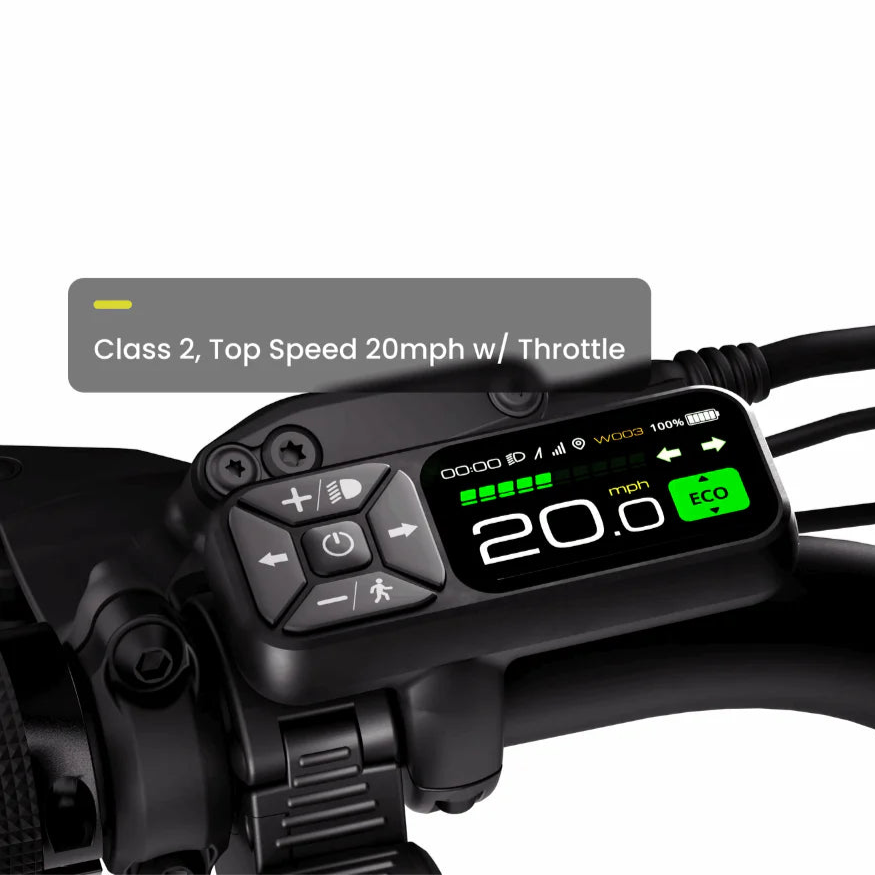

Display Aventon BC147
Battery Removable Internal Lithium-ion Battery, 48.8V, 14Ah (636.4Wh)
Battery Weight 7.6 lbs
Controller 48v 22A
Throttle Aventon LH Handlebar Mounted
Sensors Double Sided Bottom Bracket Torque Sensor
Charger 48V, 3 Amp Fast Charger
Charging time from 0% to 100% 4-5 Hours
Lights Front and rear lights integrated
BRAKES
Front Brake Rotor 180mm 6 bolt
Rear Brake Rotor 180mm 6 bolt
DRIVETRAIN
Rear Derailleur Shimano Altus RD-M310 8 Speed
Chain 114 Link, 8 Speed
Cassette 12-32T / 8 Speed Shimano CS HG200-8
Chainring BCD 130
Crankset 3pc, 170mm crank arm
Bottom Bracket Square Taper, Sealed, Dual-Sided Torque Sensor, 100x159.5mm
Pedals 9/16" Composite folding pedals
COCKPIT
Saddle Aventon Saddle
Seatpost Aventon Suspension Seatpost, 30.9, 350mm Length
Seat Clamp 34.9mm Quick Release
Handlebars Aluminum 25.4mm diameter, 580mm wide
Grips Aventon glue on grips
Headset Sealed Bearing Headset ZS44/28.6| ZS55/40
INCLUDED ACCESSORIES
Kickstand Included, rear mount
Rear Rack Included
Rear Rack Weight Limit 55 lbs
Fenders Included

Technical Overview

Sinch 2.5 ships as a Class II ebike, with pedal assist and throttle. Sinch 2.5 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS Eco throughout flat terrain with a rider weight of 160 lb.

GEOMETRY

Frame Size Measurements
A - Seat Tube Length 400mm (15.75")
B - Top Tube Length Horizontal 675mm (26.6")
C - Bottom Bracket Drop 0mm (0")
D - Head Tube Length 165mm (6.5")
E - Head Tube Angle 72°
F - Seat Tube Angle 71°
G - Rear Chainstay Length 420mm (16.5")
H - Front Wheel Center 717mm (28.2")
I - Wheelbase 1137mm (44.8")
J - Reach 491mm (19.3")
K - Stack Height 534mm (21")
L - Fork Length 410mm (16.1")
M - Fork Offset 50mm (2")
N - Trail 44mm (1.7")
Wheel Size 20" x 4.0"
Stand Over Height 390mm (15.35")
Rider Height 4'11" - 6'3"
