Sidekick Trail PRO 3

45 Reviews
| Ask a question
$1,999.00 $2,999.00 $1,000.00 Off
Select color: Candy Red
iPAS Sensor:



OUR #1 SELLING MODEL FOR 7 YEARS IN A ROW!

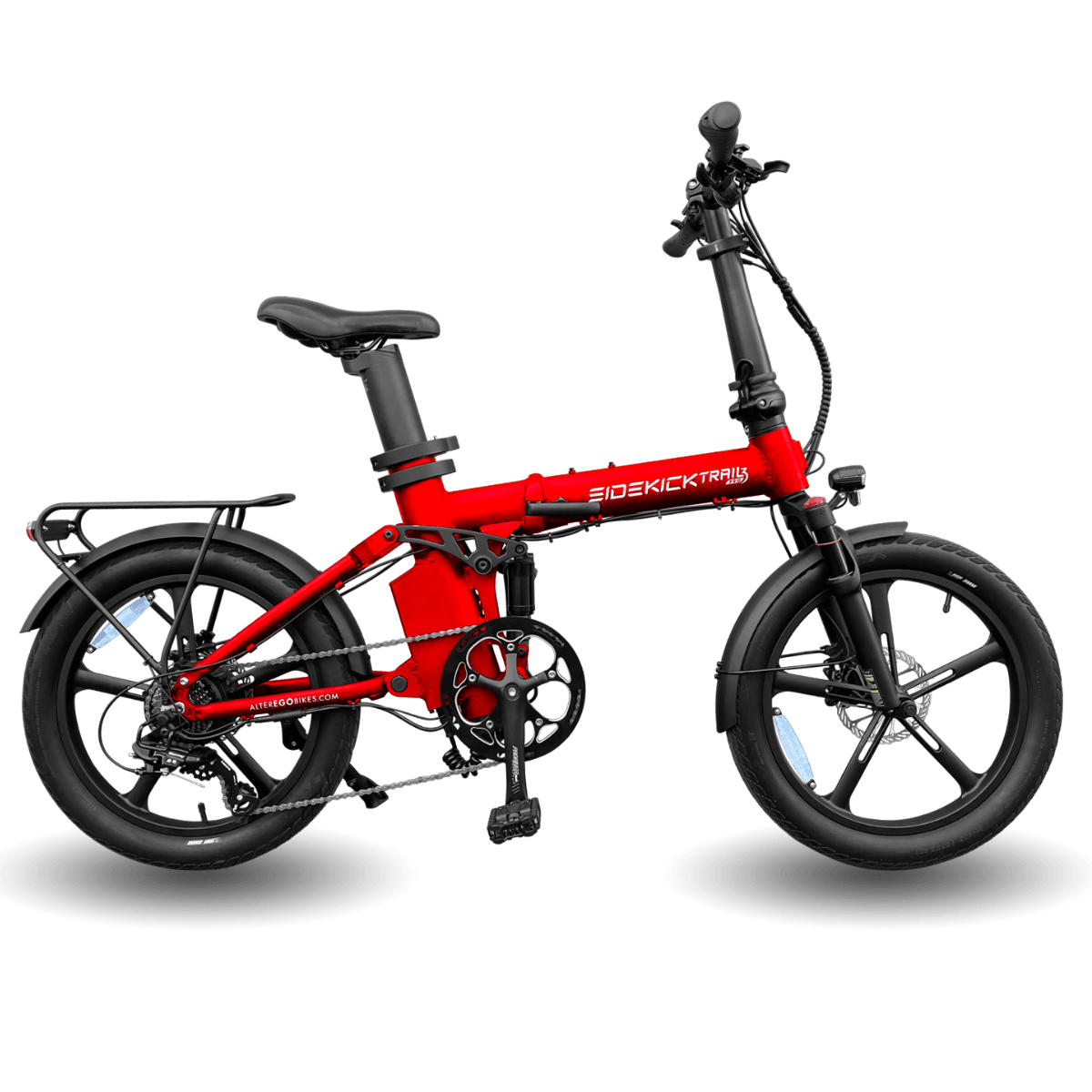

The Sidekick TRAIL is a multipurpose e-bike perfect for everyday urban adventures. It effortlessly handles commutes, grocery runs, and countryside jaunts. Inspired by BMX design, this foldable bike can fit riders between 5'3 and 6'5, weighing up to 286 lbs. Choose from four unique riding modes: Regular bike, Pedal Assist, cruise control, or full throttle.


SPECIFICATIONS

Battery
48V 14.4AH | 690WH Lithium Ion

LG 21700 CELLS UL CERTIFIED
Hidden in seat post
Removable!

Battery Charger
D-POWER 54V 3A Fast Smart Charger

Over/Under Voltage Protection

Charging Time

4-5 hours

Optional Dual Battery Configuration

LG 48V 20Ah Range Extender
Additional 120km Range!

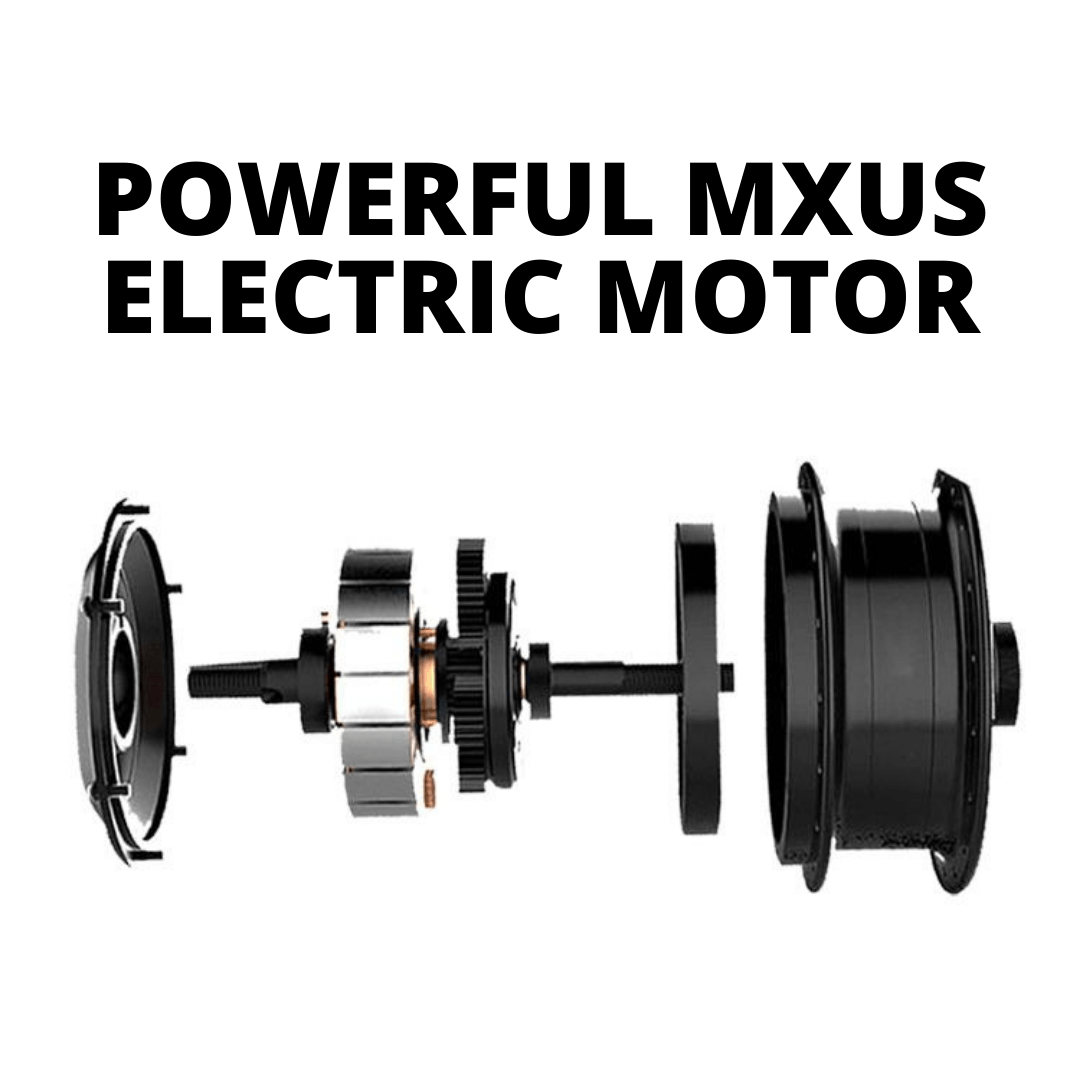

Motor
MXUS 48V 500W Nominal Output
960W Peak Output

Geared Brushless Motor
Torque 75Nm.
Complies with Canadian laws!

Controller

KT Sine Wave 48V20A

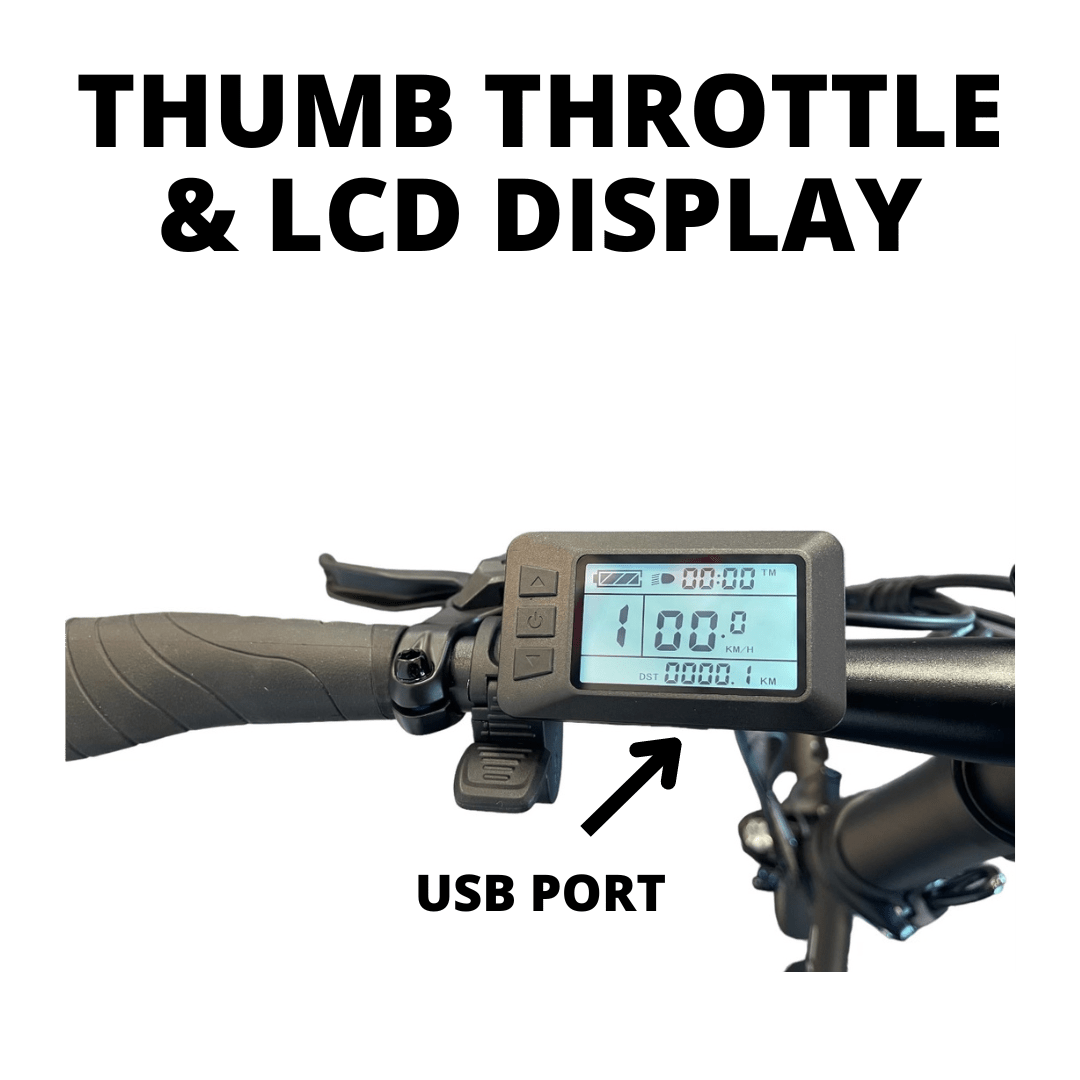

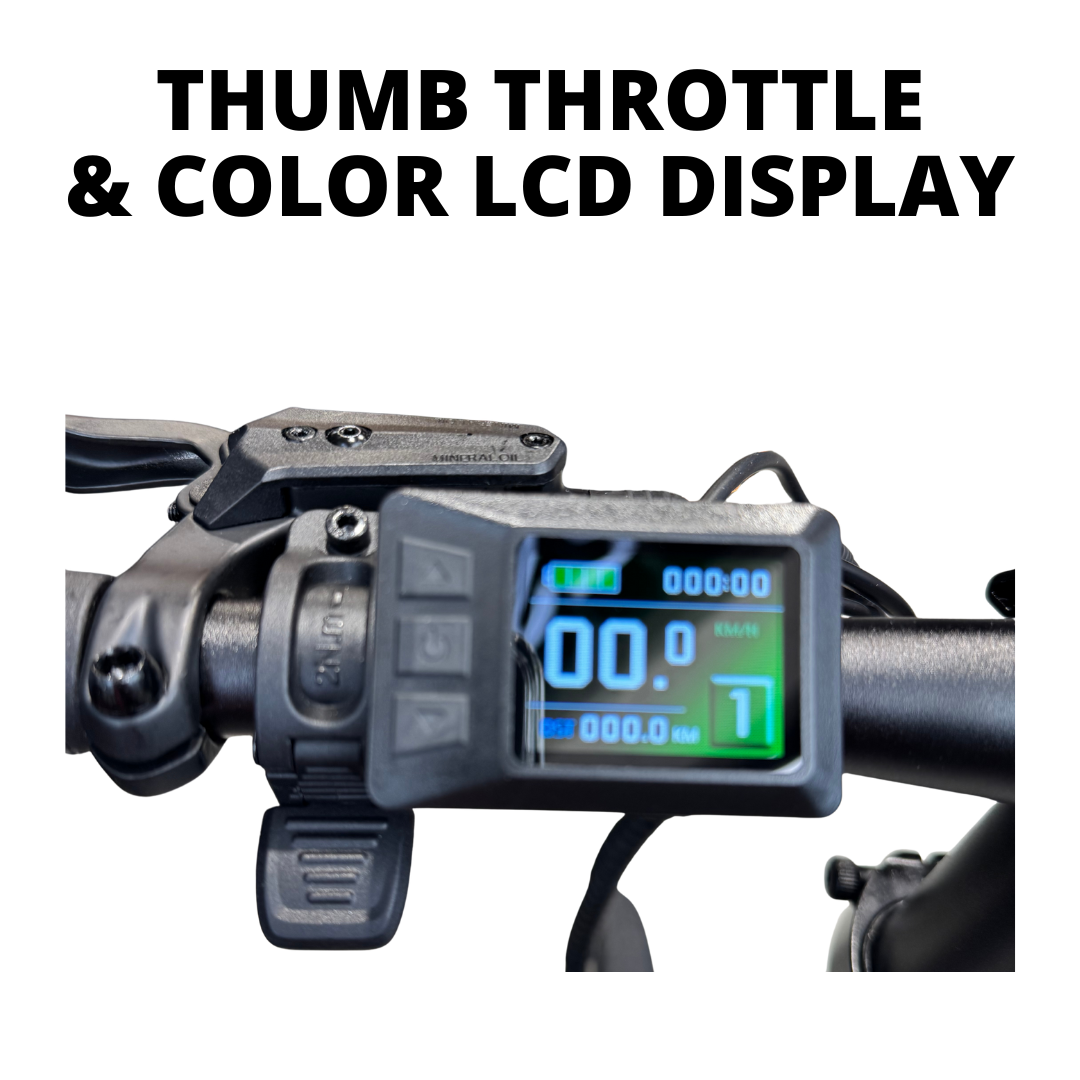

LCD DISPLAY

Kunteng LCD Display
KT LCD7U
USB port

PAS Sensor

KT-V12 Double Hall Speed Sensor
Torque Sensor Model Available

Top Speed

32km/h**
Complies with Canadian Laws!

iPAS Range

Up to 100Km with single battery*
Up to 230Km with dual batteries*

Ride Modes

Responsive On Demand Thumb Throttle
5-Level Pedal Assist
Manual

Throttle

Responsive Thumb Throttle
Left Handlebar

Frame
Aircraft Aluminum-Alloy 6061

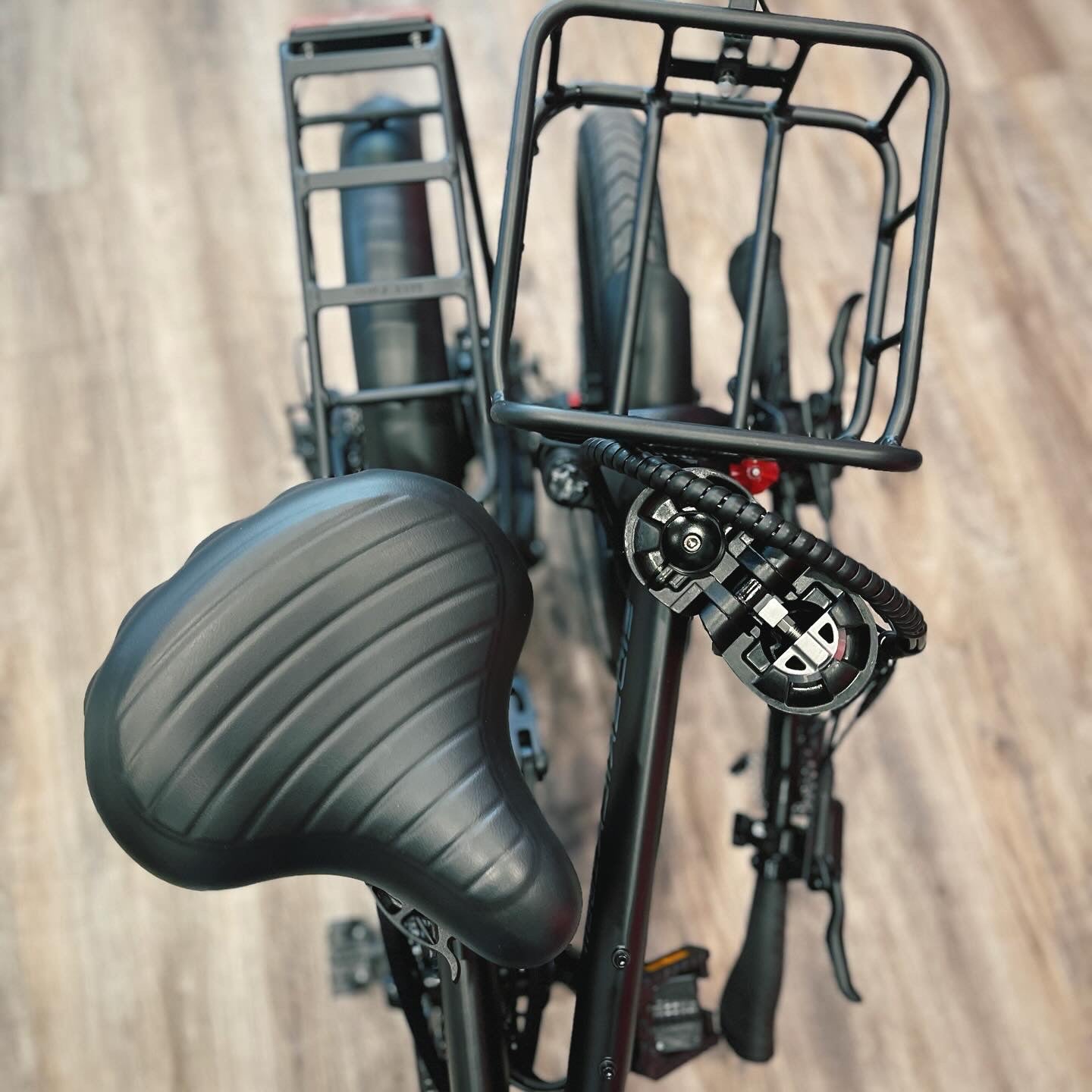

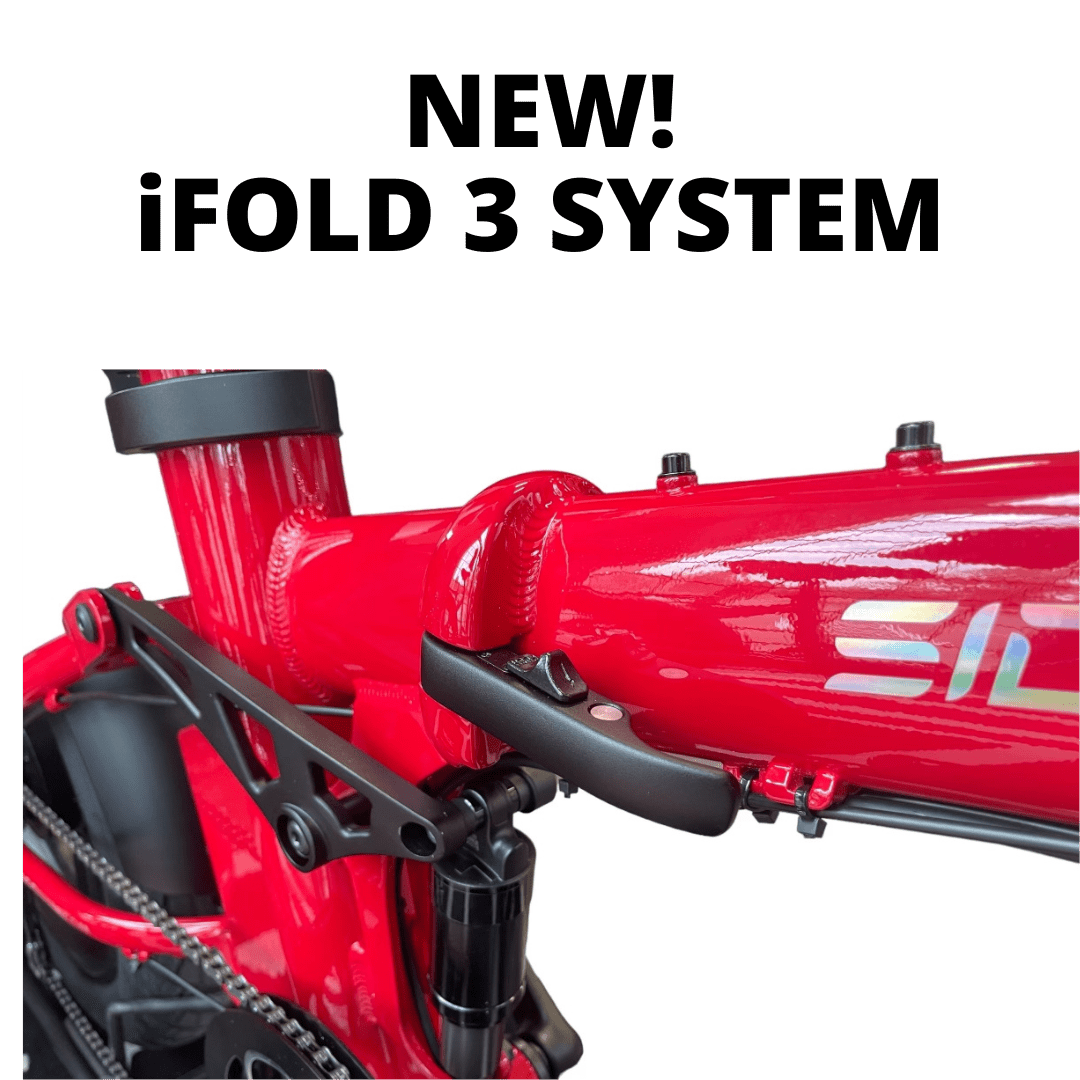

iFold 3 Folding System with Magnetic Lock

Suspension
WB800/20″ Front Air Suspension

Adjustable
Rear HORST Linkeage Suspension

Handle Bar

22.2"*31.8*640mmL, 3.0mm, 6"

Handle Grip

Velo VLG 1505D2 130/130mm

Stem
Patented Thick Stem

Aluminum-Alloy 6061, 8°, Fold to right side

Headset

Aluminum with Bearing, 28.6"56-56*30/39.8 H:14mm

Wheel

Aluminum Alloy integrated wheel

Tires

CST CC-21 20×2.4
60TPI
Puncture Resistent!
Can accommodate tires 20" x 1.75" - 2.5"

Crankset
Prowheel PRO-552PP-1,

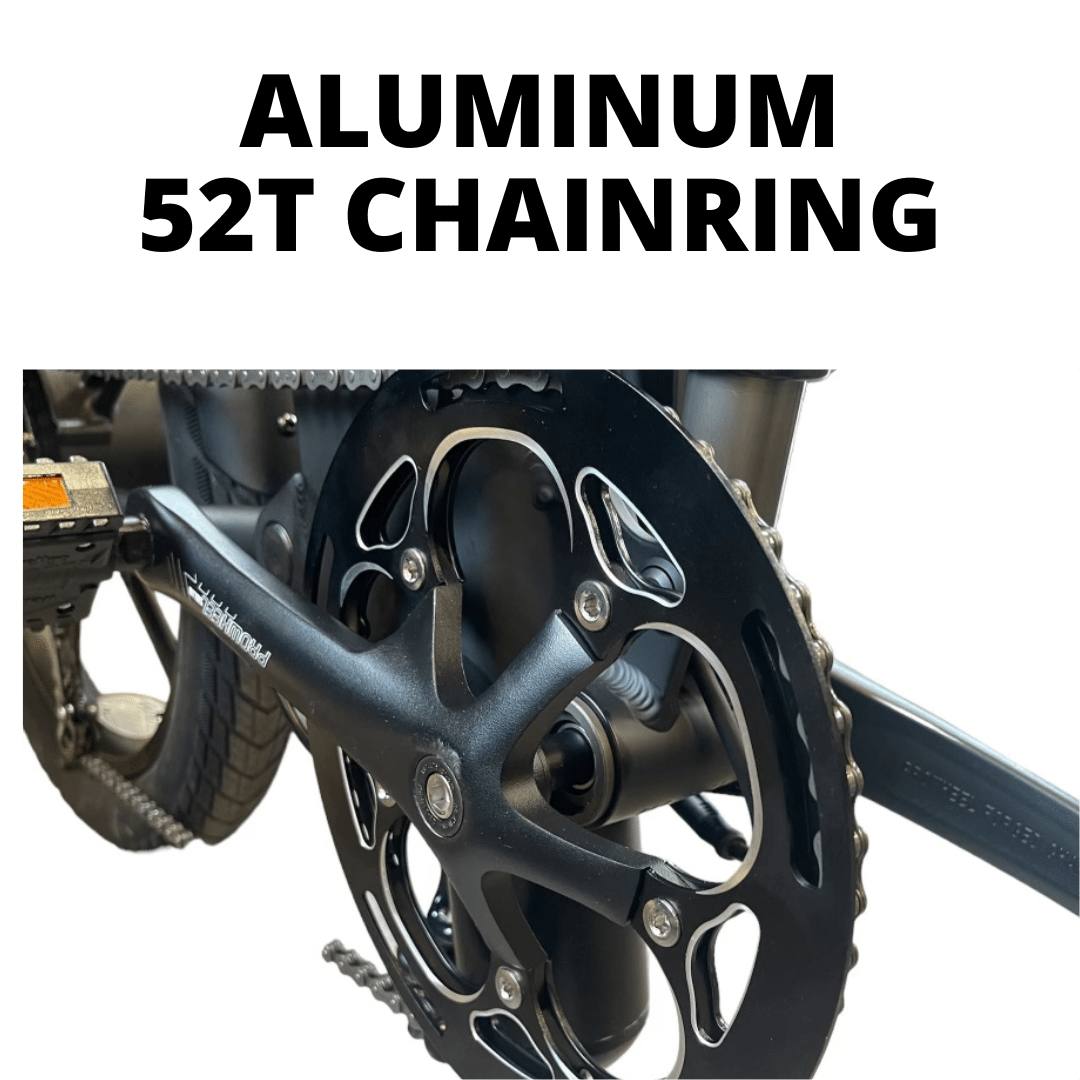

Aluminum Chainring, 52T
All Black
170mm Crankarms

Bottom Bracket

BB68 . 122.5mm = 26.5+68+68

Chain

KMC Z7 1/2"*3/32"*
Rust Resistent

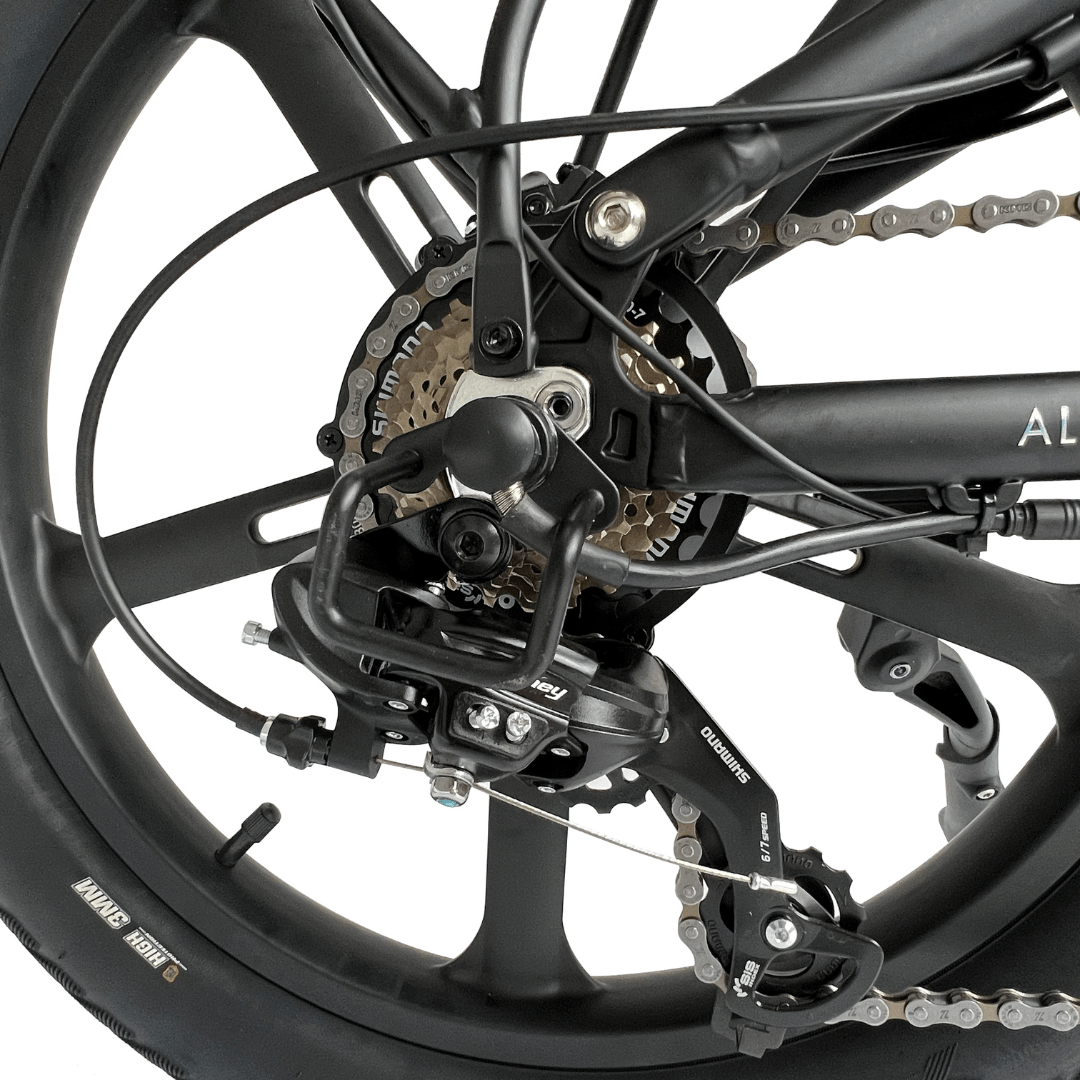

Rear Derailleur
Shimano RD-TY300

7-Speed
Derailleur Guard

Casette

Shimano AMFTZ500742 / MF-TZ500 Speed

Shifter

Shimano SL-M315-RD
7-Speed
Rapid-Fire Gear Shifter

Brake System
NUTT Hydraulic Disk Brake

Front & Rear 160mm
Dual Piston

Front Light

Integrated LED Headlight

Rear Light
Integrated LED Tail Light
Integrated Brake Light

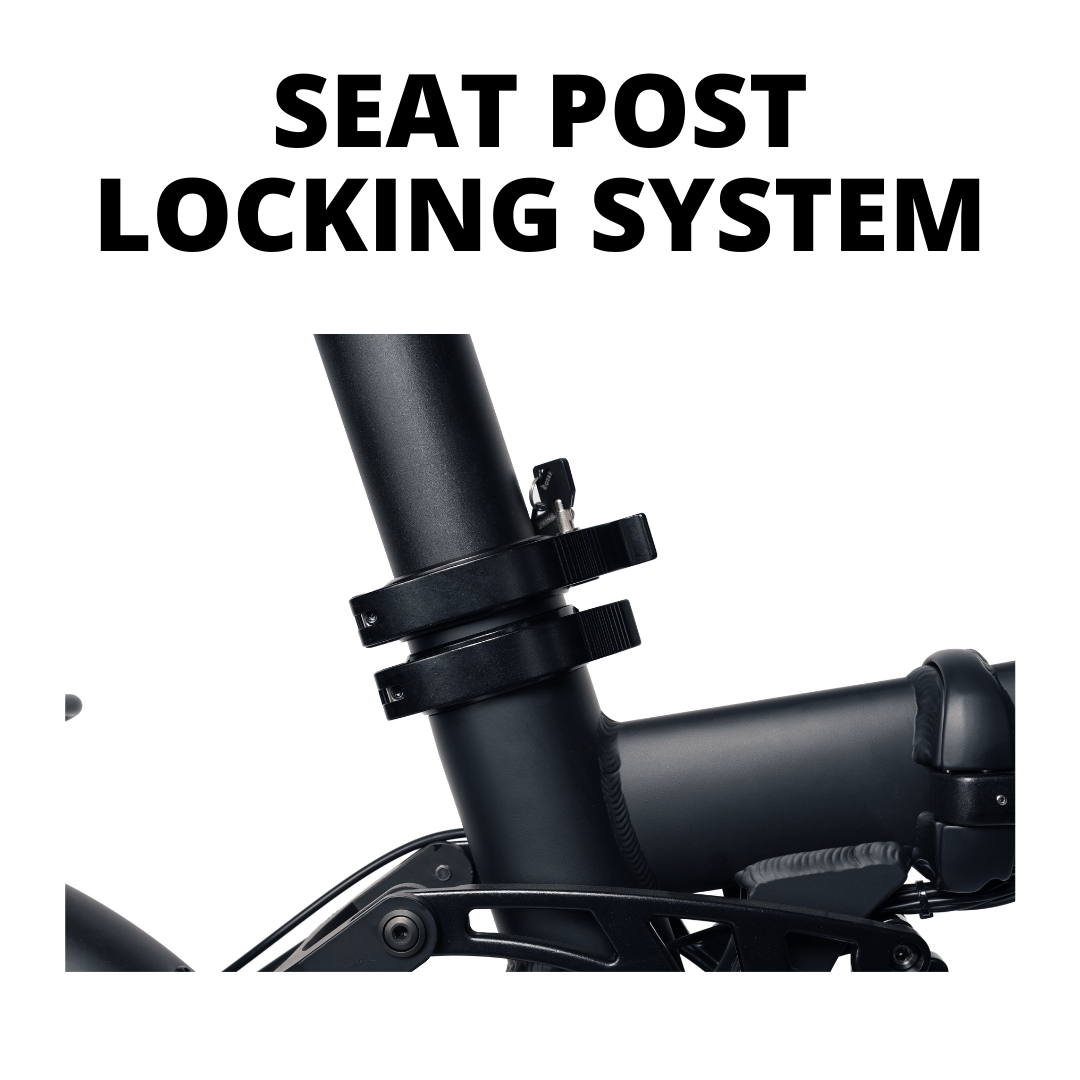

Seat Clamp
Double CLAMP
Locking Seat Post Clamp w/keys
Fenders
Black Painted Steel
Assembly

Arrives 99% Pre-Assembled in the box
Comes fully assembled if picking up at our Abbotsford Warehouse

*Range estimate is based on estimated use at Level 1 PAS. Range is not guaranteed and will vary depending on terrain, weight of rider & cargo, weather conditions, etc.

**This Sidekick ships as a Class 1 & 2, with pedal assist and throttle with a maximum speed of 32km/h. If you are riding on private property or in an area without ebike speed restrictions, the speed limit can be modified in the settings, and the motor can be unlocked to go faster. Sidekick can also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are not allowed (Class 1).

Actual product may vary slightly from the pictures on our website.

BATTERY - UL CERTIFIED


To make the Sidekick neat and unique, we created a patented seat-post lithium battery by Samsung as our power system. Most people won’t recognize it’s an ebike at their first sight. The iBMS system is also important as it keeps your battery safe from over-charging, and over heating. iBMS manages all the cells to work more efficiently to offer you a longer range. The seat-post battery is removable so you can either charge it while attached to the bike or separately in your home, office, or anywhere there is an electrical outlet.

*Range quoted is based on estimated use at Level 1 PAS. Range will vary depending on terrain, weight of rider & cargo, weather conditions, etc.

WEIGHT & MEASUREMENTS

Shipping Box
64L x 11W x 27T inches

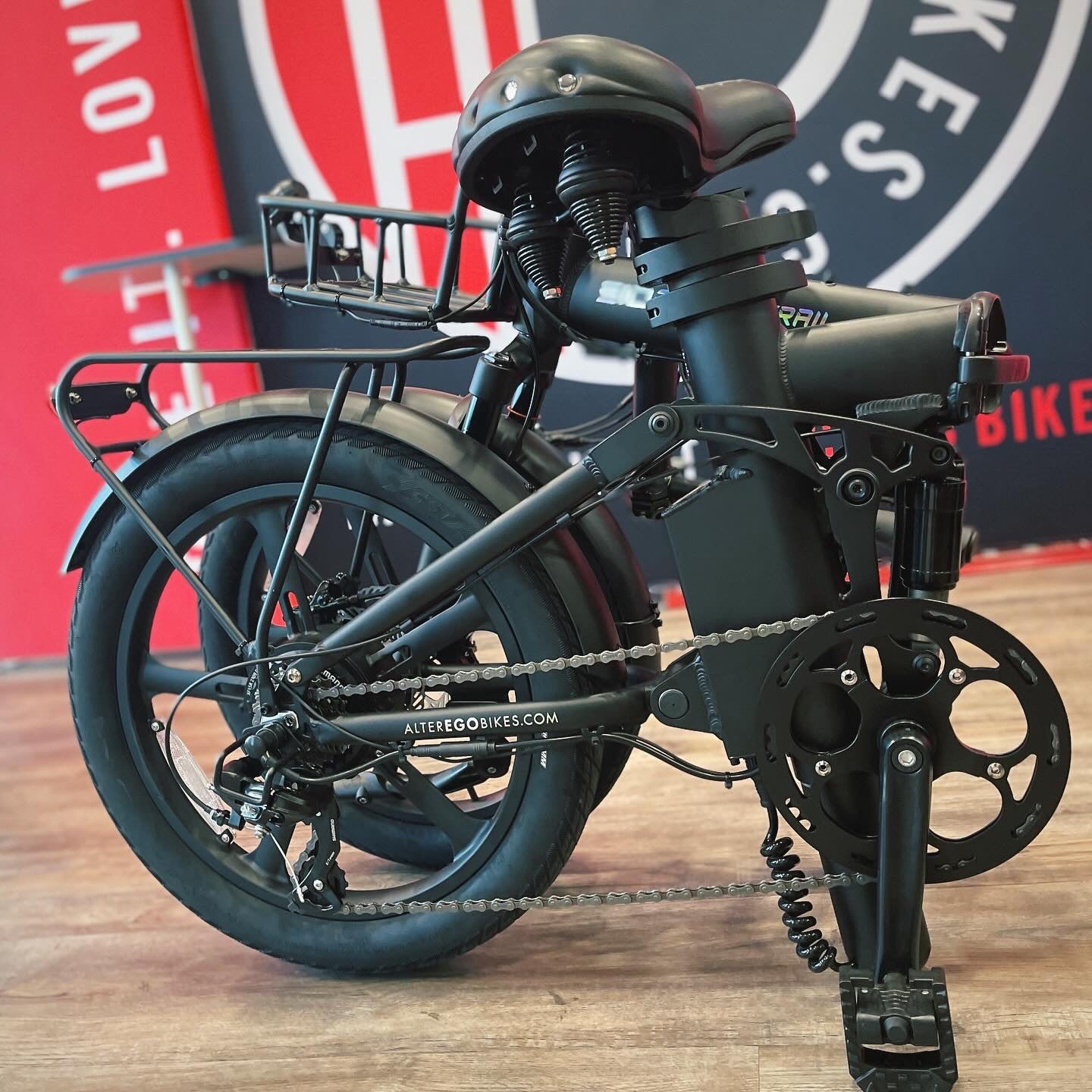

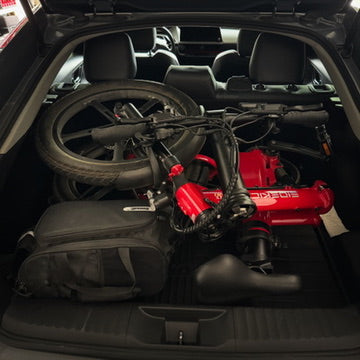

Folded Size
32.6 x 20.1 x 27.5 inches
Unfolded Size
65 x 23.6 x 48 inches
Stand Over Height

Mid-Rise
24 inches

Net Weight
(approx)

27KG (With battery) (60lbs)

Weight Capacity

Up to 286lbs

Package Weight (approx)

32KG (70lbs)

Rider Height 5'3" +


ASSEMBLY

Your Sidekick Series comes PRE-ASSEMBLED right out of the box!


    WARRANTY

    We offer an industry exclusive 2-Year Warranty on high tech components + 25 Years on the aluminum frame. For complete warranty details, click here.
