Aventure 3 ST (by Aventon)

$2,999.00 $3,079.00 $80.00 Off
Select color: Java
Size:

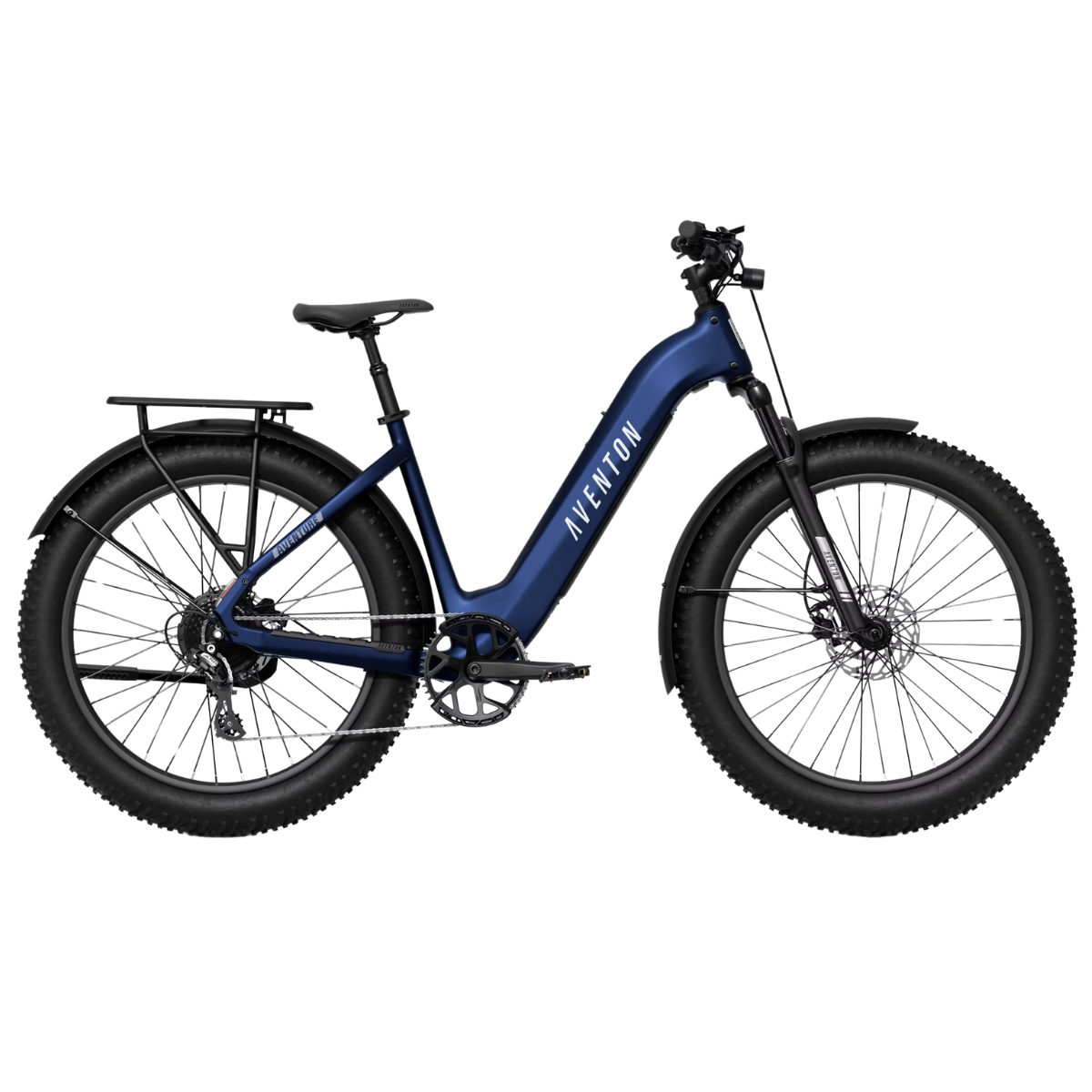

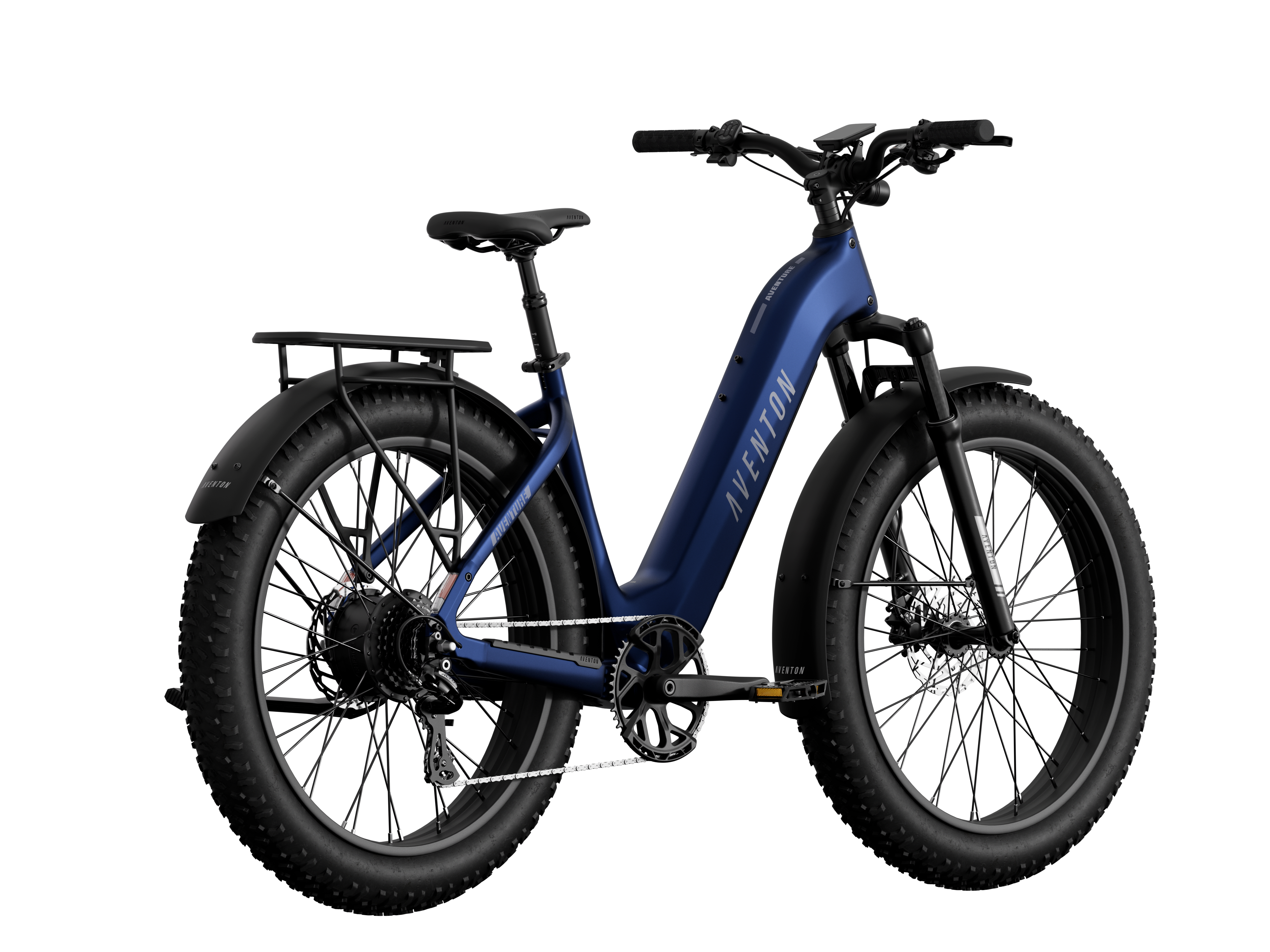

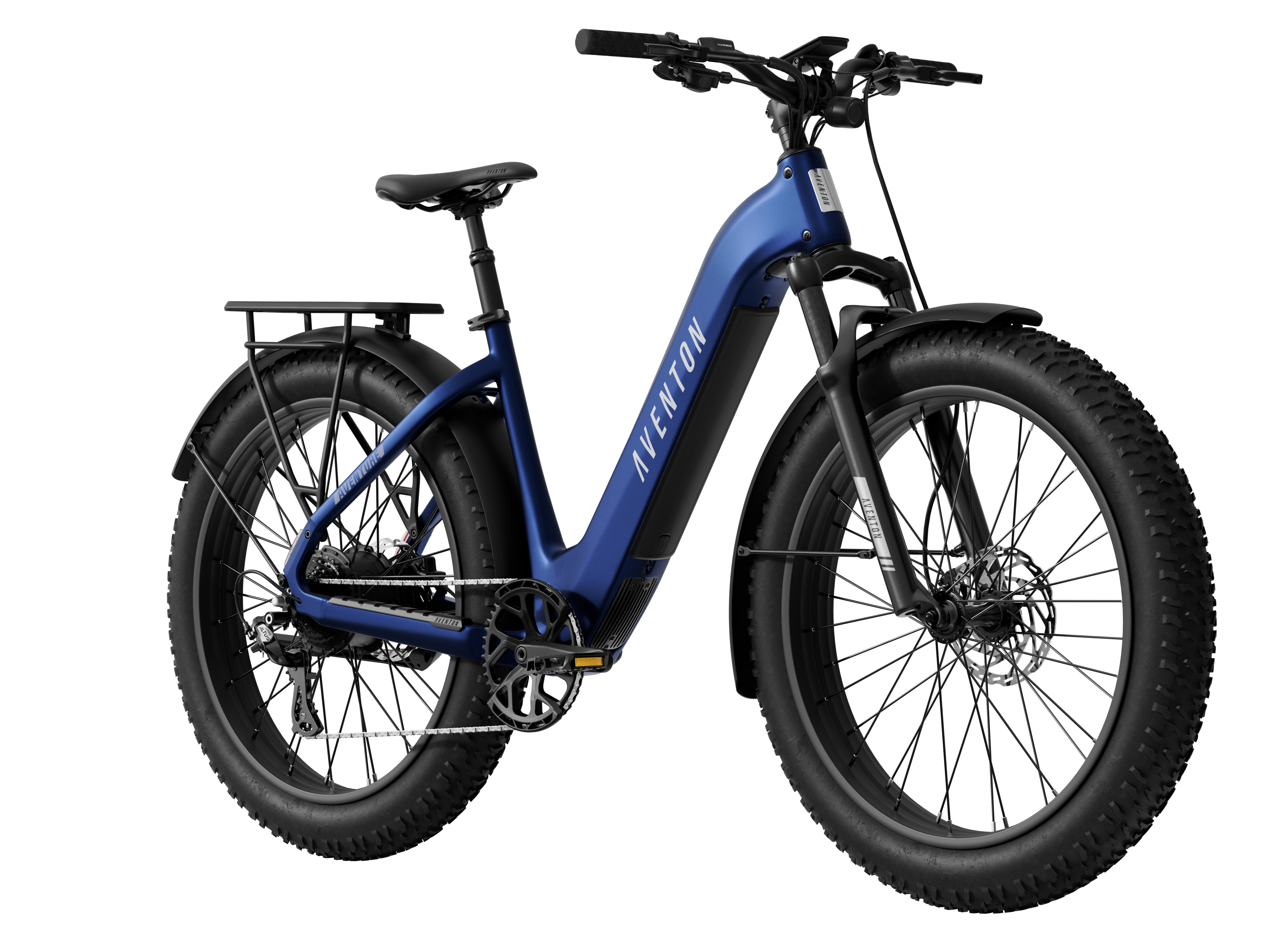

The Aventon Aventure 3 is the ultimate Ebike for adventure seekers, combining rugged performance with cutting-edge technology. Featuring 4" fat tires, a suspension fork, and an added suspension seatpost, the Aventure is built to conquer any terrain with ease. Now equipped with ACU technology that offers 4G†/GPS† capabilities and advanced anti-theft features, the Aventure 3 keeps you connected and your bike secure so the only thing you have to worry about is where your bike will take you next. Its powerful 750W motor, 65 miles of range, and Ride Tune customization ensures you can get where you want to go, with exactly as much power as you need to get there. No matter where you want to explore, the Aventure is ready to take on the challenge.

E-BIKE SYSTEM

  • Motor: 36V 750W Hub Drive
  • Torque: 80 Nm
  • Riding Mode:
  • Display: Aventon BC280
  • App & Tech Features:Aventon App (Change Settings, Track Metrics & Rides, Milestone Medals, Connect with Aventon ebike riders, Tech Support), Aventon Control Unit (ACU)
  • Battery: 733Wh 36V20A Removable Internal Li-ion LG 21700 cells
  • Battery Weight: 8.7 lbs (4 kgs)
  • Charger:42V4A
  • Charging Time: 50%: 2.5 hours, 100%: 5 hours
  • Speed: 32kmh/20mph Offroad: 45kmh/28mph
  • Range: Up to 105 kms/65 miles
  • Parts Warranty: Frames & components: 2 years
  • Certification: UL 2271, UL 2849

BIKE SPECIFICATIONS

  • Frame: 6061 Aluminum, Gravity Cast Front Triangle
  • Sizes: R 15" (4'11"-5'7"), L 18" (5'7"-6'1")
  • Brakes: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire 180mm rotors 6 bolt
  • Fork: Aventon/Zoom Suspension Fork, 80mm travel, with lockout
  • Rear Shock:
  • Tires: Inova 26x4.0 puncture resistant
  • Weight: 77 lbs (35 kgs)
  • Load: 400 lbs (181 kgs)



DRIVETRAIN

  • Gears: Shimano Altus 8-Speed
  • Shifters: Shimano 8-Speed Trigger
  • Crank: 3pc, 170mm crank arm 48 T
  • Rear Cogs: 12-32T / 8 Speed Shimano CS HG200-8
  • Bottom Bracket: 100x177 Square Taper, Double Sided Torque sensor bottom bracket
  • Chain: 7/8 Speed 118L



COCKPIT

  • Handlebar: Aluminum 31.8mm, 680mm
  • Stem:
  • Headset: Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs
  • Grips: Aventon Lock on grips



FINISHES

  • Saddle: Aventon Saddle
  • Seatpost: Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
  • Lights: Front and rear lights integrated
  • Fenders: Included
  • Kickstand: Included
  • Rack: Included
  • Pedals: 9/16" Alloy Platform
  • Bell: Included



WHEELS

  • Rim: Double Wall Aluminum Fat Tire Rim 36h
  • Hubs: Nutted
  • Spokes: F: 13G|R:12G

GEOMETRY


Frame Size Regular Large
Wheel Size 26" x 4.0" 26" x 4.0"
Seat Tube Length 440mm (17") 500mm (19")
Top Tube Length Horizontal 605.5mm (23") 643.5mm (25")
Bottom Bracket Drop 65mm (2") 65mm (2")
Head Tube Length 140mm (5") 140mm (5")
Head Tube Angle 67° 67°
Seat Tube Angle 72° 72°
Rear Chainstay Length 470mm (18") 470mm (18")
Front Wheel Center 693.6mm (27") 731.5mm (28")
Wheelbase 1156.1mm (45") 1194.1mm (47")
Reach 390mm (15") 428mm (16")
Stack Height 663.1mm (26") 663.1mm (26")
Fork Length 525mm (20") 525mm (20")
Fork Offset 43mm (1") 43mm (1")
Trail 102.5mm (4") 102.5mm (4")
Rider Height (Range) 4'11" - 5'7") 5'7" - 6'1")
