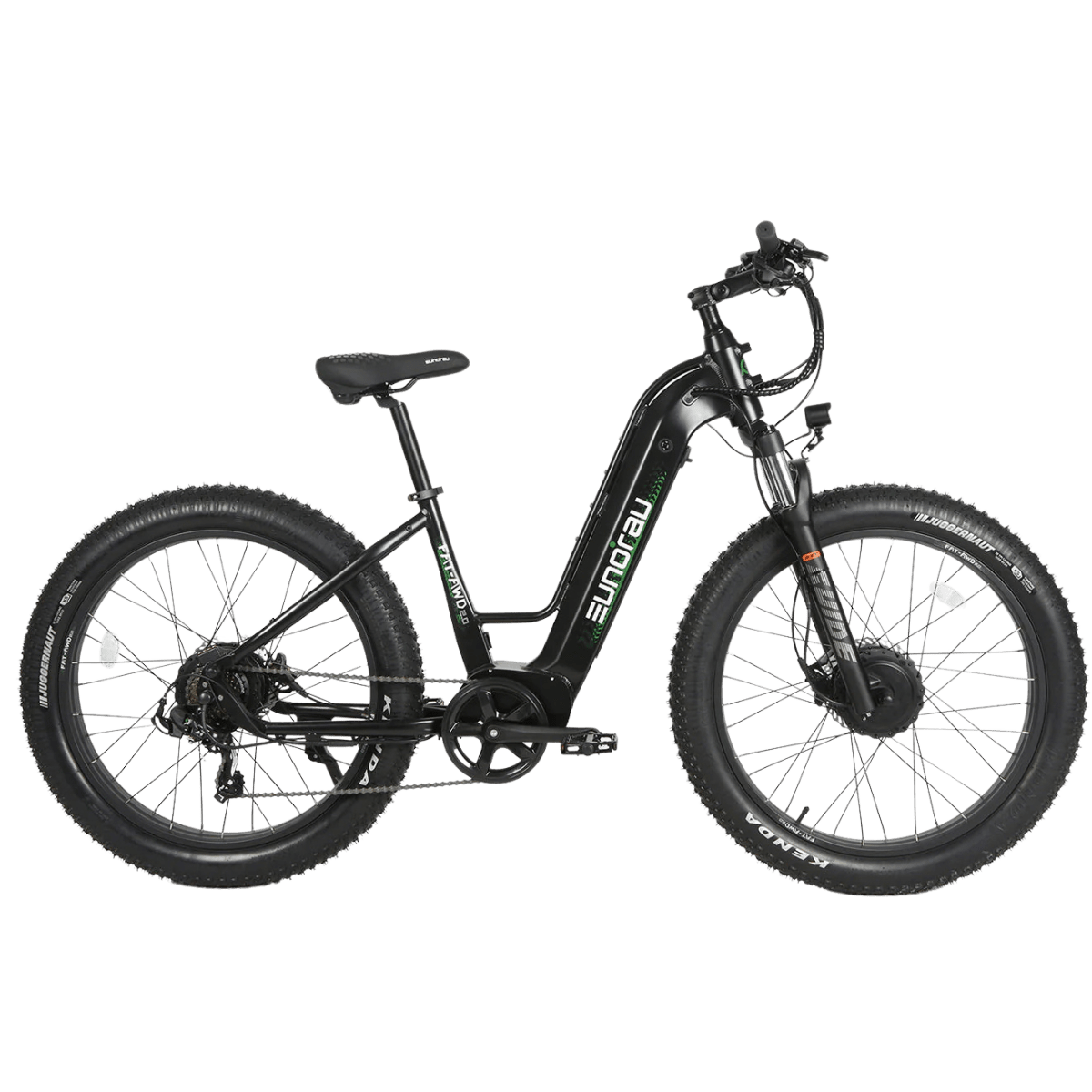

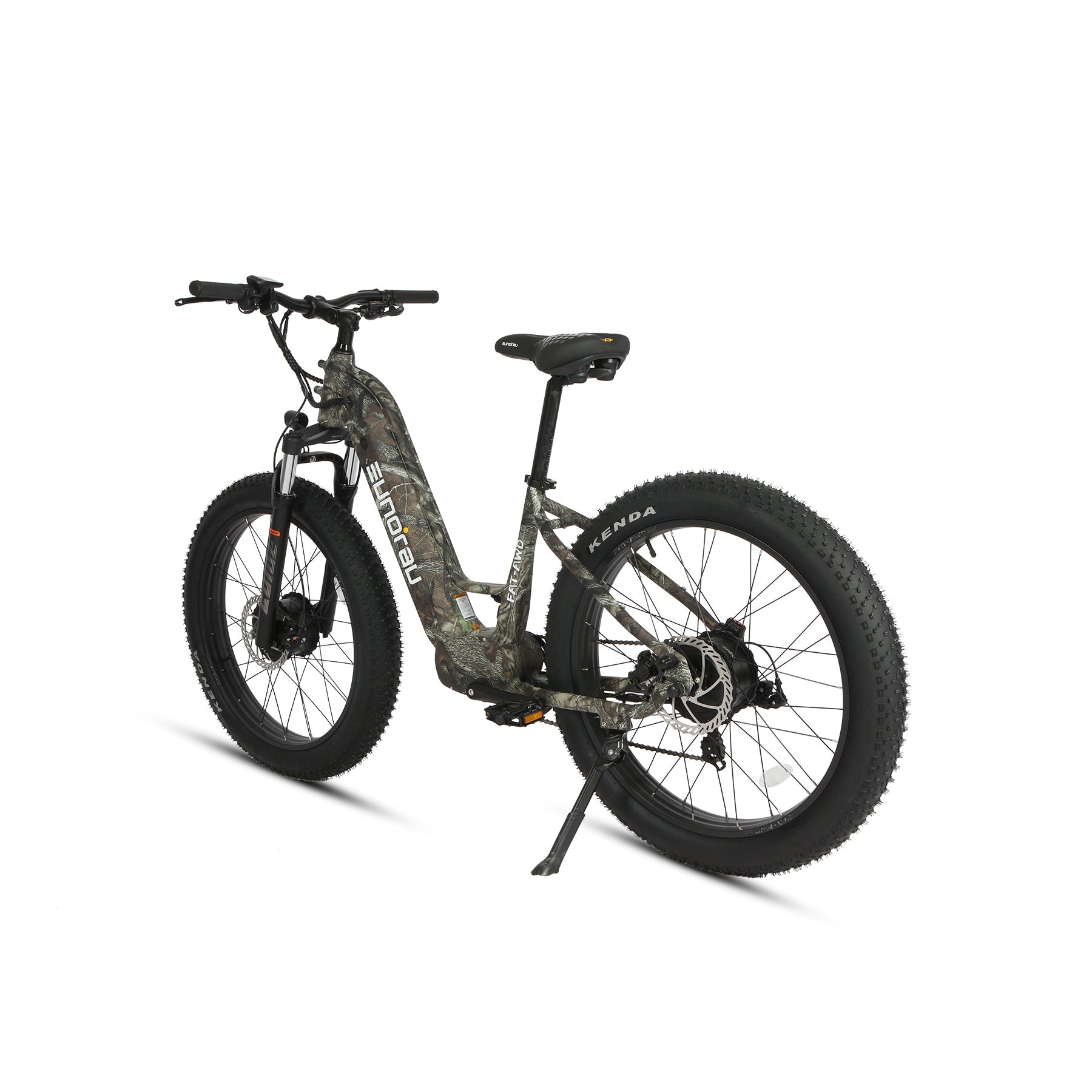

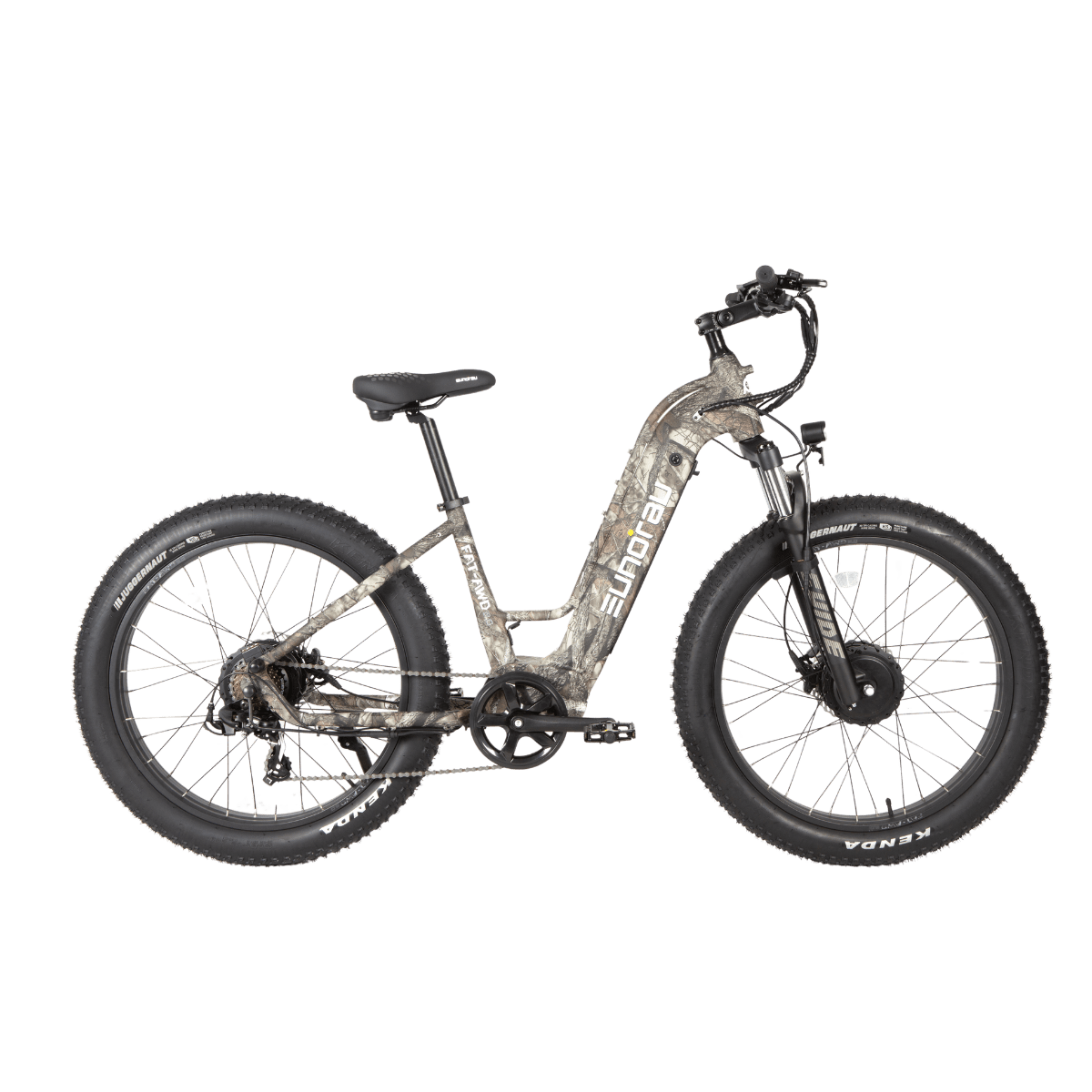

Fat AWD ST 2.0 (by Eunorau)

41 Reviews
| 1 answered question
$2,299.00 $3,299.00 $1,000.00 Off
Quantity
Select color: Raven Black

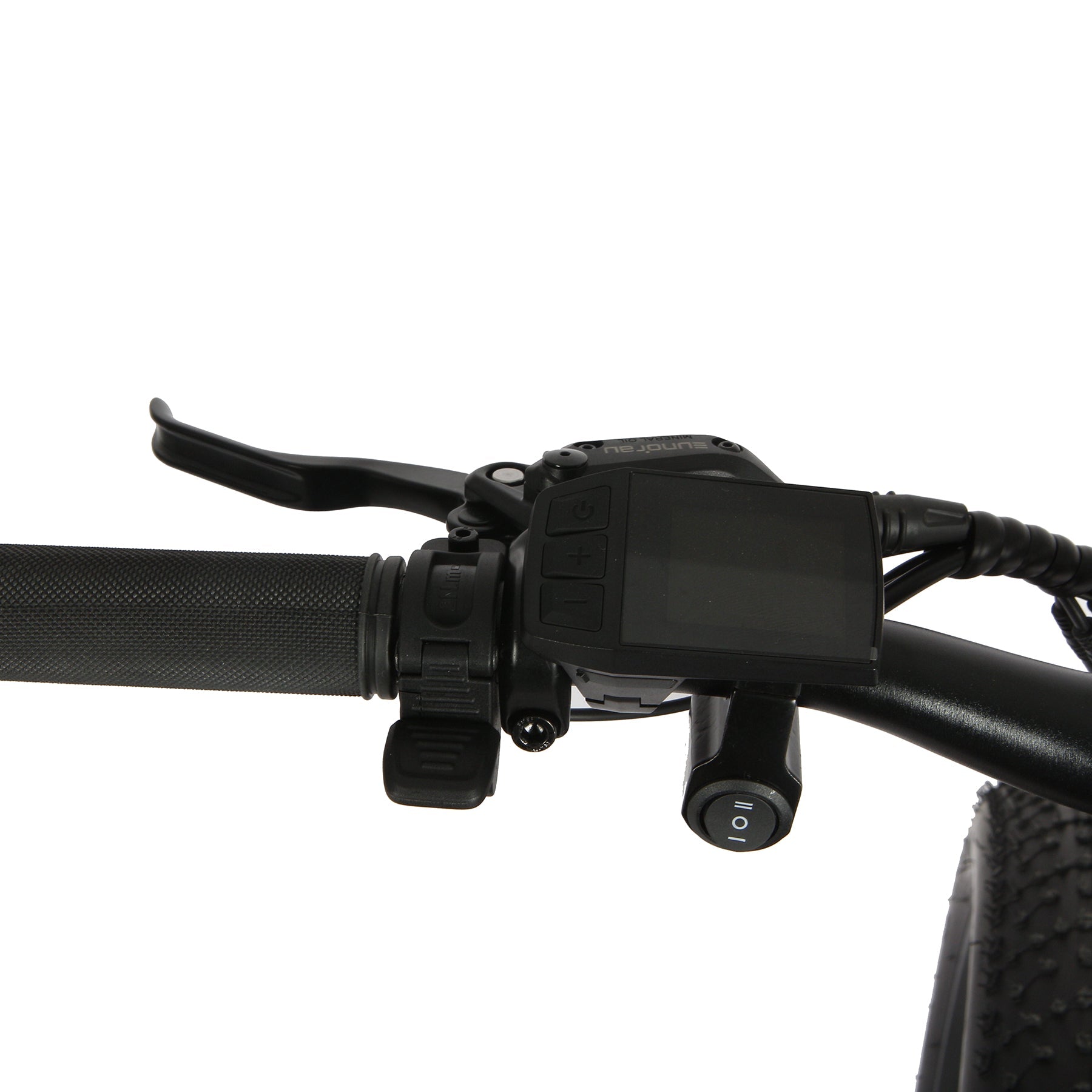

Equipped with TWO powerful geared hub motors, the Fat AWD 2.0 by Eunorau will go the distance and climb any hill while remaining fully street legal anywhere in Canada in single motor operation. To operate the AWD system is simple: on the right side of the handlebars is a red rocker switch where you can select which motor to operate. With the switch positioned in the middle - both motors will be activated. When turned to the left, only the front motor will be active, and when turned right—the rear motor.

SPECIFICATIONS

MOTOR (DUAL)

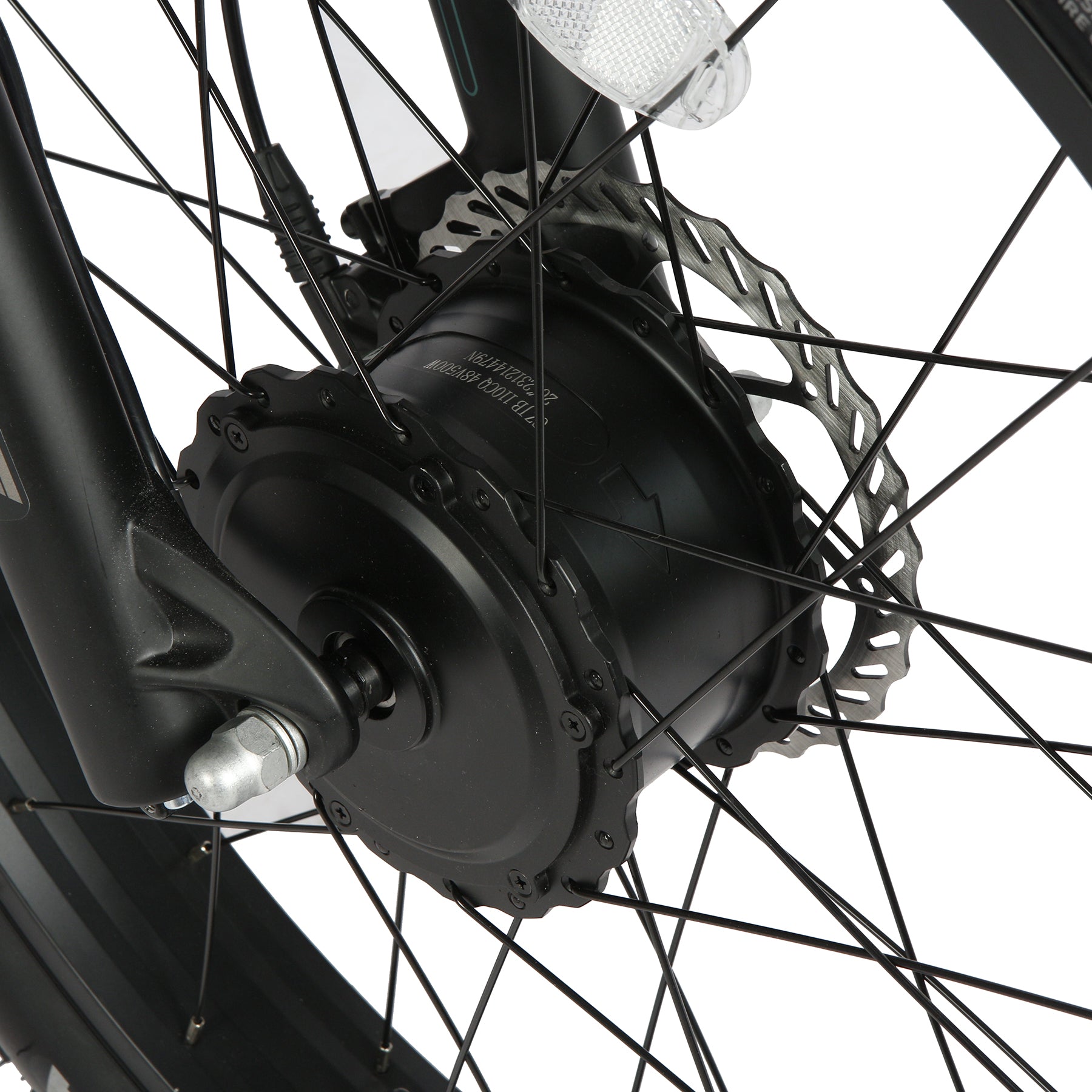

Front: 48V 500W Hub Motor
Rear: 48V 500W Hub Motor
110Nm Torque
2000W Peak Output

MOTOR FUNCTIONS

Mode 1: Front Motor Operation
Mode 2: Rear Motor Operation
Mode 3: Dual Motor Operation

BATTERY OPTIONS

Samsung / LG 48V 15Ah (720Wh)
21700 Lithium-Ion Cells
Plug n' Play Dual Battery Ready
UL CERTIFIED

RANGE

Single Battery (720Wh): Up to 80km*
Dual Batteries (1536Wh): Up to 200km*
Single motor use

MAX SPEED

32km/h* (Max Legal Limit)
* Can be unlocked for off-road use

CHARGER

Standard 2A Smart Charger

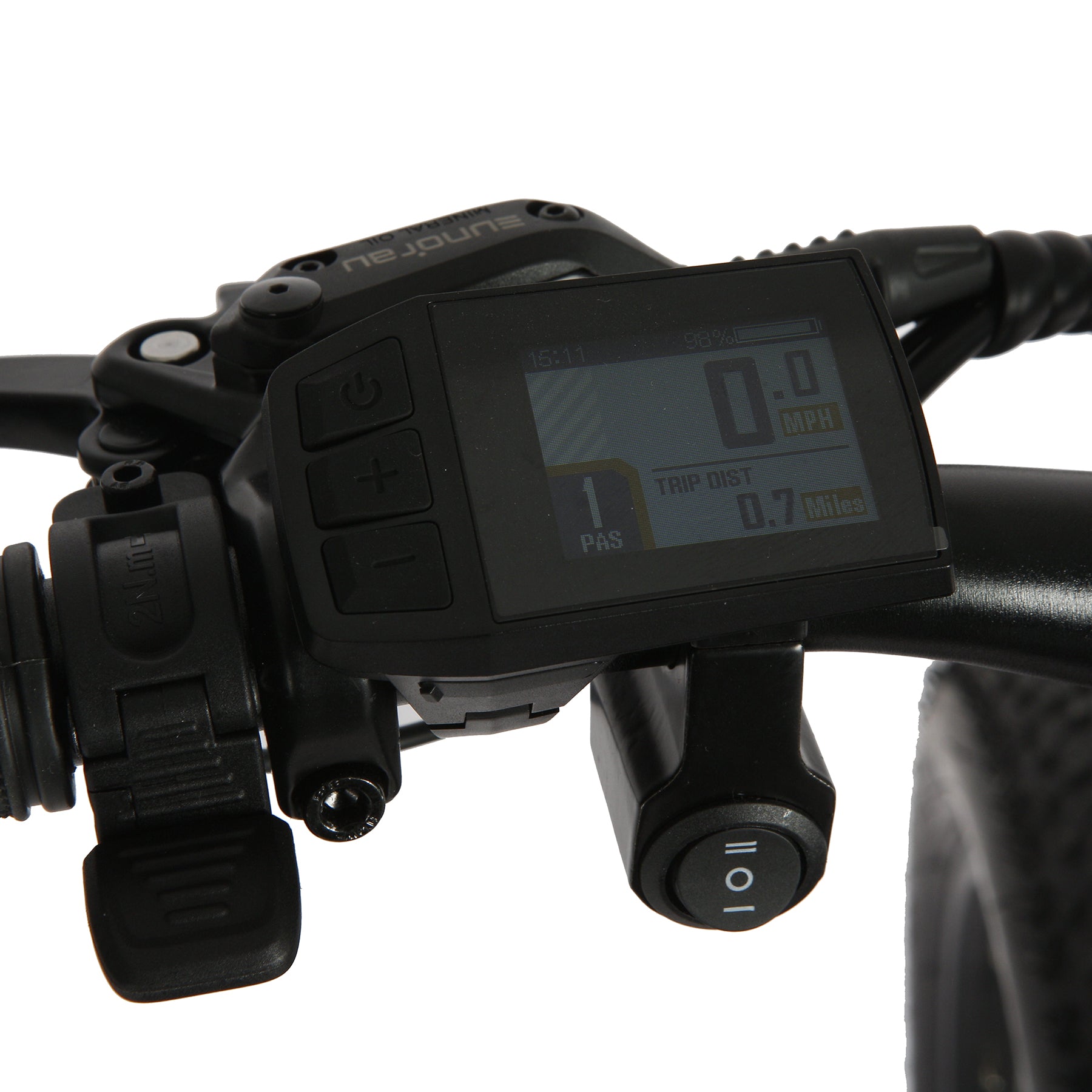

DISPLAY

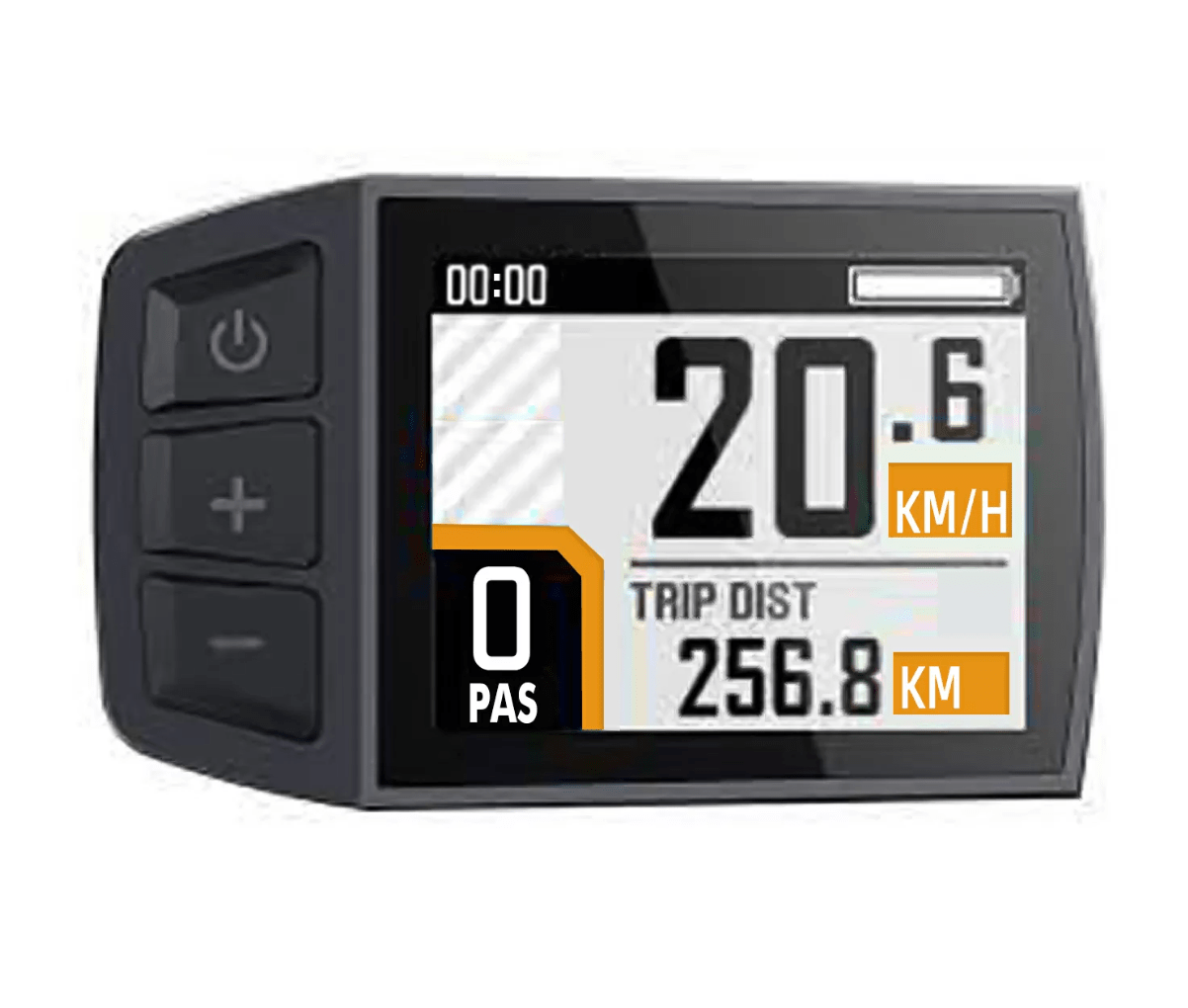

BC182 COLOR SMART LCD

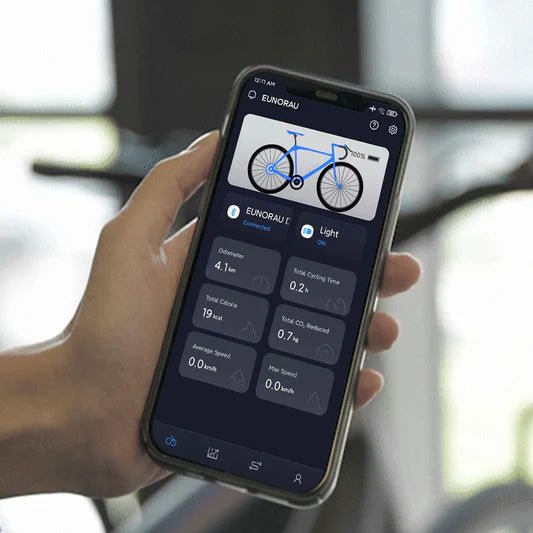

iOS & Android App Enabled
Type 3 Charge Port

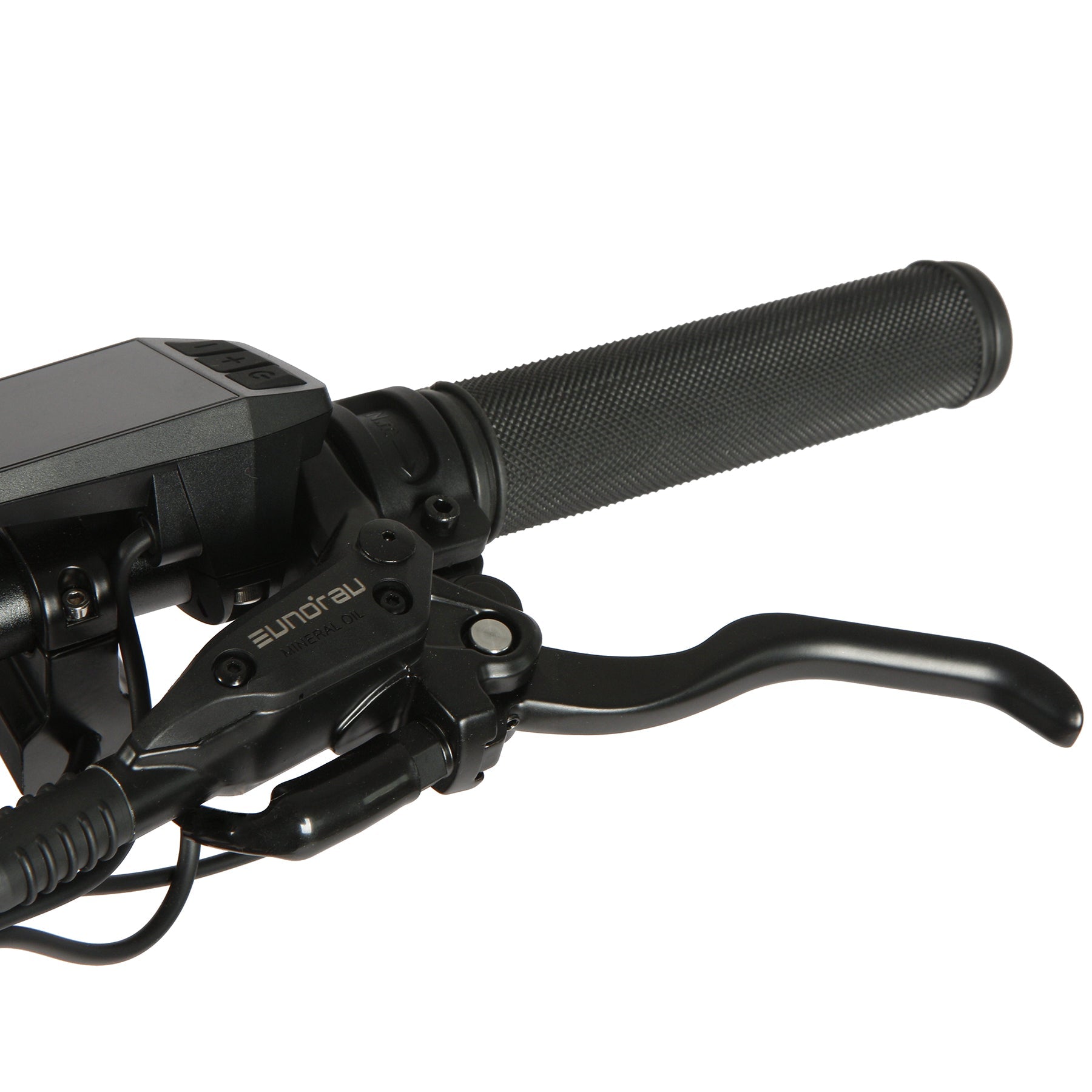

BRAKES

Hydraulic Disc Brakes
XD E300
180mm Rotors
Motor Cutoff Equipped

THROTTLE

Responsive Thumb Throttle
Left Side

PAS

0-5 Levels
Cadence Sensor

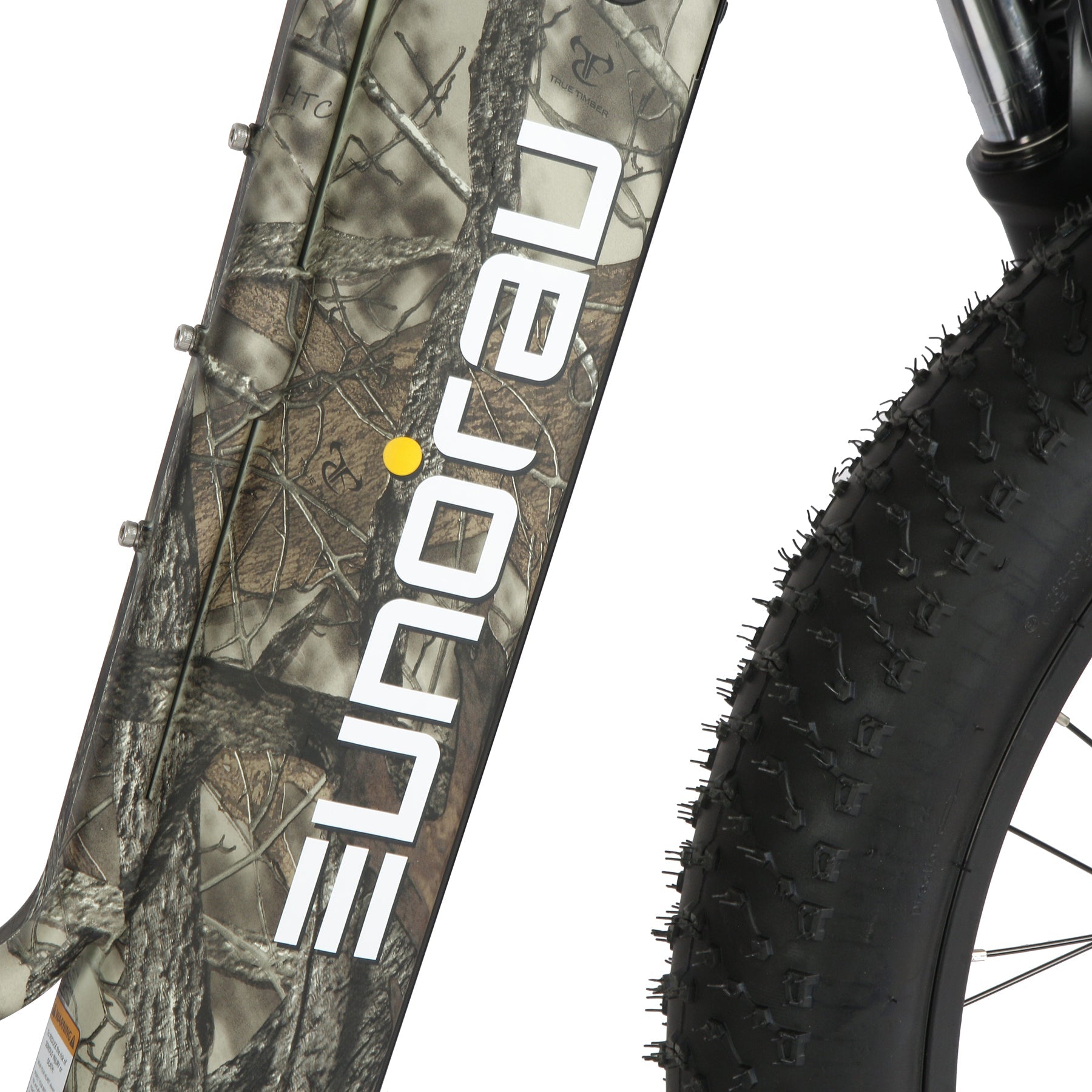

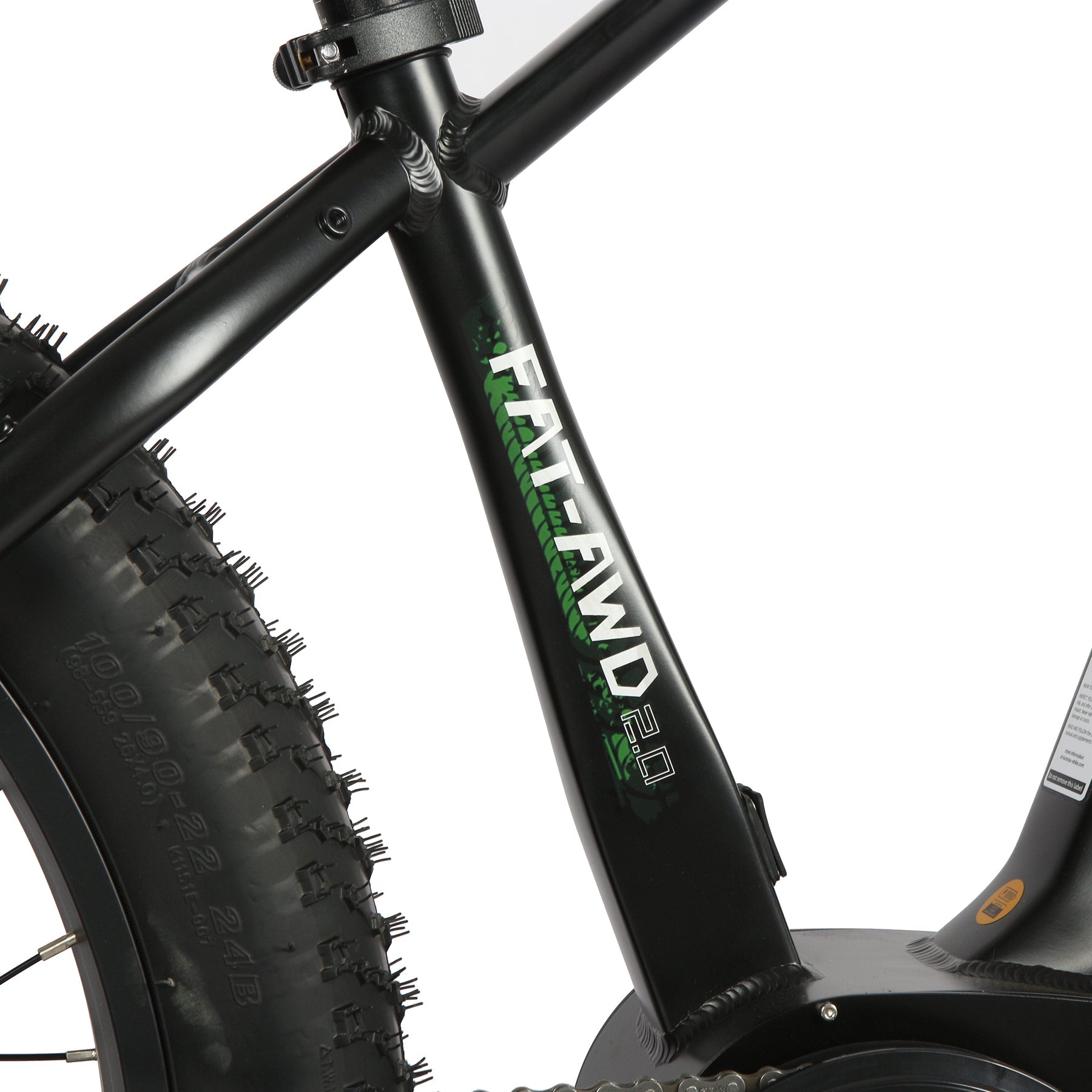

FRAME

6061 Aircraft Aluminum Alloy

SUSPENSION

RST Front Suspension Fork
95mm Travel
Aluminum Alloy

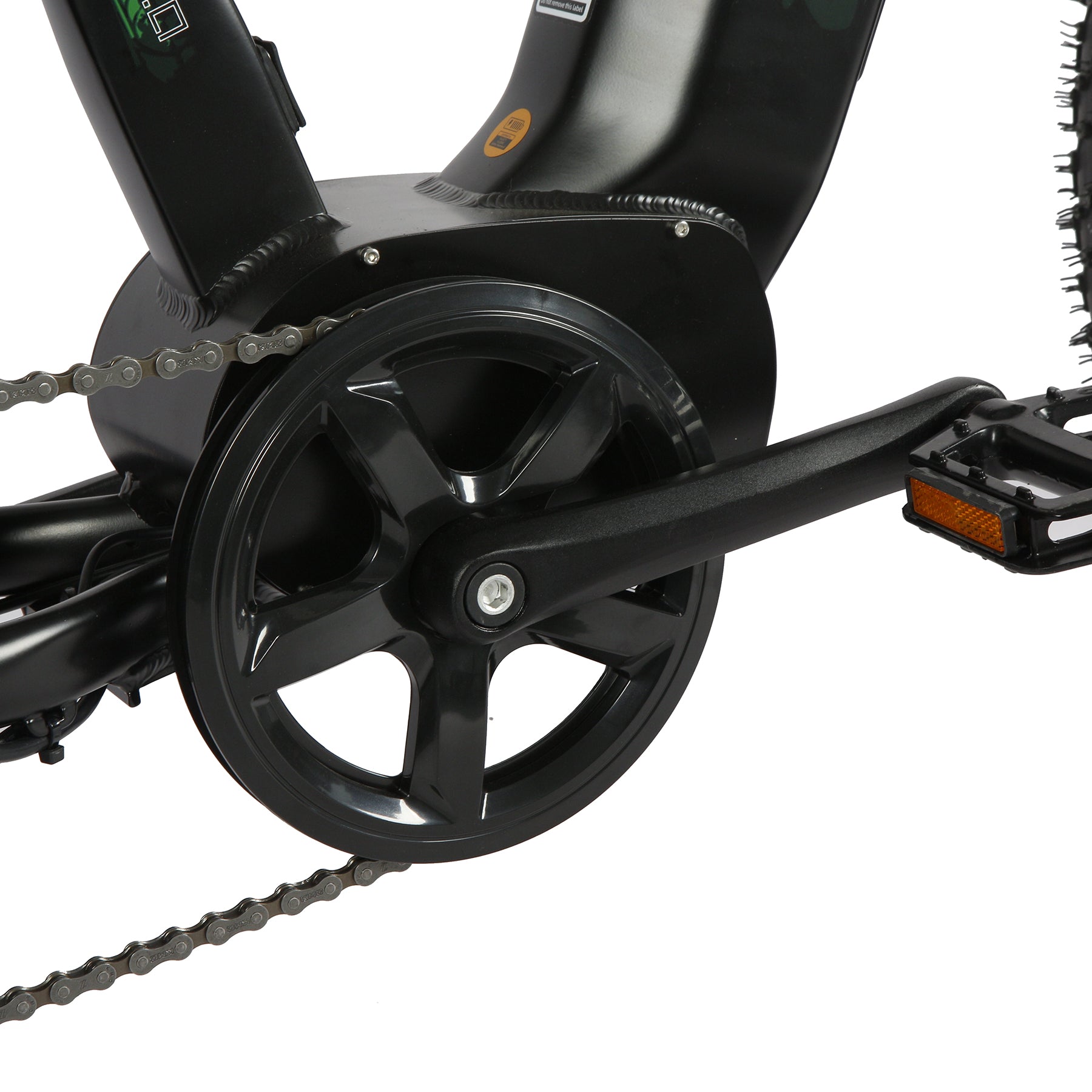

CRANK

170mm Forged Alloy

FREEWHEEL

Shimano 14-28T

SHIFTER

SHIMANO ASLM3157RC 7 Speed

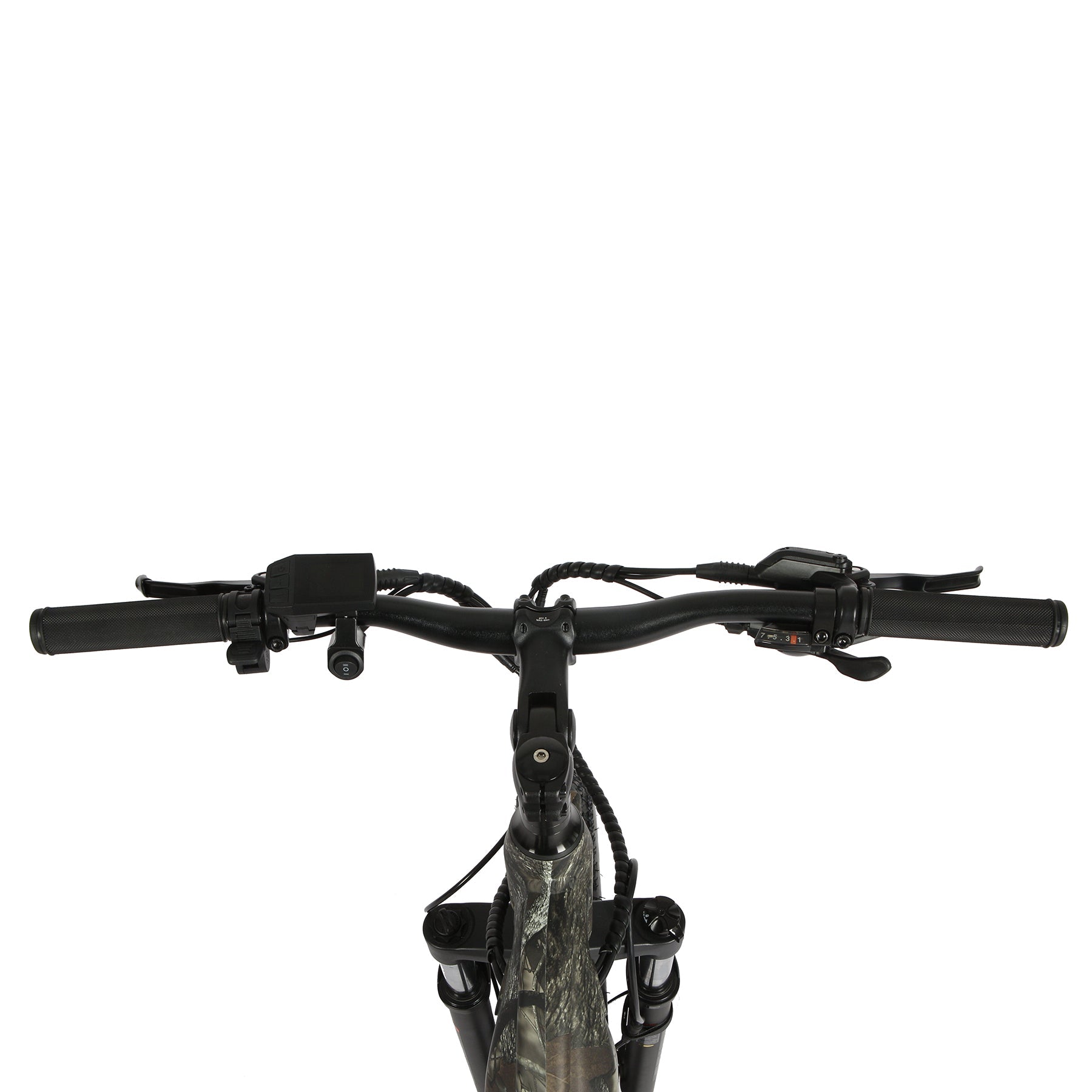

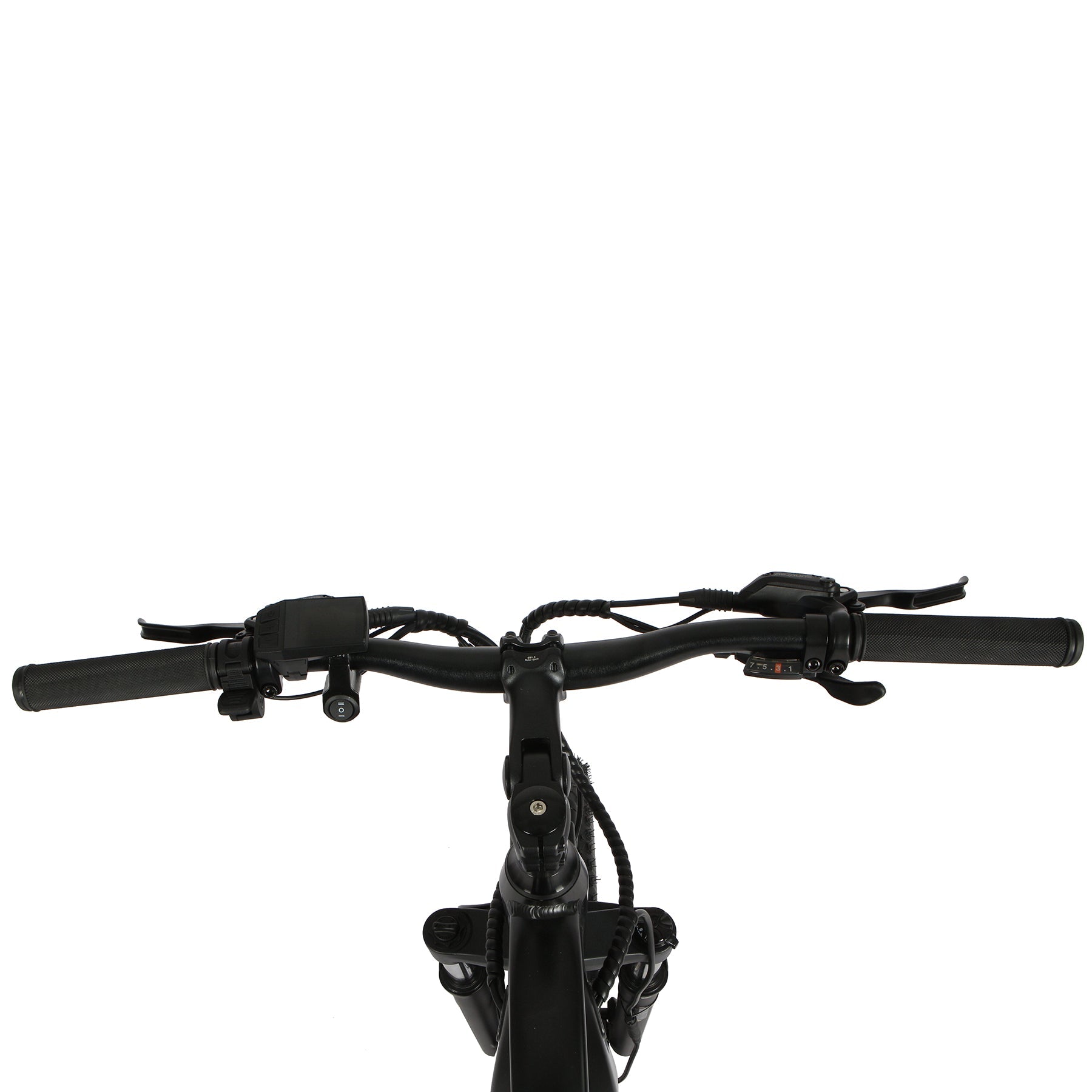

HANDLEBAR

Mid-Rise, Aluminum Alloy, 650mm Length

STEM

Promax Aluminum Alloy

CHAINRING

42T Chain-Wheel Crank

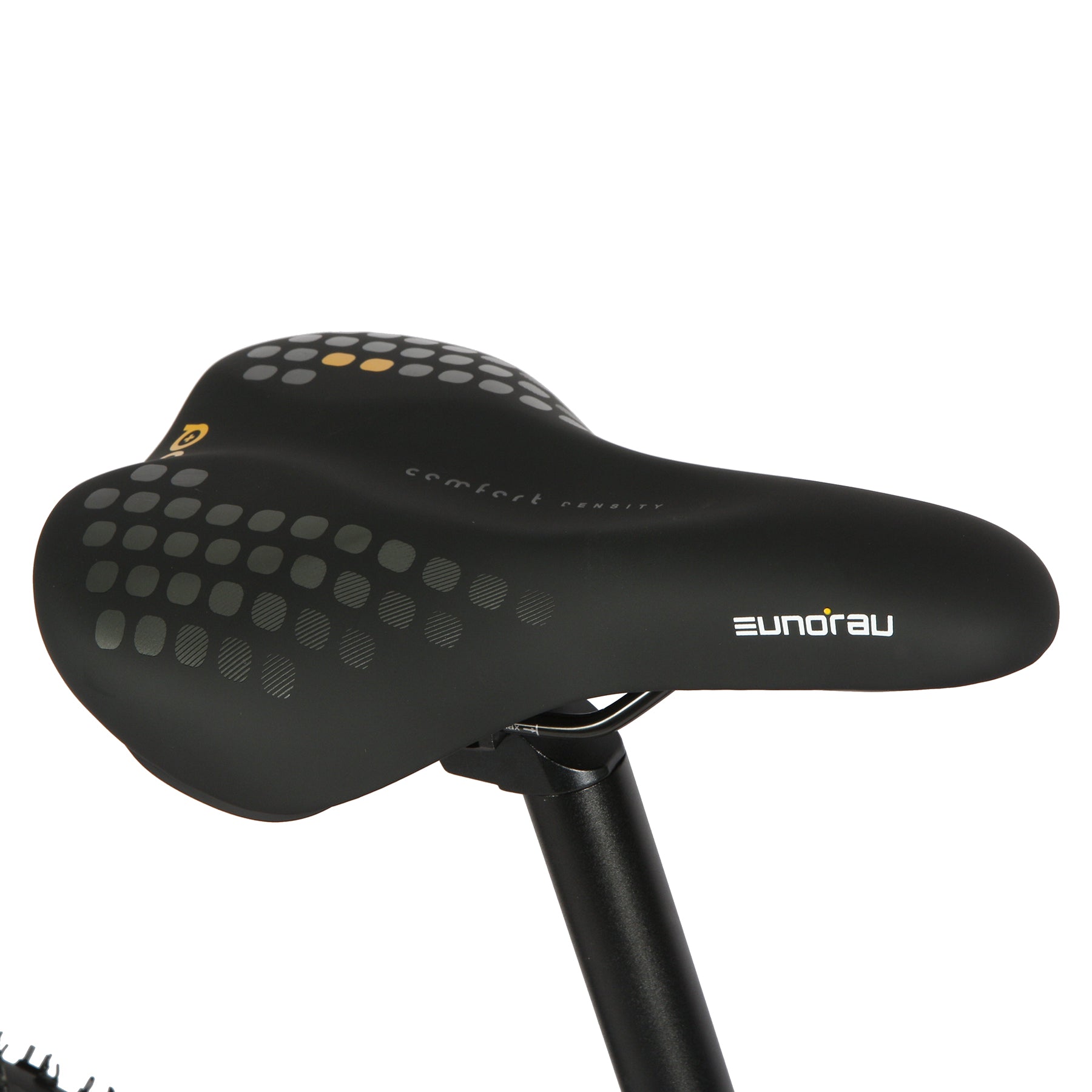

SADDLE

Velo Plush

PEDALS

Wellgo Aluminum Alloy Platform
Reflectors

RIMS

26" Black Alloy

TIRES

Kenda Krusade Sport
26" x 4" All Terrain

LED HEADLIGHT

LED
Integrated with main battery

LED TAIL LIGHT

LED
Integrated with main battery
Brake Light

FENDERS

Optional

REAR RACK

Optional

WEIGHT

APPROX. 78lbs

*Range estimate is based on estimated use at Level 1 PAS with 1 motor. Range is not guaranteed and will vary depending on terrain, weight of rider & cargo, weather conditions, etc.

GEOMETRY

PAYLOAD CAPACITY 175KG (385lbs)
SHIPPING WEIGHT 42KG (92lbs)
BOX DIMENSIONS (cm) 159 L x 36 W x 89 H
RIDER HEIGHT 5'3" - 6'3"
