IT'S BACK, AND IT'S EVEN BETTER THAN EVER

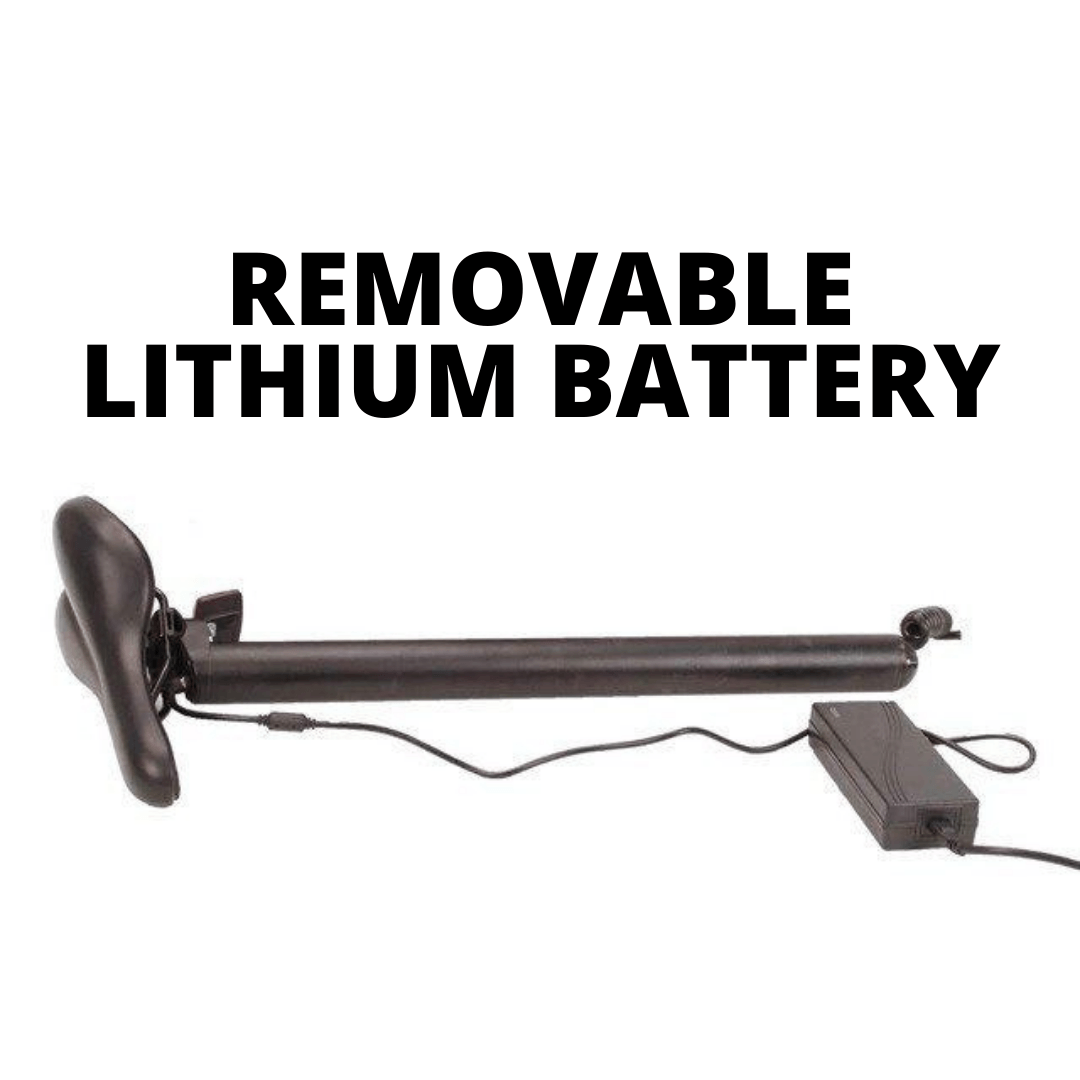

The Sidekick Fat PRO is the ultimate bike for the adventurous weekend warrior who loves to explore the great outdoors, whether it's camping, mountain biking, or cruising along the beach. It's equipped with a uniquely designed hidden battery in the seat post, giving it the appearance of a regular bike at first glance. Plus, it can accommodate riders ranging from 5'3" to 6'7" and weighing up to 300 lbs. With 4 different riding modes, including normal bike mode, pedal assist mode, cruise control mode, and throttle mode, the Sidekick Fat PRO is ready for anything.
SPECIFICATIONS
| Battery |
LG 48V 15AH / 720WH Lithium Ion
LG 21700 CELLS UL CERTIFIED |
|---|---|
| Battery Charger |
D-POWER 54V 2.8A Fast Smart Charger
Over/Under Voltage Protection |
| Optional Dual Battery Configuration |
LG 48V 20Ah Range Extender |
| Charging Time |
4-5 hours |

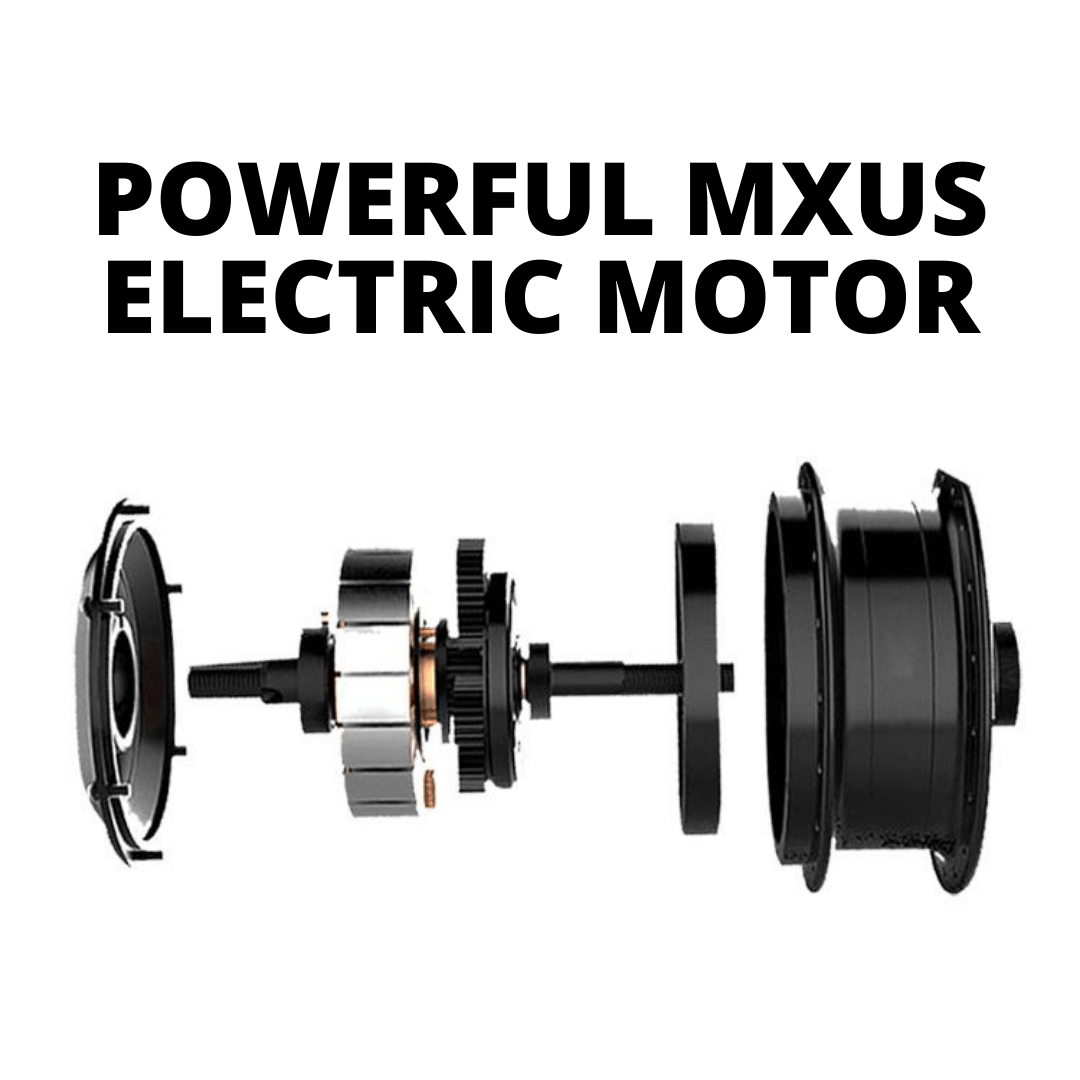

| Motor |
1092W Peak Output
MXUS 48V 500W Nominal Output |
| Ride Modes |

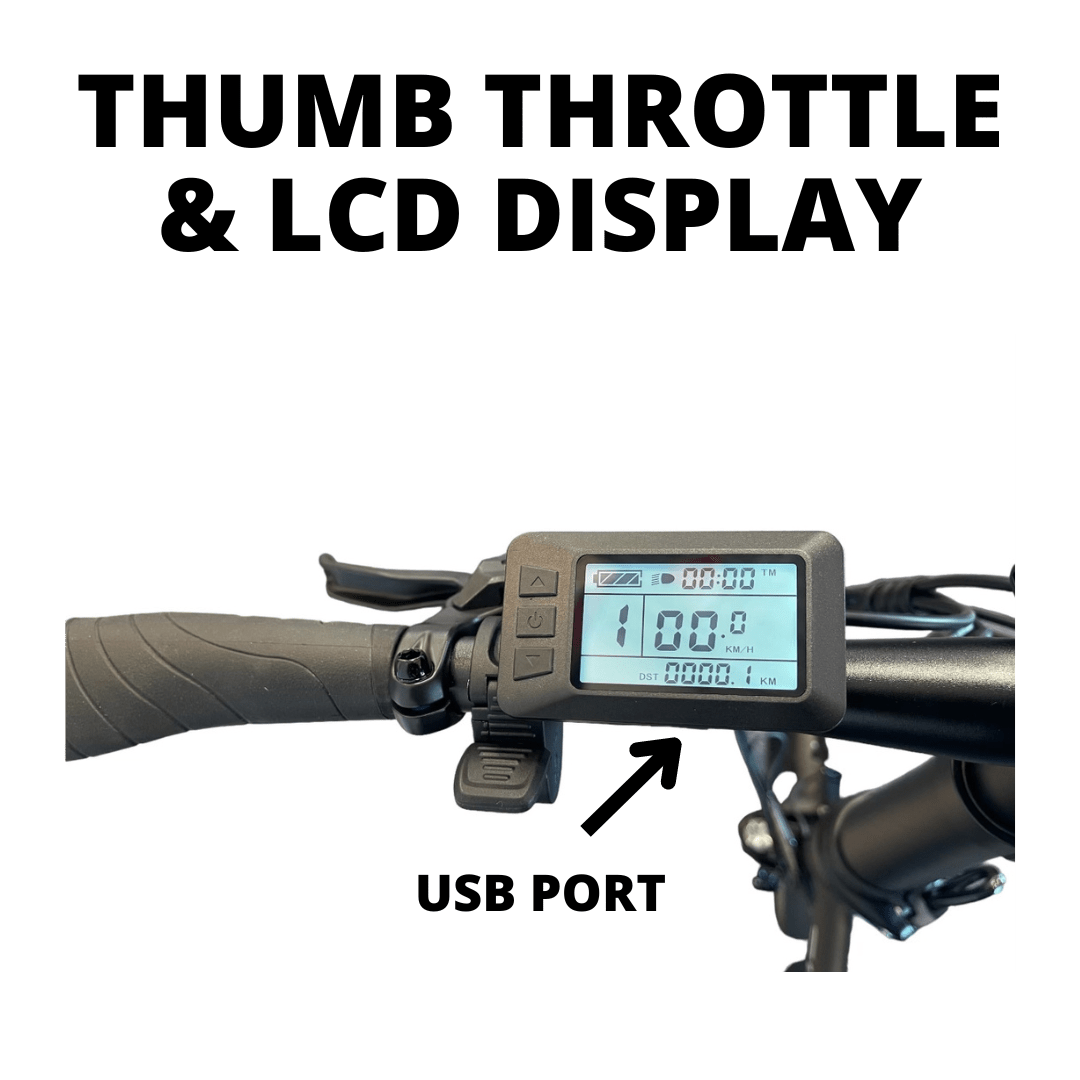

Responsive On Demand Thumb Throttle |
| Throttle |
Responsive Thumb Throttle
Left Side |
| Controller |
KT Sine Wave 48V 20A |
| Display |
LCD |
| PAS Sensor |
KT-V12 Double Hall Speed Sensor |
| Top Speed |
32km/h** |
| iPAS Range |
Up to 100Km with single battery |
| Frame |
6061 Aircraft Aluminum Alloy

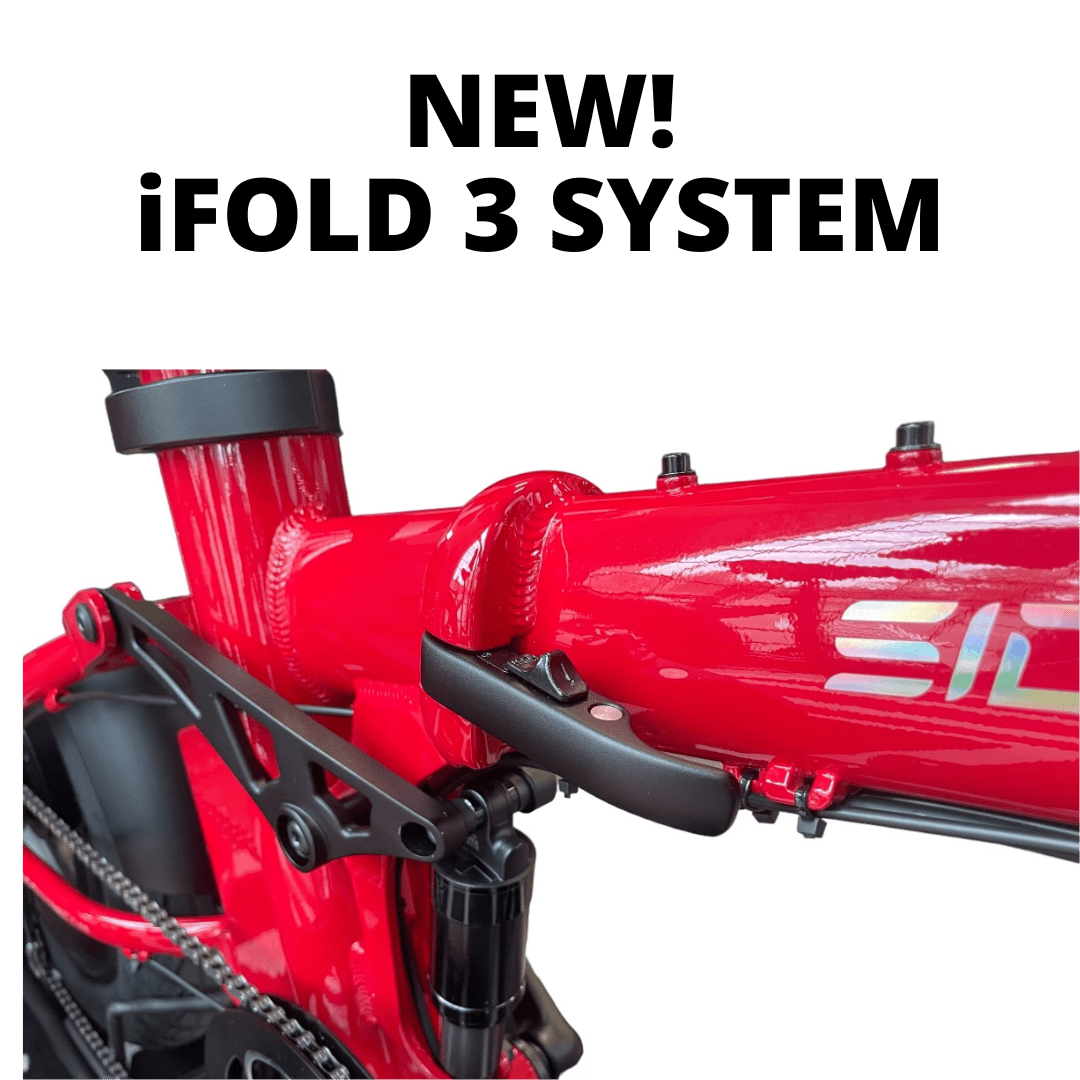

iFold 3 Folding System |
| Suspension |
WB800 Air Suspension Fork
Adjustable w/lockout |
| Handle Bar |
22.2*31.8*640mmL, 3.0mm,6° |
| Hand Grip |
Velo VLG-1505D2 130/130mm |
| Stem |
Patented Thick Stem
Aluminum-Alloy 6061, 8°, Fold to right side |
| Headset |
Aluminum with Bearing, 28.6*56-56*30/39.8 H:14mm |
| Wheel |
Aluminum Alloy integrated wheel for fat tire |
| Tires |
CST Custom |
| Crankset |
Prowheel PRO-552PP-1,
Steel Ring with double Plastic Cover, 52T |
| Bottom Bracket |
BB96 164 29.5+100+34.5 |
| Chain |
KMC Z7 1/2"*3/32"*132 Links |
| Rear Derailleur |
Shimano RD-TY300
7-Speed |
| Cassette |
Shimano AMFTZ5007428/MF-TZ500 7 Speed |

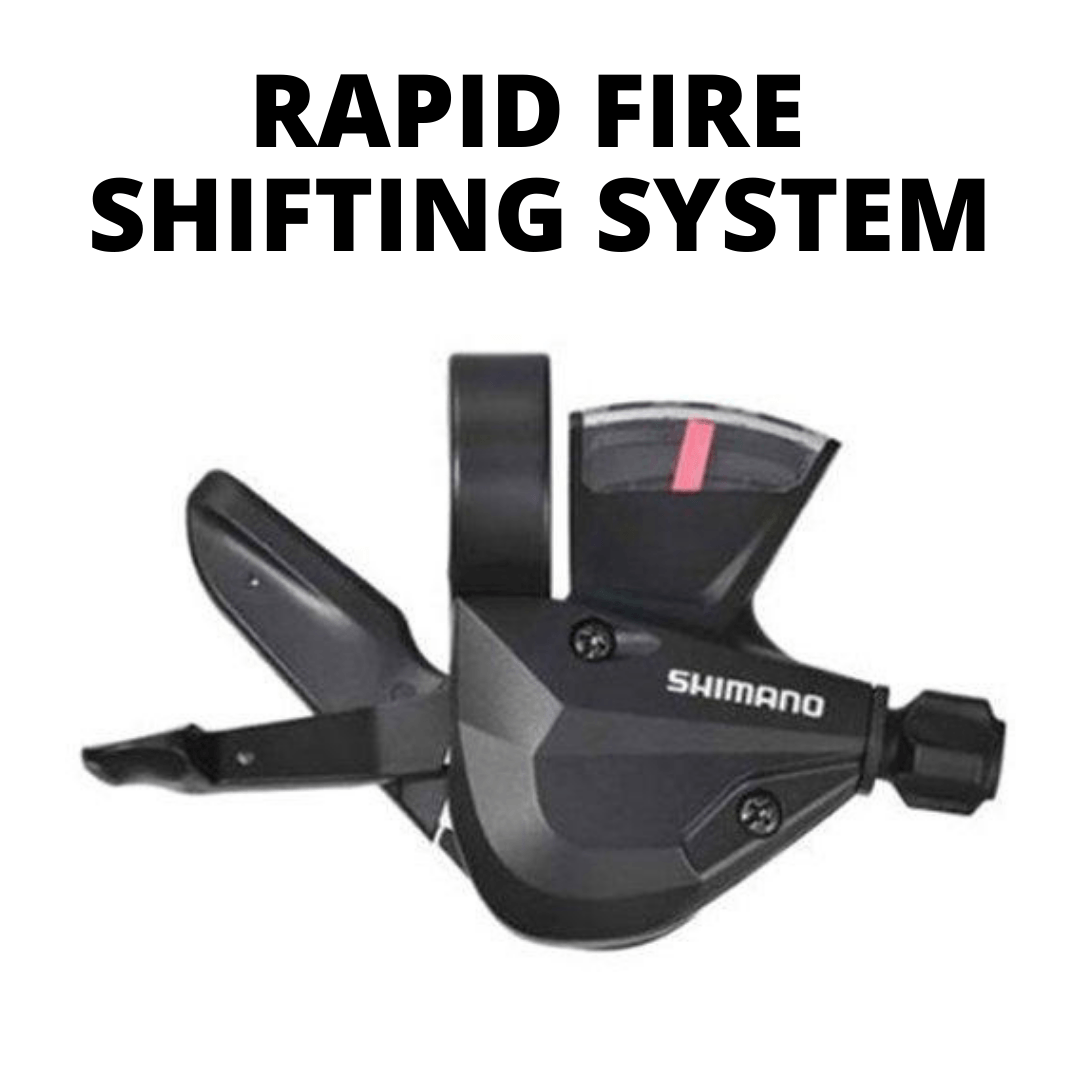

| Shifter |
Shimano SL-M315-RD
7-Speed |
| Brakes |
NUTT Hydraulic Disk Brake
Front & Rear 160mm |

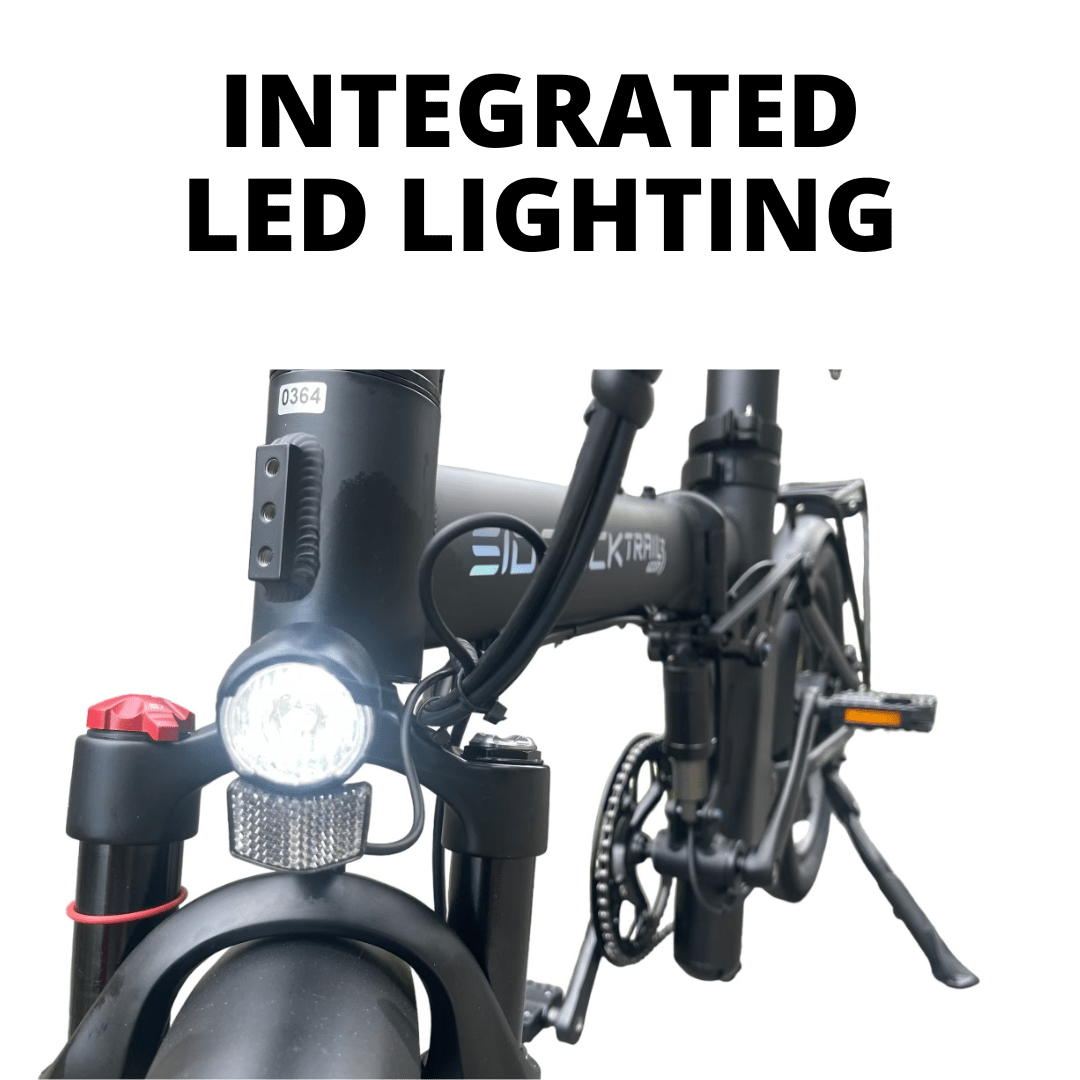

| Front Light |
STAR UNION QD-139/48V |
| Rear Light |
Integrated Tail Light
Brake Light |

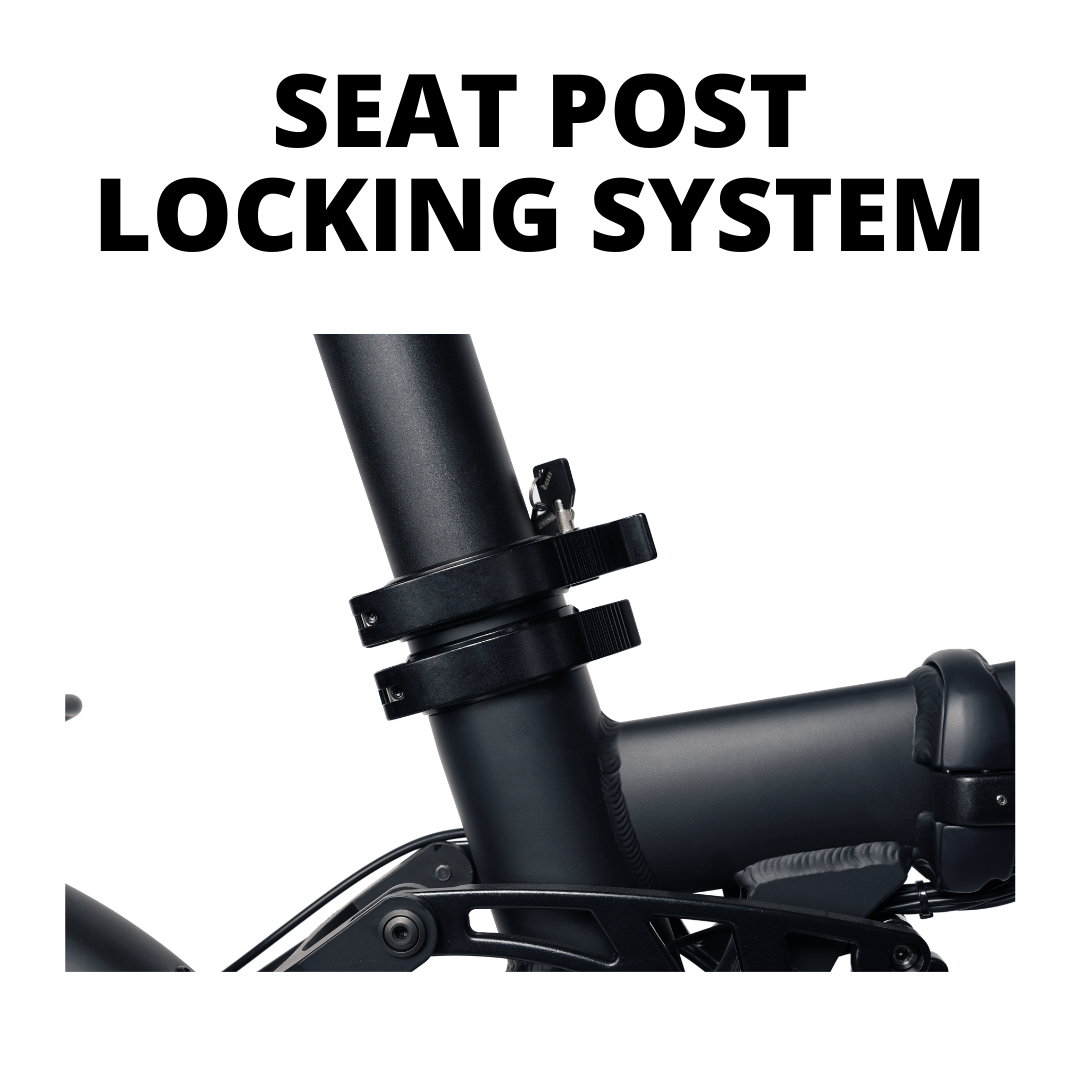

| Seat Clamp |
Double Clamp
Seat Post Lock w/2 Keys |
| Fenders |
Aluminum Alloy, Black |
| Assembly |
Arrives 95% Pre-Assembled in the box
Comes fully assembled if picking up at our Abbotsford Warehouse |
Actual product may vary slightly from the pictures on our website.
*Range estimate is based on estimated use at Level 1 PAS. Range is not guaranteed and will vary depending on terrain, weight of rider & cargo, weather conditions, etc.
**This Sidekick ships as a Class 1 & 2, with pedal assist and throttle with a maximum speed of 32km/h. If you are riding on private property or in an area without ebike speed restrictions, the speed limit can be modified in the settings, and the motor can be unlocked to go faster. Sidekick can also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are not allowed (Class 1).
Specs subject to vary slightly depending on production run.
WEIGHT & MEASUREMENTS
| Shipping Box |
|
|---|---|
| Folded Size | TBD |
| Unfolded Size |
|
| Stand Over Height | TBD |
| Net Weight (Approx) |
31KG (Including battery) (68lbs) |
| Weight Capacity |
Up to 300lbs |
| Package Weight (Approx) |
39KG (86lbs) |
| Rider Height | 5'3" + |
Our Sidekick Series comes PRE-ASSEMBLED in the box!
WARRANTY
We offer an industry leading 2 YEARS Warranty on high tech components + 25 YEARS Warranty on the frame. For complete warranty details, click here.
USER MANUALS
| User Manual |  |
| LCD Display |
|

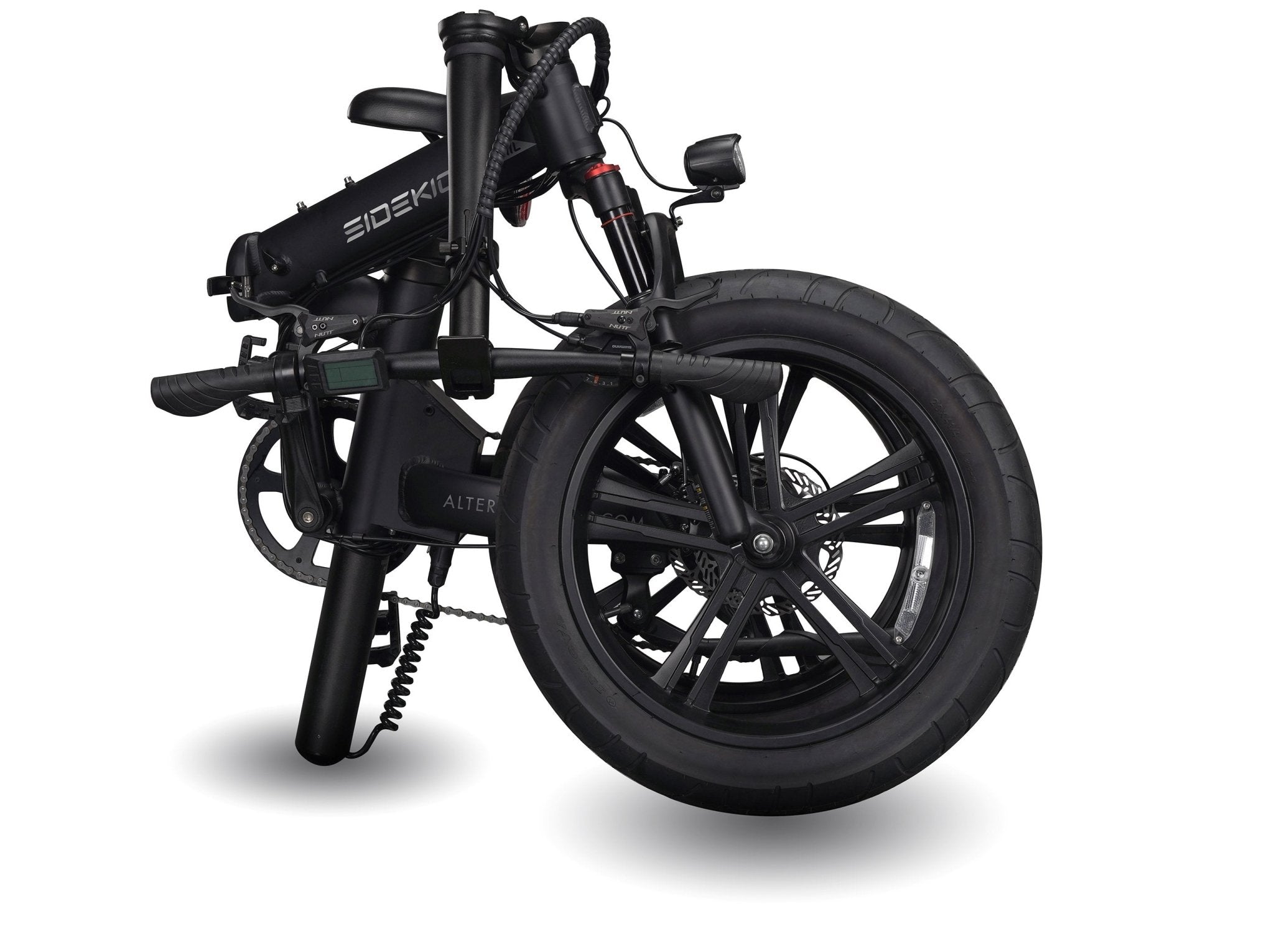

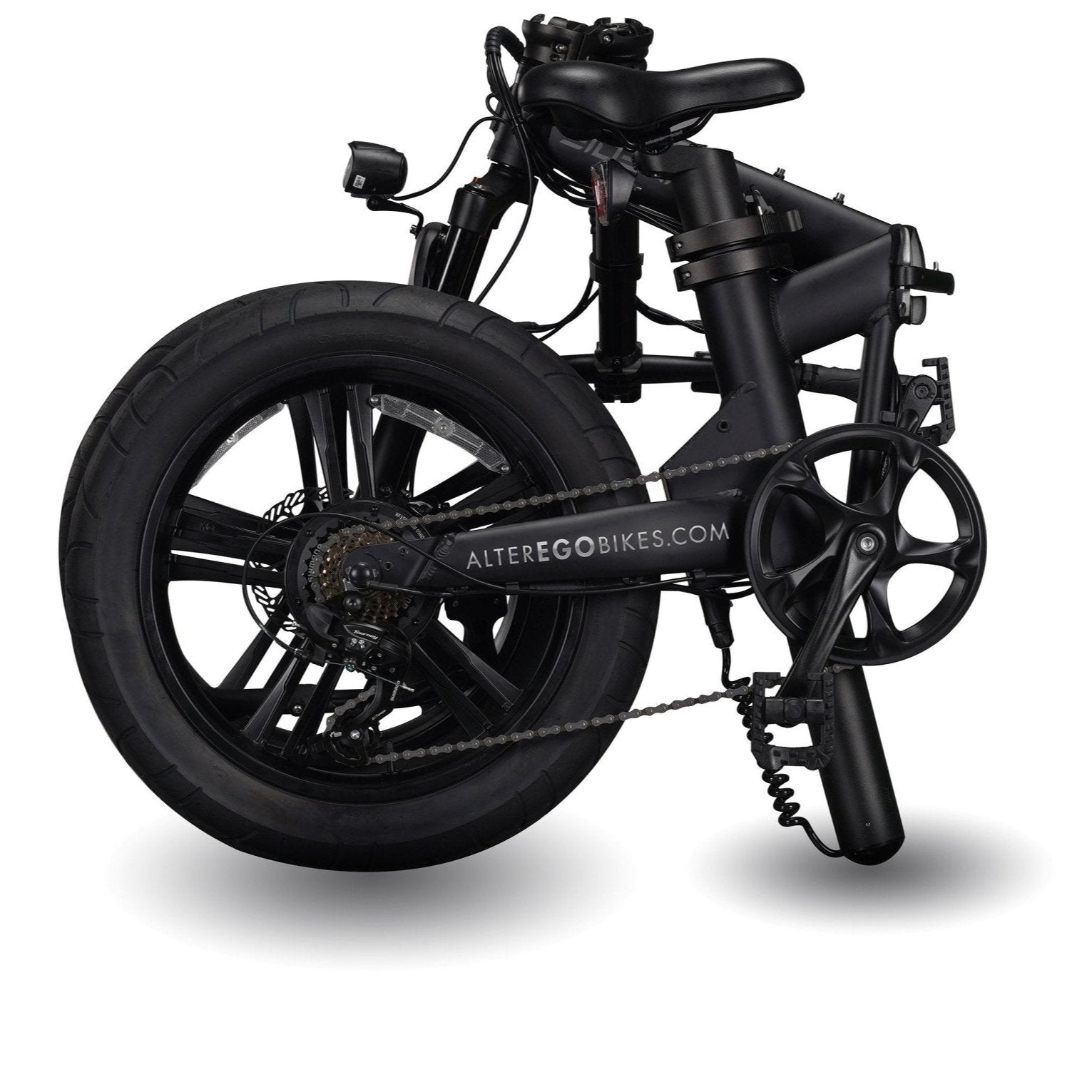

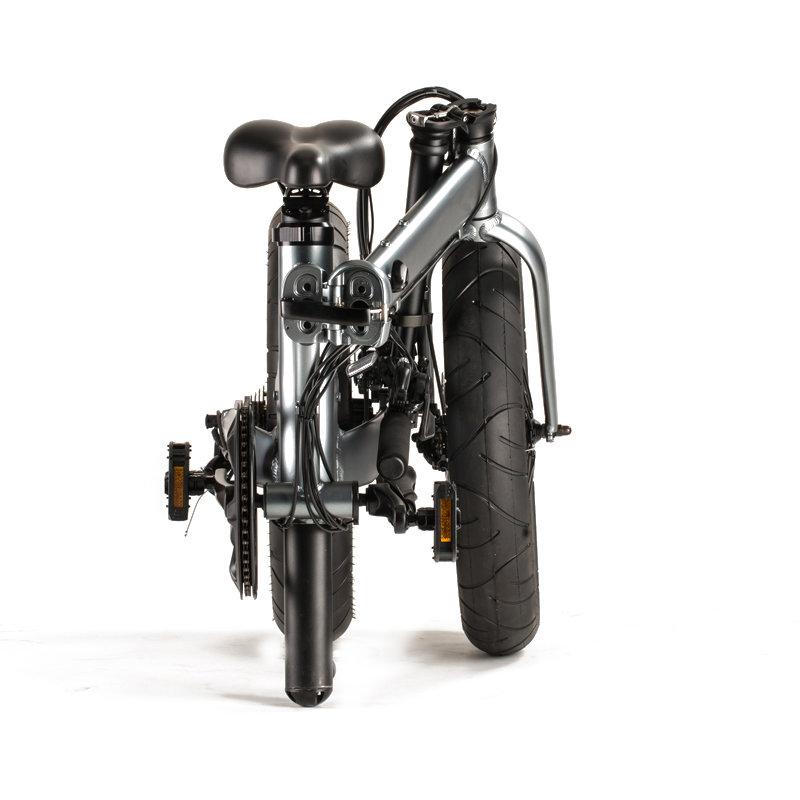

| How to fold your Sidekick |
 |
