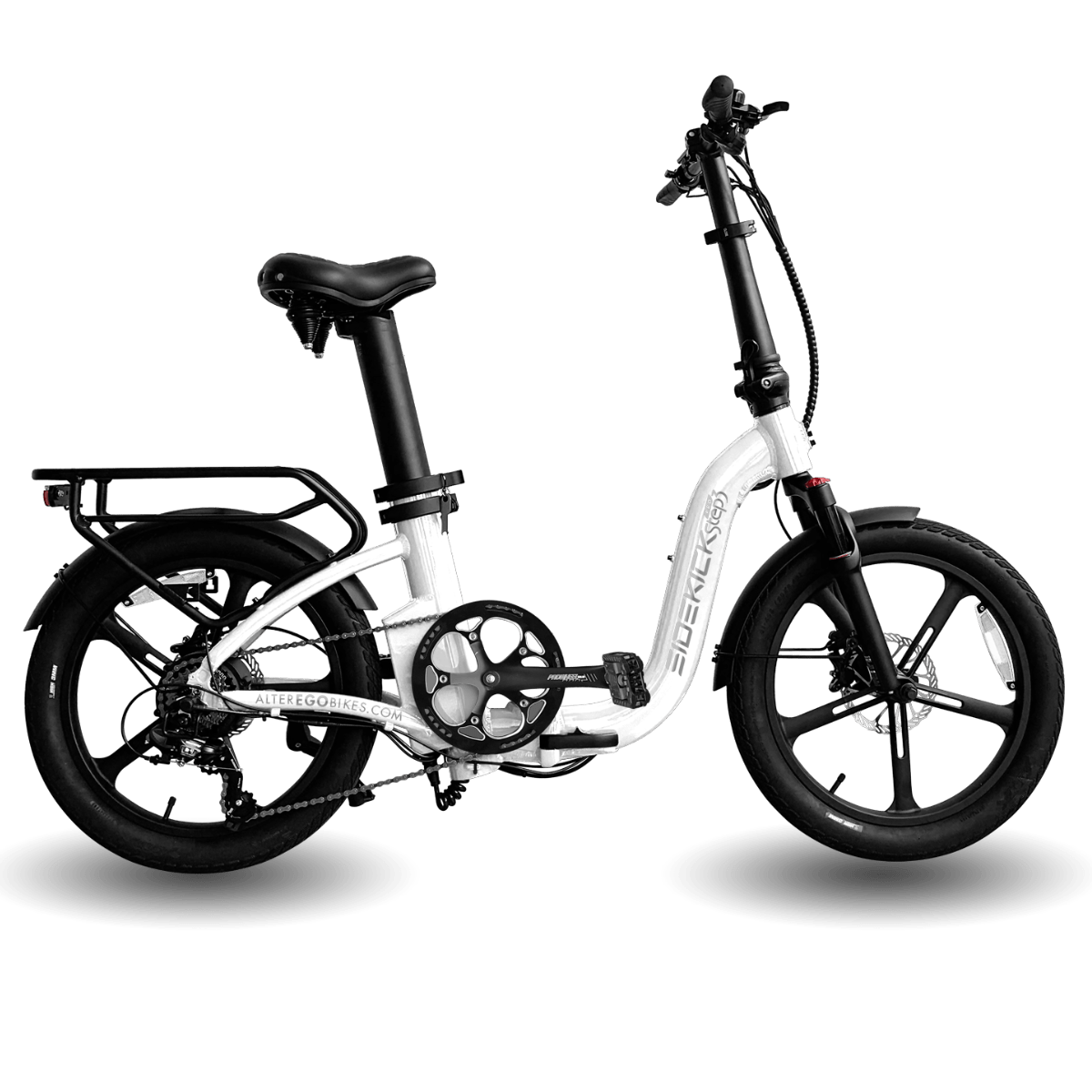

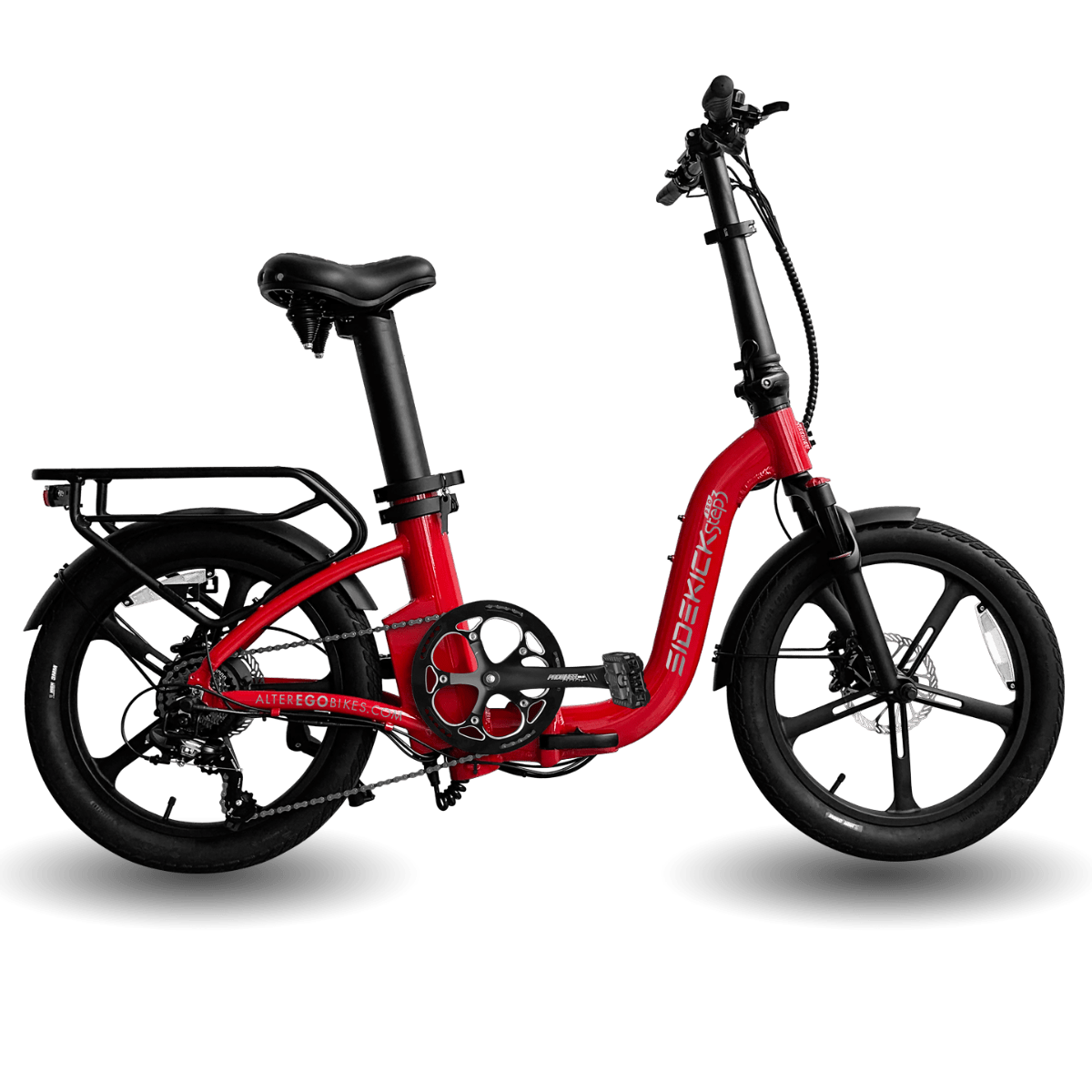

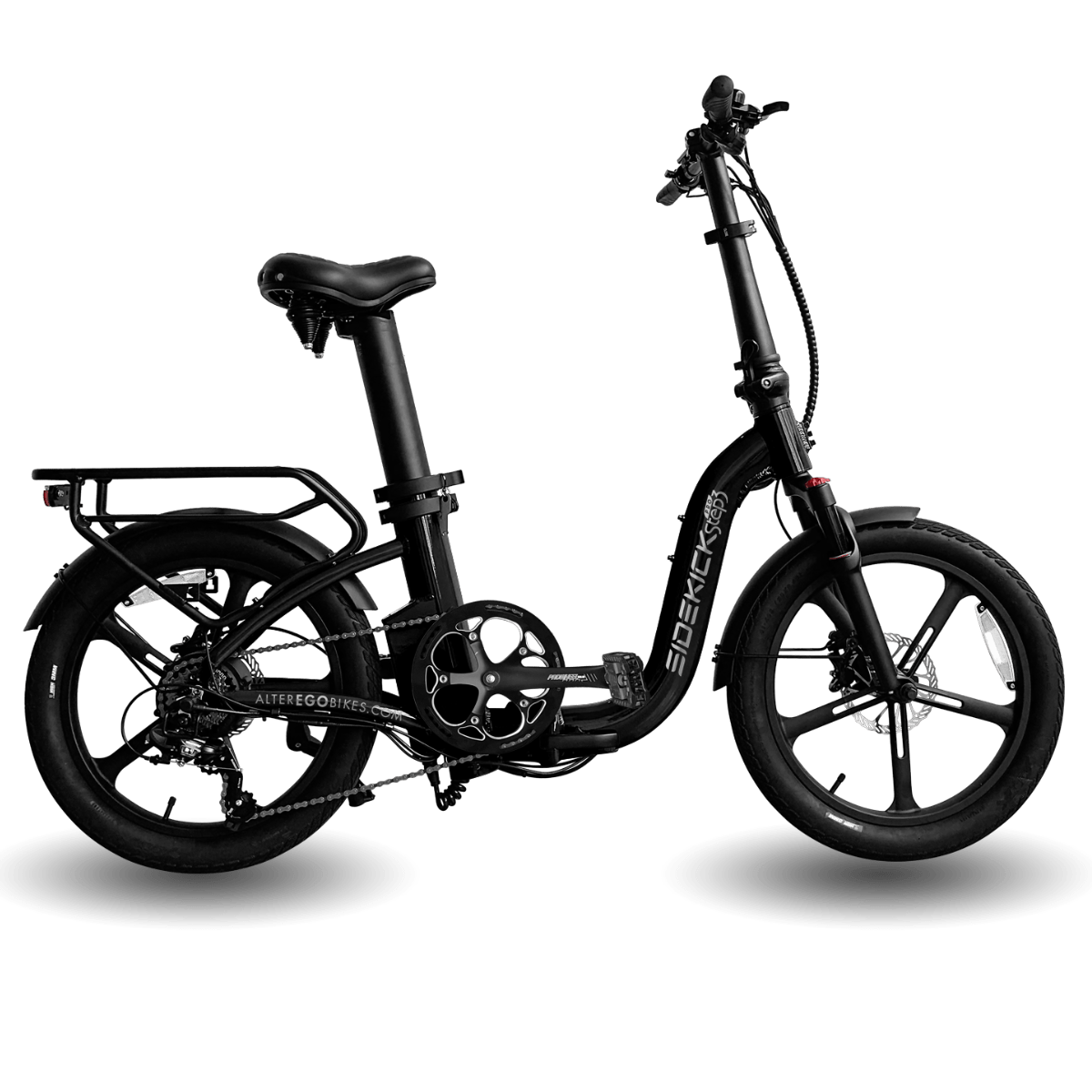

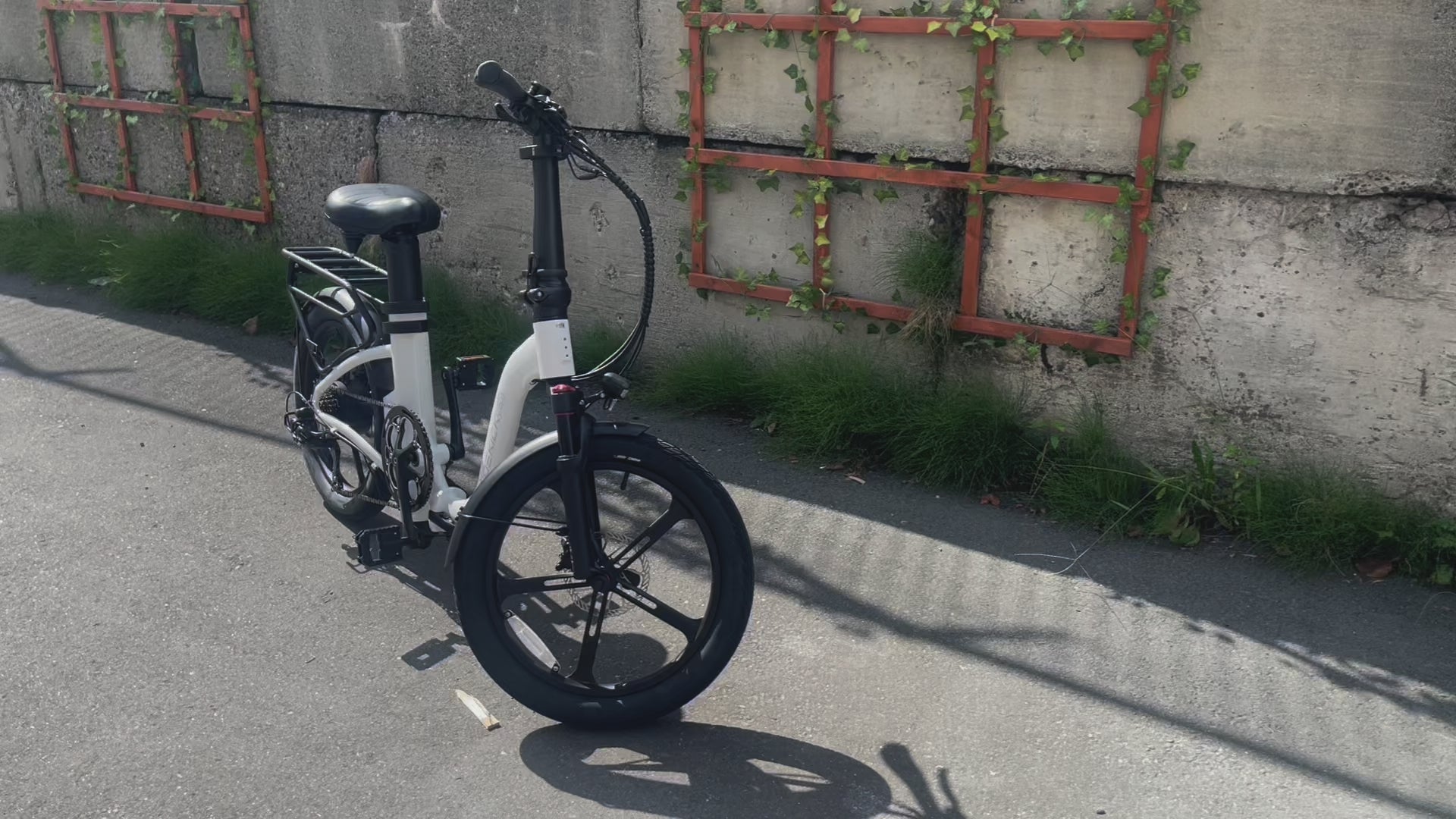

The Sidekick Step PRO 3 allows for ease of entry without requiring the rider to lift their leg over the frame. It is designed to be the ideal companion for daily city travel, whether you're commuting to work, running errands, or enjoying a weekend ride in the countryside. This bike can support riders of various heights (5'2" to 6'5") and weights (up to 280 lbs) and offers four different riding modes for optimal functionality: Normal bike mode, PAS (Pedal Assist) mode, cruise control mode, and full throttle mode.
SPECIFICATIONS
| Battery |
48V 14.4AH | 690WH Lithium Ion
LG 21700 CELLS UL CERTIFIED |
|---|---|
| Battery Charger |
D-POWER 54V 3A Fast Smart Charger
Over/Under Voltage Protection |
| Charging Time |
4-5 hours |

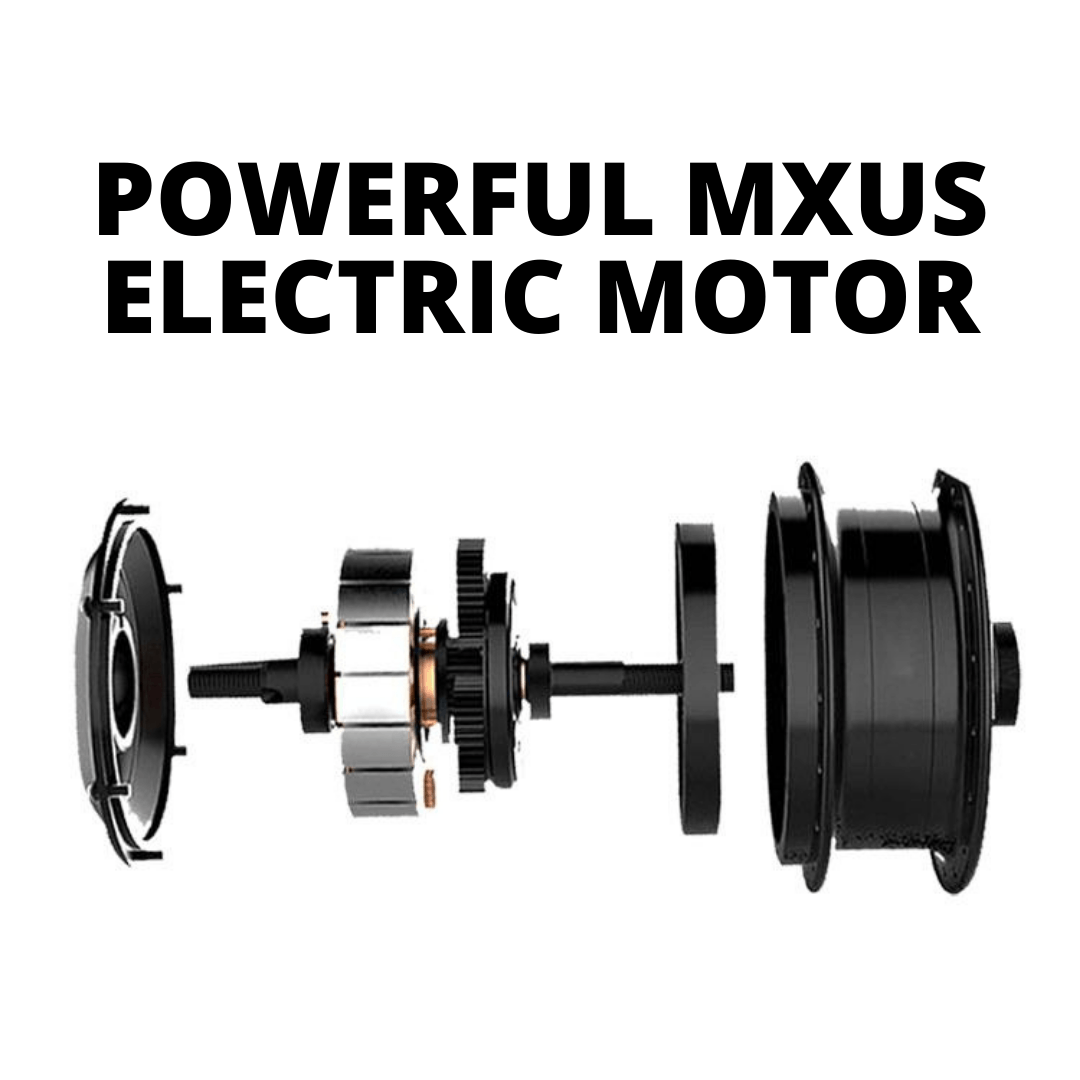

| Motor |
MXUS 48V 500W Nominal Output
960W Peak Output |
| Controller |
KT Sine Wave 48V20A |

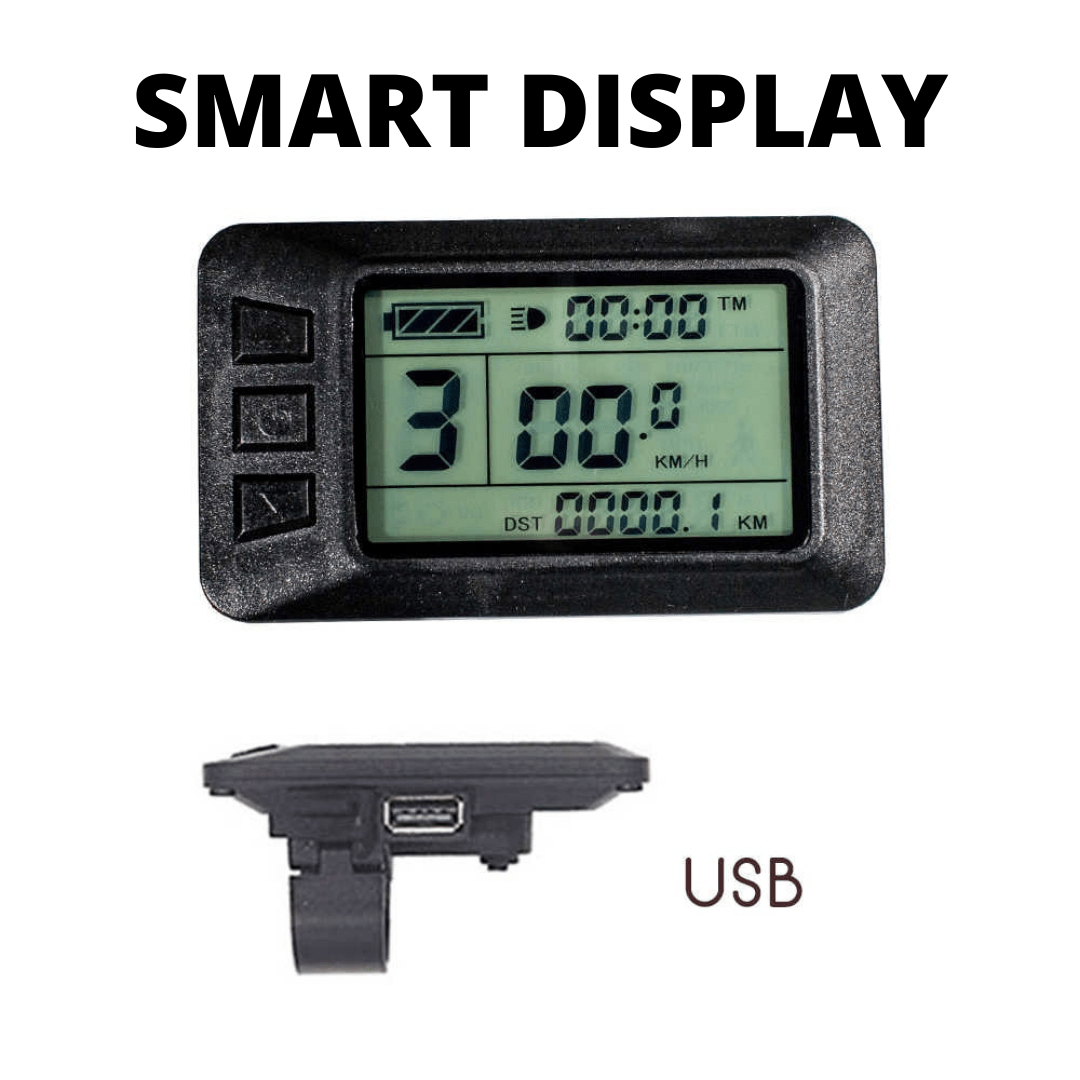

| LCD |
Kunteng LCD Display |
| PAS Sensor |
KT-V12 Double Hall Speed Sensor |
| Top Speed |
32km/h** |
| iPAS Range |
Up to 100Km with single battery* |
| Ride Modes |
Responsive On Demand Thumb Throttle |

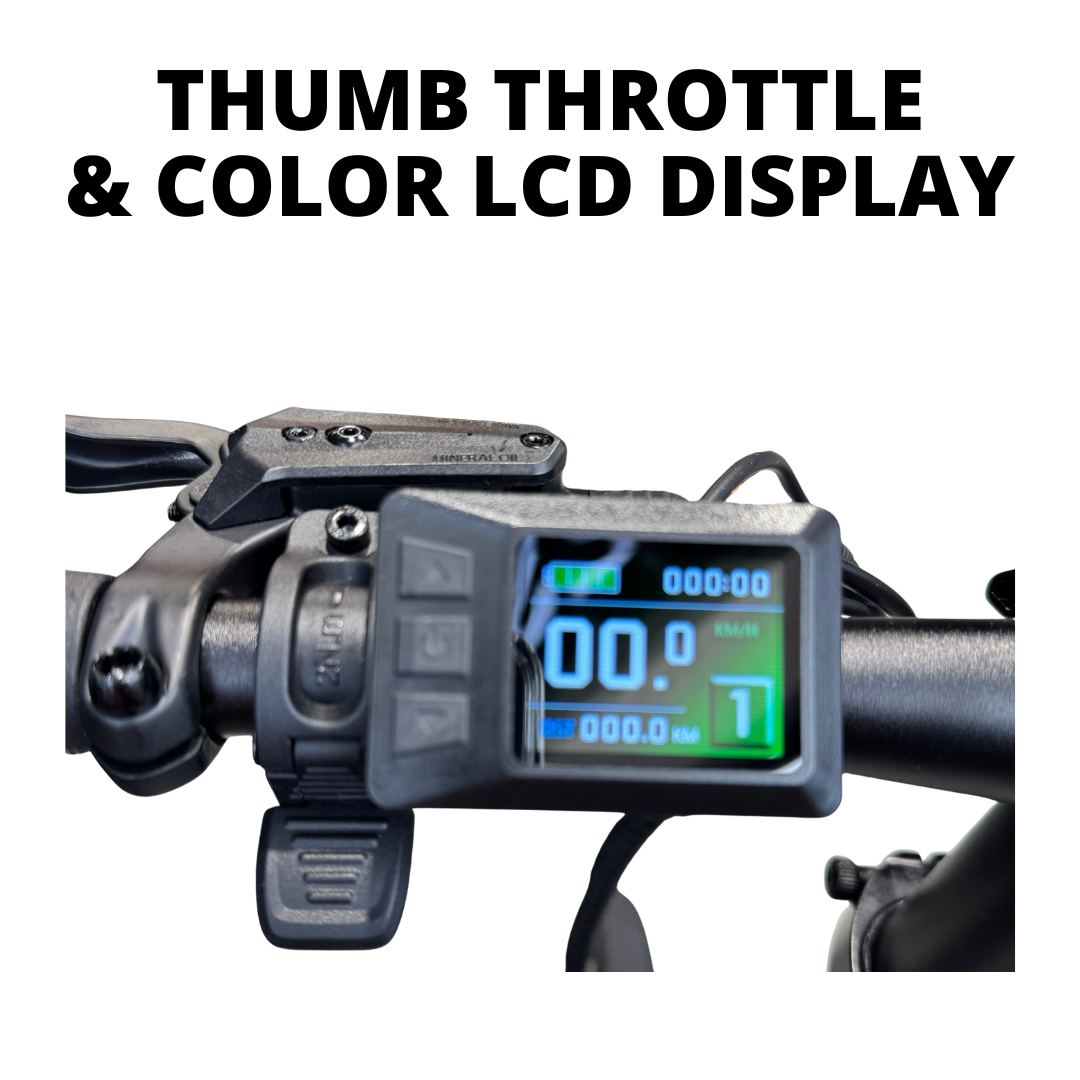

| Throttle |
Responsive Thumb Throttle |
| Frame |
Aircraft Aluminum-Alloy 6061
iFold 3 Folding System with Magnetic Lock |

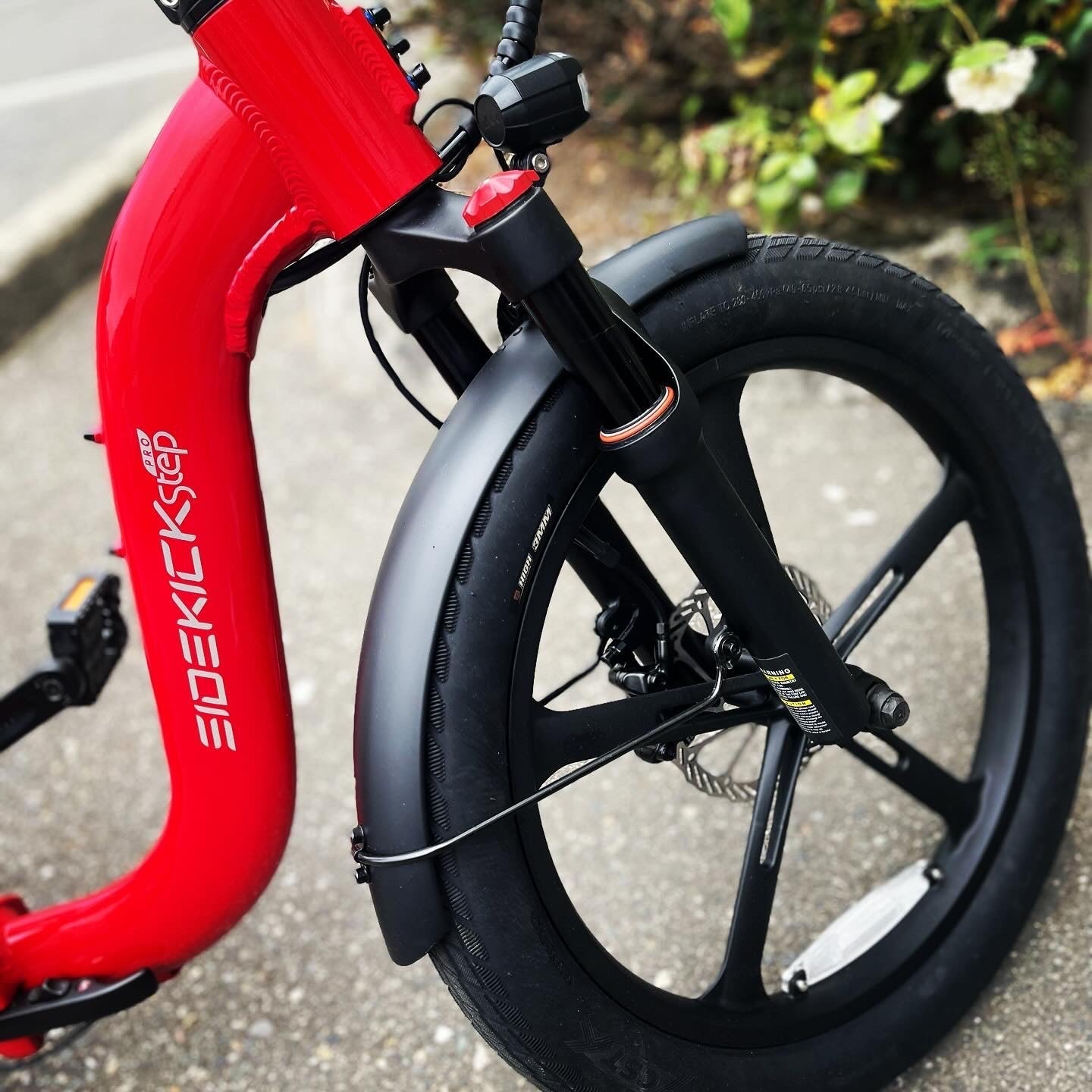

| Suspension |
WB800/20″ Front Air Suspension
Adjustable |
| Handle Bar |
22.2"*31.8*640mmL, 3.0mm, 6" |
| Handle Grip |
Velo VLG 1505D2 130/130mm |
| Stem |
Patented Thick Stem
Aluminum-Alloy 6061, 8°, Fold to right side |
| Headset |
Aluminum with Bearing, 28.6"56-56*30/39.8 H:14mm |
| Wheel |
Aluminum Alloy integrated wheel |
| Tires |
Custom CST CC-21 20×2.4/60TPI |
| Crankset |
Prowheel PRO-552PP-1,
Steel Ring with double Plastic Cover, 52T |
| Bottom Bracket |
BB68 . 122.5mm = 26.5+68+68 |
| Chain |
KMC Z7 1/2"*3/32"* |
| Rear Derailleur |
Shimano RD-TY300
7-Speed |
| Casette |
Shimano AMFTZ500742 / MF-TZ500 Speed |

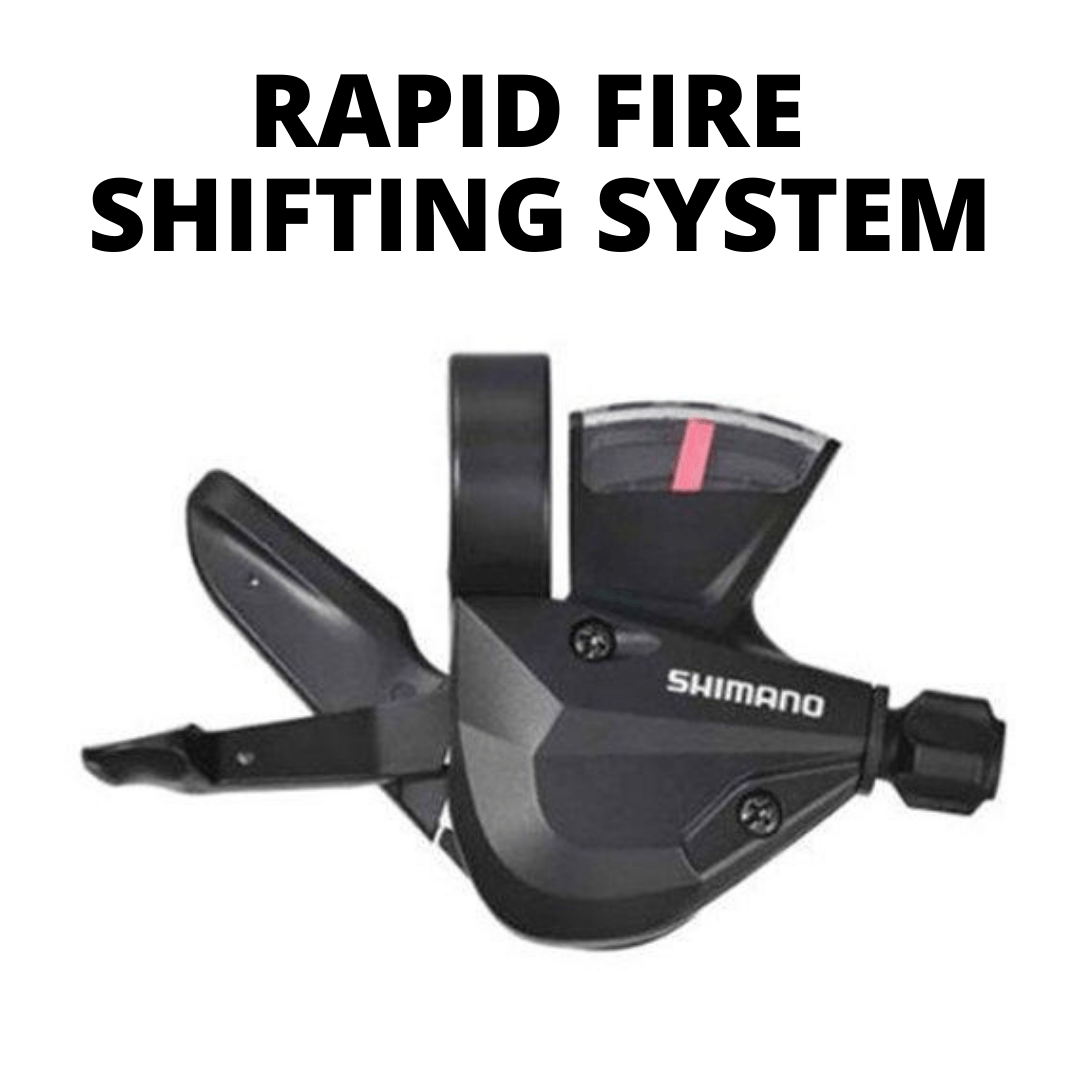

| Shifter |
Shimano SL-M315-RD |
| Brake System |
NUTT Hydraulic Disk Brake
Front & Rear 160mm |

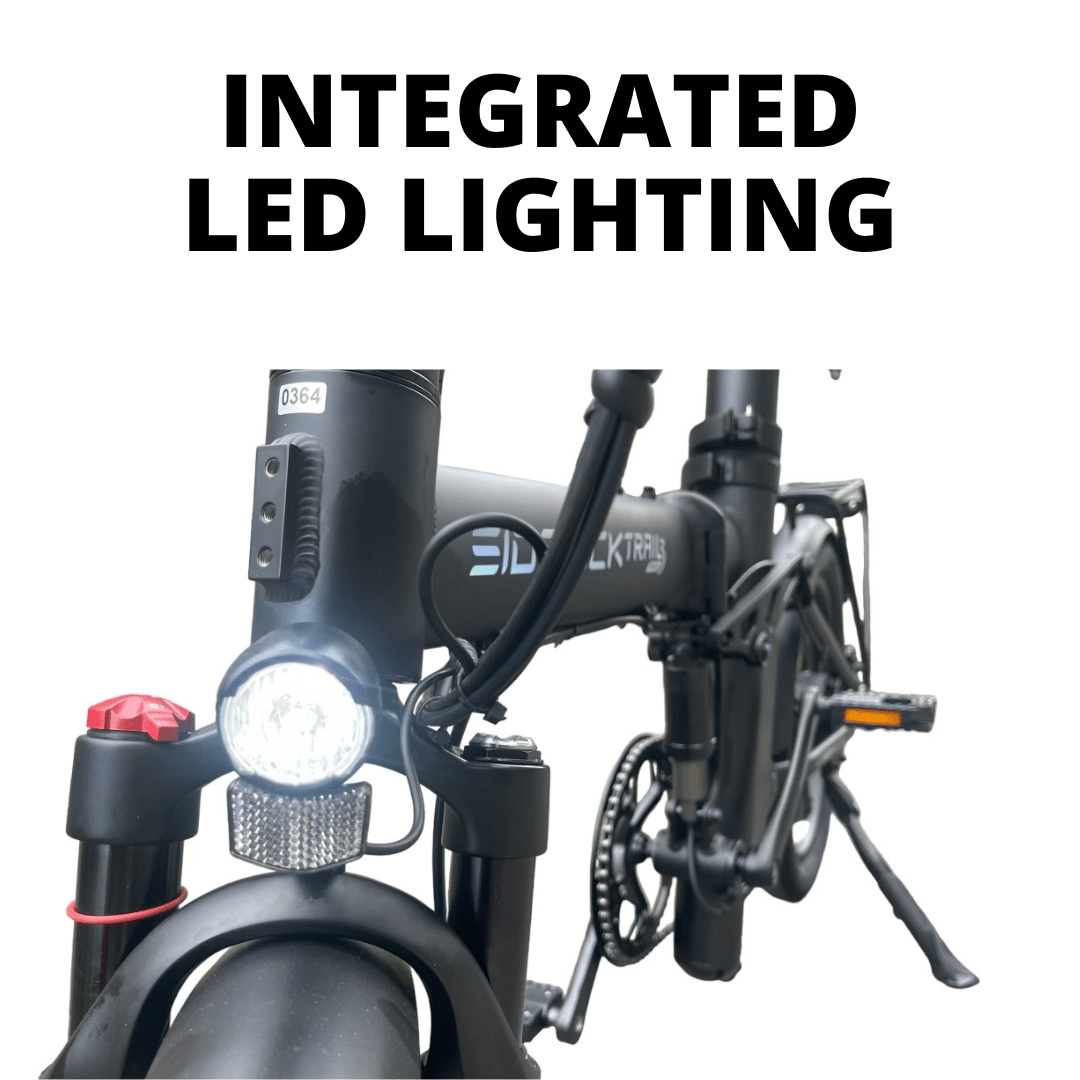

| Front Light |
Integrated LED Headlight |
| Rear Light |
Integrated LED Tail Light
Integrated Brake Light |
| Seat Clamp |
Double CLAMP
Locking Seat Post w/2 keys |
| Fenders |
Black Painted Steel
|
| Assembly |
Arrives 95% Pre-Assembled in the box |
*Range estimate is based on estimated use at Level 1 PAS. Range is not guaranteed and will vary depending on terrain, weight of rider & cargo, weather conditions, etc.
**This Sidekick ships as a Class 1 & 2, with pedal assist and throttle with a maximum speed of 32km/h. If you are riding on private property or in an area without ebike speed restrictions, the speed limit can be modified in the settings, and the motor can be unlocked to go faster. Sidekick can also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are not allowed (Class 1).
Actual product may vary slightly from the pictures on our website.
BATTERY - UL CERTIFIED
To make the Sidekick neat and unique, we created a patented seat-post lithium battery by Samsung and LG as our power system. Most people won’t recognize it’s an ebike at their first sight. The iBMS system is also important as it keeps your battery safe from over-charging, and over heating. iBMS manages all the cells to work more efficiently to offer you a longer range. The seat-post battery is removable so you can either charge it while attached to the bike or separately in your home, office, or anywhere there is an electrical outlet.
*Range quoted is based on estimated use at Level 1 PAS. Range will vary depending on terrain, weight of rider & cargo, weather conditions, etc.
WEIGHT & MEASUREMENTS
| Shipping Box | TBA |
|---|---|
| Folded Size |
34.2 x 14.6 x 26.8 inches
|
| Unfolded Size |
63.4 x 25.6 x 45.7 inches
|
| Wheelbase | 42.9 inches |
| Stand Over Height | Step-Thru Low Rise |
| Net Weight (approx) |
29KG (With battery) |
| Weight Capacity |
Up to 280lbs |
| Package Weight (approx) |
35KG |
| Rider Height | 5'2" + |
ASSEMBLY
Your Sidekick Series comes PRE-ASSEMBLED right out of the box!
WARRANTY
We offer an industry exclusive 2-Year Warranty on Sidekick. For complete warranty details, click here.
