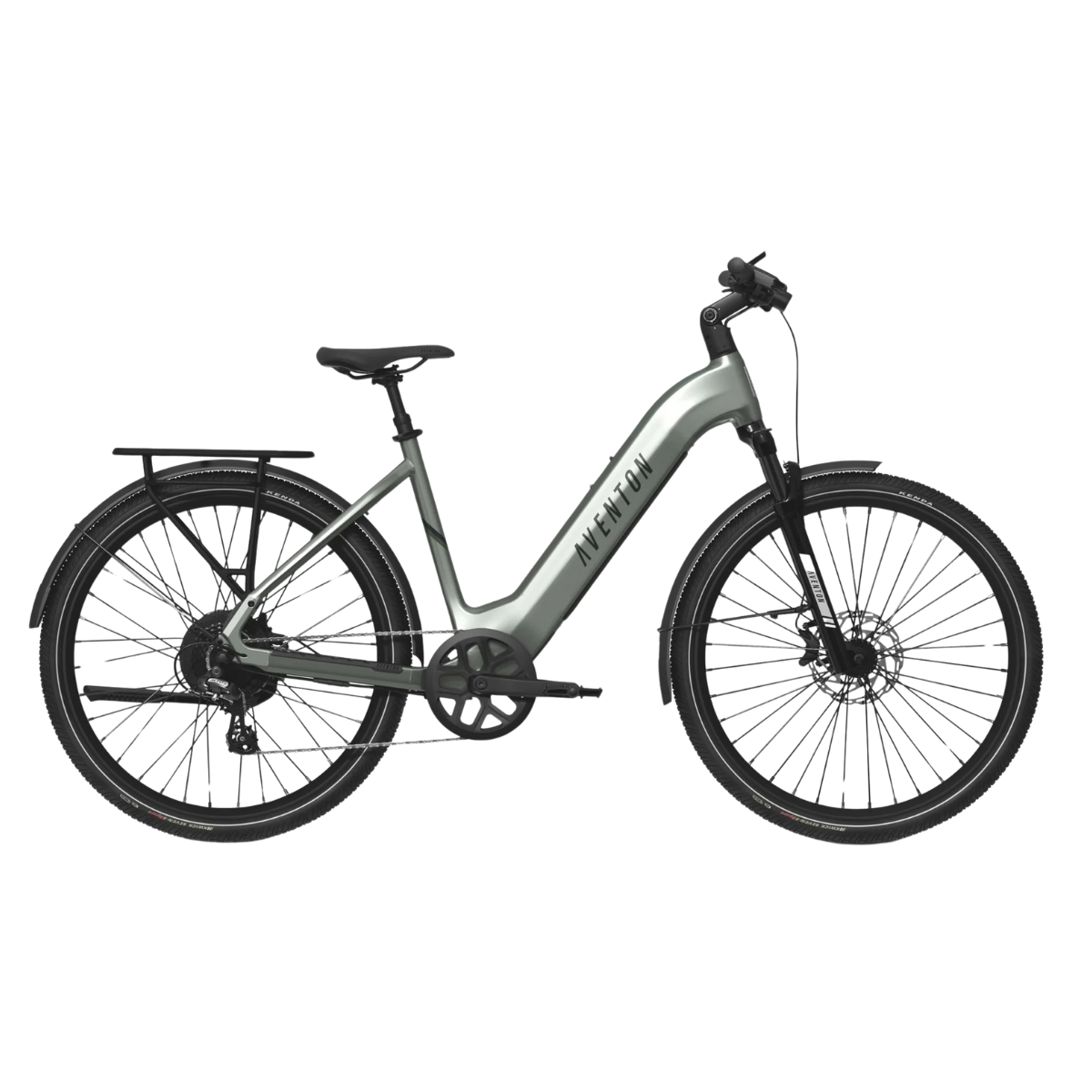

Take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS^† tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3

E-BIKE SYSTEM

• Motor: 36V 500W (sustained), 864W (peak)
• Torque: 60 Nm
• Riding Mode: Torque Sensor, 5 Levels of Assist
• Display: Aventon BC280
• App & Tech Features: Aventon App, Aventon Control Unit (ACU)
• Battery: 733Wh 36V20A Removable Internal Li-ion LG 21700 cells
• Battery Weight: 8.7 lbs (3.9 kgs)
• Charger: 42V4A
• Charging Time: 50%: 2.5 hours, 100%: 5 hours
• Speed: 32kmh/20mph
• Range: Up to 113 kms/70 miles
• Parts Warranty: Frames & components: 2 years
• Certification: UL 2271, UL 2849

BIKE SPECIFICATIONS

• Frame: 6061 aluminum, gravity cast front triangle
• Sizes: R 15.7" (4'11"-5'7"), L 18.9" (5'7"-6'1")
• Brakes: Magura AT-2 hydraulic disc brakes with 180mm rotors
• Fork: Aventon suspension fork, 80mm travel, with lockout,coil spring. 15x100mm thru-axle, 43mm offset
• Rear Shock:
• Tires: Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20
• Weight: 62 lbs (28 kg)
• Load: 300 lbs (136 kgs)
• Included Accessories: Fenders, rack, kickstand

DRIVETRAIN

• Gears: Shimano Altus RD-M310
• Shifters: Shimano 8 Speed Trigger SL-M315-8R
• Crank: 3-piece 170mm crank arm
• Rear Cogs: 12-32T / 8 Speed Shimano CS HG200-8
• Bottom Bracket: Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
• Chain: 7/8 Speed 120L

COCKPIT

• Handlebar: Aluminum 31.8mm, 680mm
• Stem:
• Headset: Sealed Bearing Headset
• Grips: Aventon Lock on grips

FINISHES

• Saddle: Aventon Saddle
• Seatpost: 30.9mm Aventon suspension seatpost with 50mm travel
• Lights: Front and rear lights integrated, with turn signals
• Fenders: Included
• Kickstand: Included
• Rack: Included (60 lbs capacity)
• Pedals: 9/16" Composite Platform
• Bell: Included

WHEELS

• Rim: Double-wall aluminum rims
• Hubs: 36h nutted
• Spokes: Stainless steel 14G

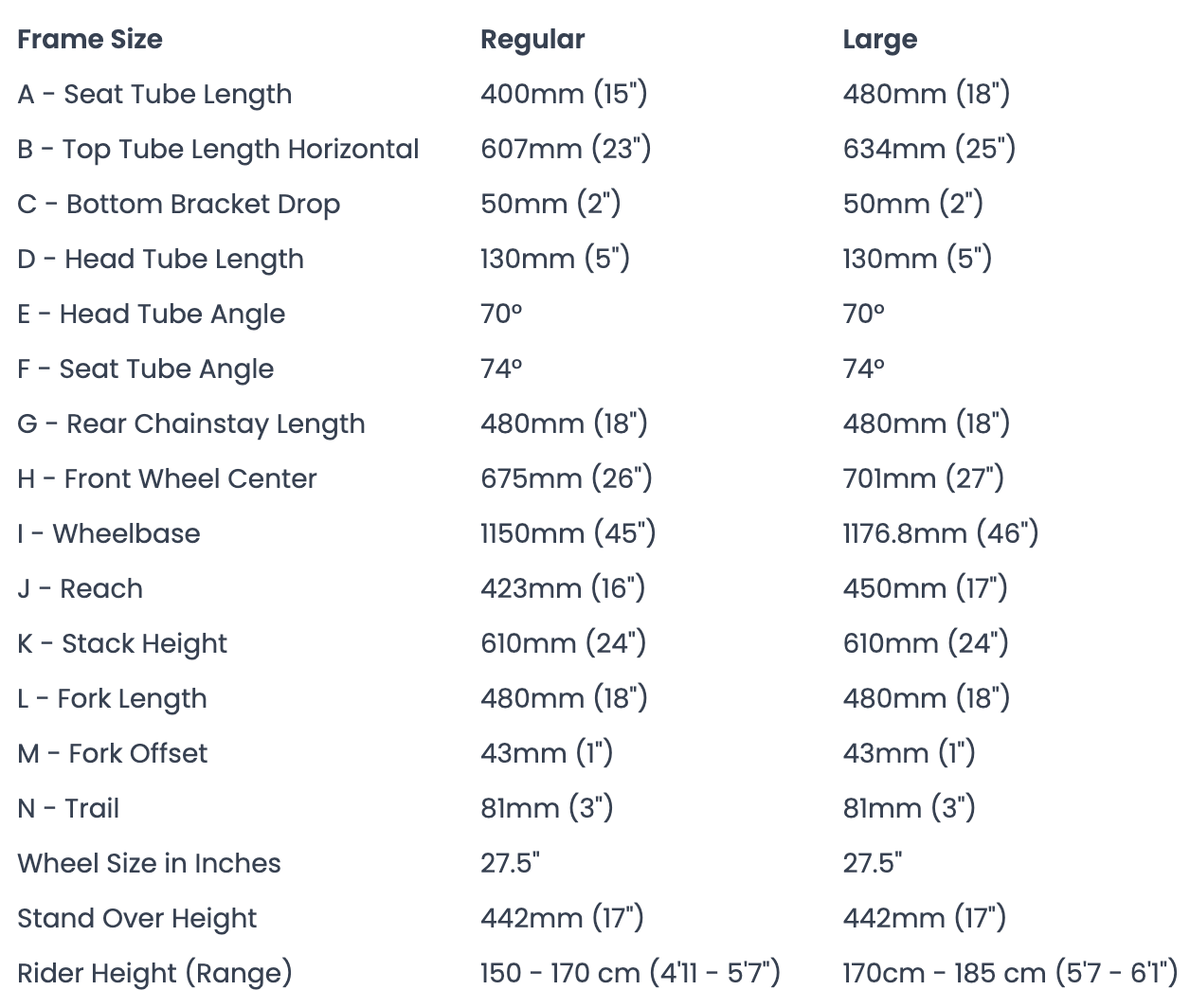

GEOMETRY
