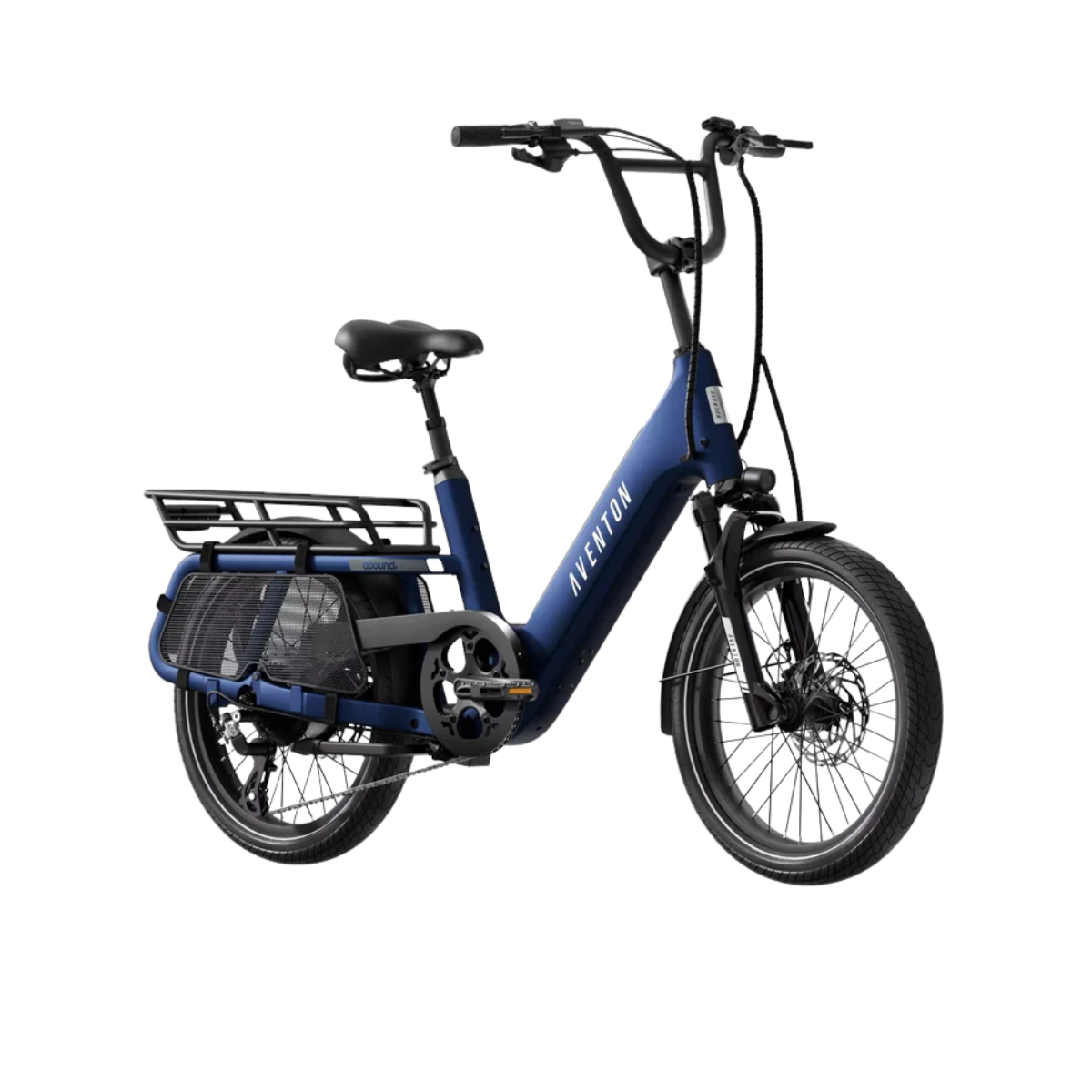

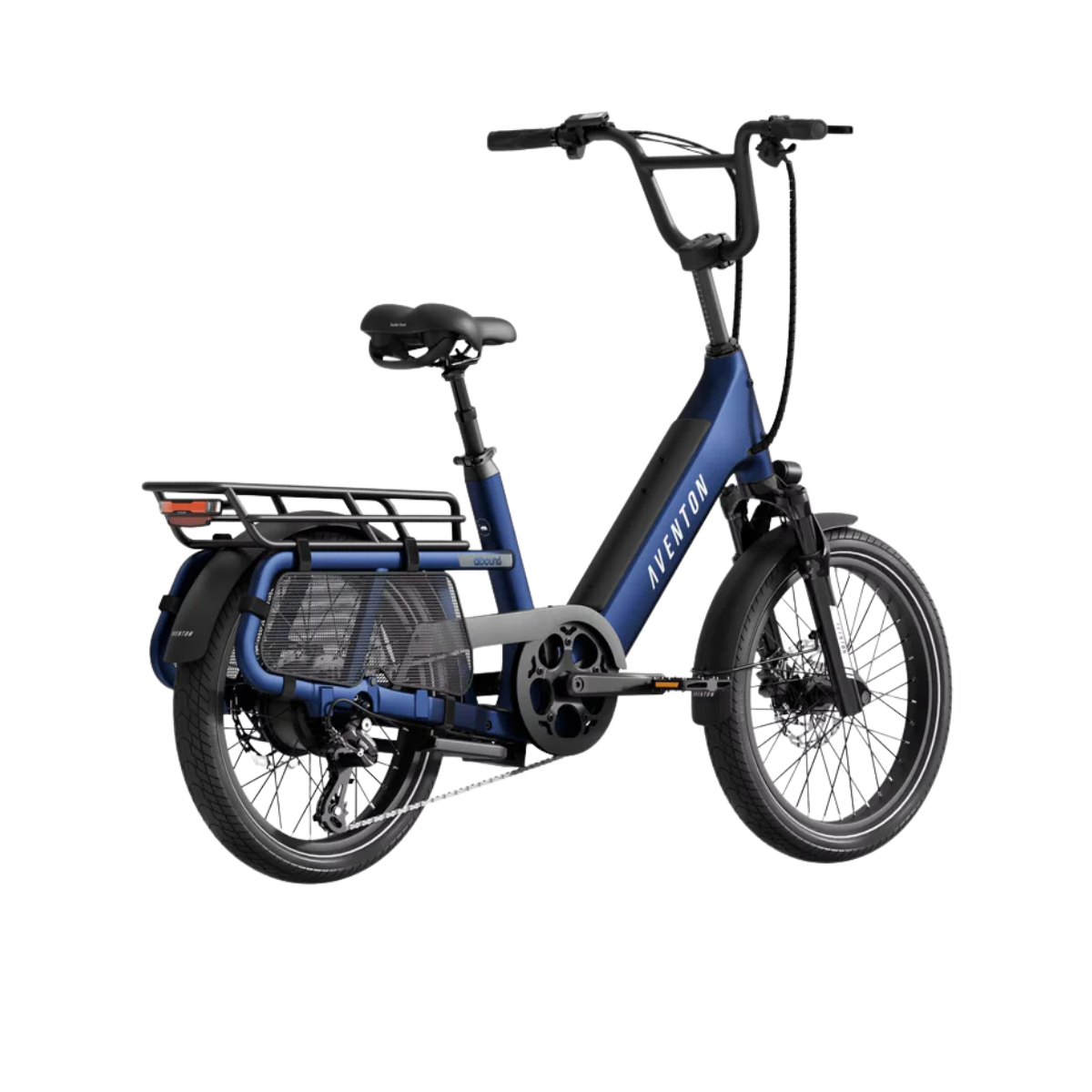

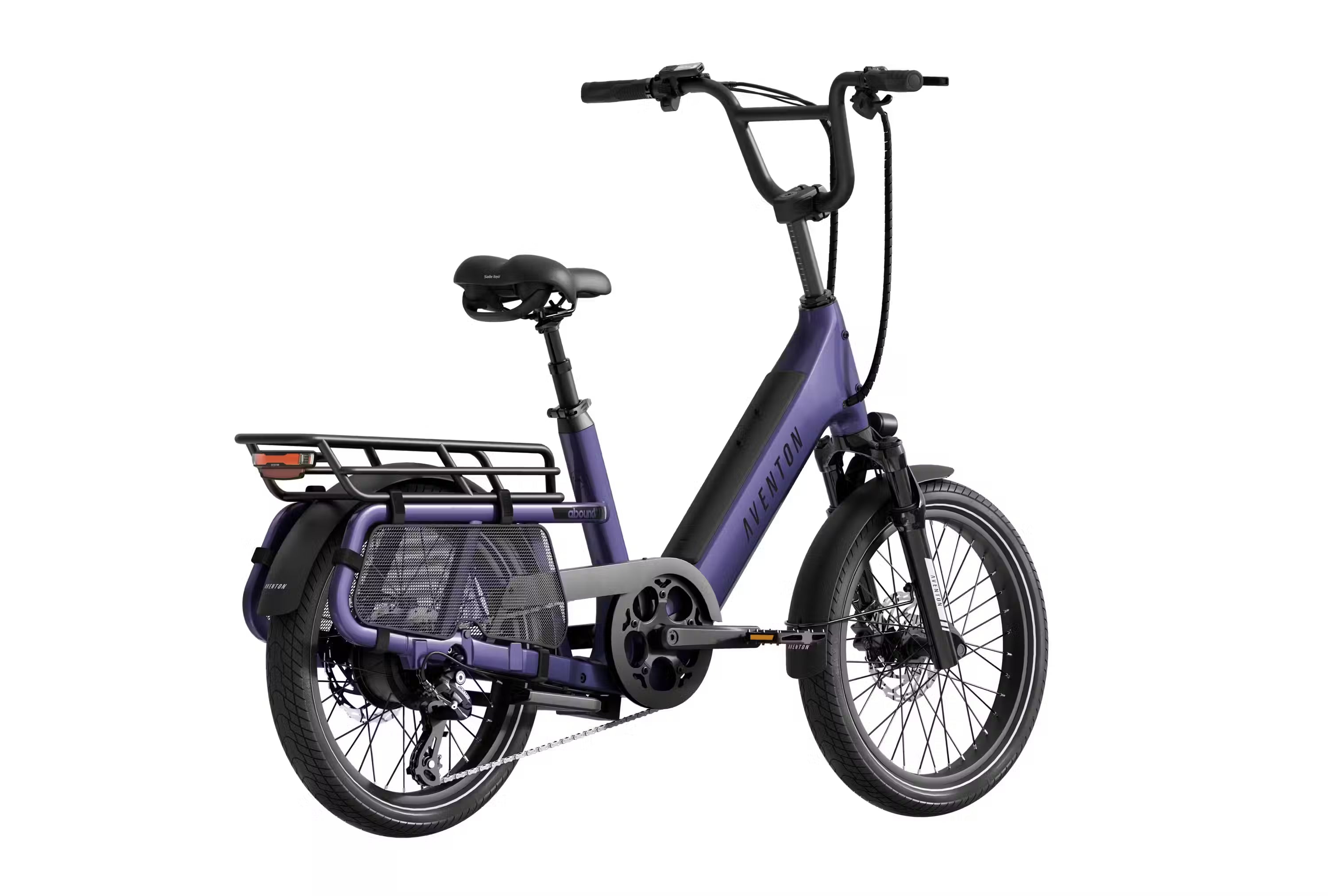

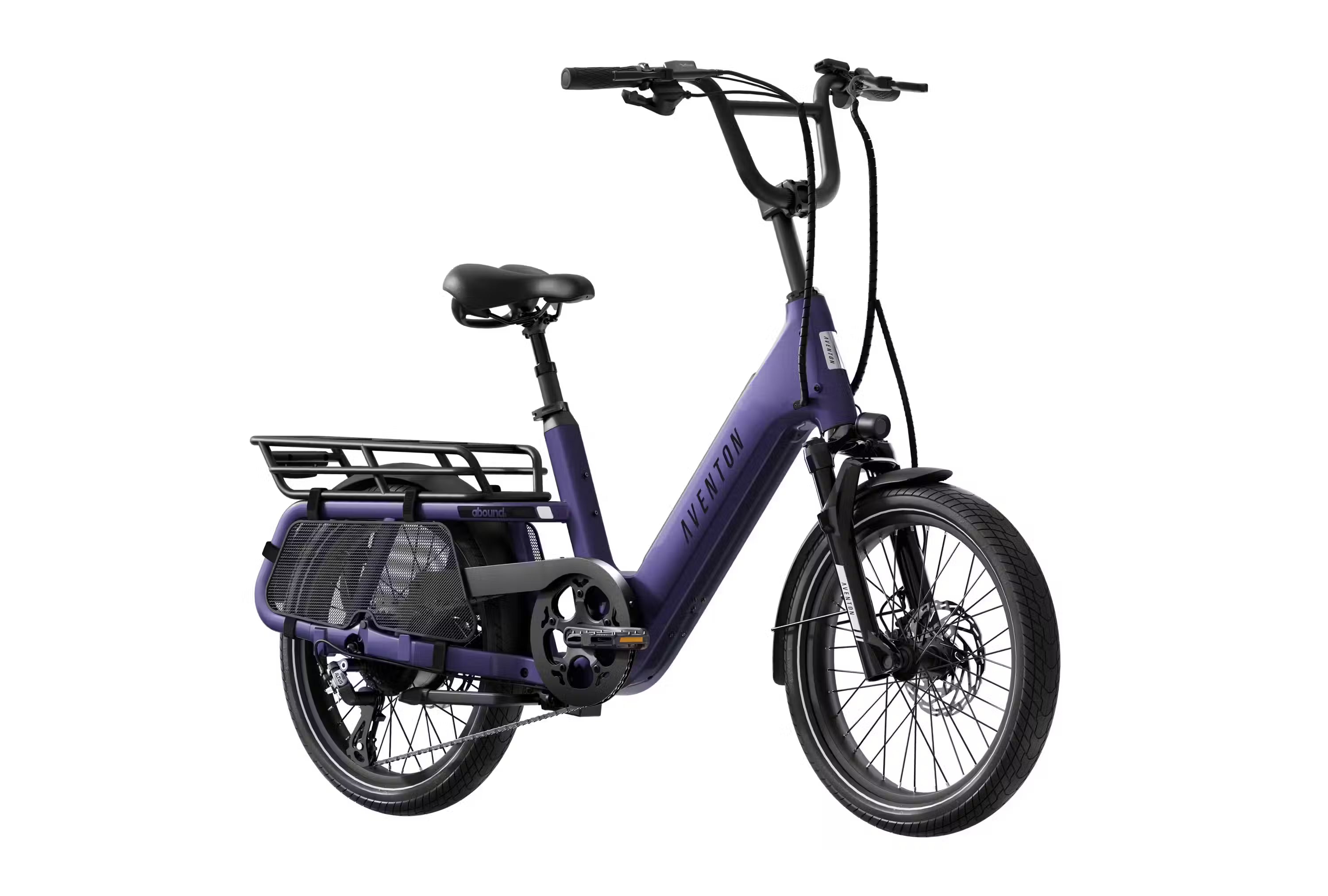

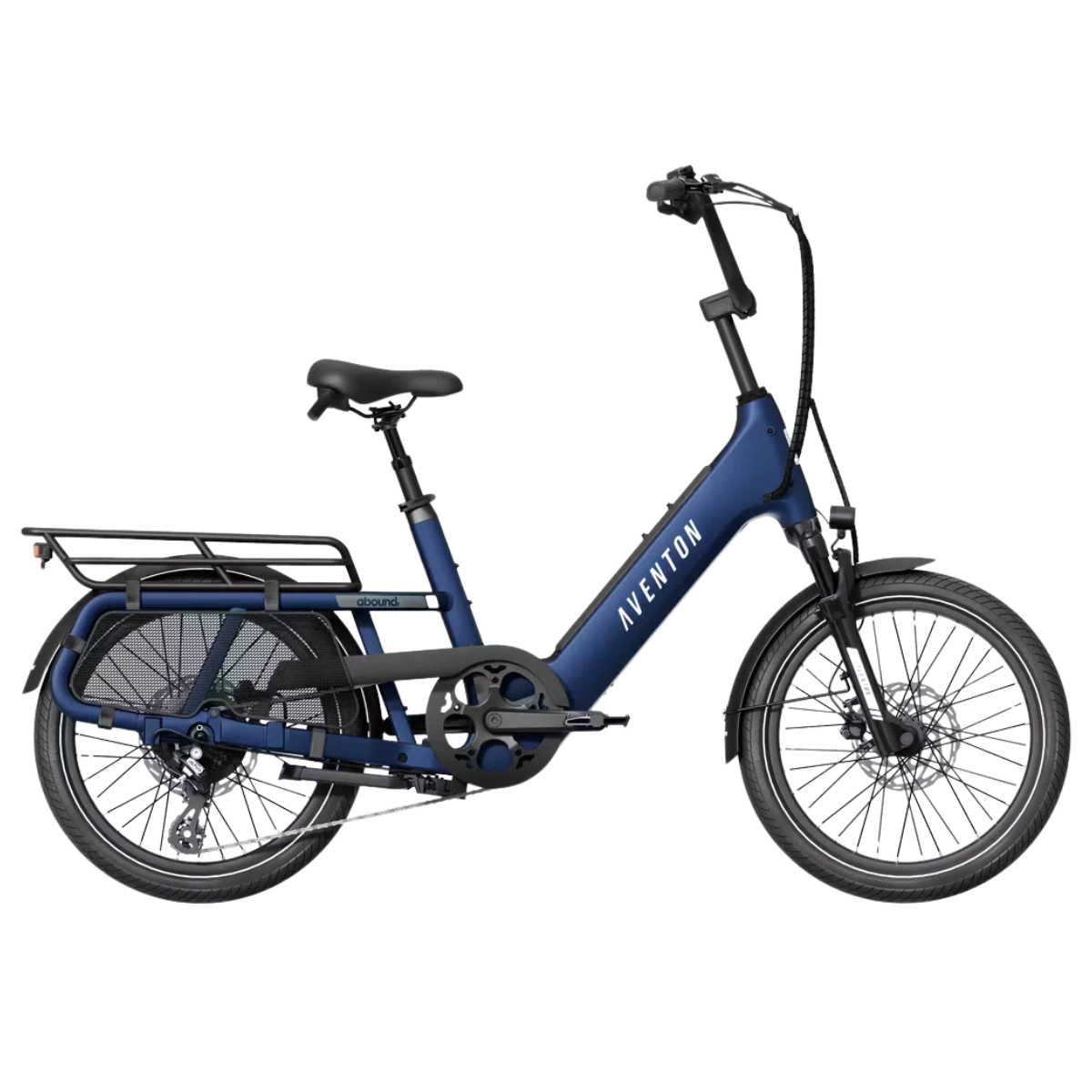

Abound SR (by Aventon)

$2,789.00 $3,128.00 $339.00 Off

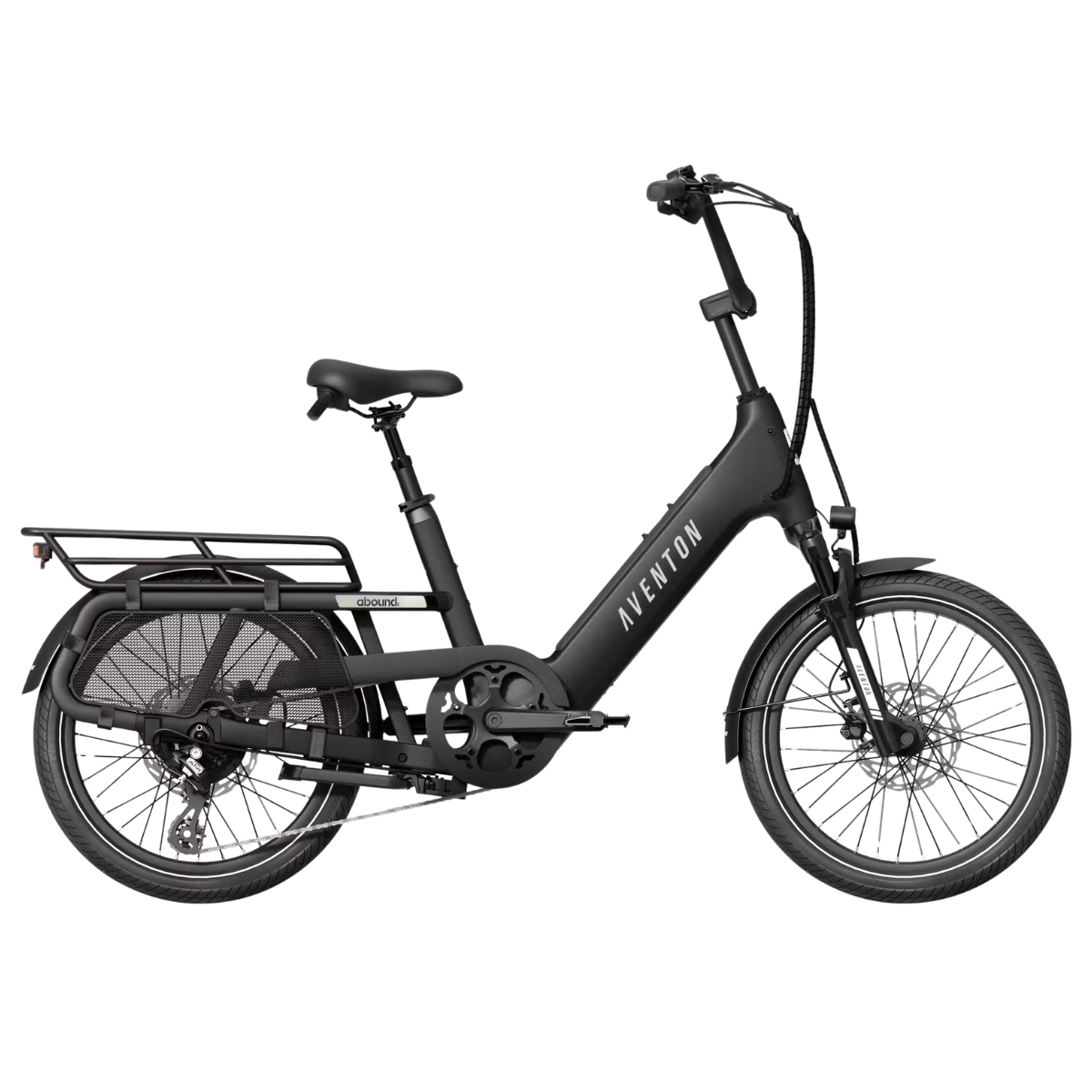

Select color : Stealth
Size

Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security and GPS features give you total peace of mind.

Outfitted with an adjustable quill stem, suspension seat, and cutting-edge theft deterrent features, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road.



SPECIFICATIONS

Model Abound SR Ebike
Weight 80 lbs
Total Weight Limit 440 lbs
Rider Height 4'11" - 6'3"
Class Class 2 Ebike
Water Resistance IPX4
Ideal Use Cargo
Pedal Assist 3 Levels
Safety Certified UL Certified - Abound SR UL 2849, Battery UL 2271
Range Up to 96 km
Folding No
FRAMESET
Frame Style Step-Through
FRAME 6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle
Fork Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions
WHEELSET
Tires 20 x 3.0 urban tire with reflective sidewalls
Wheels 20-inch, 12-gauge, 36-hole, double-wall aluminum, black
EBIKE SYSTEM
Motor 36V 750w Hub Drive with 6 speed sensors
Motor Torque 80Nm
ECU Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities
Throttle Aventon LH Handlebar Mounted
Sensors Double Sided Bottom Bracket Torque Sensor
Charger Aventon 4A 42V
Display Aventon BC147
Speed Class 2
Battery Aventon 36V, 20Ah, 708Wh, LG 21700 cells
BRAKES
Rear Brake Rotor Tektro 203mm 6 bolt
Front Brake Tektro HD-E3520 hydraulic disc brakes
Rear Brake Tektro HD-E3520 hydraulic disc brakes
Front Brake Rotor Tektro 180mm 6 bolt
DRIVETRAIN
Chain 122 Link, 8 Speed
Chainring 52 tooth
Crank 3 piece with 165mm crank arms
Rear Derailleur Shimano Altus RD-M310 8 Speed
Shift Lever Shimano SL-M315-8R 8 Speed
Cassette Shimano CS-HG200-8 8 speed Cassette, 12-32T
Pedals 9/16" Composite Platform
COCKPIT
Saddle Aventon by SelleRoyal
Seatpost 30.9mm Suspension Seatpost with 50mm travel
Handlebars BMX Style, 31.8mm bar clamp, 680mm width
Stem Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment
Seat Clamp 34.9mm Quick Release
Grips Lock-on ergonomic
INCLUDED ACCESSORIES
Rear Rack Included
Kickstand Included: E-lock
Rear Wheel Mesh Guards Included
Rear Rack Weight Limit 143 lbs

GEOMETRY


A - Seat Tube Length    380mm (14.9")
B - Top Tube Length Horizontal    610mm (24")
C - Bottom Bracket Drop    -30mm (-1.2")
D - Head Tube Length    210mm (8.3")
E - Head Tube Angle    69°
F - Seat Tube Angle    70°
G - Rear Chainstay Length    480mm (18.9")
H - Front Wheel Center    673mm (26.5")
I - Wheelbase    1151.5mm (45.3")
J - Reach    420mm (16.5")
K - Stack Height    520mm (20.5")
L - Fork Length    395mm (15.6")
M - Fork Offset    38mm (1.5")
N - Trail    63mm (2.5")
Rider Height    4'11" - 6'3"


WARRANTY

2 years Aventon Warranty included
