✪ LONG RANGE LG 48V 720Wh LI-ION BATTERY ✪
✪ OPTIONAL DUAL BATTERIES FOR UP TO 220KM RANGE ✪
✪ FULL SUSPENSION ✪
✪ HYDRAULIC DISC BRAKES ✪

Your sidekick for your every day city travel, whether that be your commute to work, your jaunt to the grocery store or a weekend ride in the country.

Our Sidekick TRAIL is a 'slim-fat' 20" x 2.4" tire model for those that don't quite need or want a full 4" Fat tire of the Sidekick FAT, while having the same power without compromise!

Sidekick Trail PRO will accommodate Cyclists ranging in height from 5′5 to 6’5″ weighing up to 275 lbs. It has 4 riding modes: Normal bike mode, (PAS) Pedal assist mode, Cruise control mode, and full throttle mode.

TECHNICAL SPECS

Battery	48V 15AH \| 720WH Lithium Ion LG 21700 CELLS Hidden in seat post Removable!
Battery Charger	D-POWER 48V 3A Fast Smart Charger Over/Under Voltage Protection
Charging Time	4-5 hours
Optional Dual Battery Configuration	LG 48V 20Ah Range Extender Additional 120km Range!
Motor	900W Peak Output MXUS 500W Nominal Output Geared Brushless Motor Torque 75Nm. Complies with Canadian laws!
Controller	KT Sine Wave 48V20A
LCD	Kunteng LCD-7U USB port
Sensor	KT-V12 Double Hall Speed Sensor
Top Speed	32km/h** Complies with Canadian Laws!
iPAS Range	Up to 100Km with single battery Up to 220Km with dual batteries
Ride Modes	Responsive On Demand Thumb Throttle 5-Level Pedal Assist Manual
Throttle	Responsive Thumb Throttle Left Handlebar
Frame	Aircraft Aluminum-Alloy 6061 iFold 3 Folding System
Suspension	WB800/20″ Front Air Suspension Adjustable Rear Spring Suspension
Handle Bar	22.2"31.8640mmL, 3.0mm, 6"
Handle Grip	Velo VLG 1505D2 130/130mm
Stem	Patented Thick Stem Aluminum-Alloy 6061, 8°, Fold to right side
Headset	Aluminum with Bearing, 28.6"56-56*30/39.8 H:14mm
Wheel	Aluminum Alloy integrated wheel
Tires	Custom CST CC-21 20×2.4/60TPI Puncture Resistent
Crankset	Prowheel PRO-552PP-1, Steel Ring with double Plastic Cover, 52T All Black 170mm Crankarms
Bottom Bracket	BB68 . 122.5mm = 26.5+68+68
Chain	KMC Z7 1/2"3/32"
Rear Derailleur	Shimano RD-TY300 7-Speed Derailleur Guard
Casette	Shimano AMFTZ500742 / MF-TZ500 Speed
Shifter	Shimano SL-M315-RD 7-Speed Rapid-Fire Shifter
Brake System	NUTT Hydraulic Disk Brake Front & Rear 160mm
Front Light	Star Union QD-139/48V
Rear Light	AA Battery Red Light Optional Brake Light
Seat Clamp	Double CLAMP
Fenders	Black Painted Steel
Assembly	Arrives 95% Pre-Assembled in the box Comes fully assembled if picking up at our Abbotsford Warehouse or Vancouver Showroom.

*Range quoted is based on estimated use at Level 1 PAS. Range will vary depending on terrain, weight of rider & cargo, weather conditions, etc.

**This Sidekick ships as a Class 1 & 2, with pedal assist and throttle with a maximum speed of 32km/h. If you are riding on private property or in an area without ebike speed restrictions, the speed limit can be modified in the settings, and the motor can be unlocked to go faster. Sidekick can also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are not allowed (Class 1).

Actual product may vary slightly from the pictures on our website.

BATTERY

To make the Sidekick neat and unique, we created a patented seat-post lithium battery by Samsung and LG as our power system. Most people won’t recognize it’s an ebike at their first sight. The iBMS system is also important as it keeps your battery safe from over-charging, and over heating. iBMS manages all the cells to work more efficiently to offer you a longer range. The seat-post battery is removable so you can either charge it while attached to the bike or separately in your home, office, or anywhere there is an electrical outlet.

*Range quoted is based on estimated use at Level 1 PAS. Range will vary depending on terrain, weight of rider & cargo, weather conditions, etc.

WEIGHT & MEASUREMENTS

FREE SHIPPING WITHIN CANADA!

Shipping Box	64L x 11W x 27T inches
Folded Size	32.6 x 20.1 x 27.5
Unfolded Size	63 x 23.6 x 44 inches
Stand Over Height	24 inches
Net Weight (approx)	27KG (With battery) (60lbs)
Weight Capacity	Up to 300lbs
Package Weight (approx)	32KG (70lbs)
Rider Height	5'5" +

Our Sidekick Series comes PRE-ASSEMBLED right out of the box!

WHAT'S INCLUDED?

Your Sidekick comes 95% fully assembled inside the box, ready to ride! It also includes the following:

☑️ 2.8A FastCharger
☑️ Bell
☑️ Tool Kit
☑️ Heavy Duty Kickstand

PLUS FREE ACCESSORIES FOR A LIMITED TIME:
☑️ LED Headlight ($49 Value)
☑️ LED Tail Light ($29 Value)
☑️ Fenders + Rear Rack

WARRANTY

LIFETIME FRAME WARRANTY!

We offer an industry exclusive 2-Year Warranty on ALL new Ebikes purchased. For complete warranty details, click here.

NEW ALTER EGO E-BIKES	WE PAY	YOU PAY
12 MONTHS / 3,000KM from Date of Delivery	100% Parts 100% Parts Shipping 100% Labor if done at our shop	100% Labor (Only if done at another shop)
13-18 MONTHS / 3,000KM from Date of Delivery	50% Parts 50% Parts Shipping	50% Parts 50% Parts Shipping 100% Labor
19-24 MONTHS / 3,000KM from Date of Delivery	25% Parts	75% Parts 100% Parts Shipping 100% Labor

USER MANUALS

User Manual
LCD Display
How to fold your Sidekick

TECHNICAL SPECS

BATTERY

WEIGHT & MEASUREMENTS

WHAT'S INCLUDED?

WARRANTY

USER MANUALS

COMPARE ALL SIDEKICK MODELS

36V LITE SERIES

48V PRO SERIES

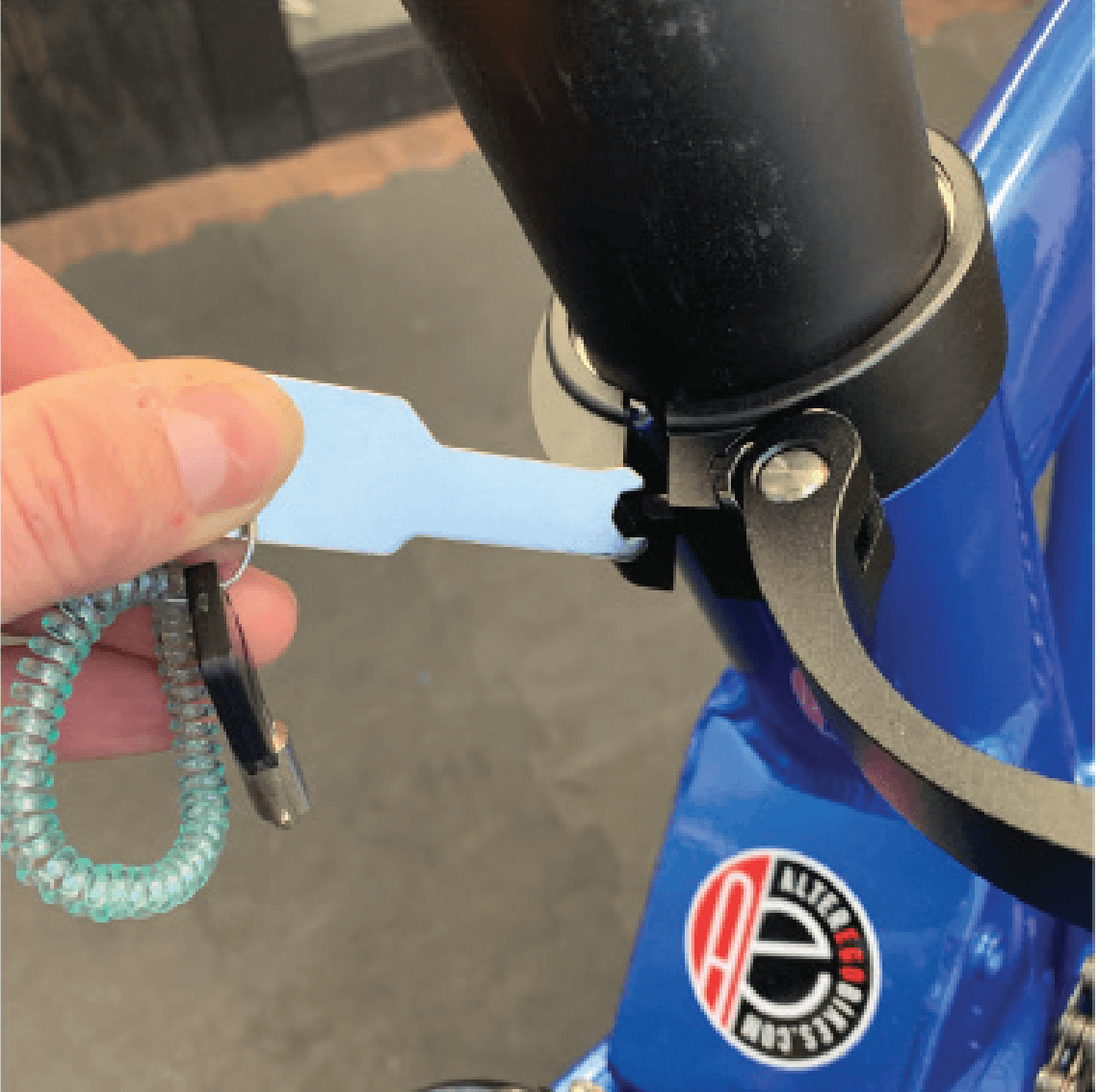

Seat Post Wrench - Sidekick Series
