GoMad 1 (by Velotric)

$2,799.00 $2,899.00 $100.00 Off
Select color : Dark Amber

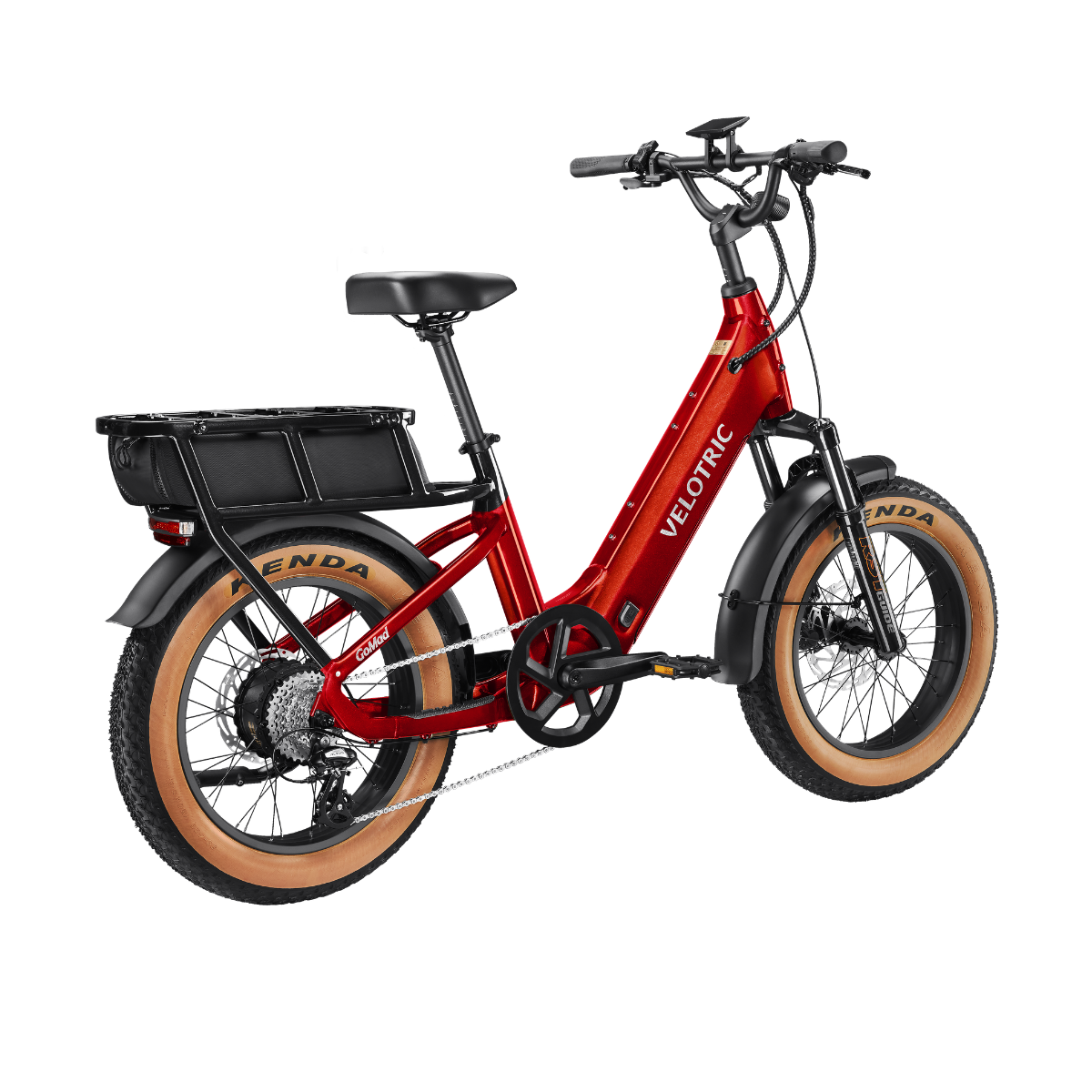

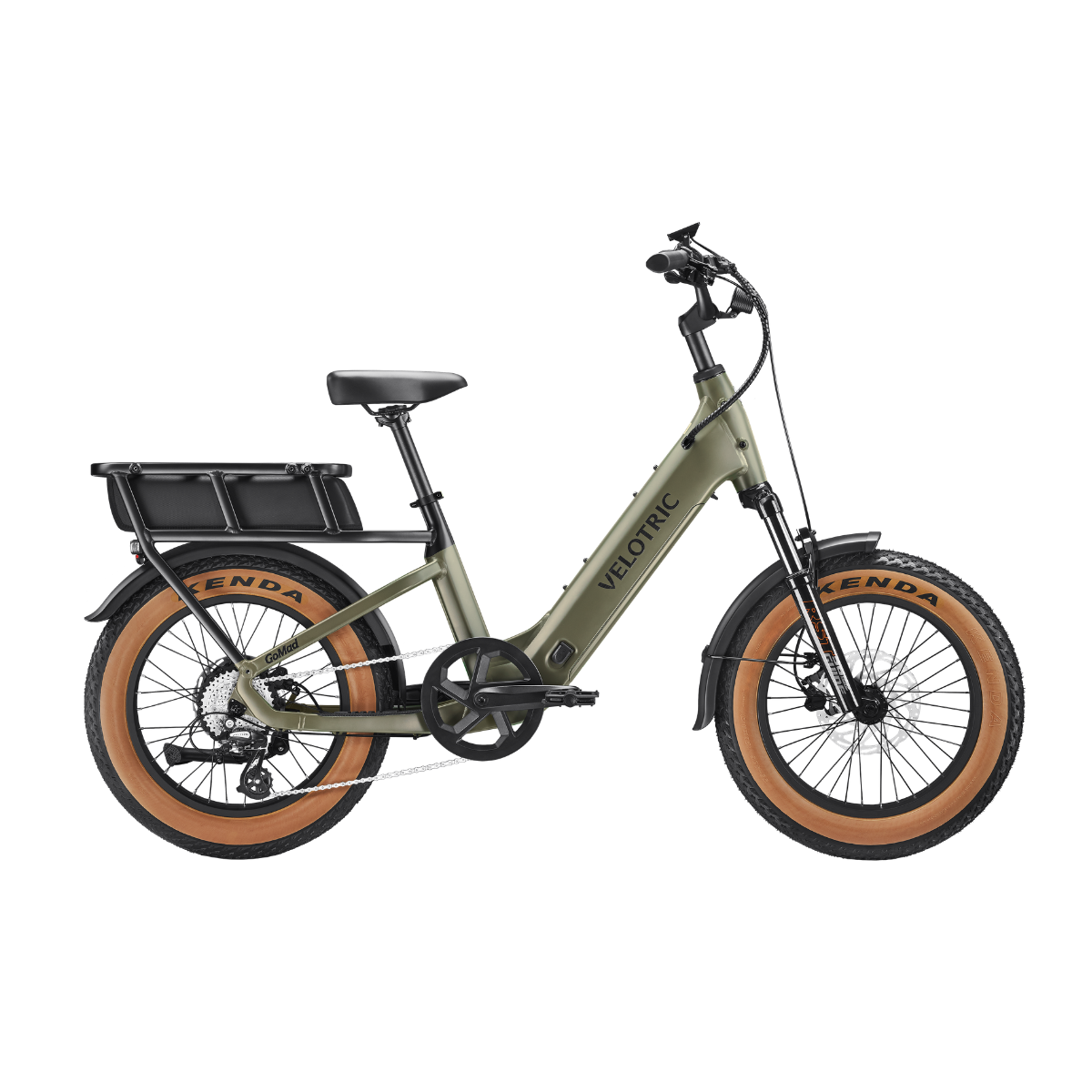

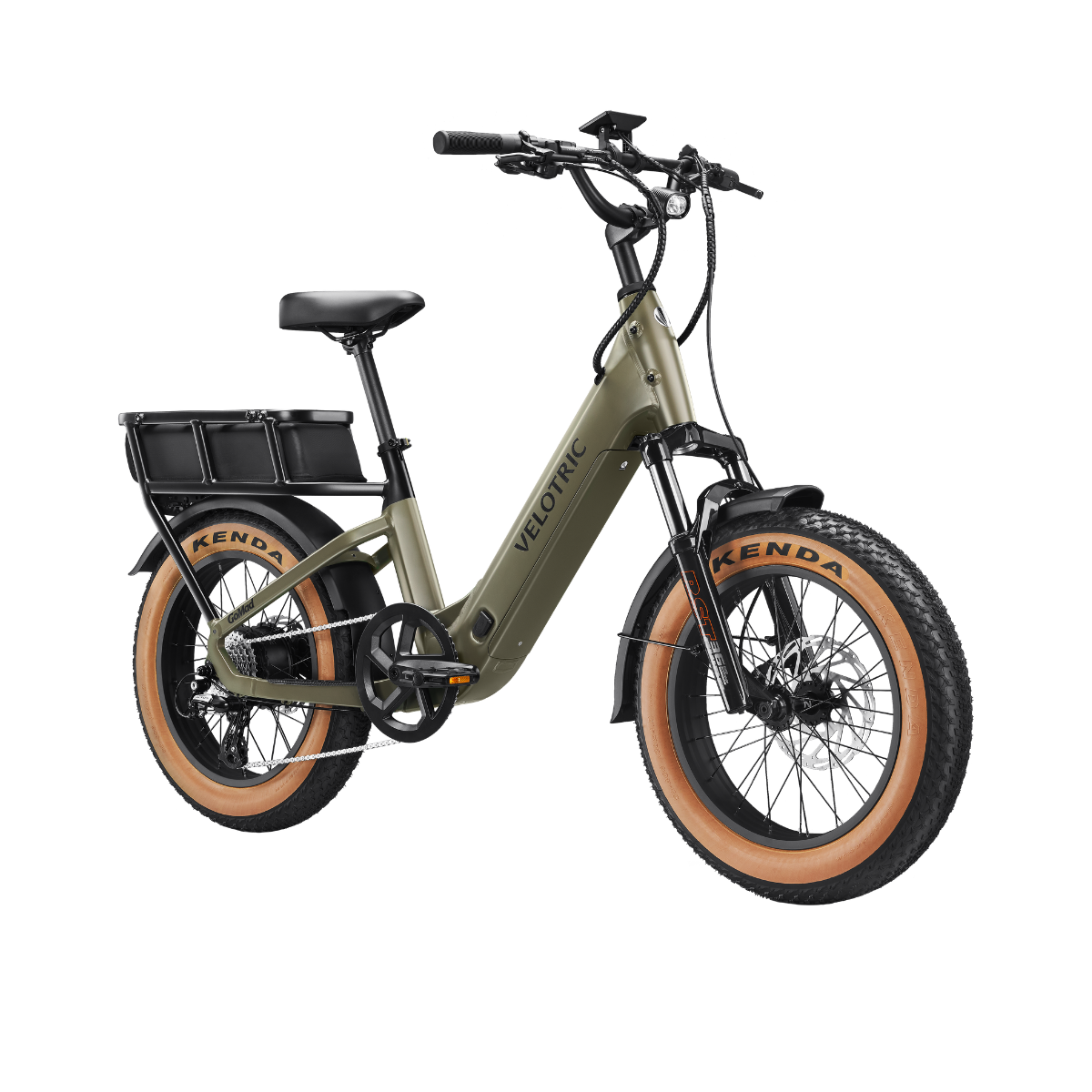

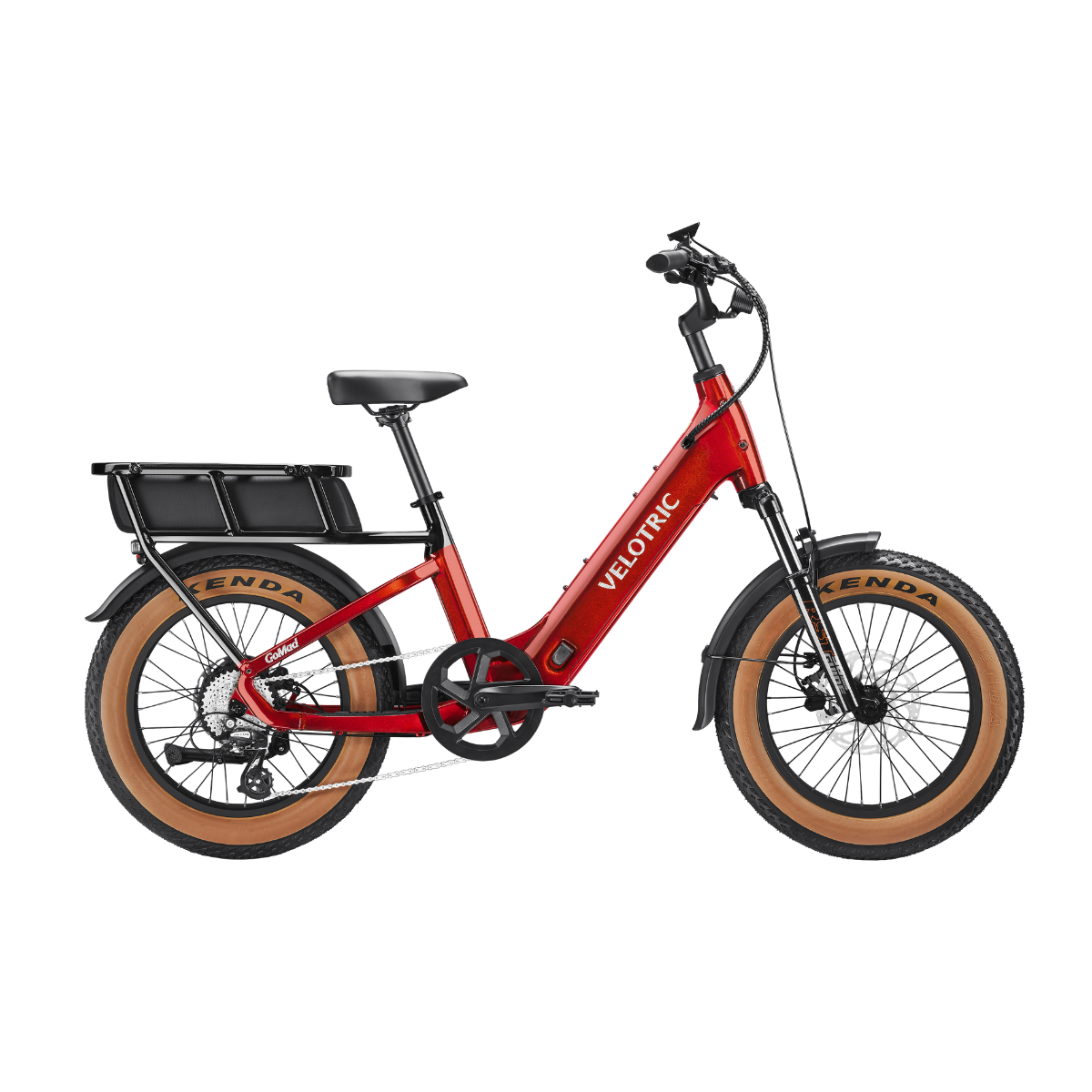

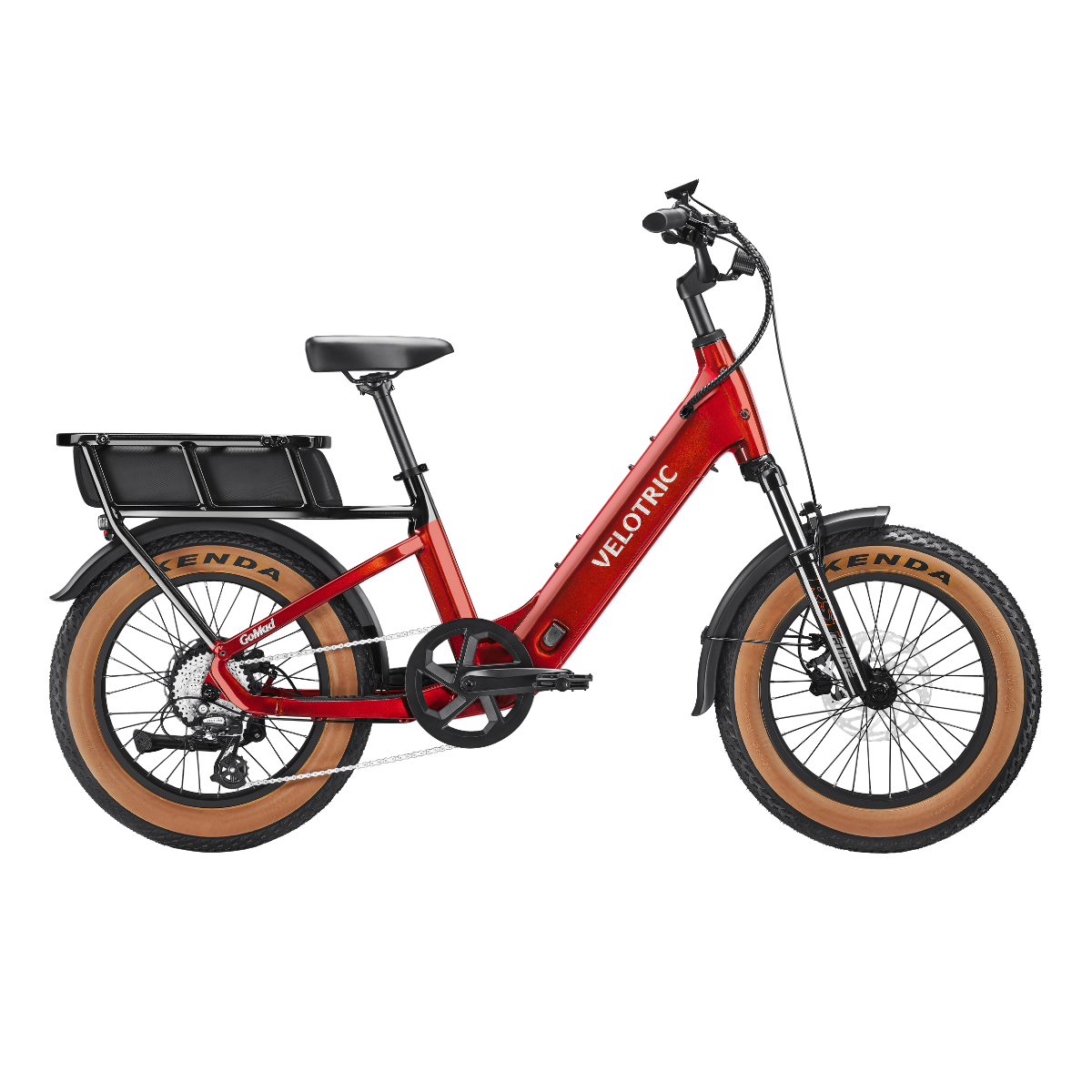

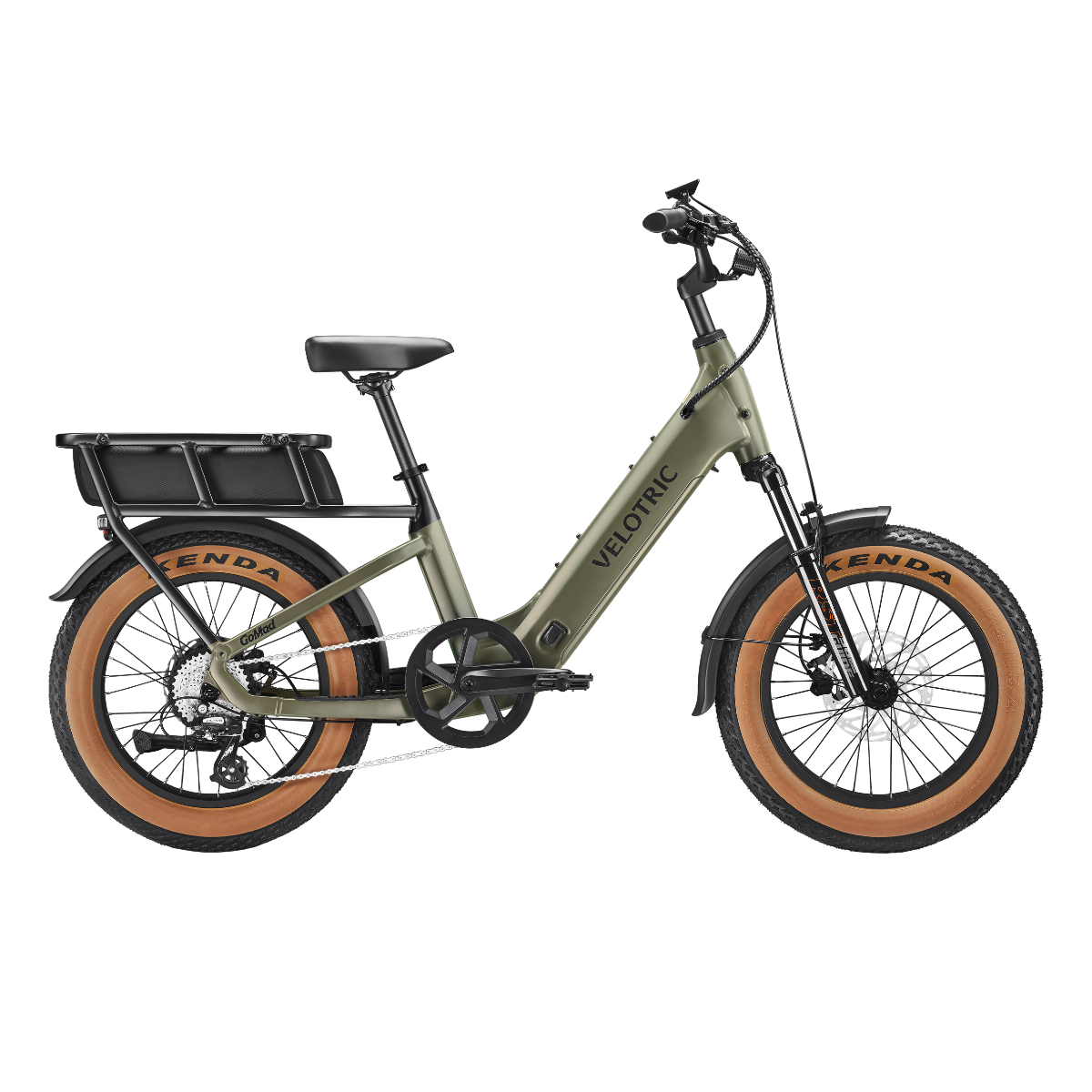

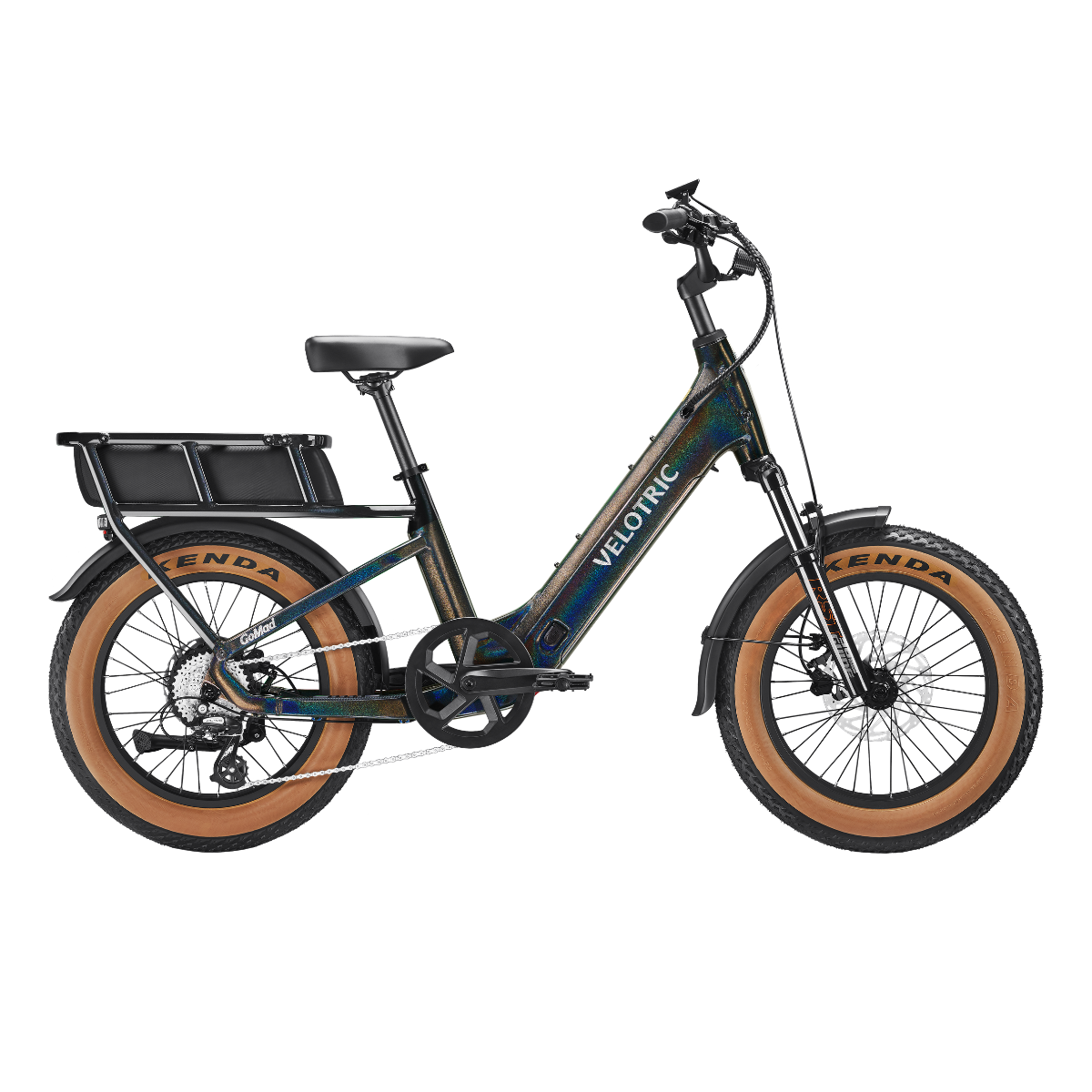

The Velotric GoMad is a compact, high-capacity utility fat-tire e-bike designed for demanding everyday use, with strong torque, puncture-resistant tires, and a heavy-duty frame.



SPECIFICATIONS

General
Model Velotric GoMad (GoMad 1 in some listings)
Bike Type Utility / Cargo Fat-Tire eBike
Frame Triple-Butted Aluminum Alloy, One Size
Wheel Size 20-inch
Bike Weight 77 lbs

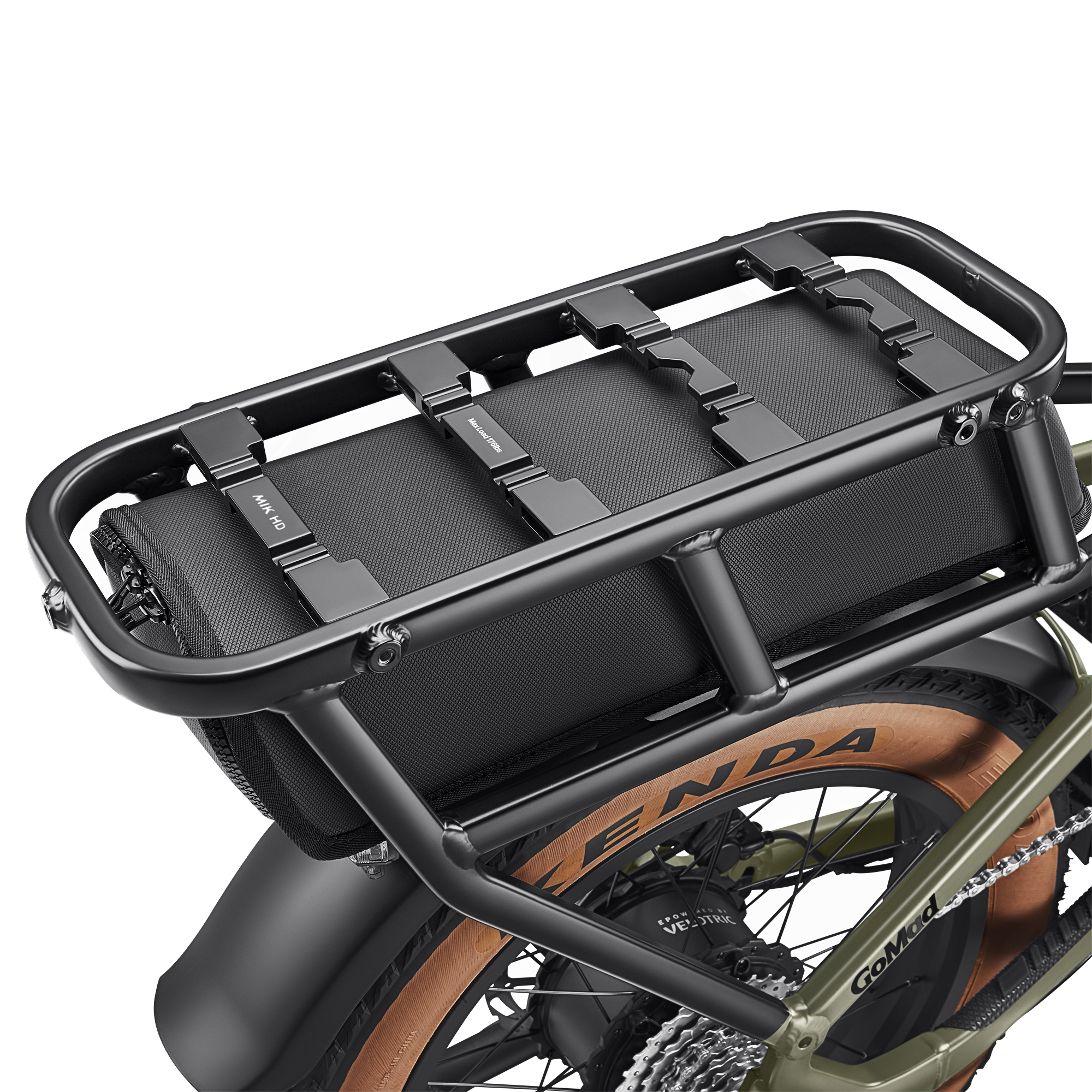

Max Payload 500 lbs total
Standover Height 500 mm
Rider Height 5'0" - 6'3"
Power System

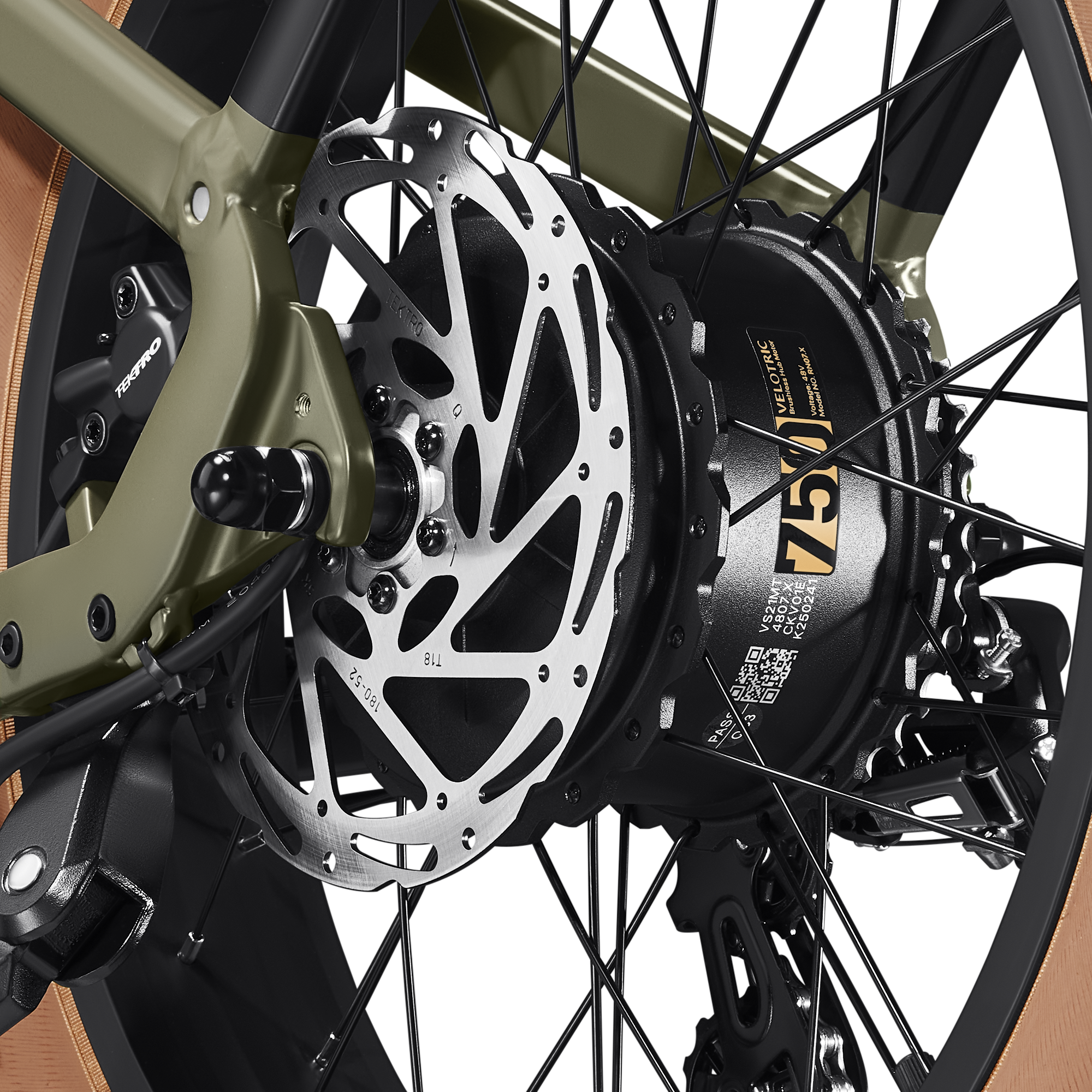

Motor 48V, 750W nominal (1300W peak), 85Nm torque

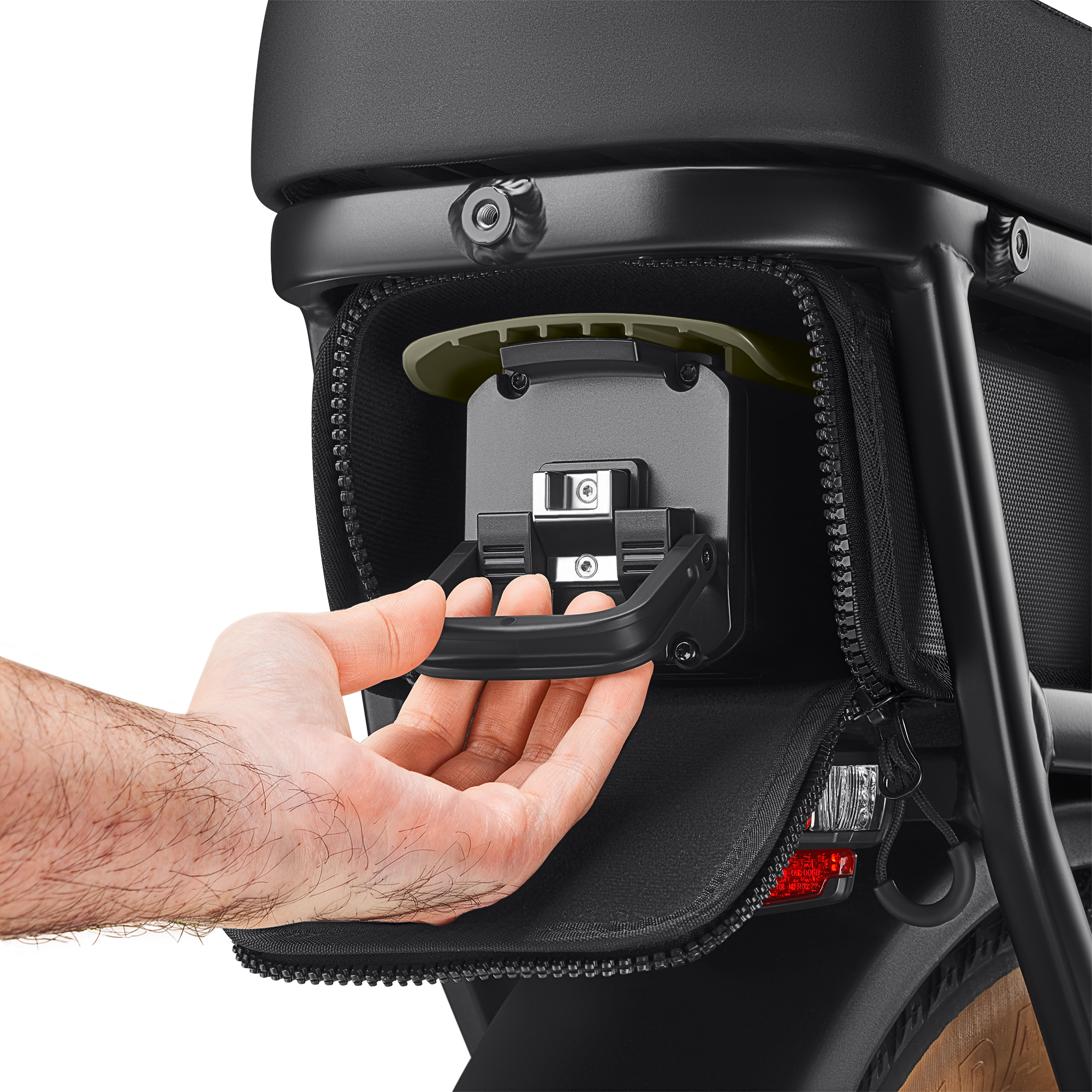

Battery 48V 16.7Ah (801.6Wh), Samsung/LG 21700 cells, UL 2271 & UL 2580 certified, IPX7 waterproof

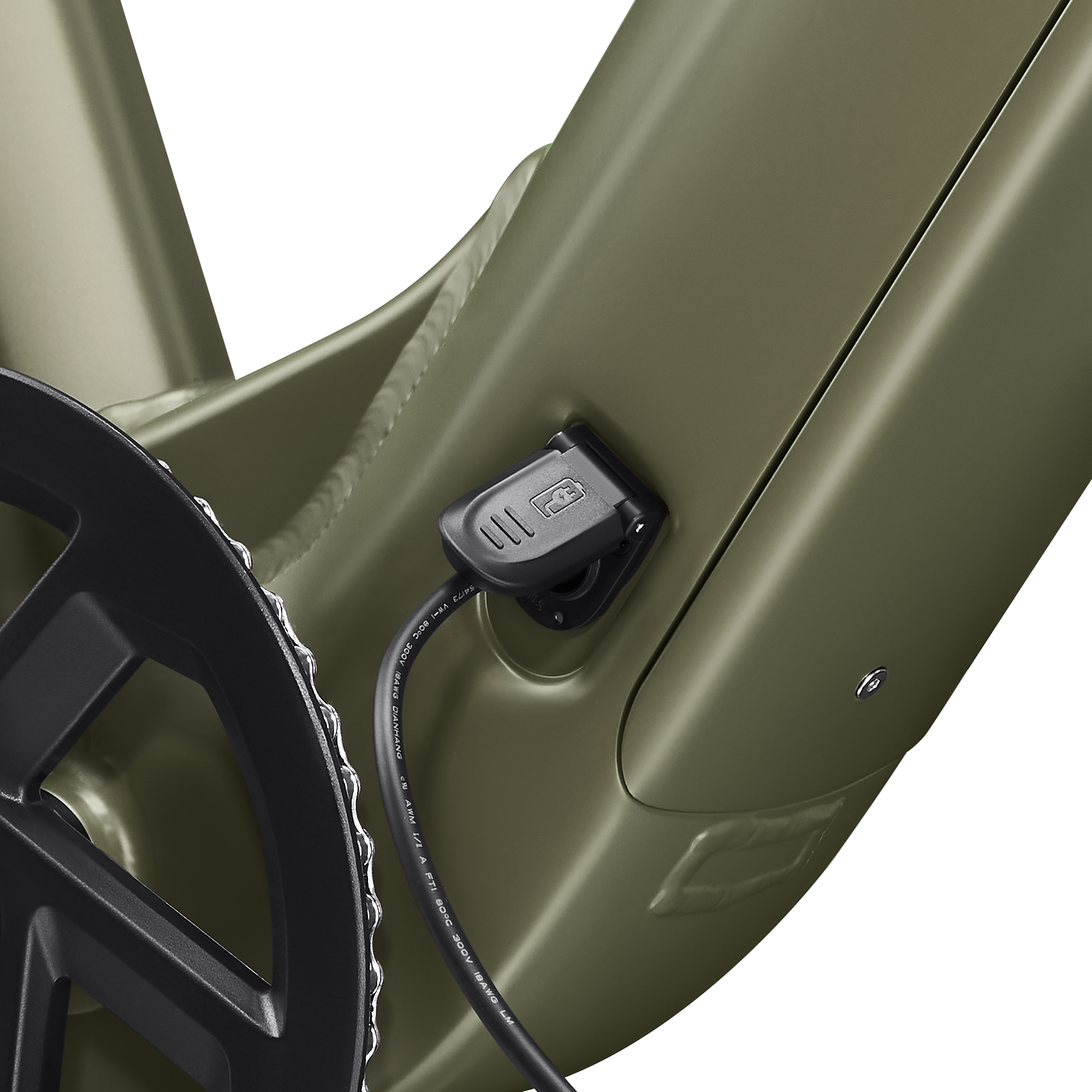

Charger 48V 3A fast charger
Range Up to 130km (estimated; varies by conditions, assist level, load)
Drivetrain & Controls
Drivetrain Shimano 8-speed (11-34T cassette/freewheel, 52T narrow-wide chainring)
Shifters & Derailleur Shimano 8-speed

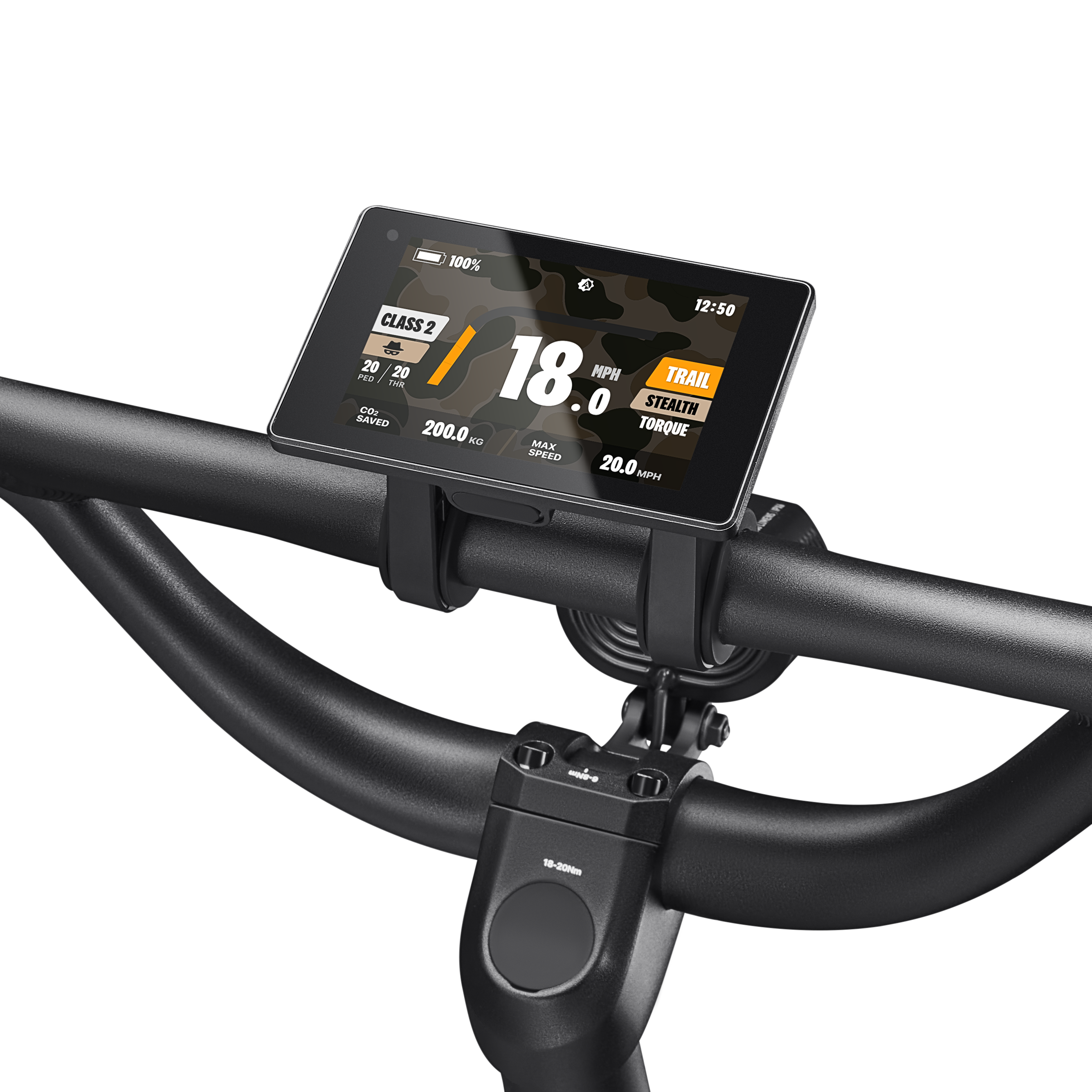

Display 3.5" full-color, high-brightness, adjustable angle, Bluetooth, NFC, iOS & Android App Enabled
Suspension & Wheels
Fork RST Hydraulic Suspension, 100mm travel, lock-out, 36mm stanchions
Tires Kenda 20x4.0" eBike puncture-resistant fat tires
Rims & Hubs Aluminum alloy rims; Novatec aluminum alloy hubs (15x135mm thru-axle front)
Brakes & Safety

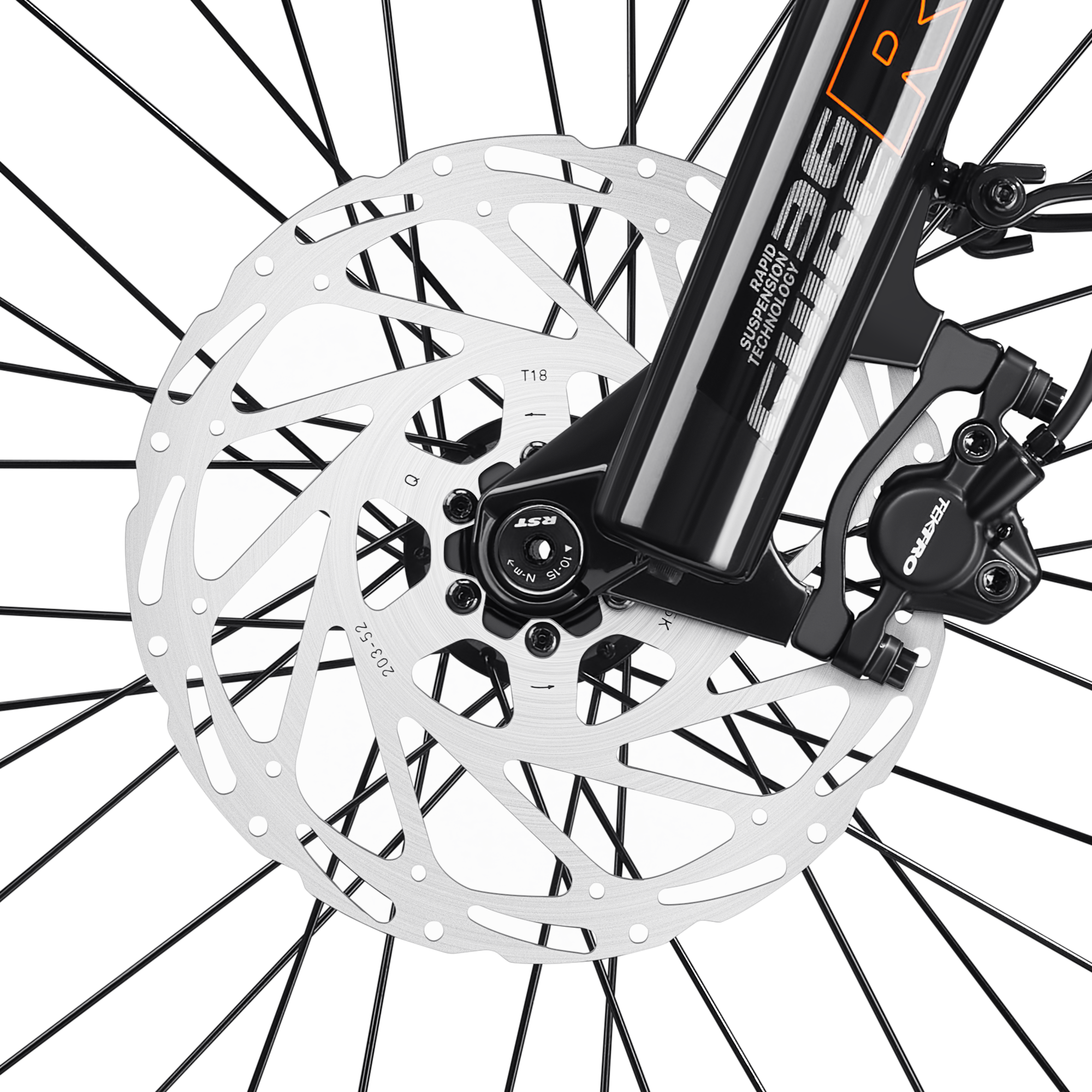

Brakes Tektro Hydraulic Disc Brakes
Rotors 203mm front / 180mm rear
Certifications UL 2849 (e-bike system), UL 2271 (battery)
Components
Handlebars BMX-style, 31.8mm clamp, 700mm wide
Stem Quill stem, 31.8mm clamp, 30mm length, 140mm vertical adjustment
Seatpost Aluminum alloy, 30.9mm, suspension type
Saddle Velotric comfort ergonomic seat
Pedals Plastic

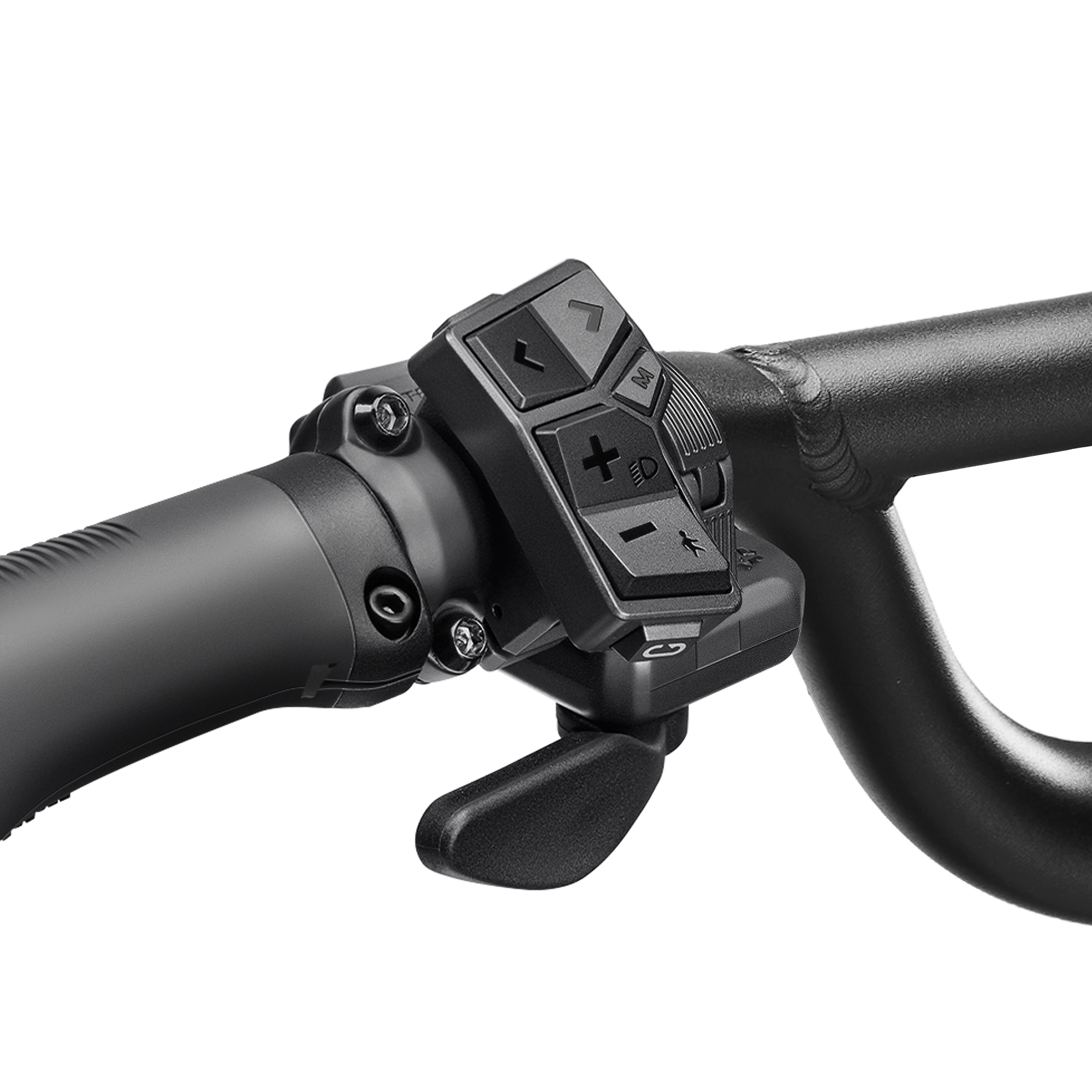

Grips Durable ergonomic, lockable

Note: Specifications can vary slightly by retailer or production batch. For the most up-to-date info, check authorized Velotric dealers or the official site when the model is fully listed. Range depends on rider weight, terrain, assist level, and load.



GEOMETRY

The Velotric GoMad uses a single "One Size" frame optimized for utility, accessibility, and heavy loads, with a very low standover height ideal for a broad range of riders.

Geometry
Frame Size One Size
Rider Height: 5'0" - 6'3"
Reach 420 mm
Wheelbase 1171 mm
Standover Height (Bike) 500 mm
Stack Not specified (typical estimate for compact 20" utility e-bikes: ~550–620 mm)
Head Tube Angle Not specified (likely ~68–70° for stability with fat tires and load)
Seat Tube Angle Not specified
Chainstay Length Not specified

Note: Confirmed measurements (Reach, Wheelbase, Standover) are consistent across authorized dealers like Trailhead Cycling and Bert's Bikes. Additional geometry details are not yet published by Velotric. The low 500 mm standover provides excellent accessibility (suitable for rider heights roughly 5'0"–6'4"+, depending on inseam and setup). Check the official Velotric site or a dealer for any updates, as this is a newer 2026 model.
